Argus Automatic Top Cover Removal

1 / 14

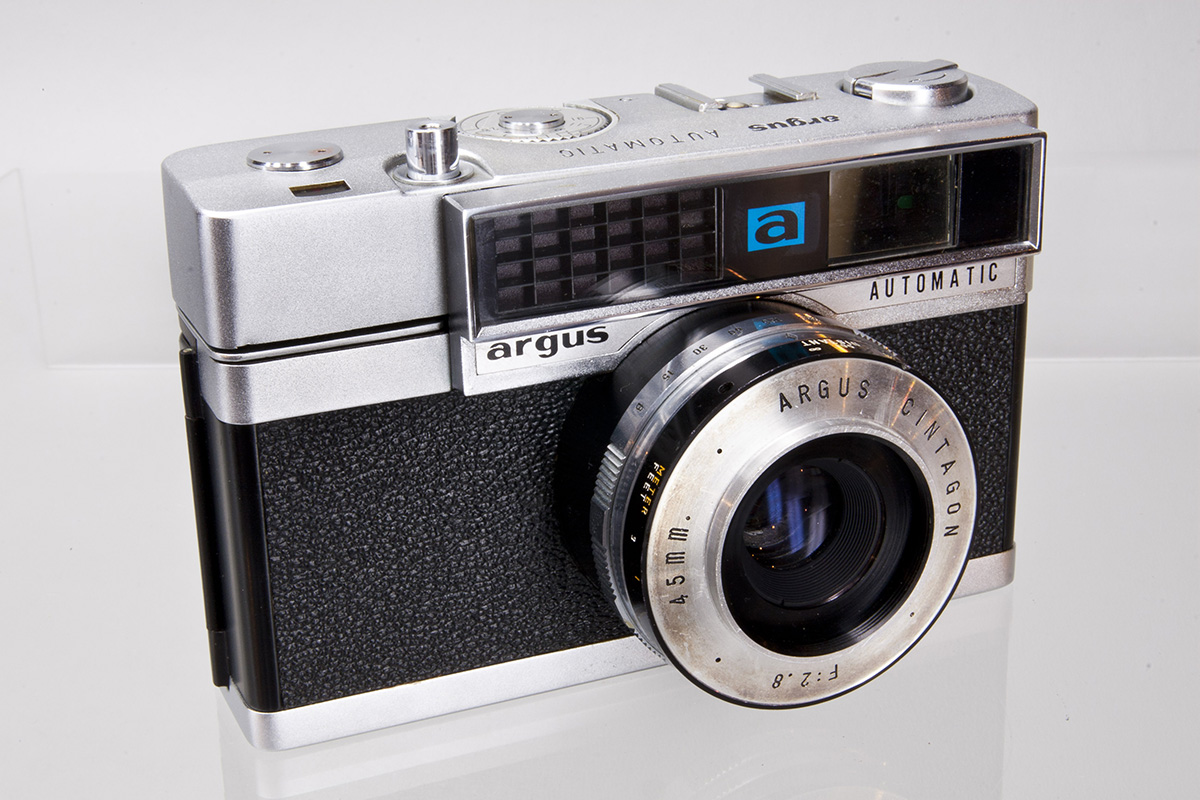

Step-by-step tutorial for removing the Argus Automatic top cover.

Step-by-step tutorial for removing the Argus Automatic top cover.

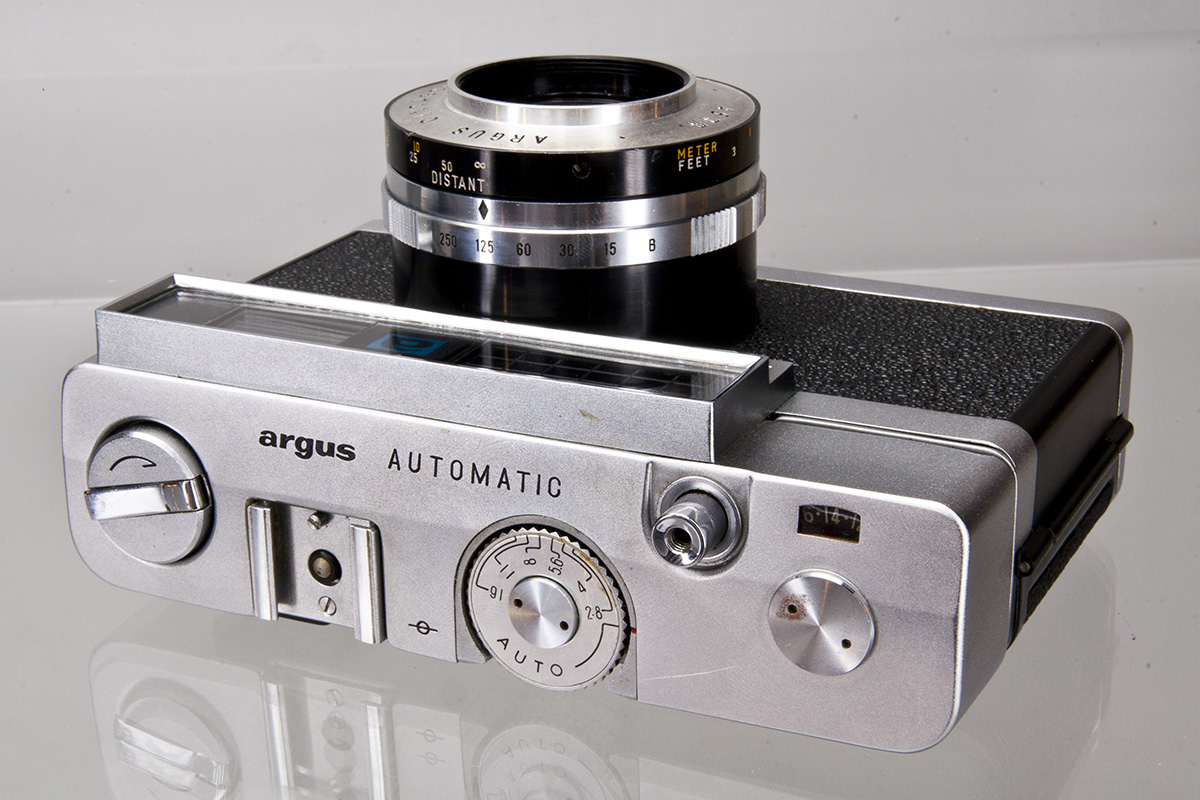

Remove the pin-face screw on the Auto/Manual Control dial.
Remove the brass ASA dial retaining screw with a spanner.

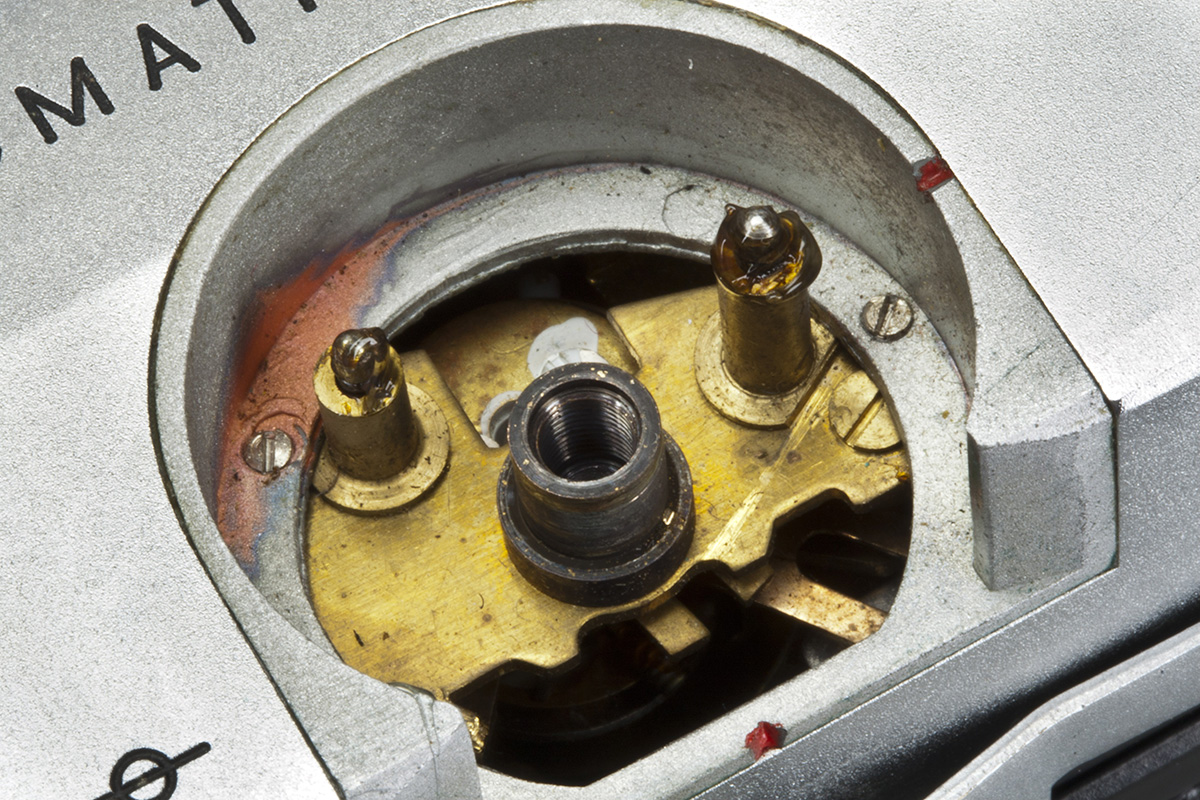

There are two top cover screws under the ASA dial. Don't loose the ball bearings; a little grease will hold them in place during reassembly.

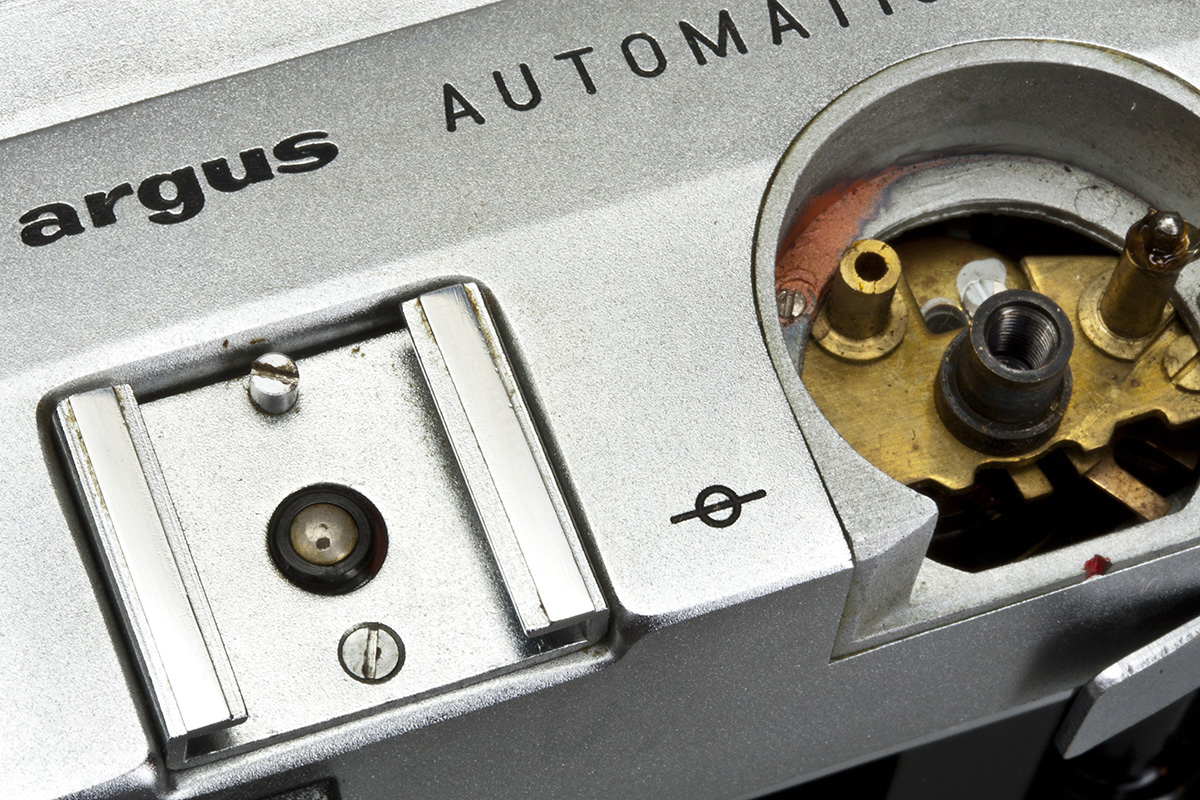

Remove the two hot shoe retaining screws.

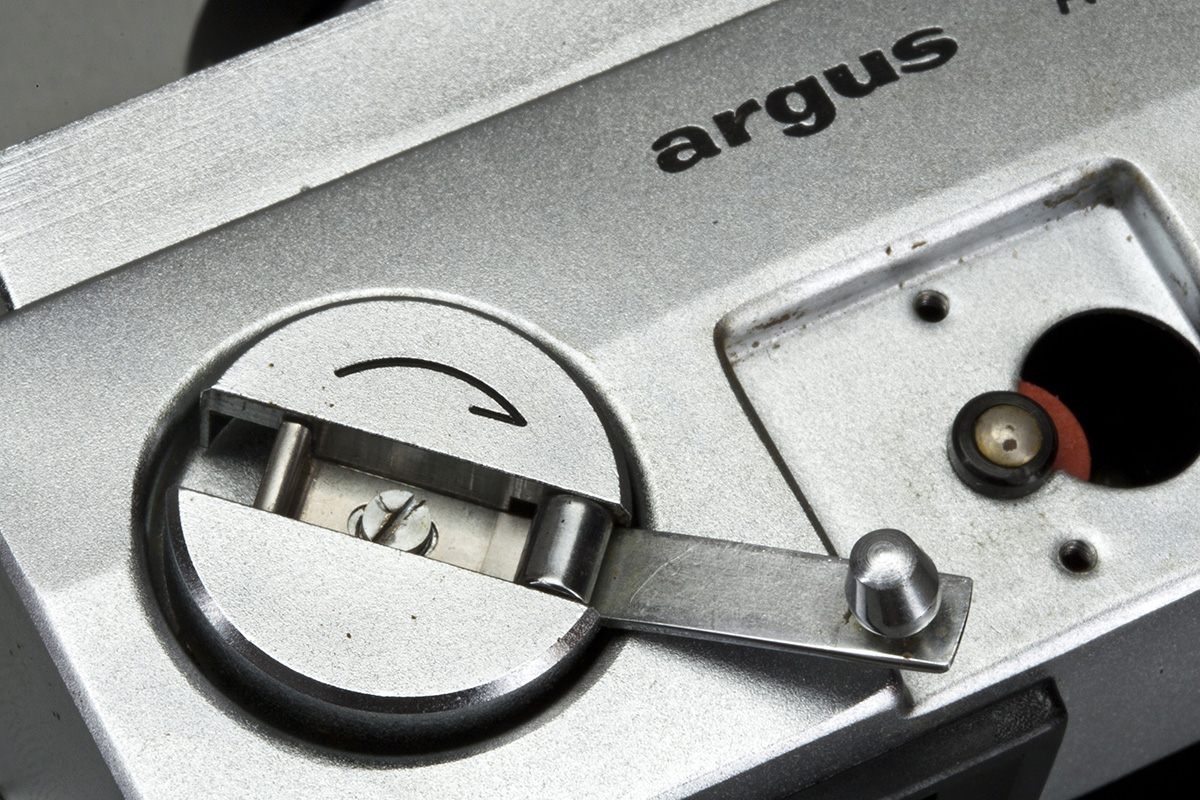

Remove rewind knob retaining screw.

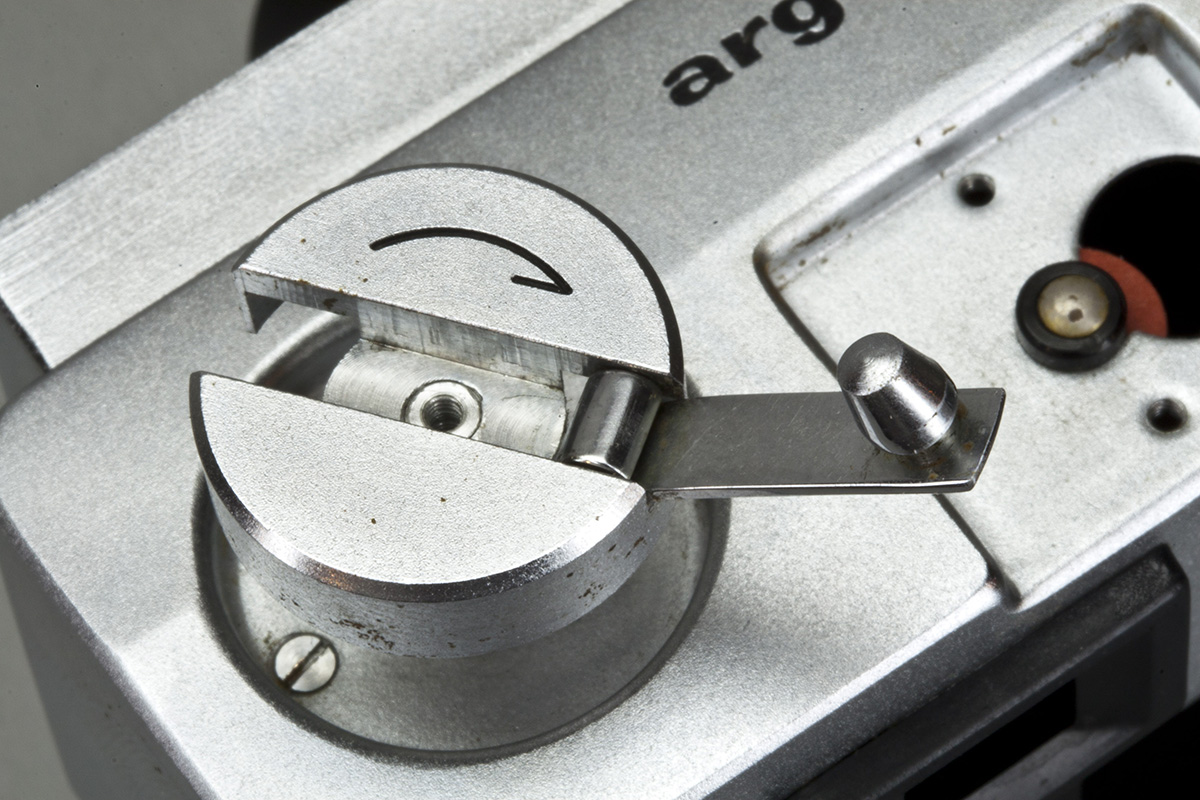

Place a screwdriver between the fork of the rewind shaft and unscrew the knob from the shaft.

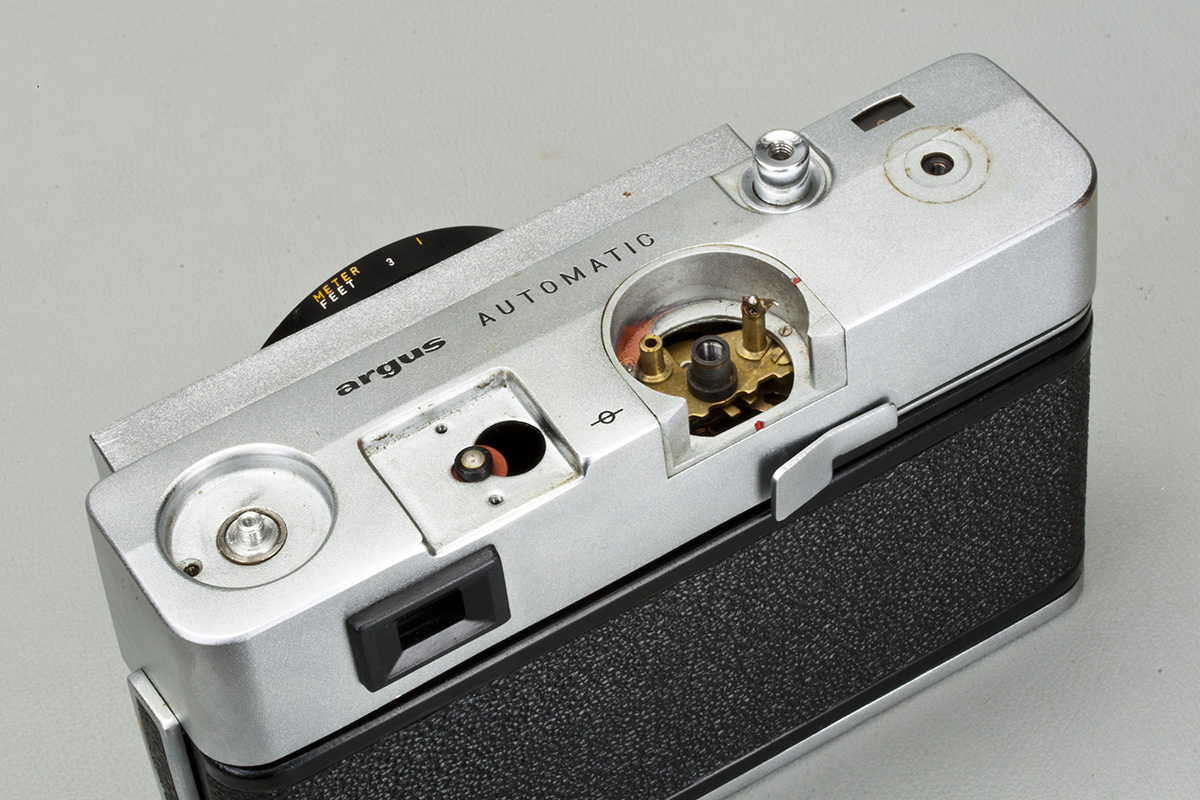

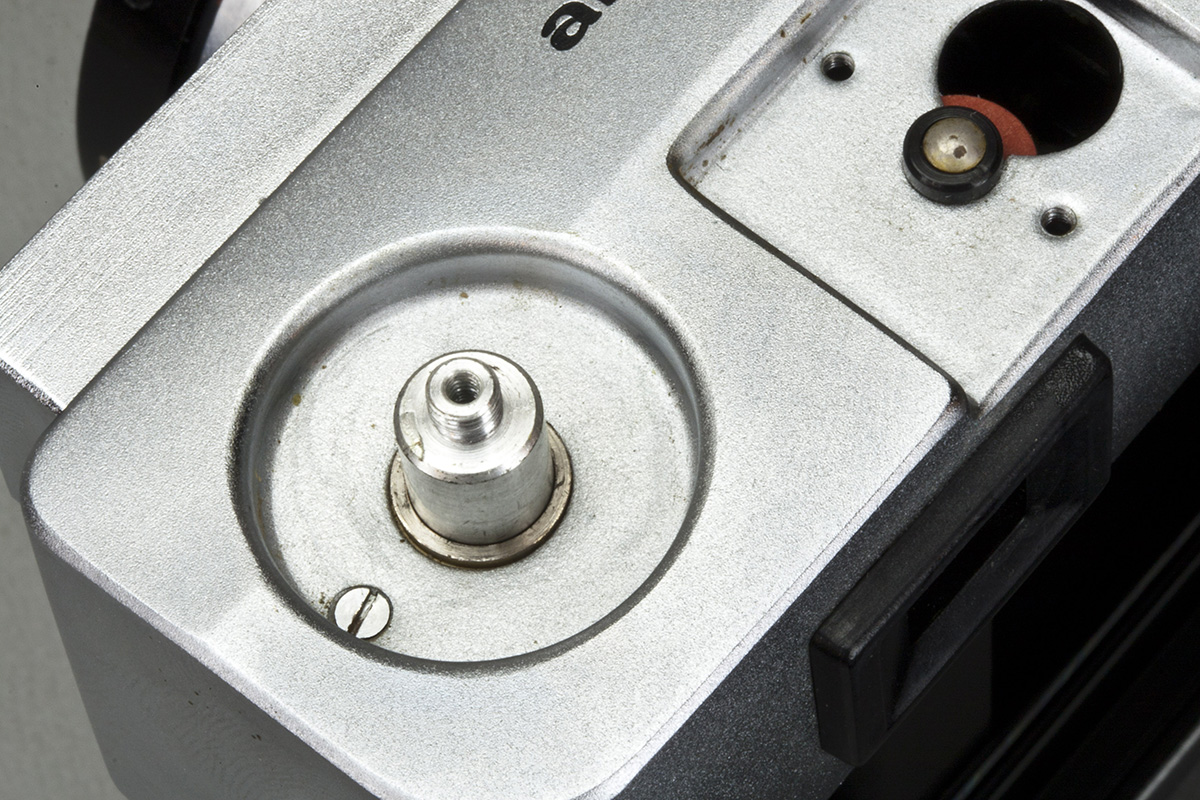

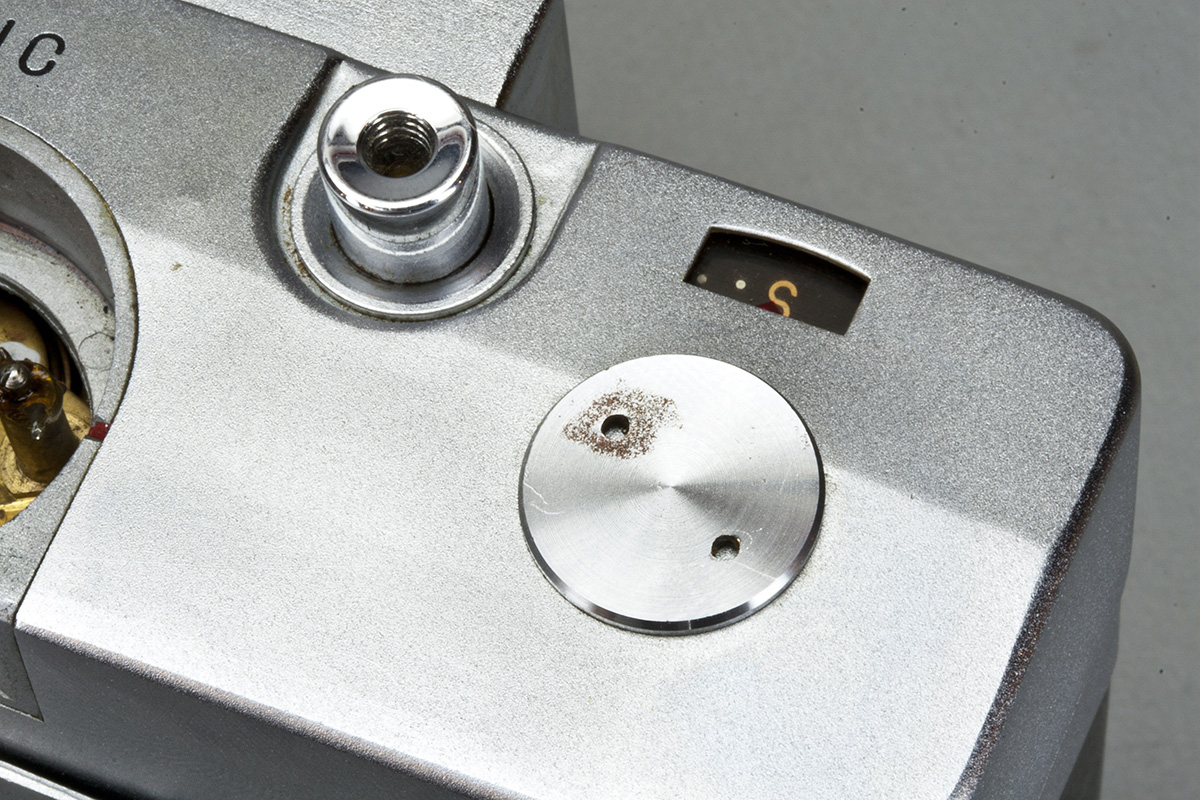

One top cover screw under the rewind knob.
Remove the pin-face screw.
You can now lift off the top cover. Be careful with the flash sync wire.

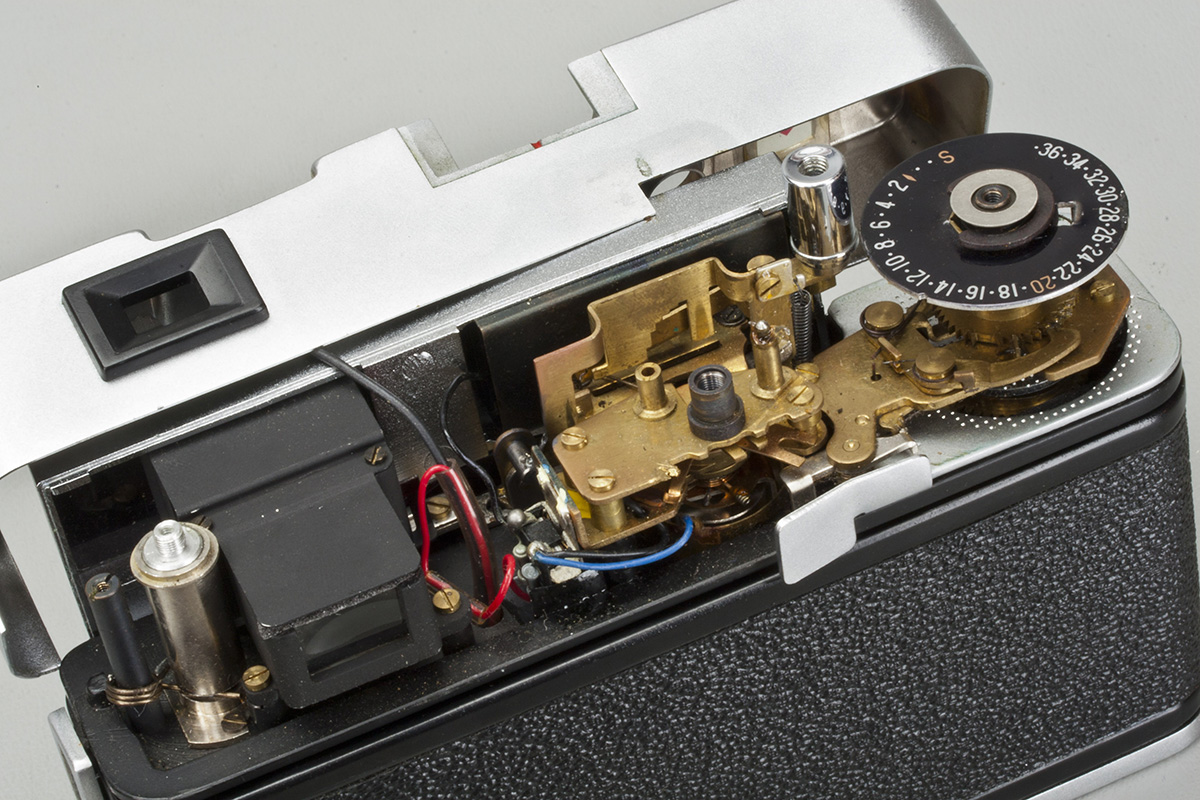

Top cover removed.

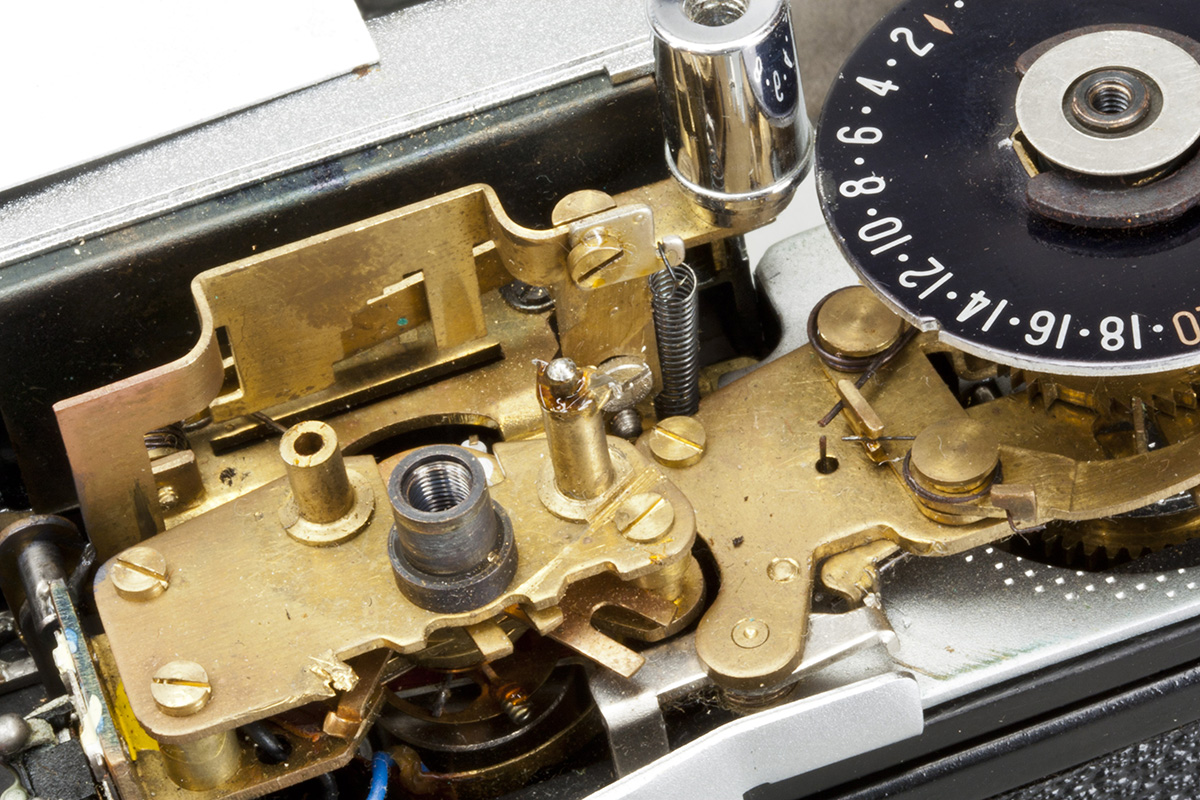

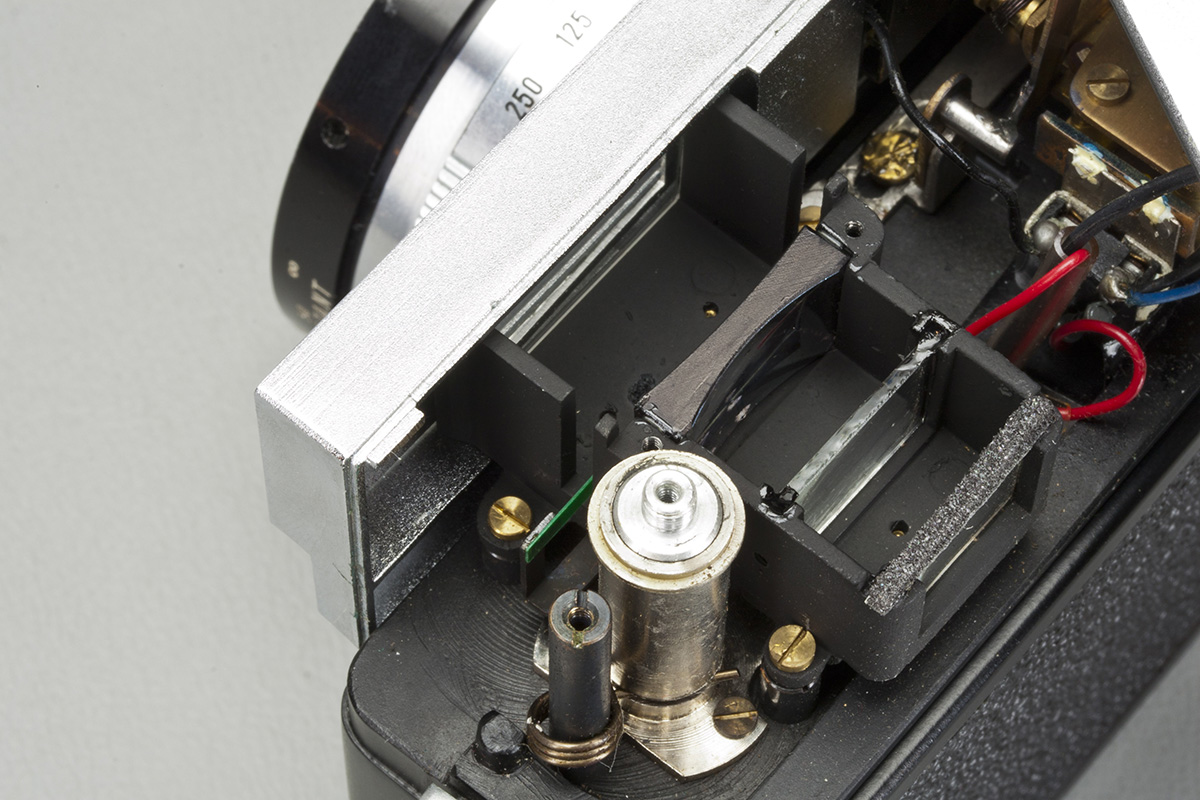

Close-up 1.

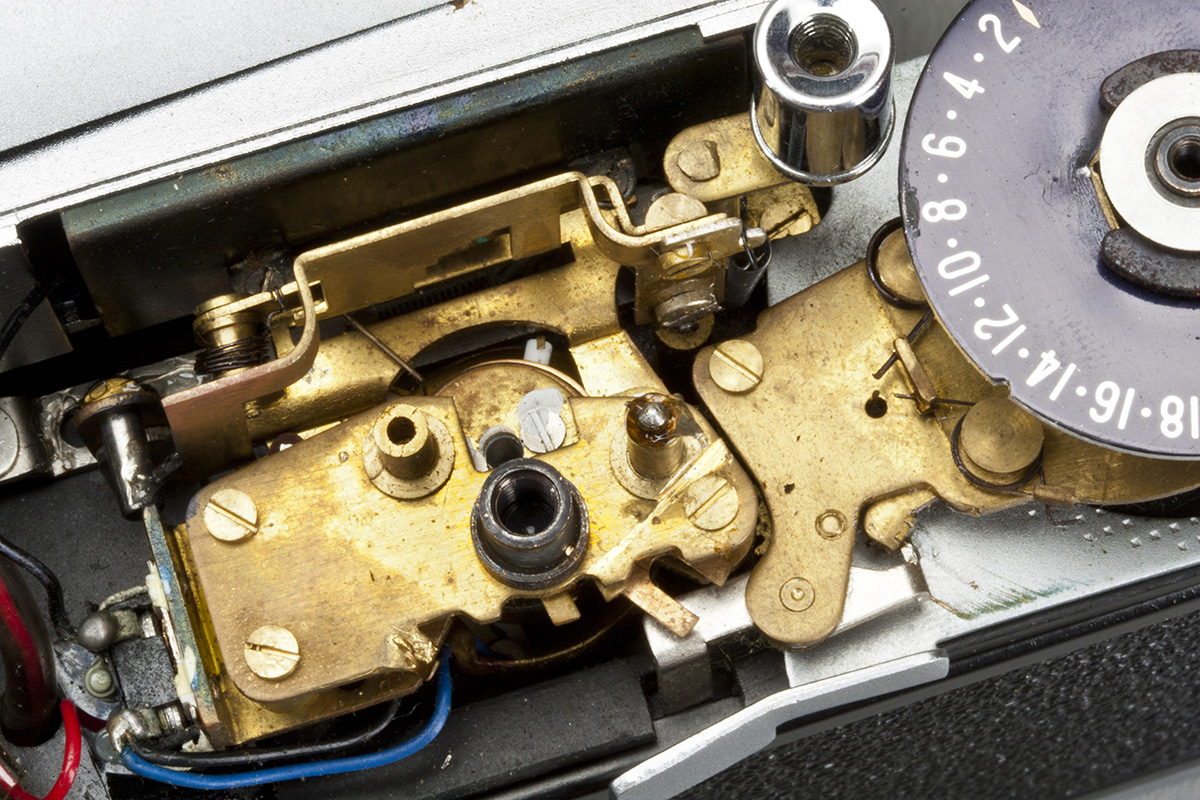

Close-up 2.
Close-up 3.
