Konica C35 V Top Cover Removal

1 / 17
2 / 17
3 / 17
4 / 17
5 / 17
6 / 17
7 / 17
8 / 17
9 / 17
10 / 17
11 / 17
12 / 17
13 / 17
14 / 17
15 / 17
16 / 17
17 / 17

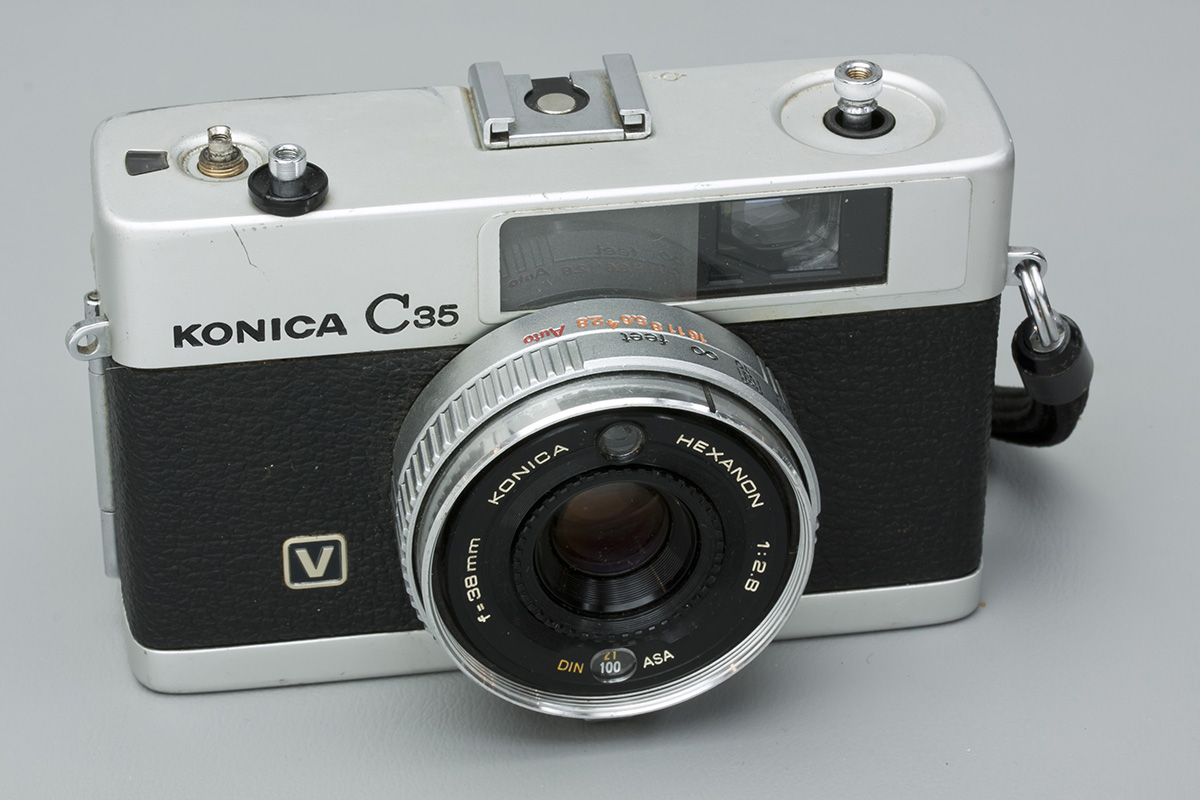

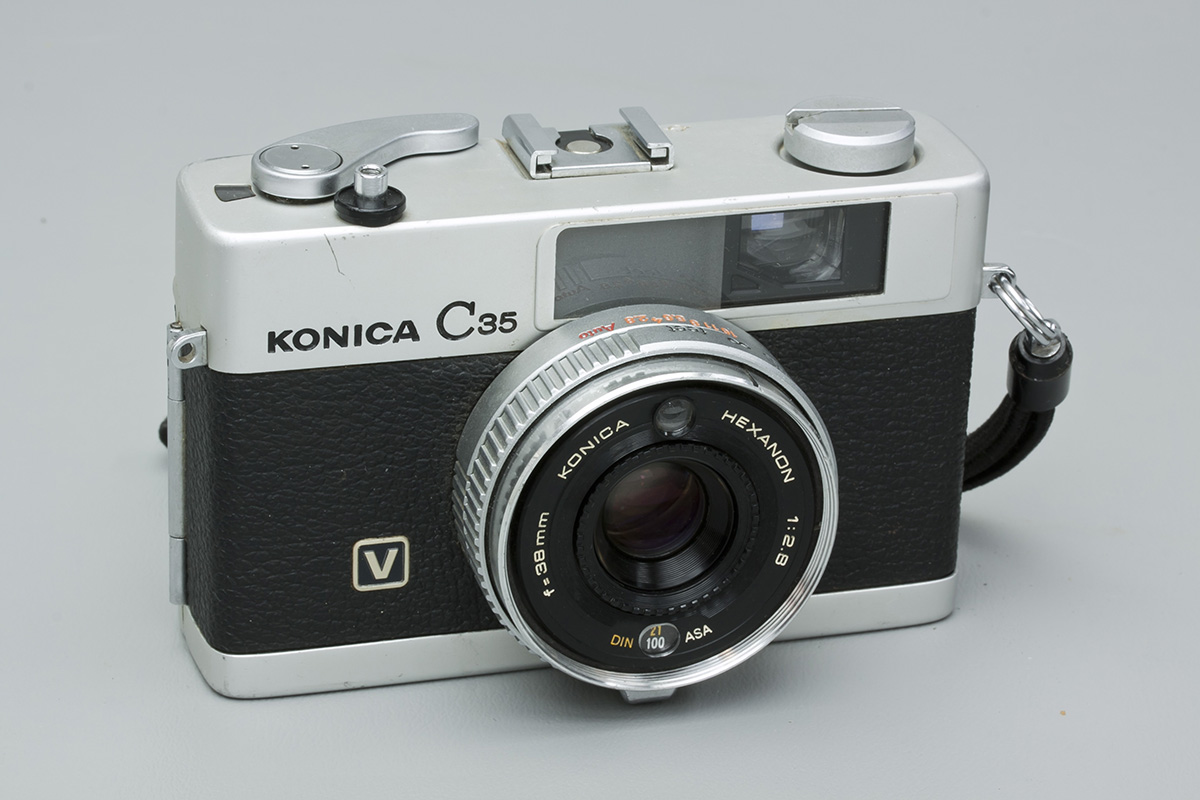

Removing the top cover of the Konica C35 V.

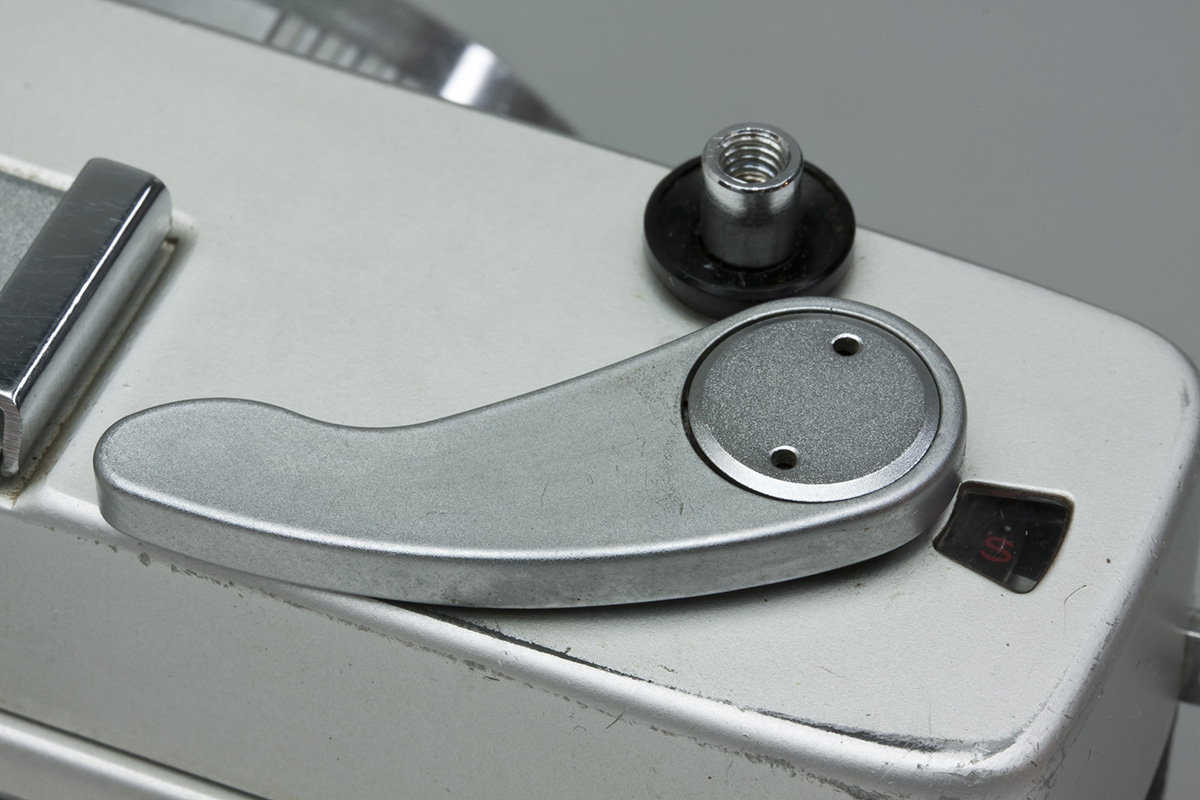

Remove the film advance lever retaining screw with a spanner wrench.

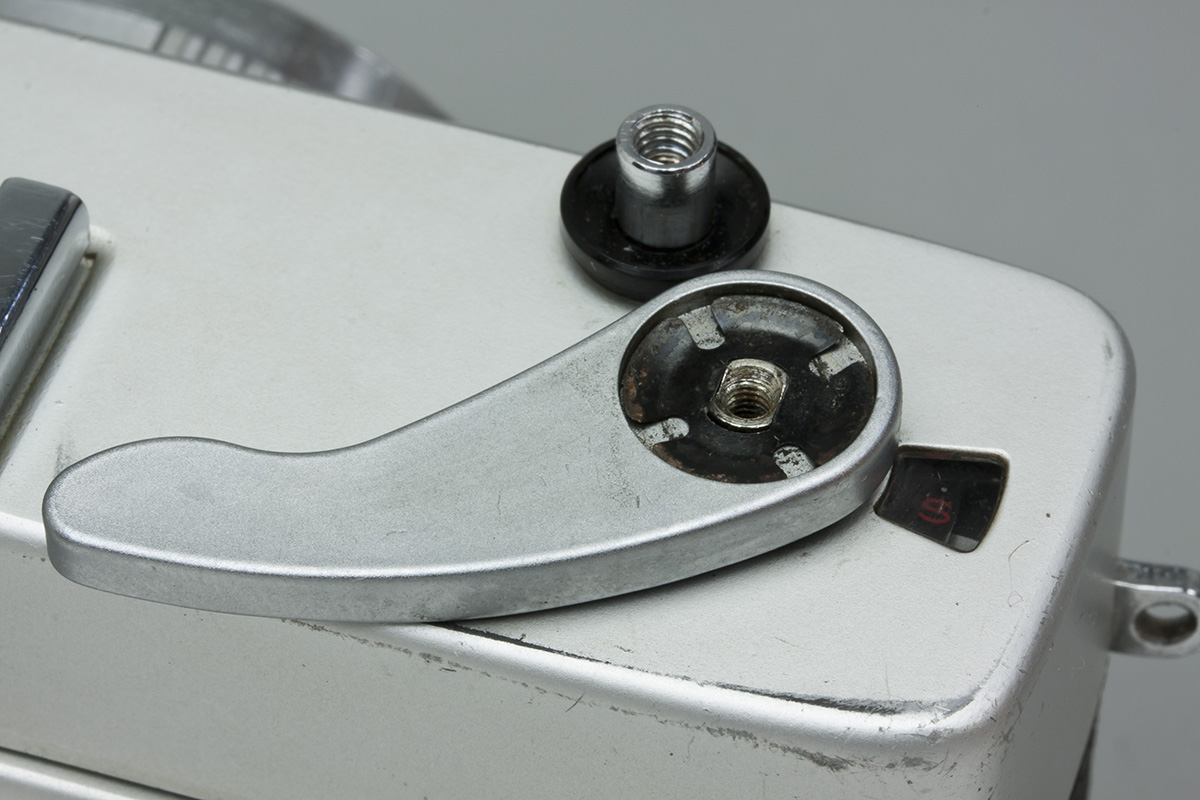

Lift off spring washer and film advance lever.

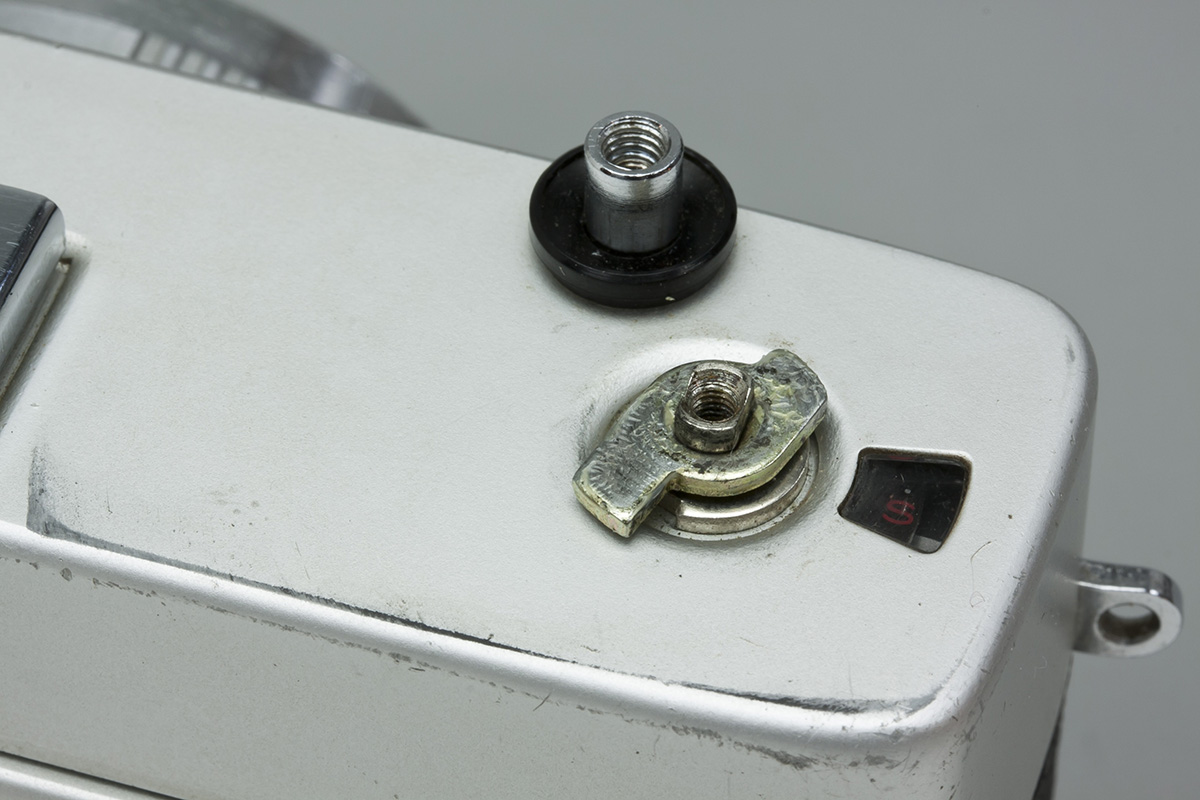

Remove advance coupler.

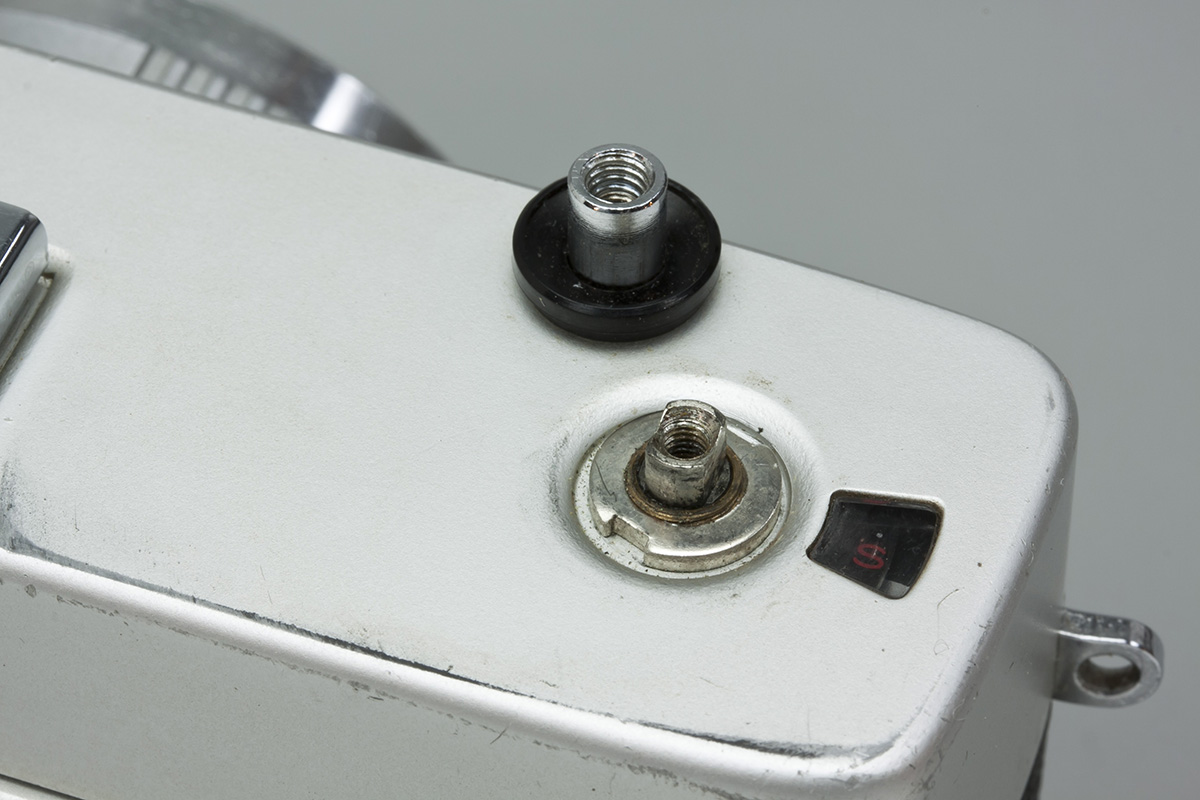

Remove the retaining nut with a spanner wrench.

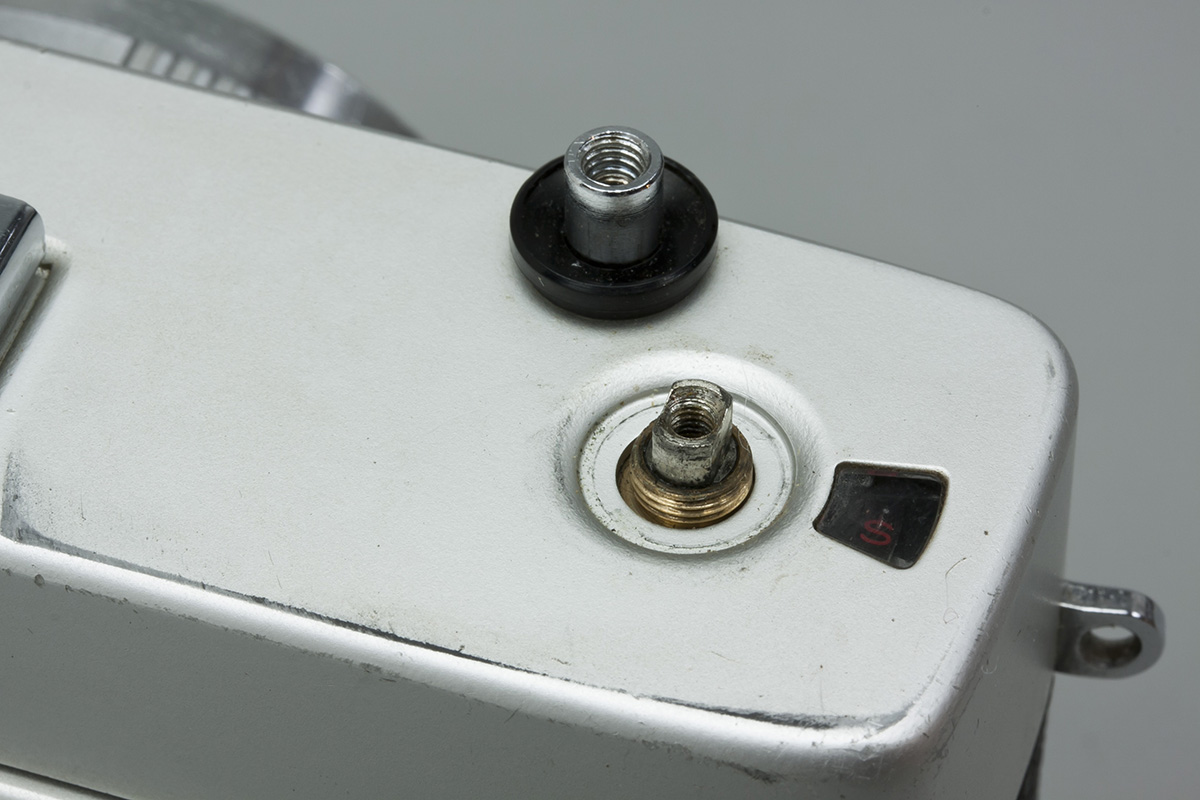

All done here.

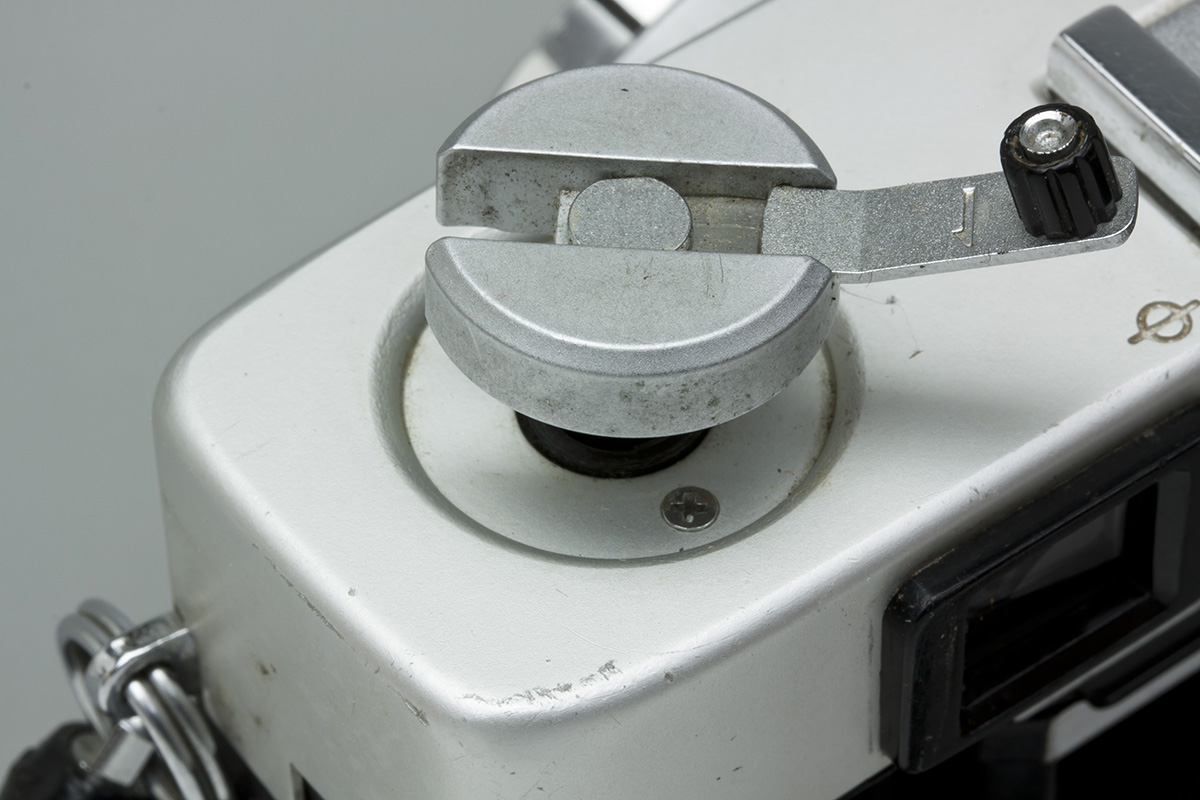

With a screwdriver shaft placed in the fork of the rewind shaft, unscrew rewind knob.

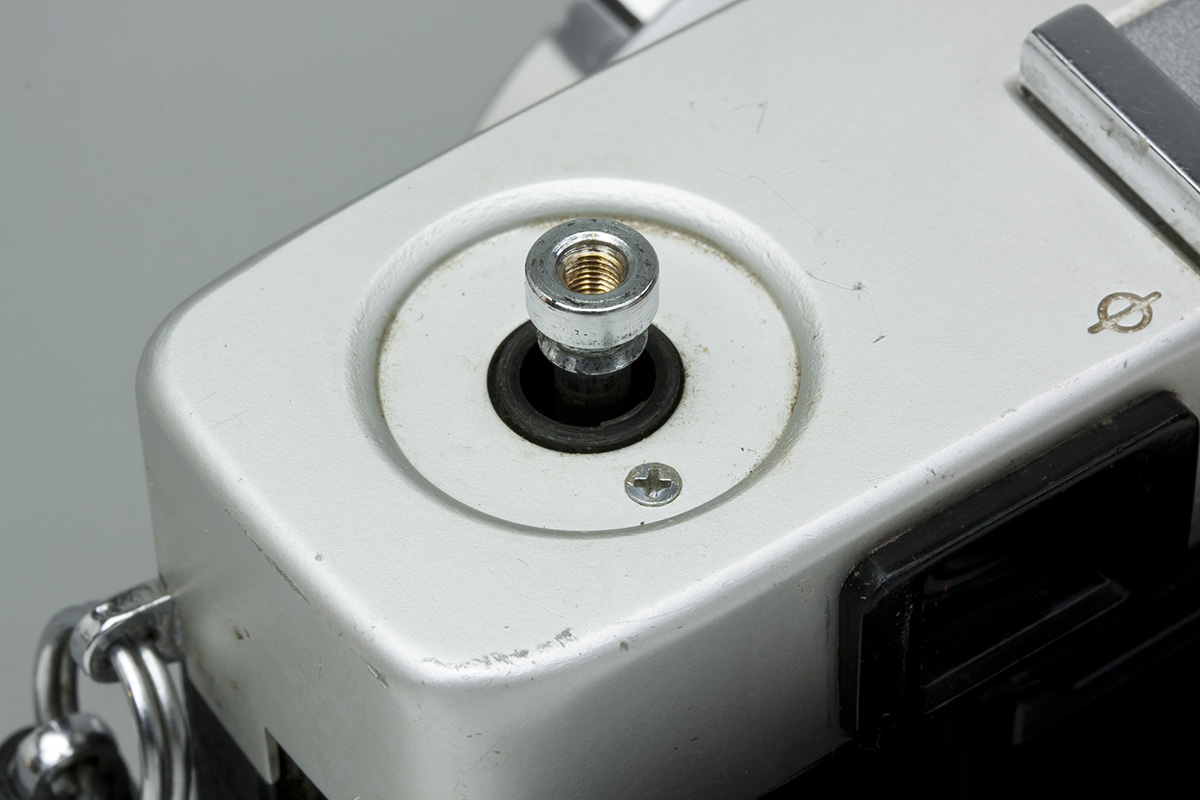

Remove screw.
All done here.

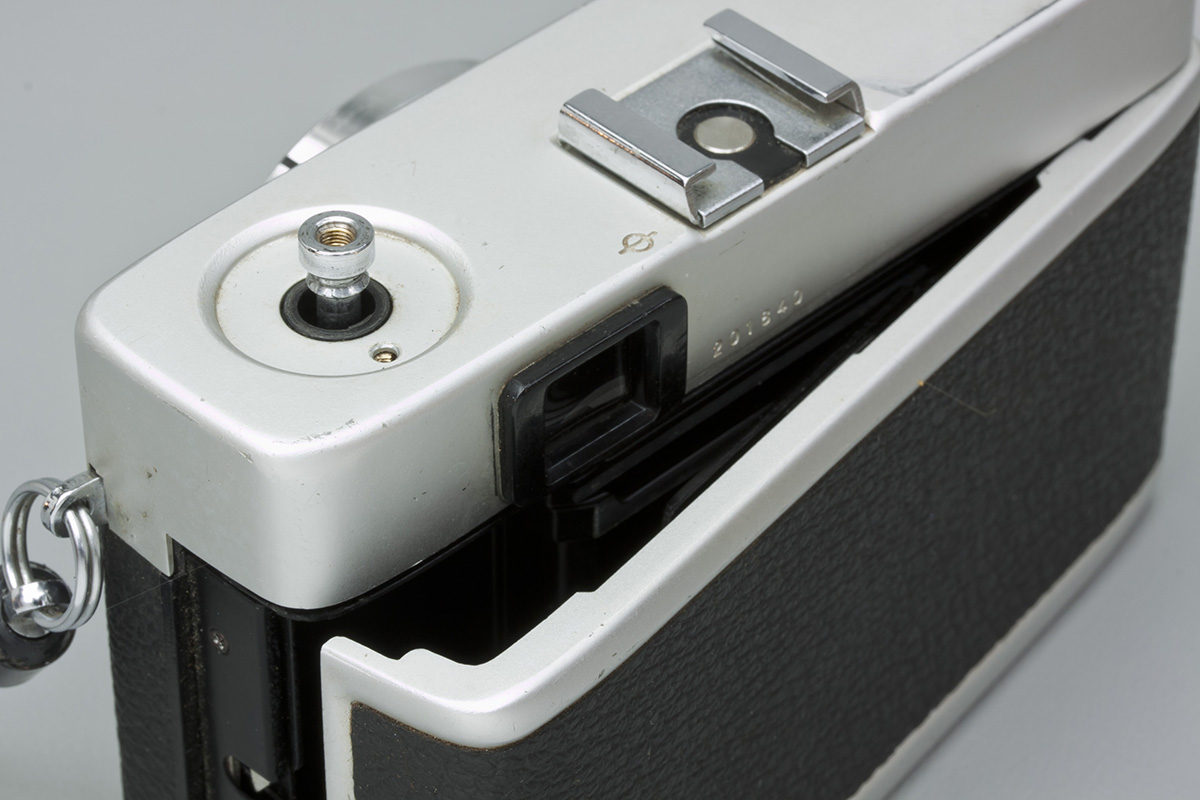

Lift off top cover. Do not over-stress the wire going to the flash hot shoe.

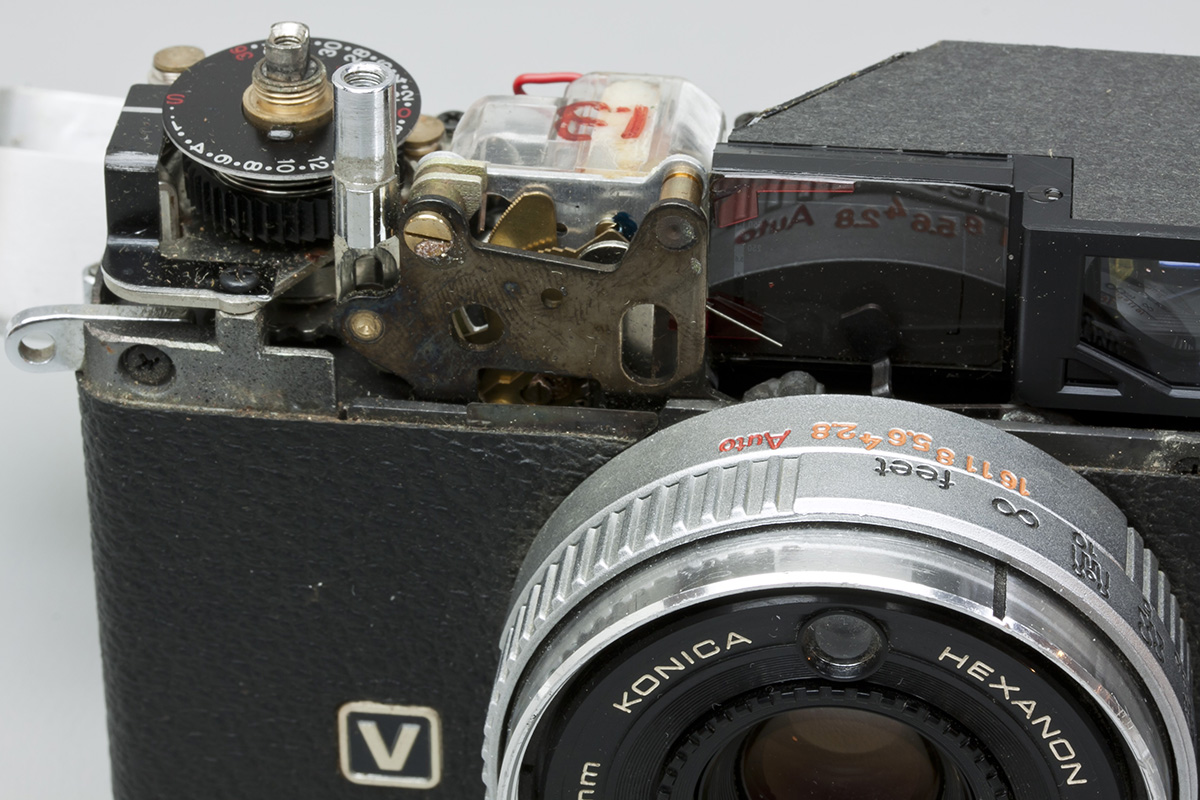

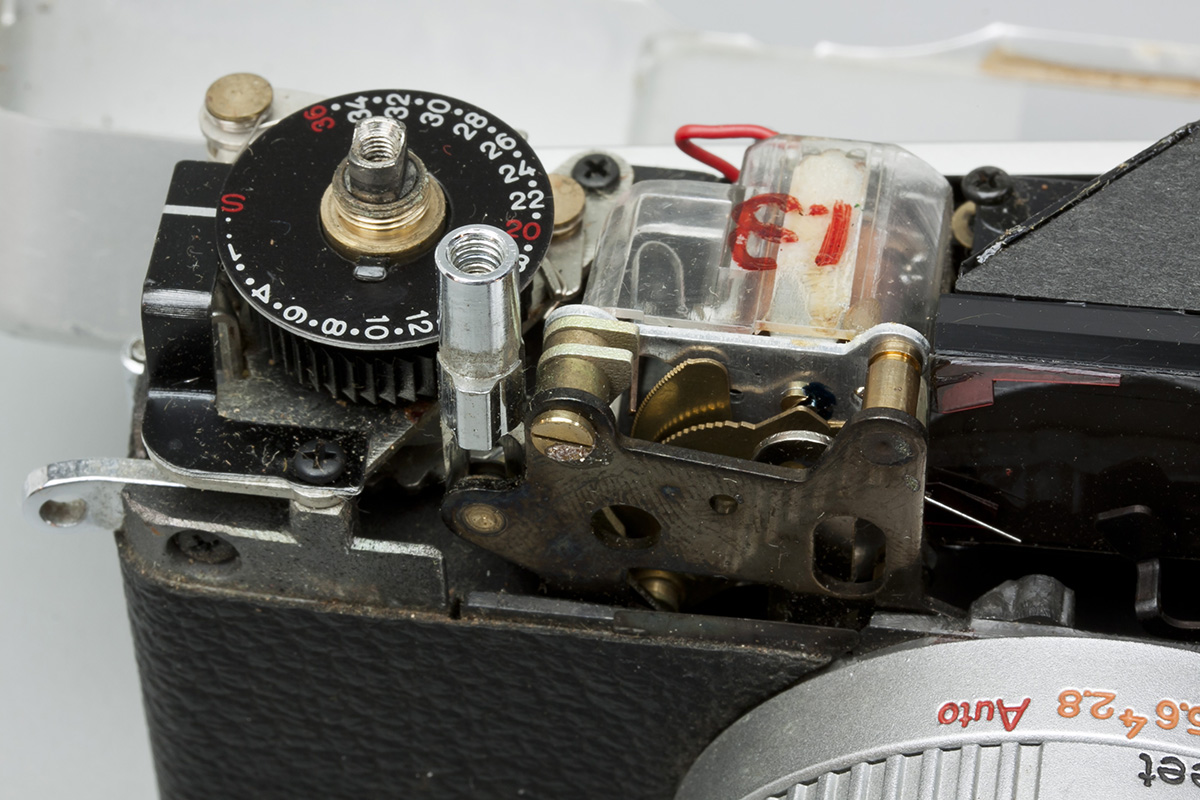

Close-up film advance side.

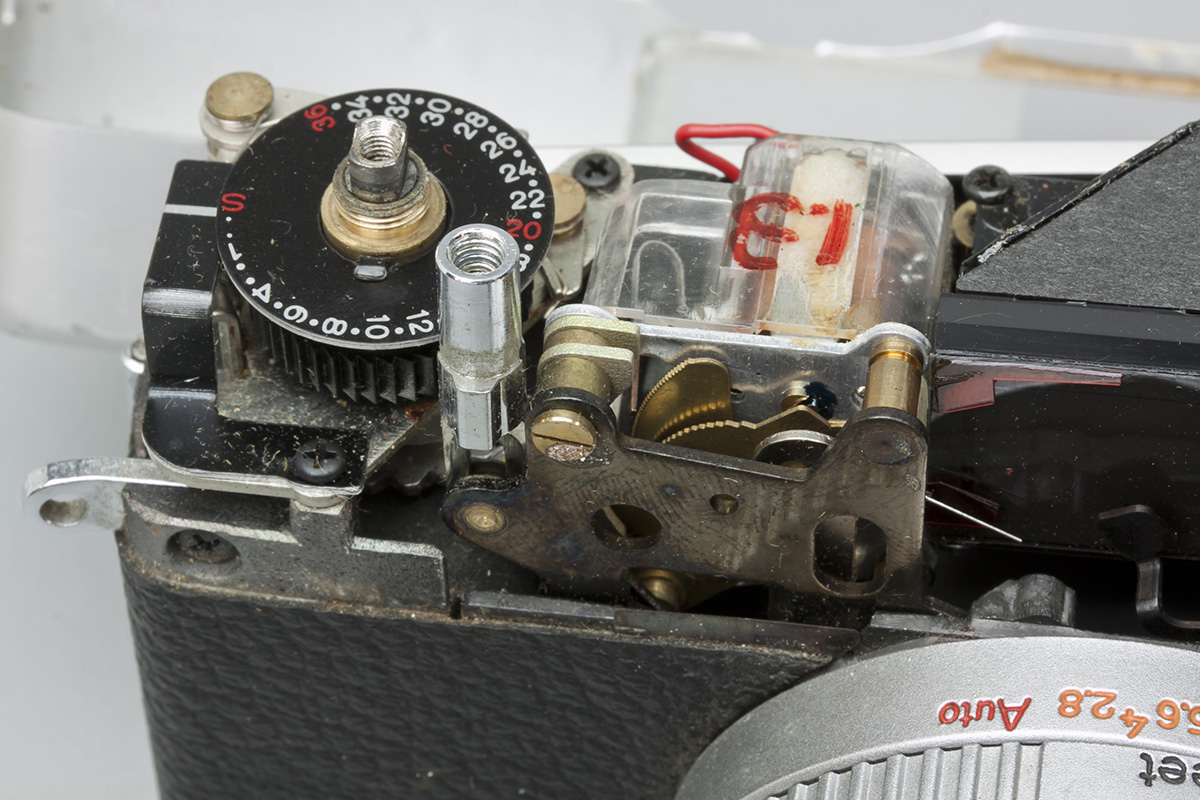

Automatic exposure mechanism.

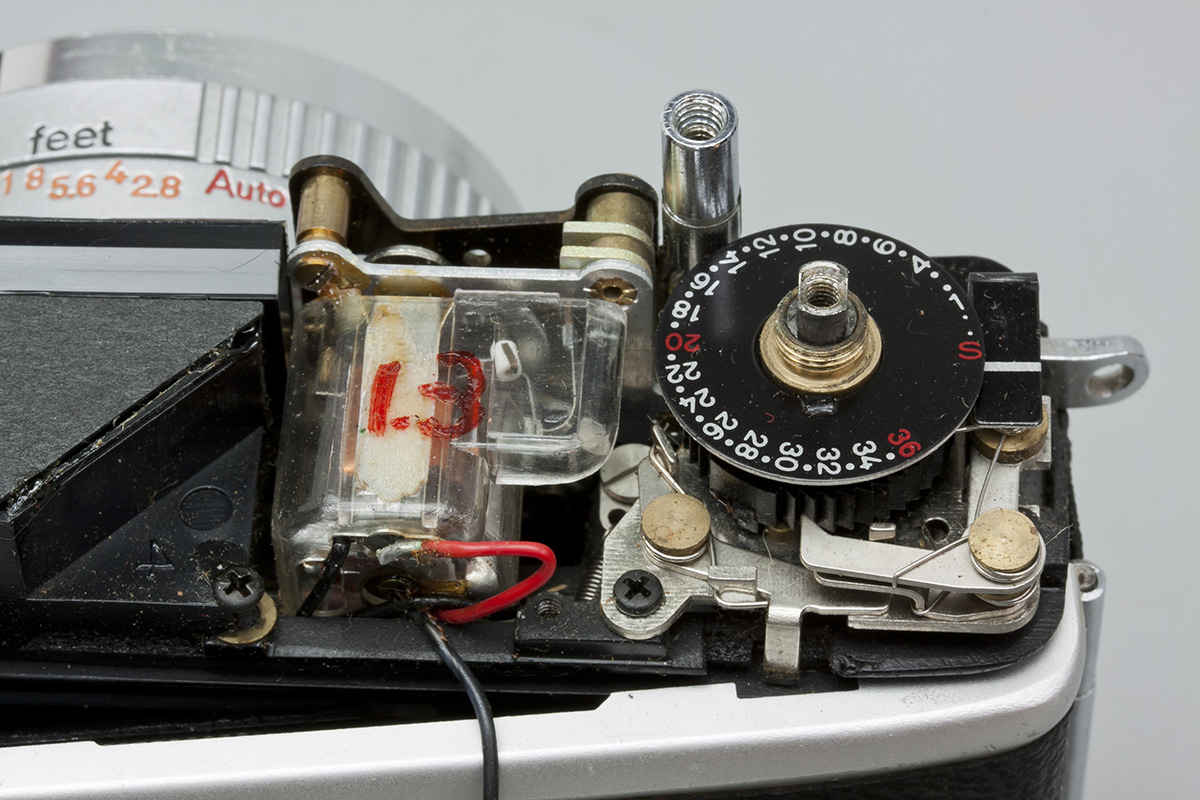

Close-up film advance side.

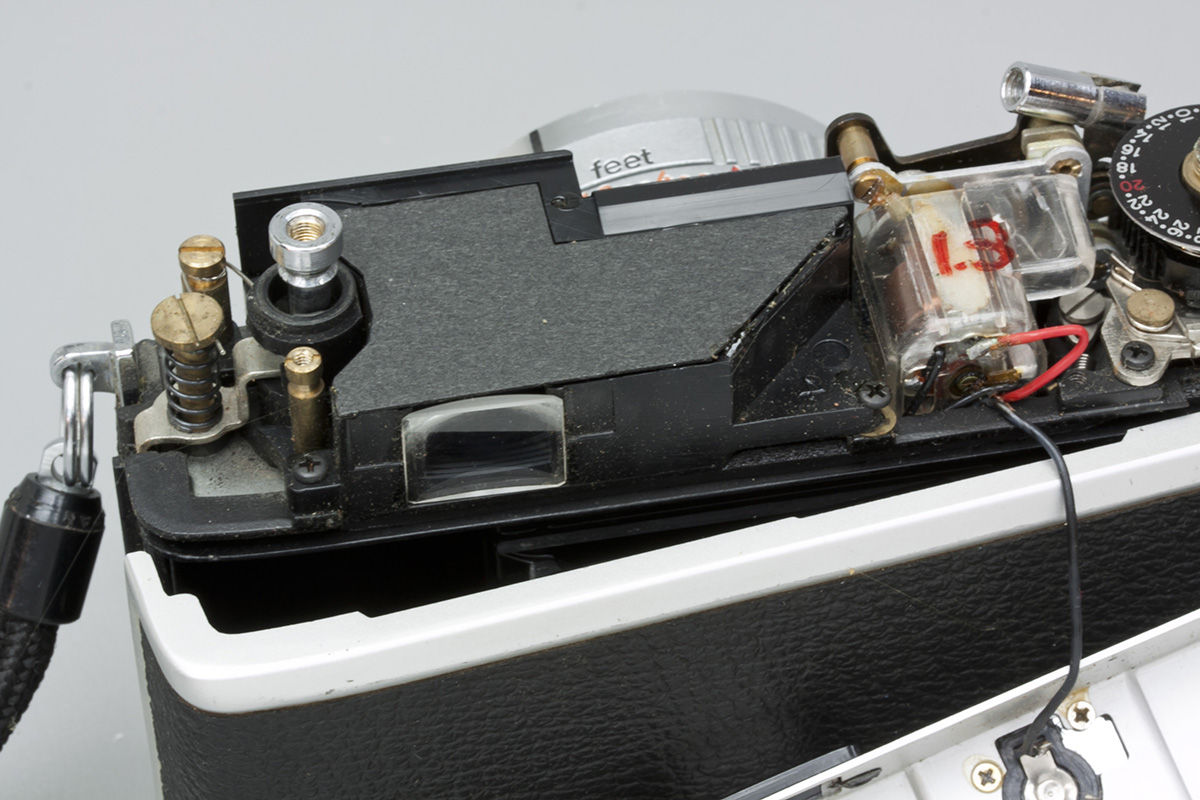

Close-up rewind side.

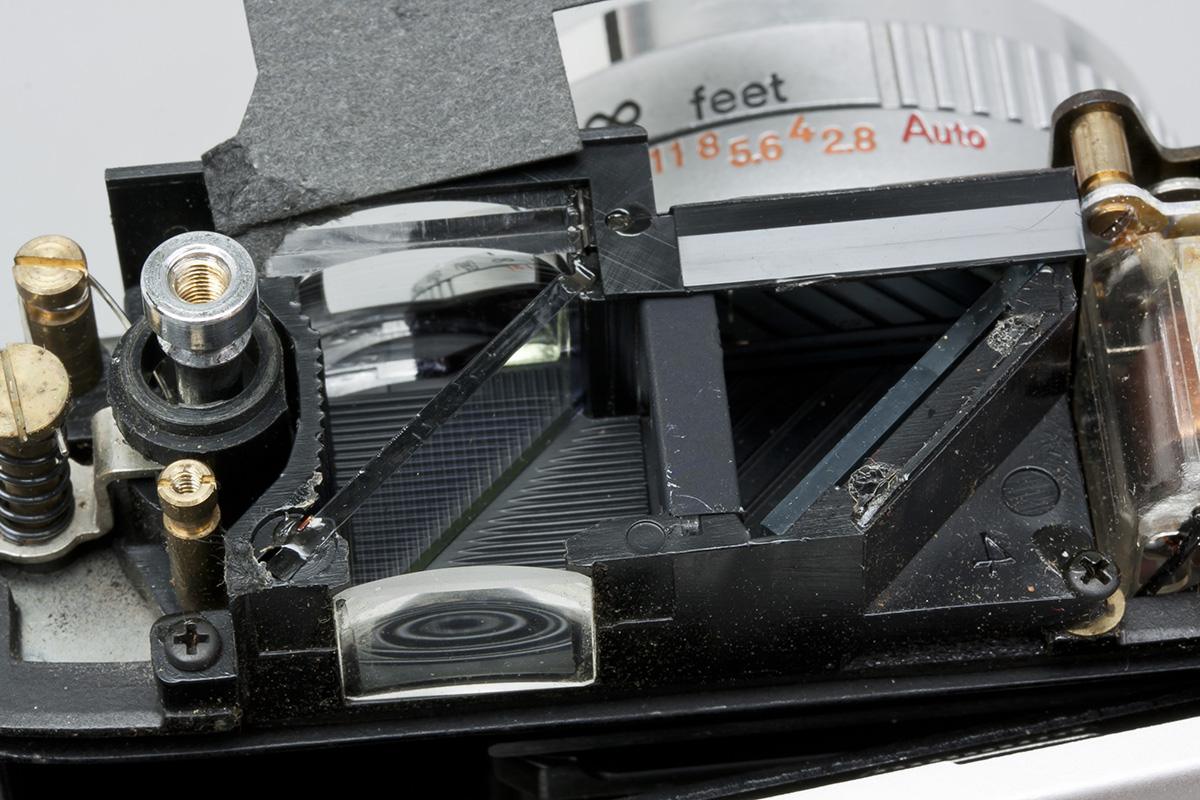

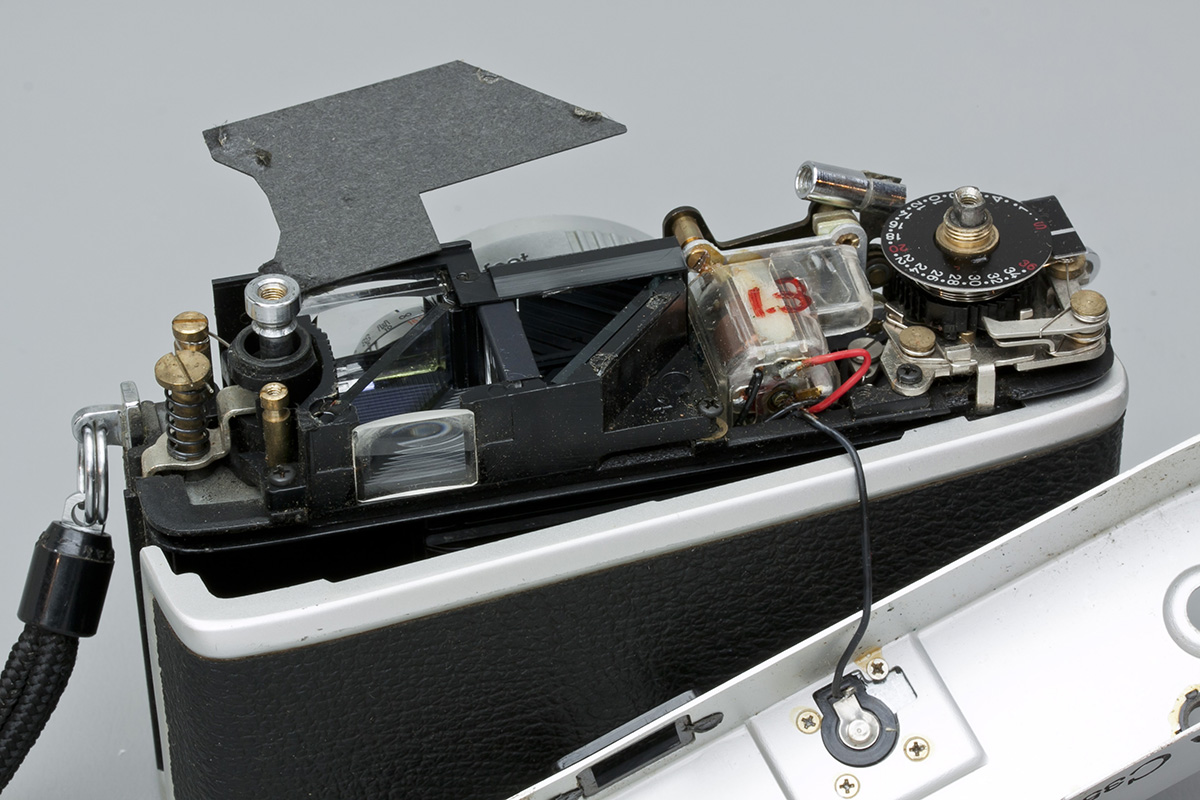

Remove cardboad cover to clean viewfinder glass. Be careful with the diagonal piece as the yellow coating comes of very easily.
Close-up rangefinder.
Close-up film counter.
