Mamiya C-330f Wind-Side Cover Removal

1 / 22
2 / 22
3 / 22
4 / 22
5 / 22
6 / 22
7 / 22
8 / 22
9 / 22
10 / 22
11 / 22
12 / 22
13 / 22
14 / 22
15 / 22
16 / 22
17 / 22
18 / 22
19 / 22
20 / 22
21 / 22
22 / 22

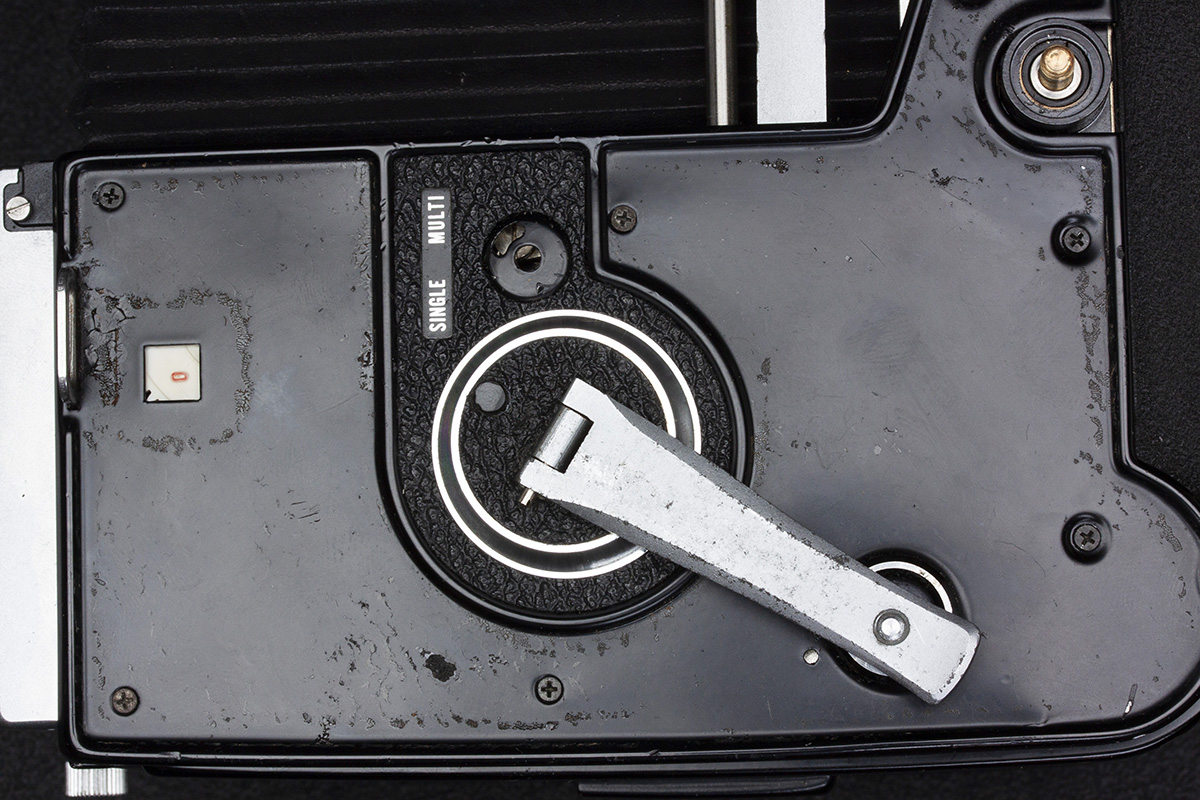

Remove the winding crank screw shaft an lift of crank lever.
There are two nylon blocks under the crank lever; note their orientation, then remove.

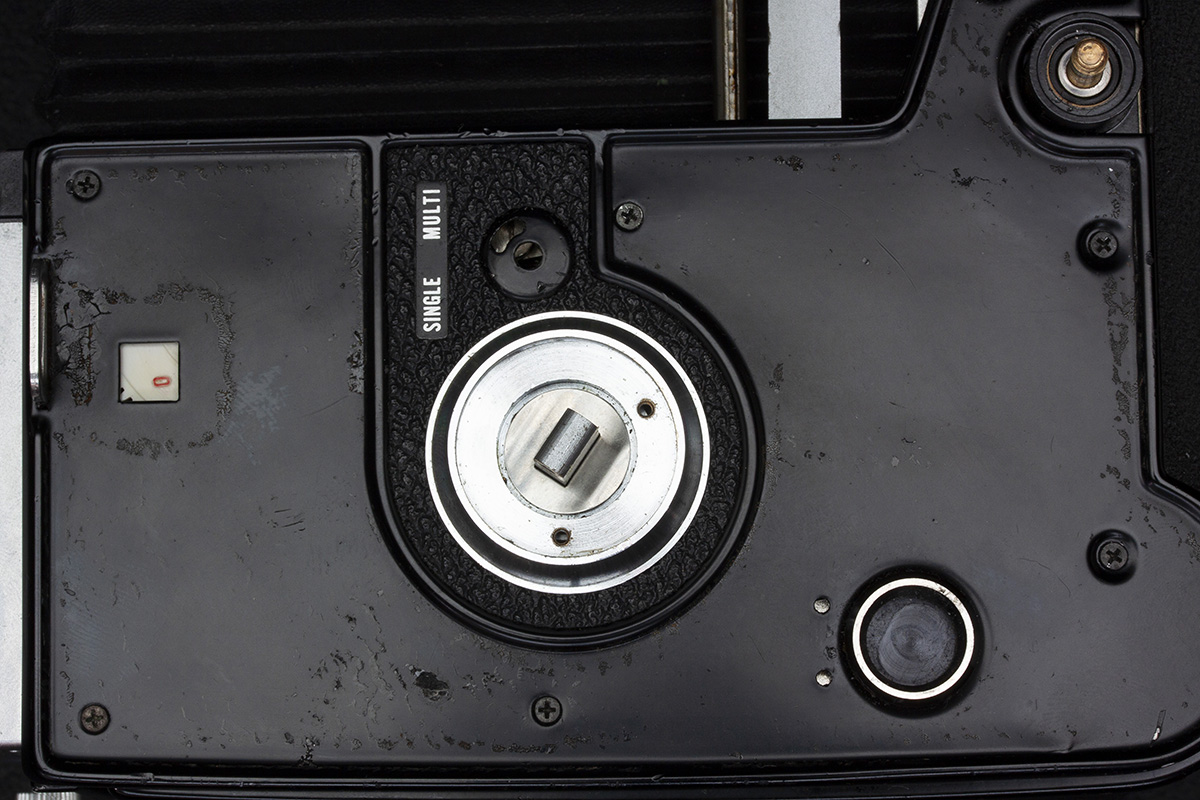

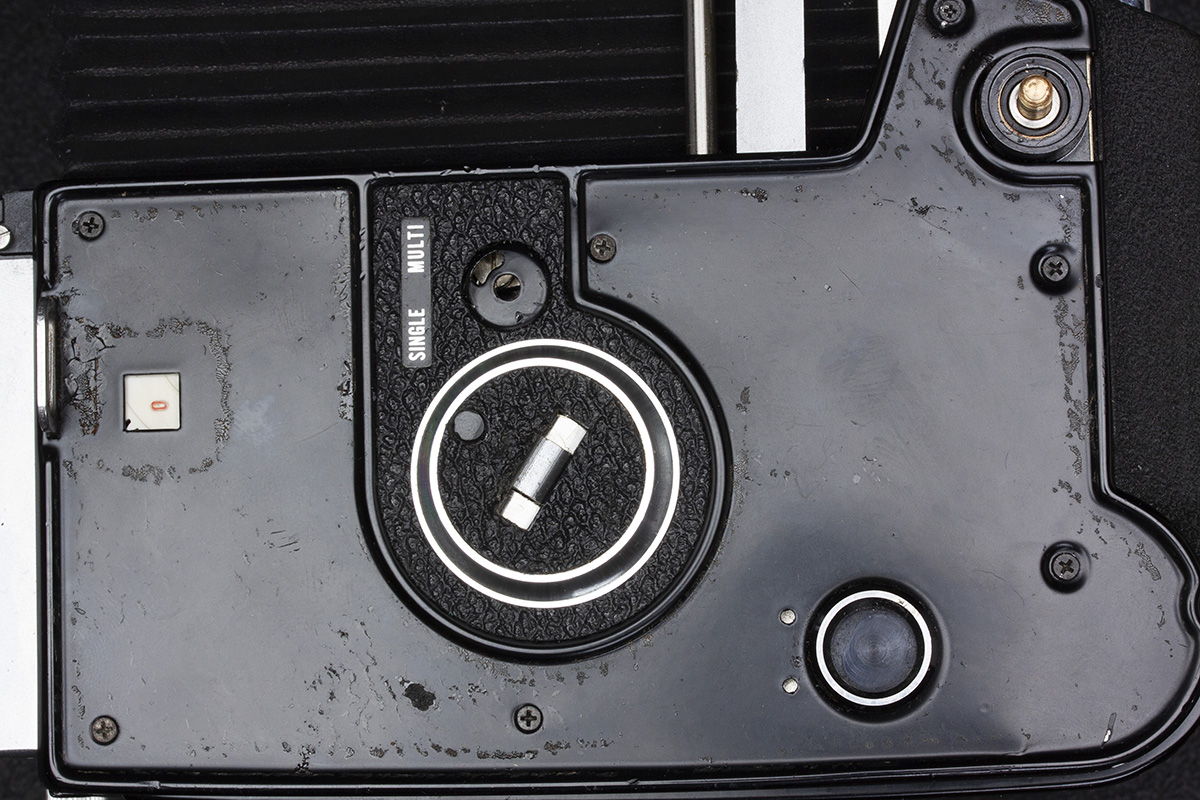

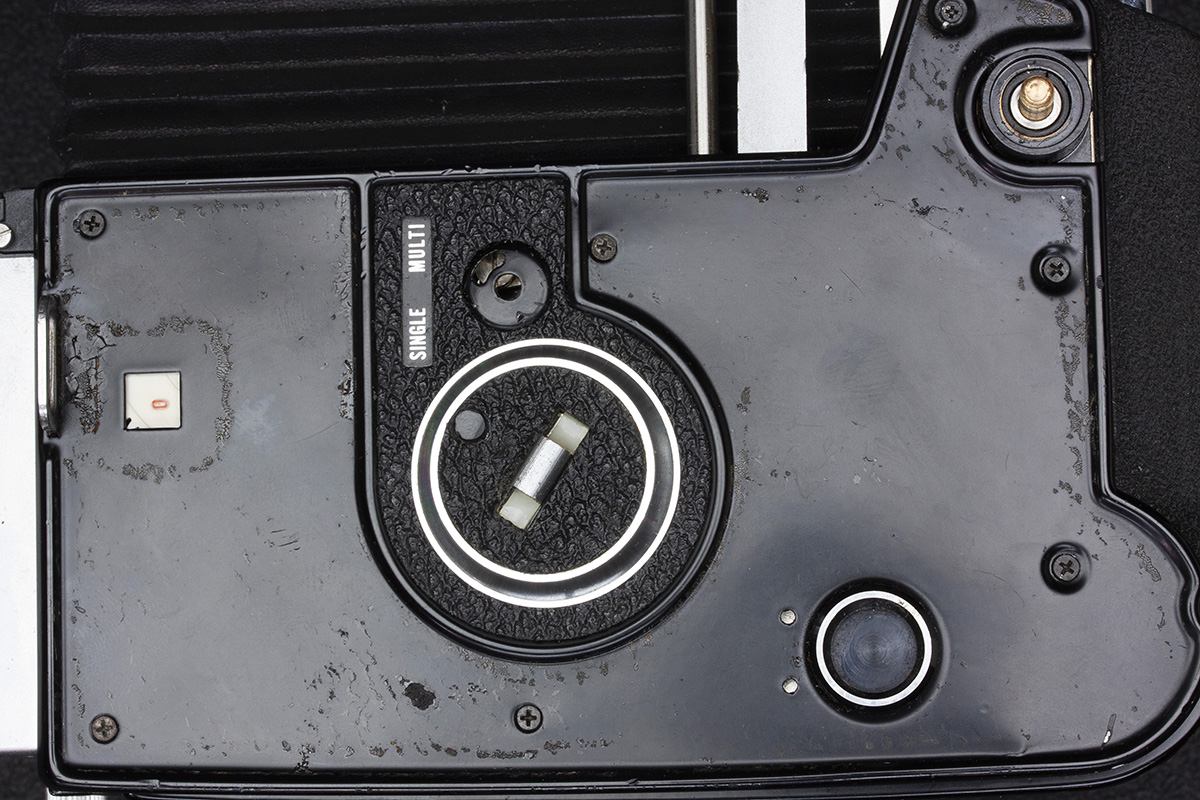

Peel off leatherette.

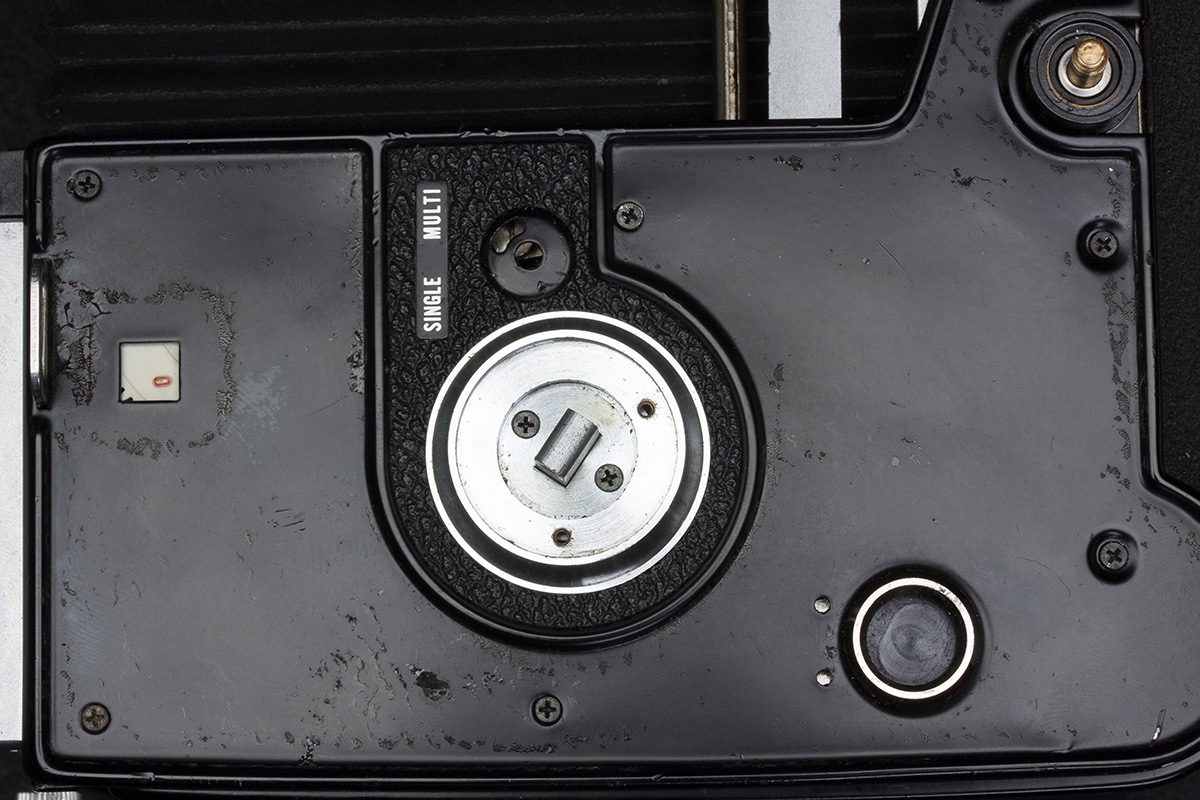

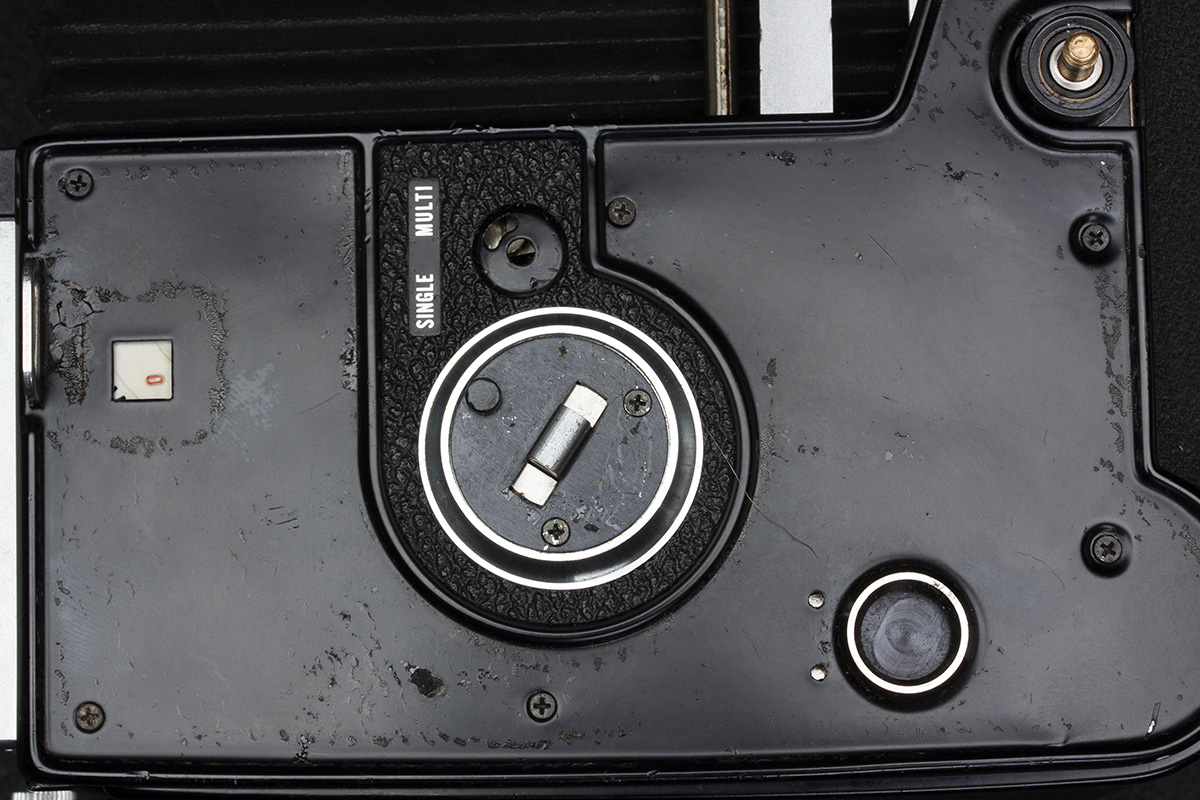

Remove the two screws.

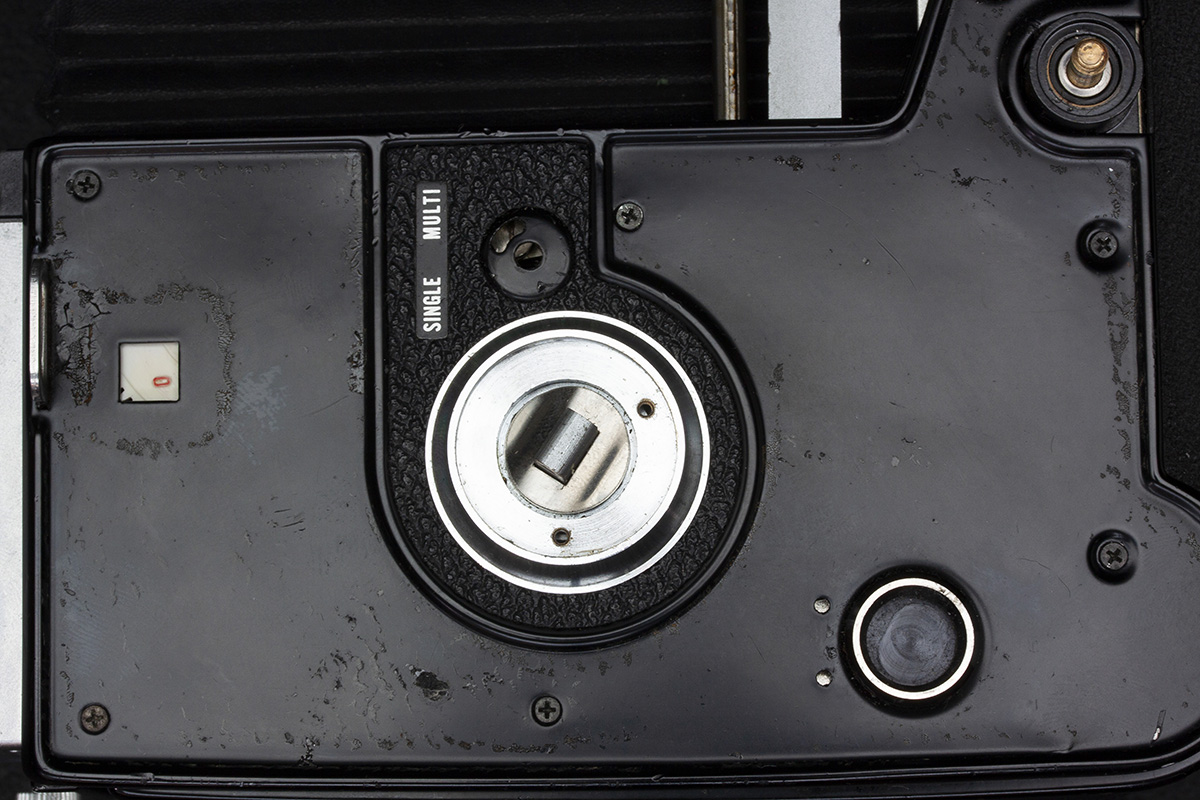

Top wave washer.
Bottom wave washer.

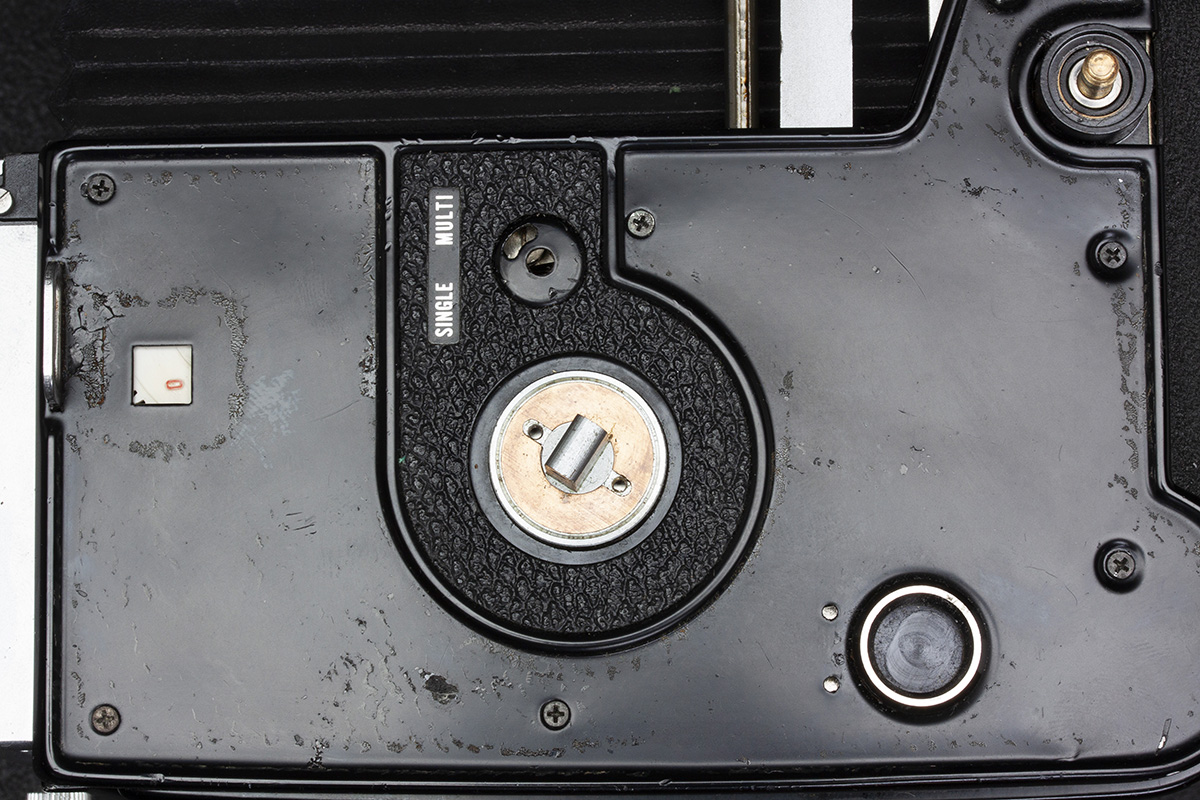

Remove the two screws and lift off coupling base.
There are seven side cover screws all the same size/length except the one in front/under of the focusing knob.

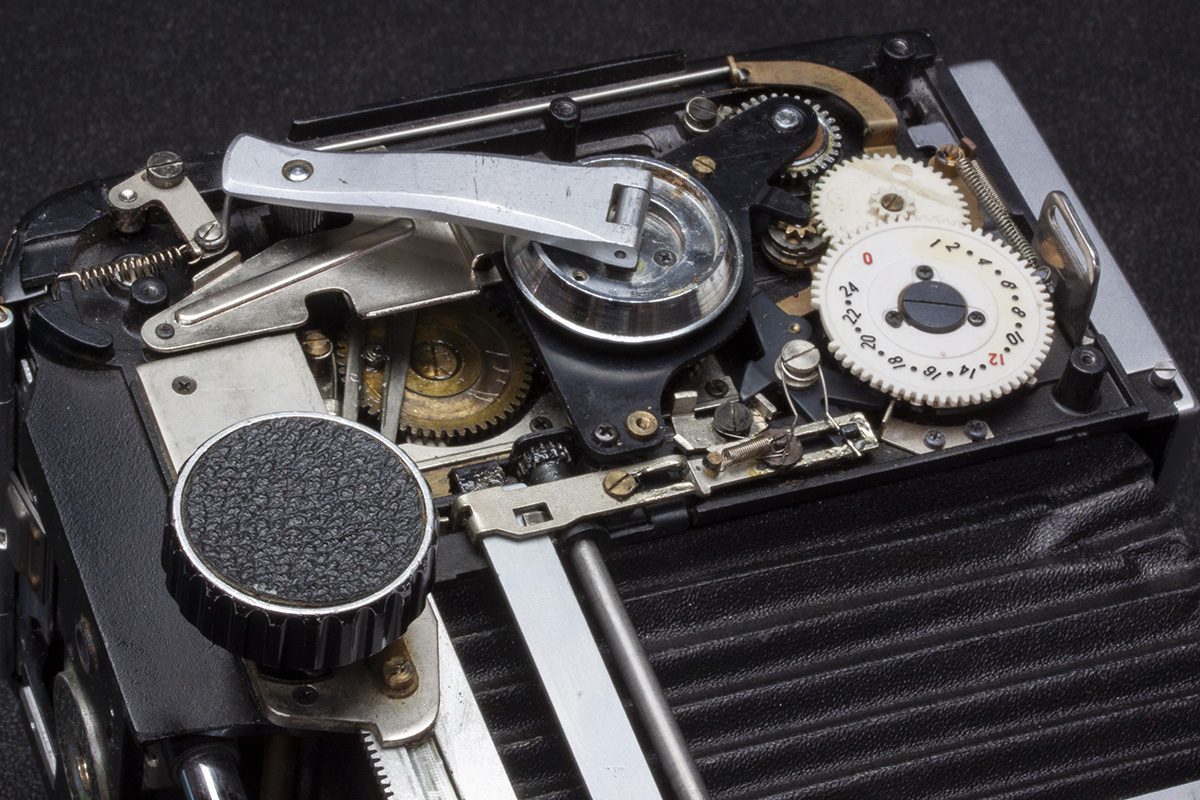

Side cover removed. Remove the protect plate (chrome thing; bottom right).

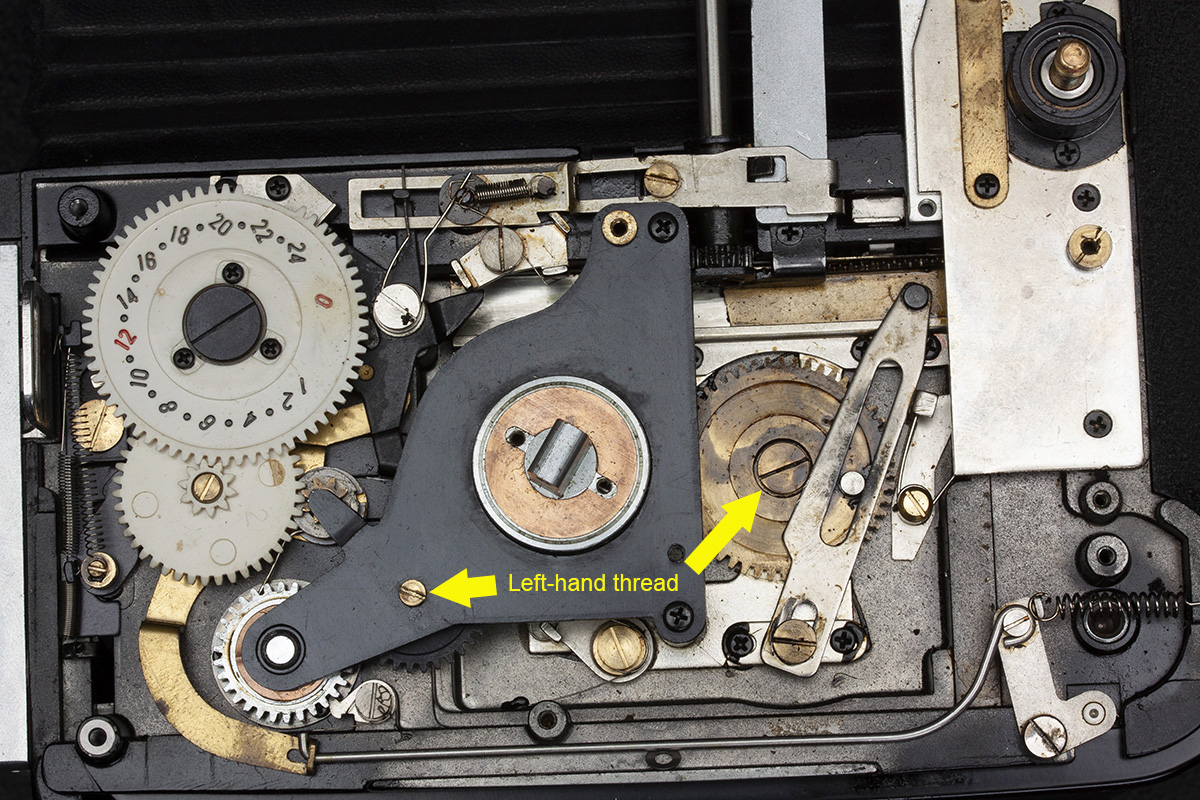

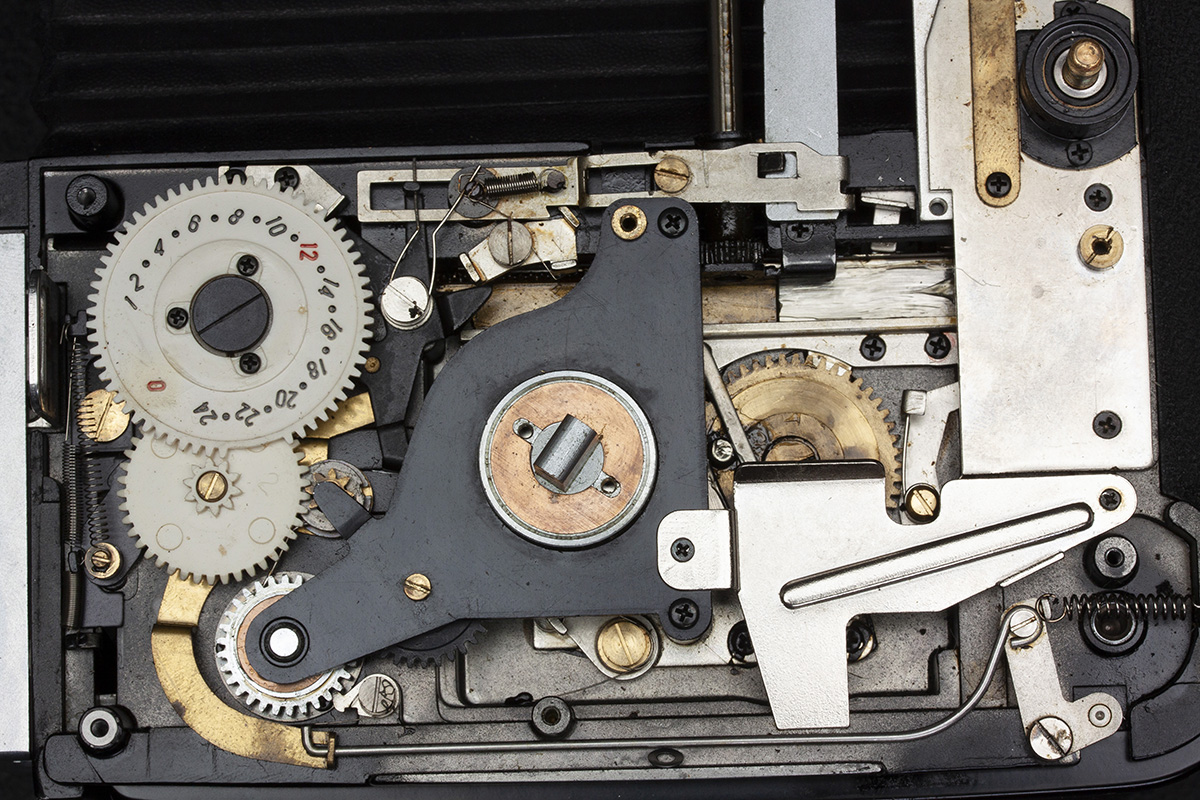

Going deeper to regrease. Note that these two screws are left-hand thread. Remove the winding base plate.
Note the position of everything so you can put everything back the same way. Remove the winding gear assembly, the small black gear and it's bushing.

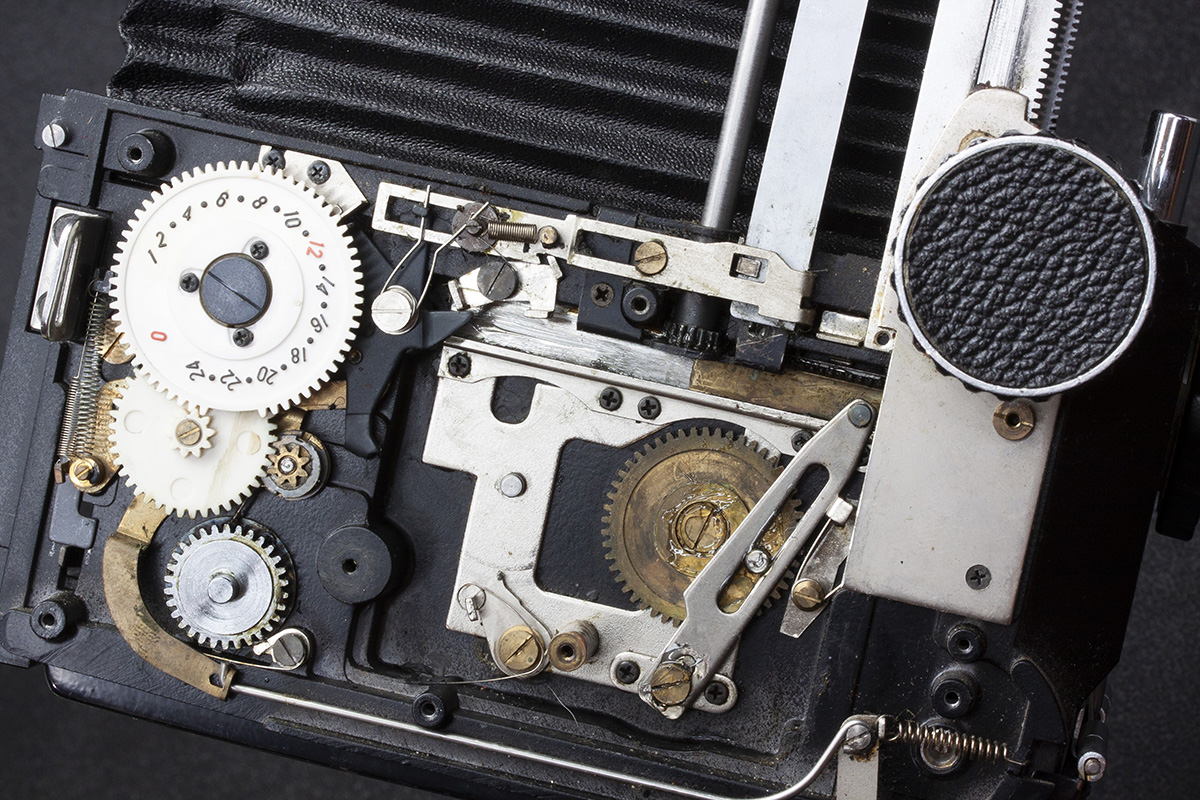

Remove the brass pivot screw for the cocking gear linkage and the cocking gear screw (left-hand thread).

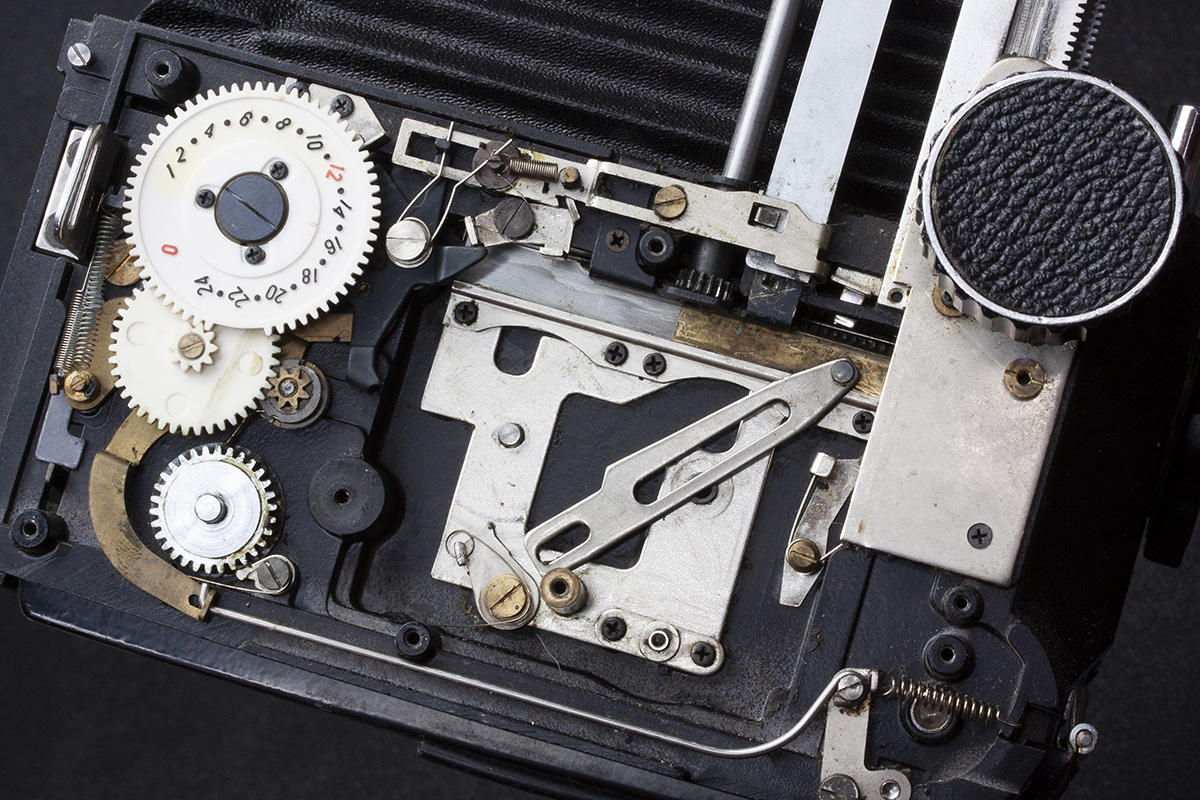

Clean and regrease. You'll see what needs greased when you're cleaning of the old. IMPORTANT: Note the pawl for the winding gear assembly, you'll have to pull it back when reinstalling the gear assembly or it'll get pinched underneath.

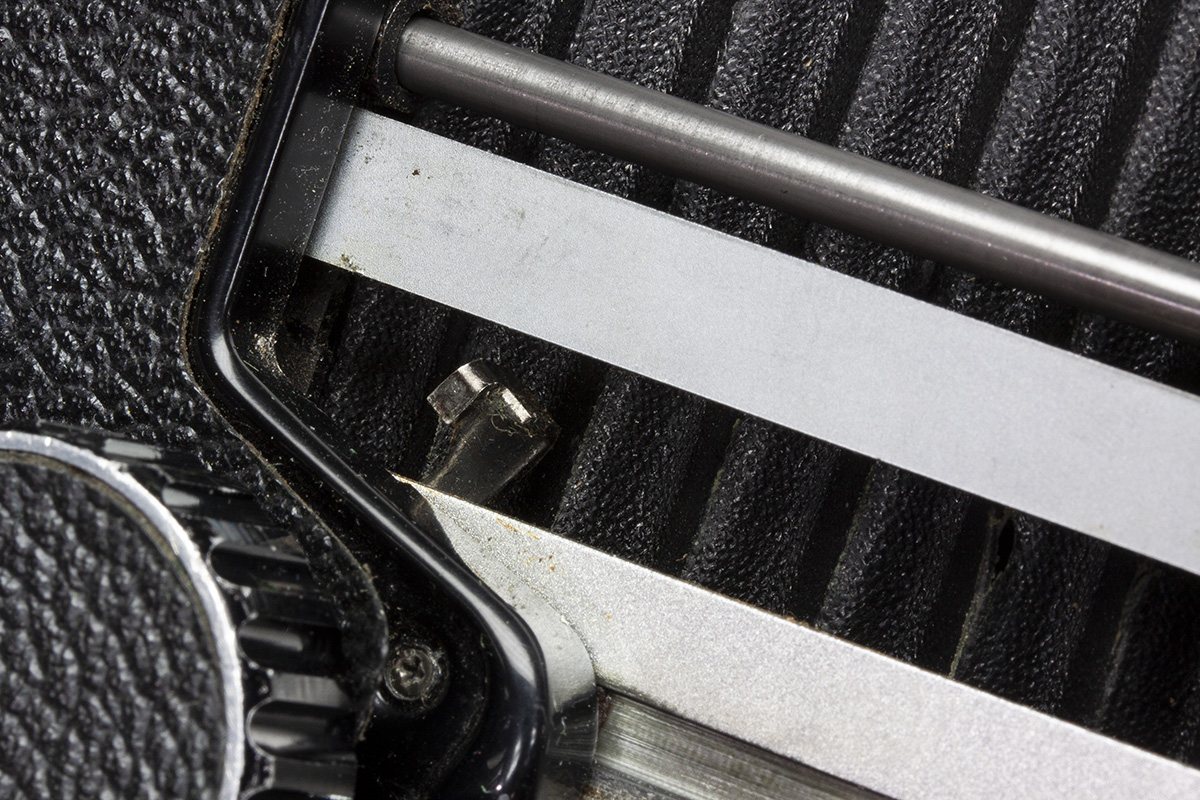

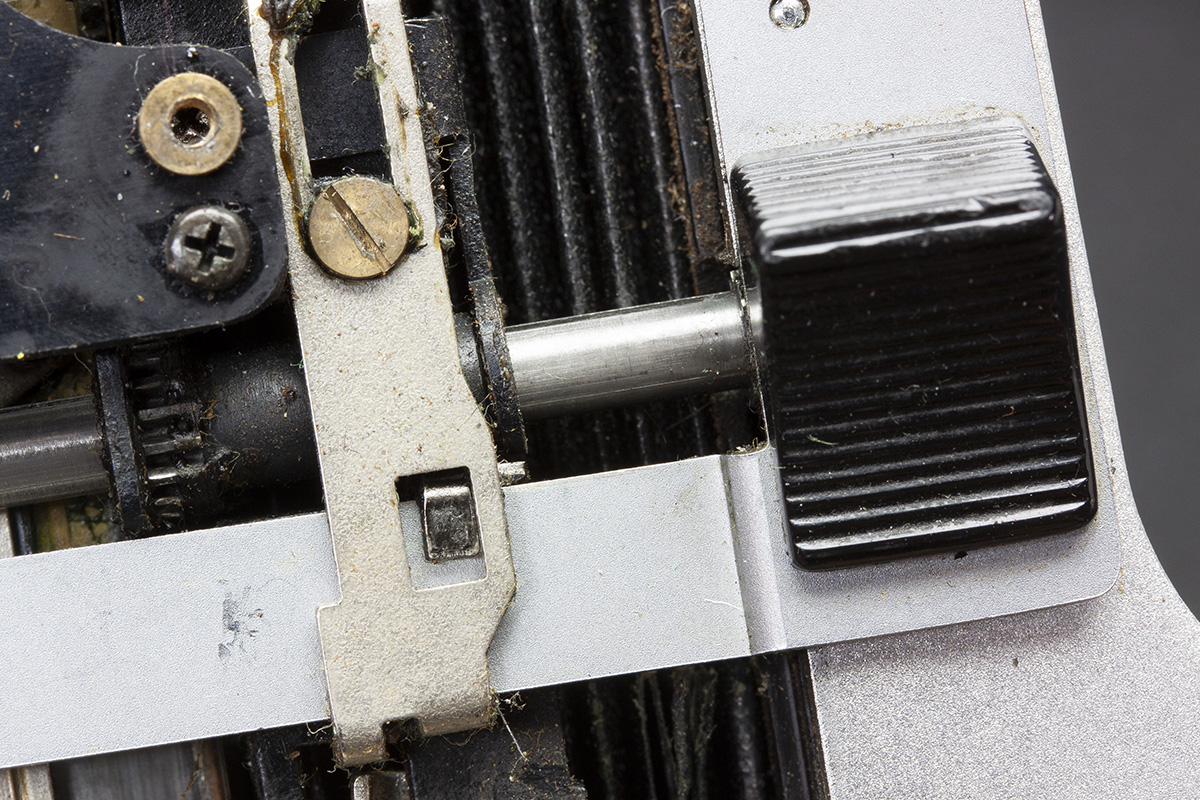

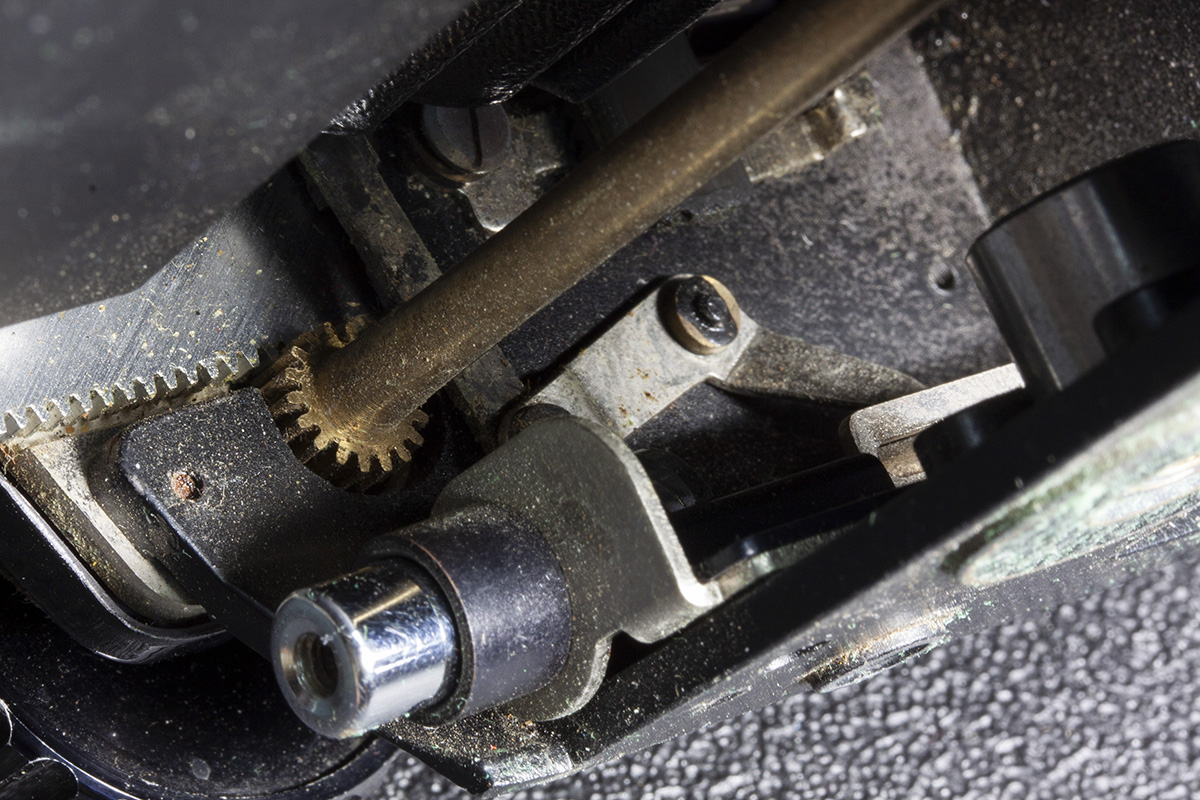

Somehow the linkage for the front shutter button came apart.
That same disconnected linkage arm shown from underneath.
Linkage arm back in place.
Put everything back together minus the side cover to make sure everything is positioned correctly. Take note of the lens cocking arm on the front of camera is positioned are operating correctly. If everything is working properly, replace side cover.

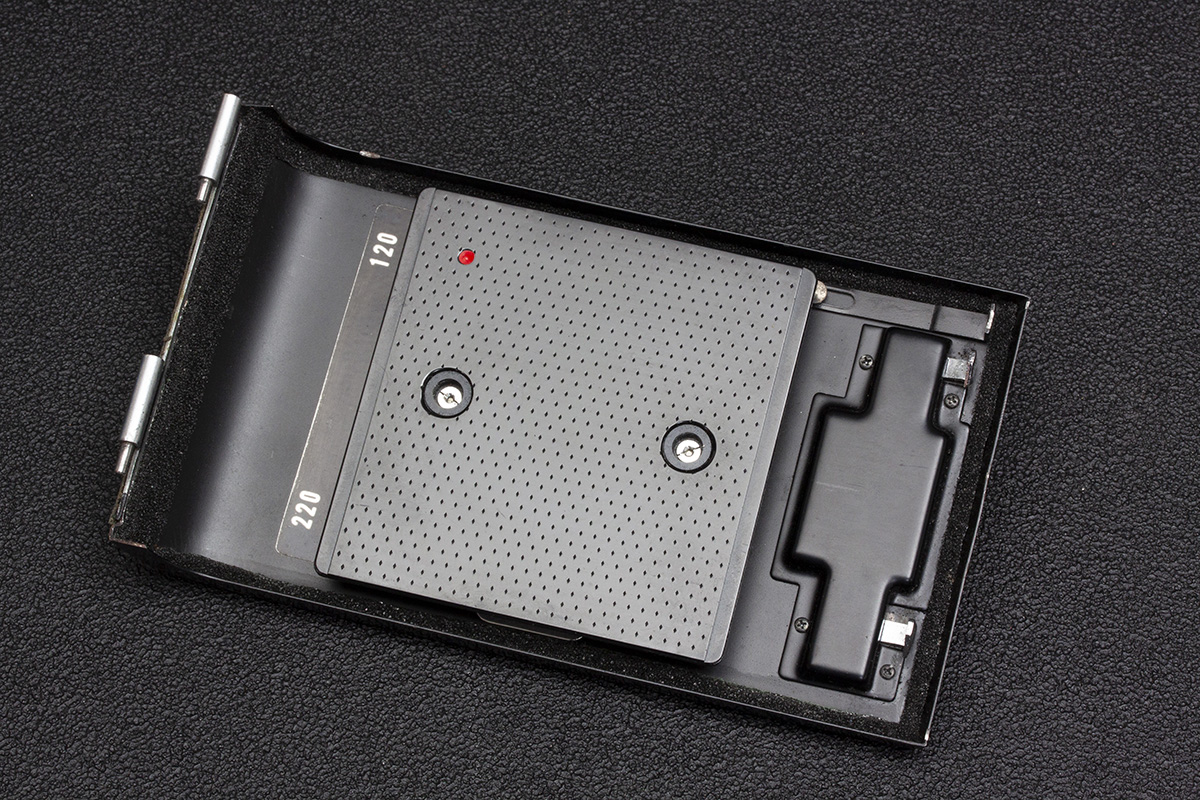

New film door seals.

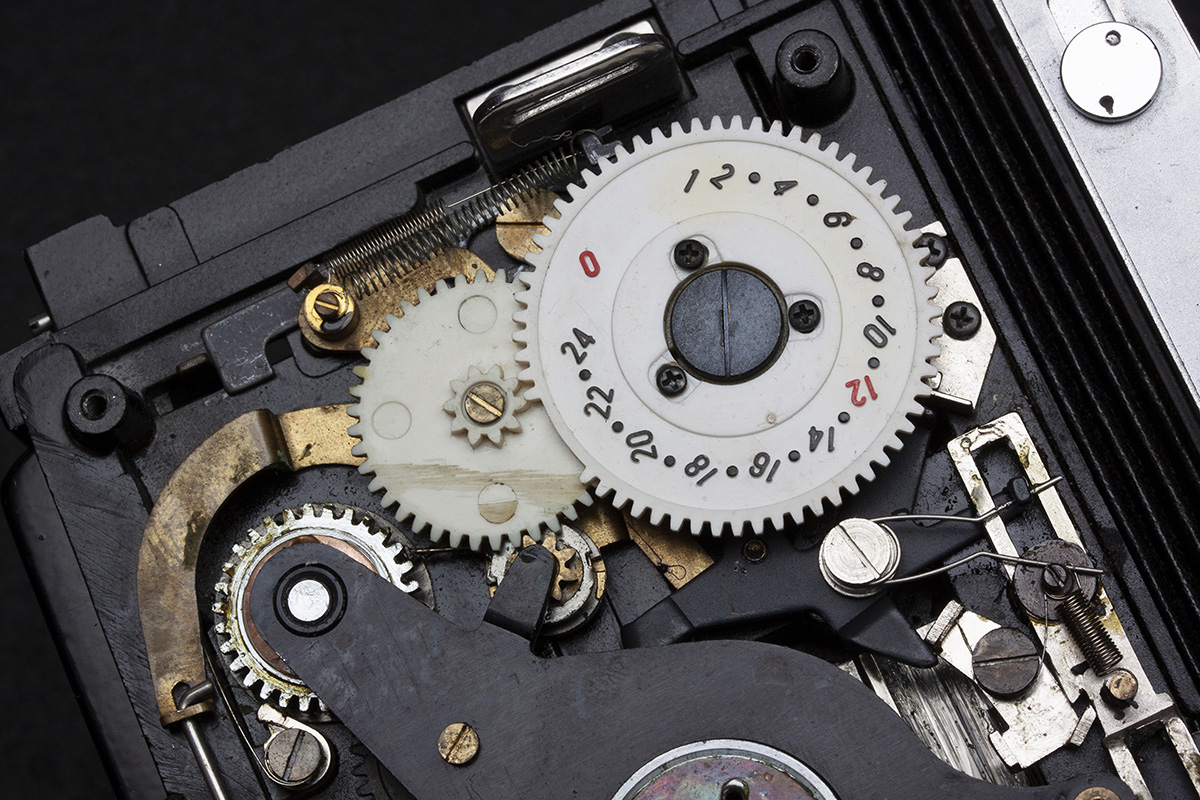

If you have to mess with the film counter: remove the three screws.

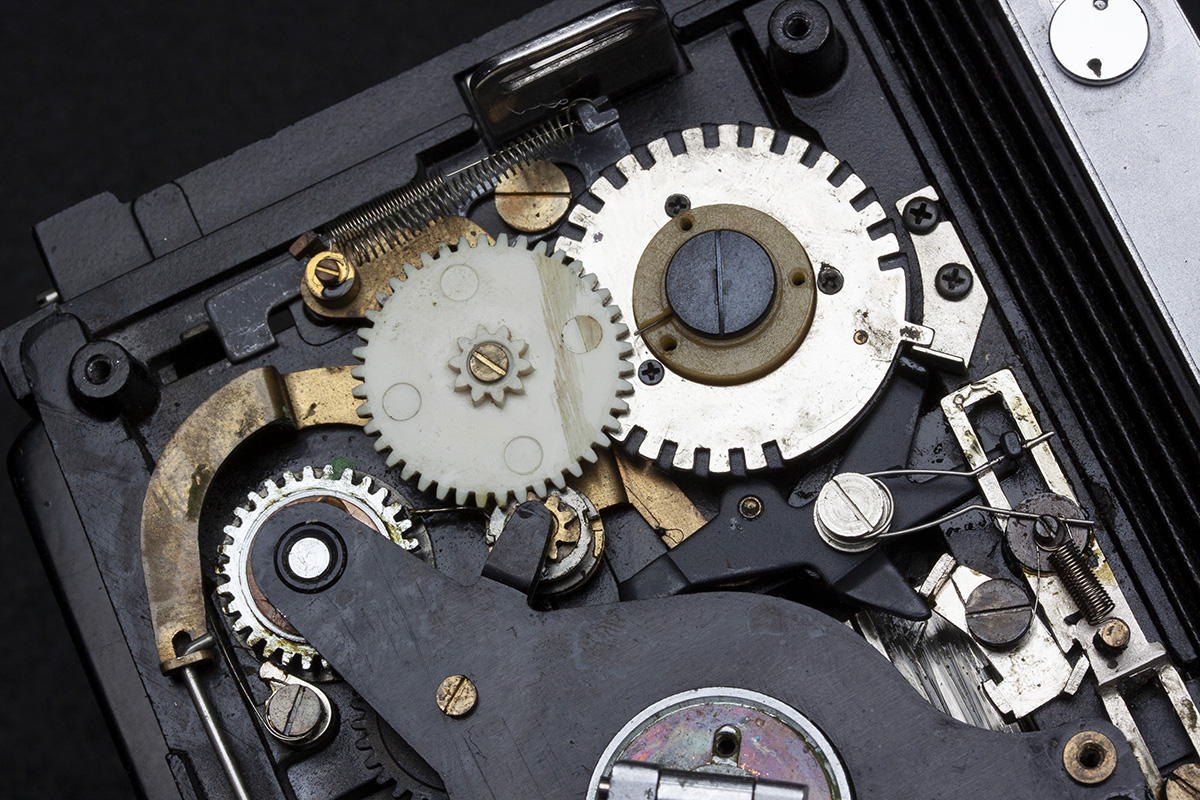

Remove nylon gear.

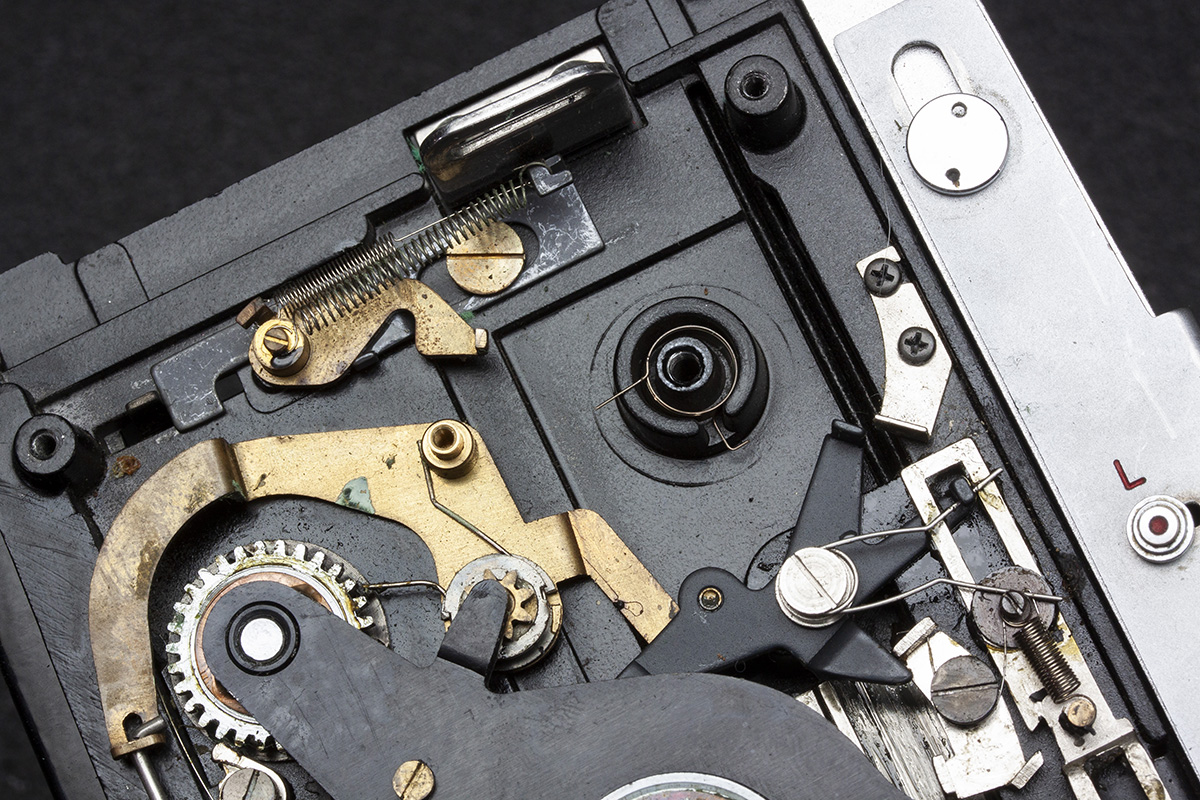

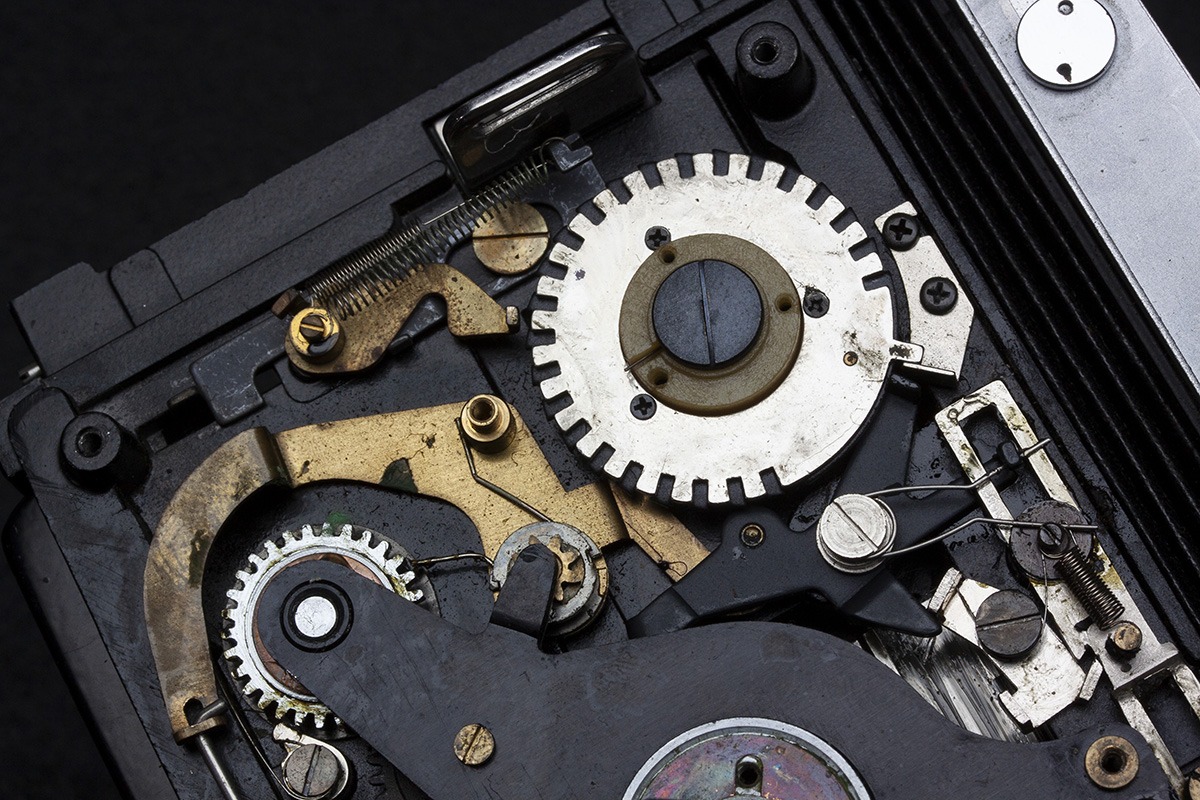

Remove counter dividing device. Don't do this unless you absolutely have to as tensioning the spring is a pain.
Counter dividing device spring.
