Mamiya C-330f Lens Lock-Side Cover Removal

1 / 21
2 / 21
3 / 21
4 / 21
5 / 21
6 / 21
7 / 21
8 / 21
9 / 21
10 / 21
11 / 21
12 / 21
13 / 21
14 / 21
15 / 21
16 / 21
17 / 21
18 / 21
19 / 21
20 / 21
21 / 21

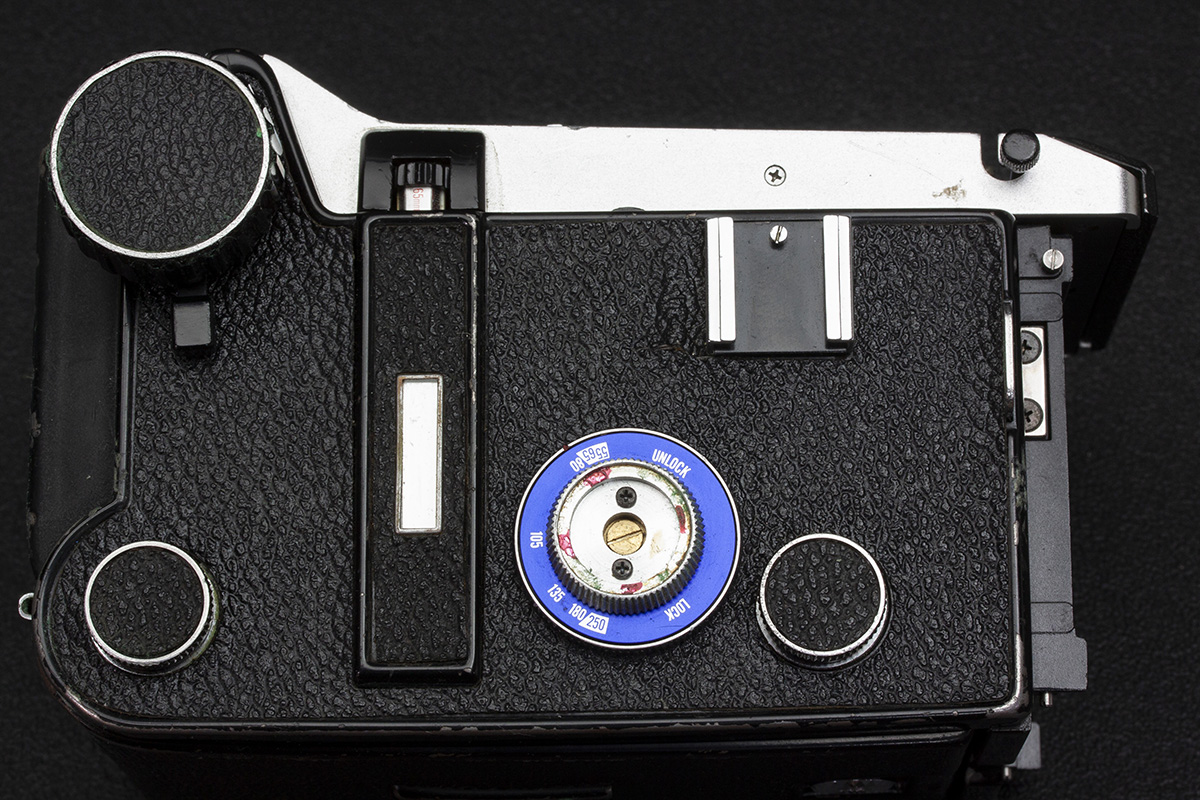

Removing the lens lock-side cover of the Mamiya C-330f.

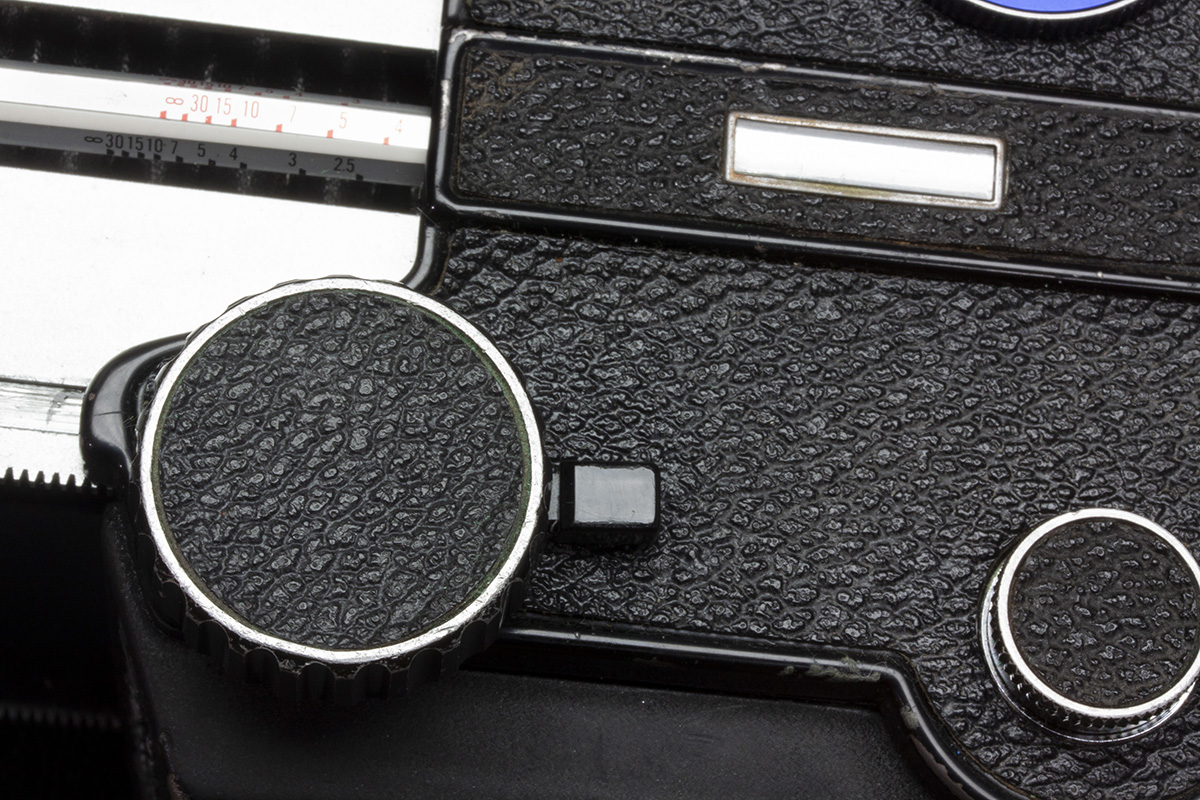

To get the side cover off, the focus lock lever has to be moved out of the way.

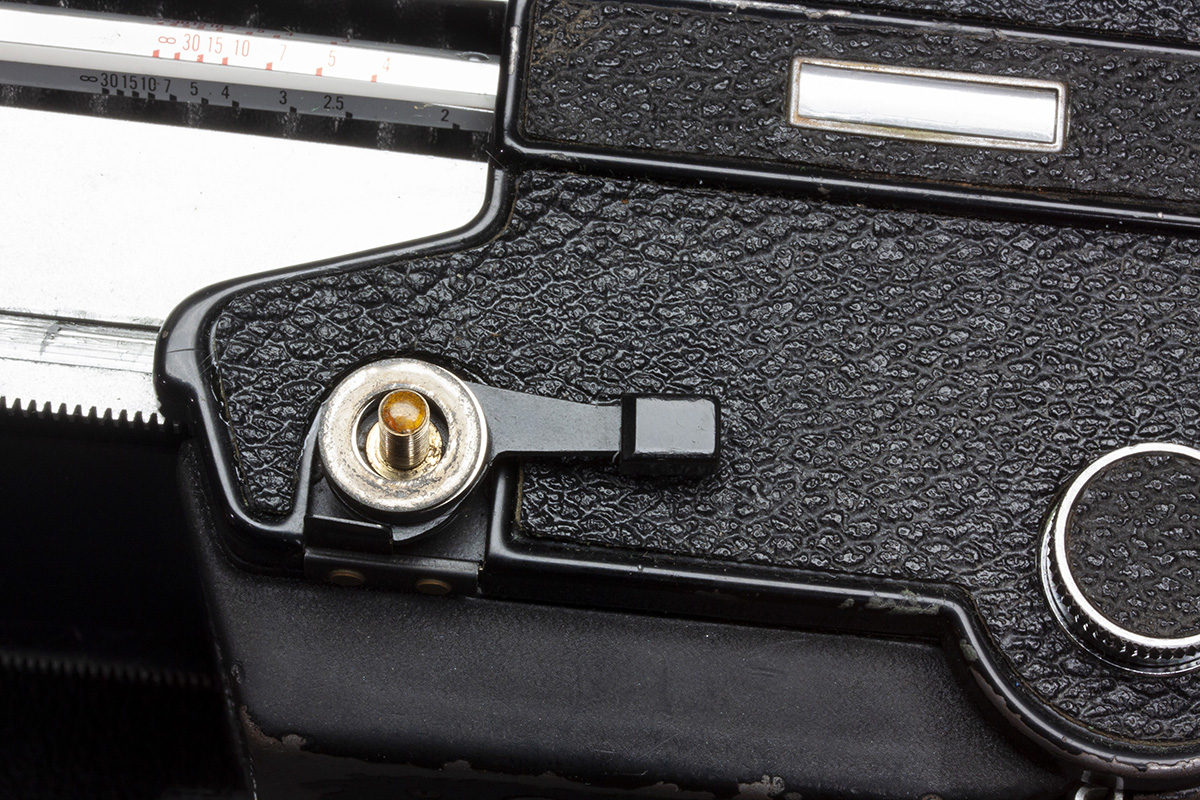

Remove the focus knob by unscrewing it.
Thick washer.
Thin washer.

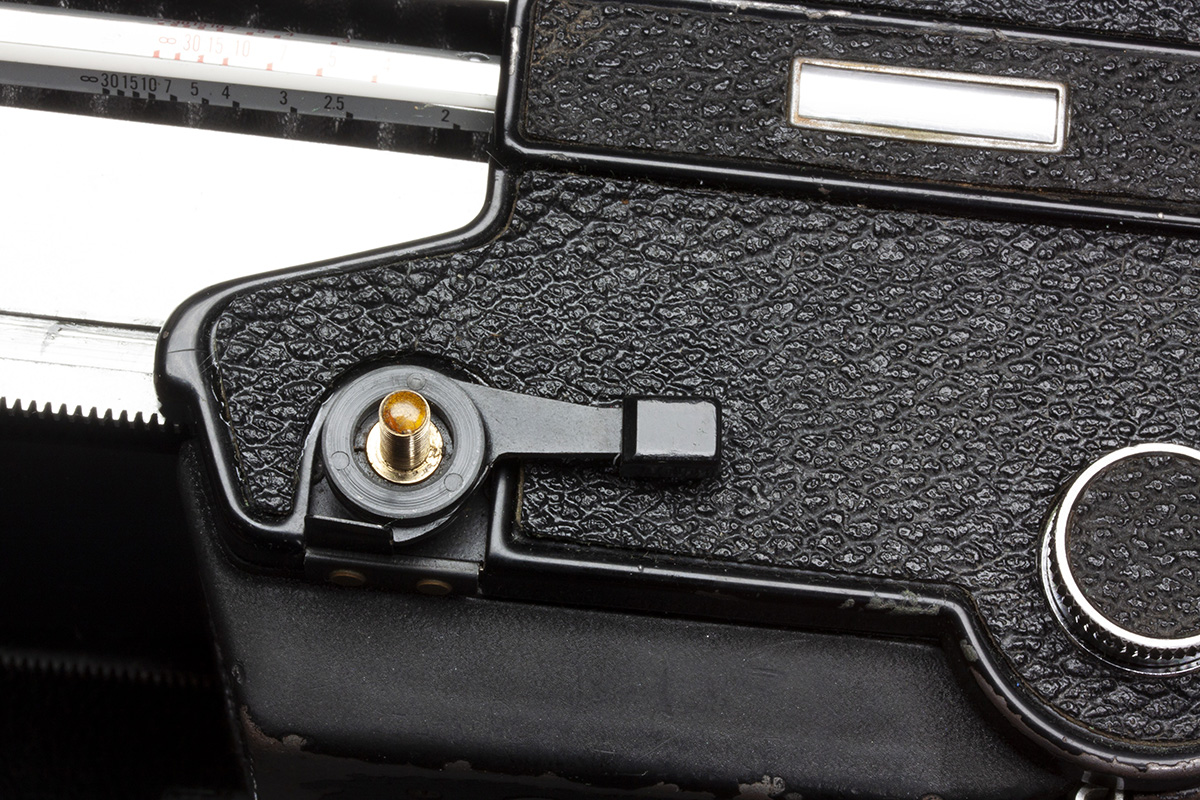

Plastic bushing.

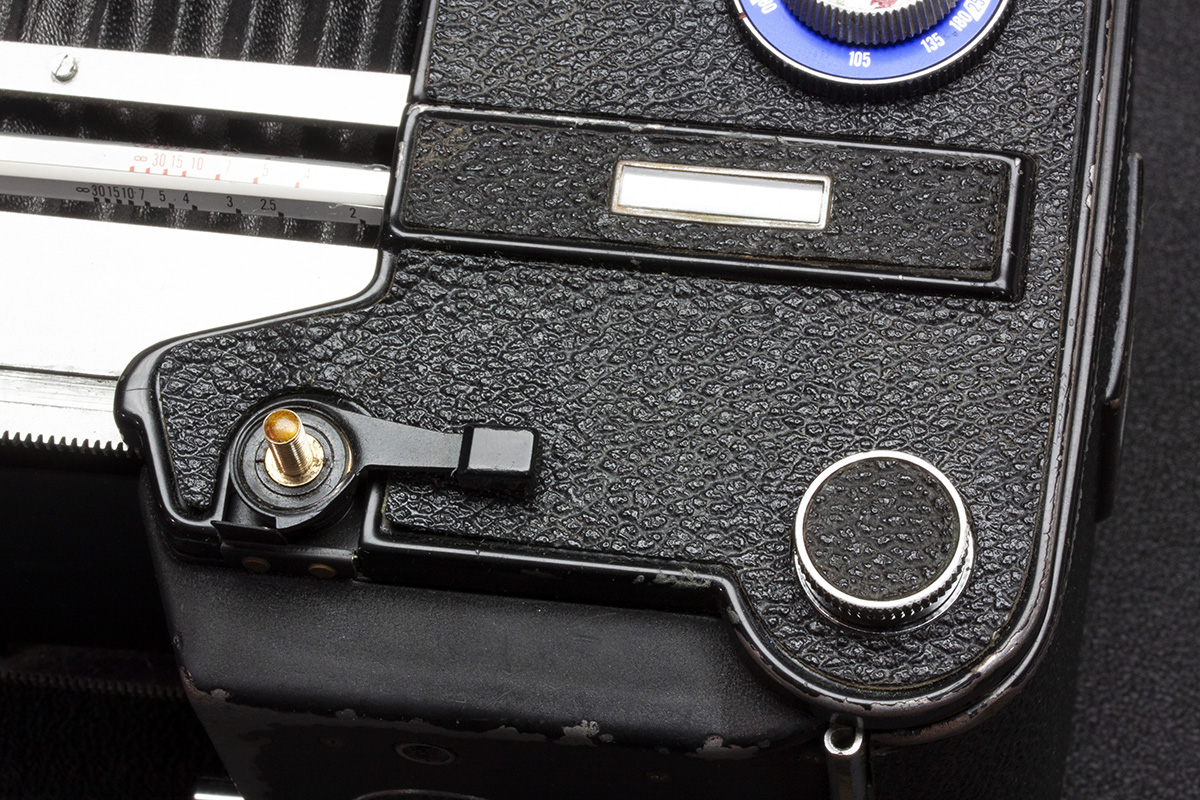

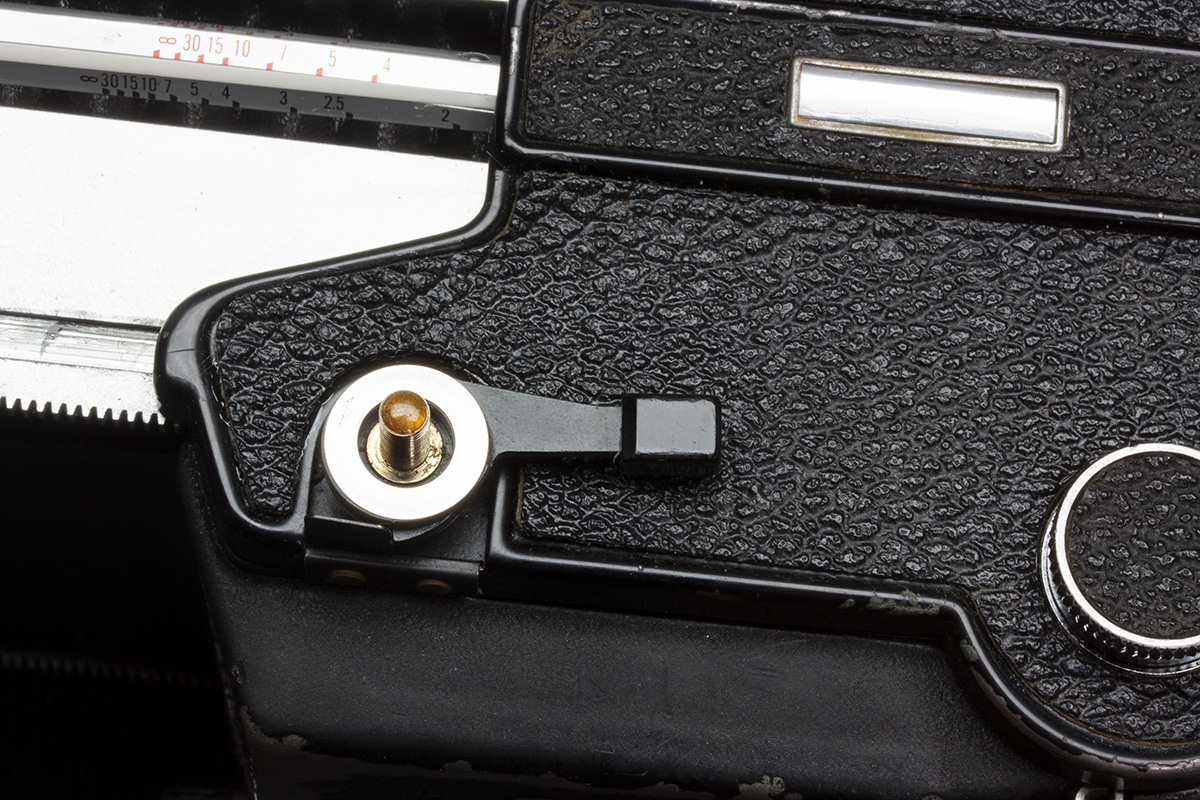

Bend spring tab enough to move the lever out of the way.

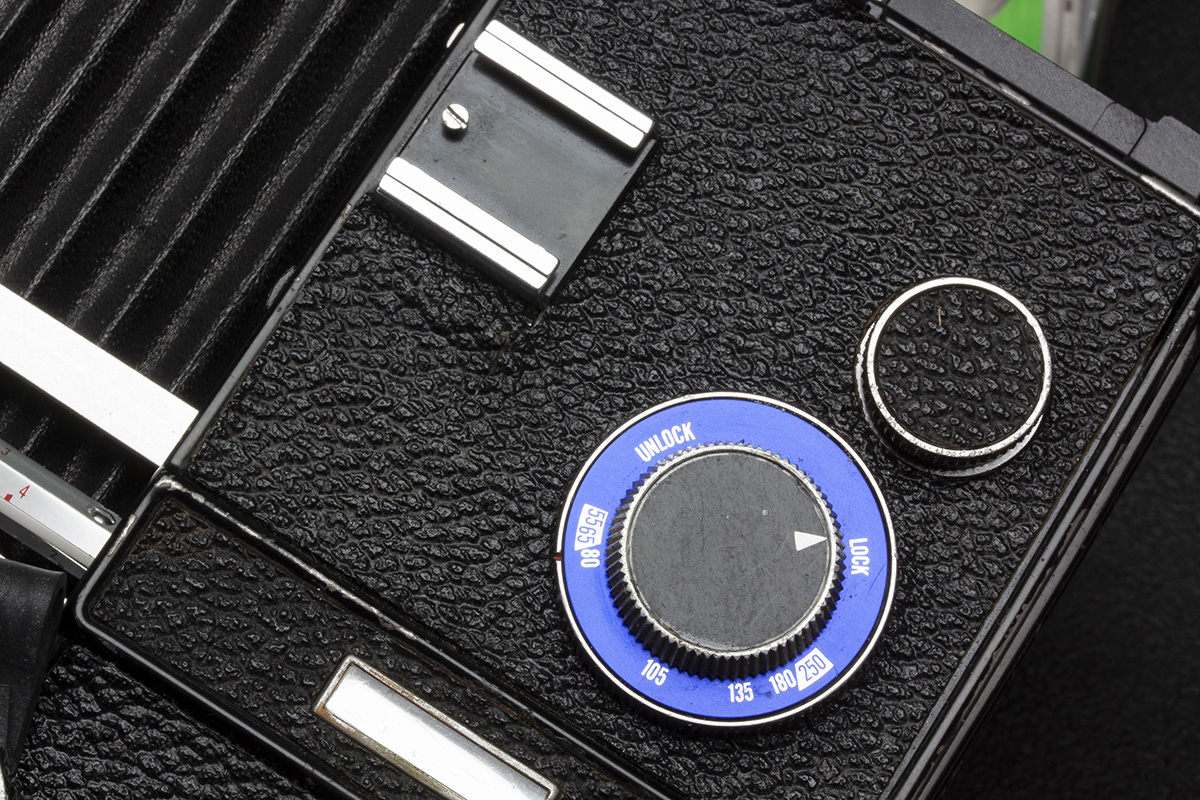

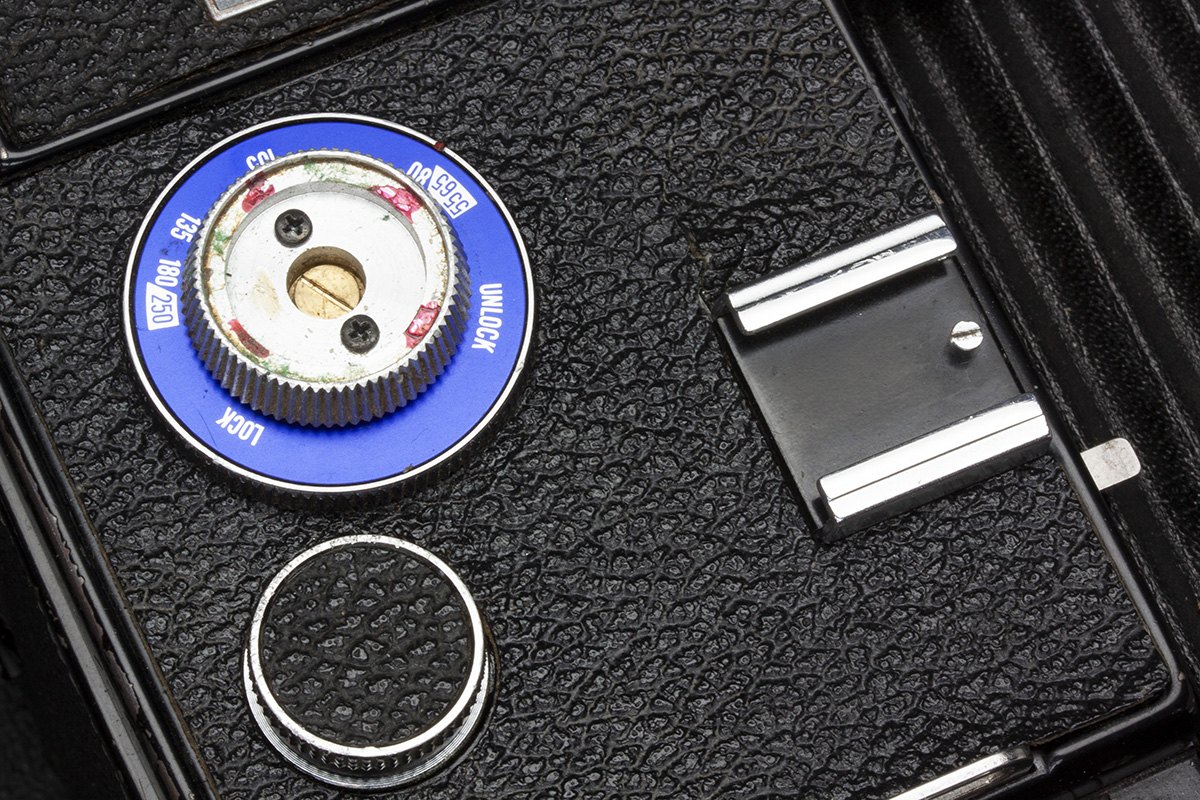

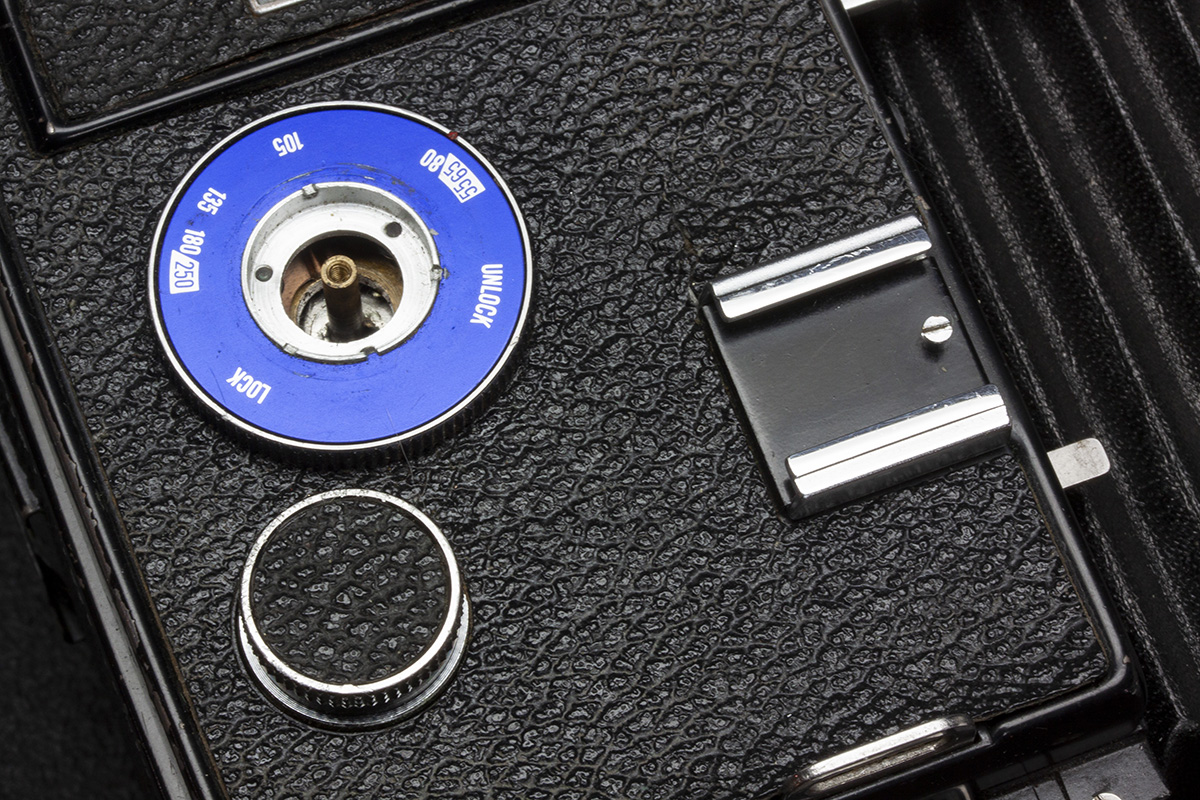

Pry off the lens lock knob trim disc.

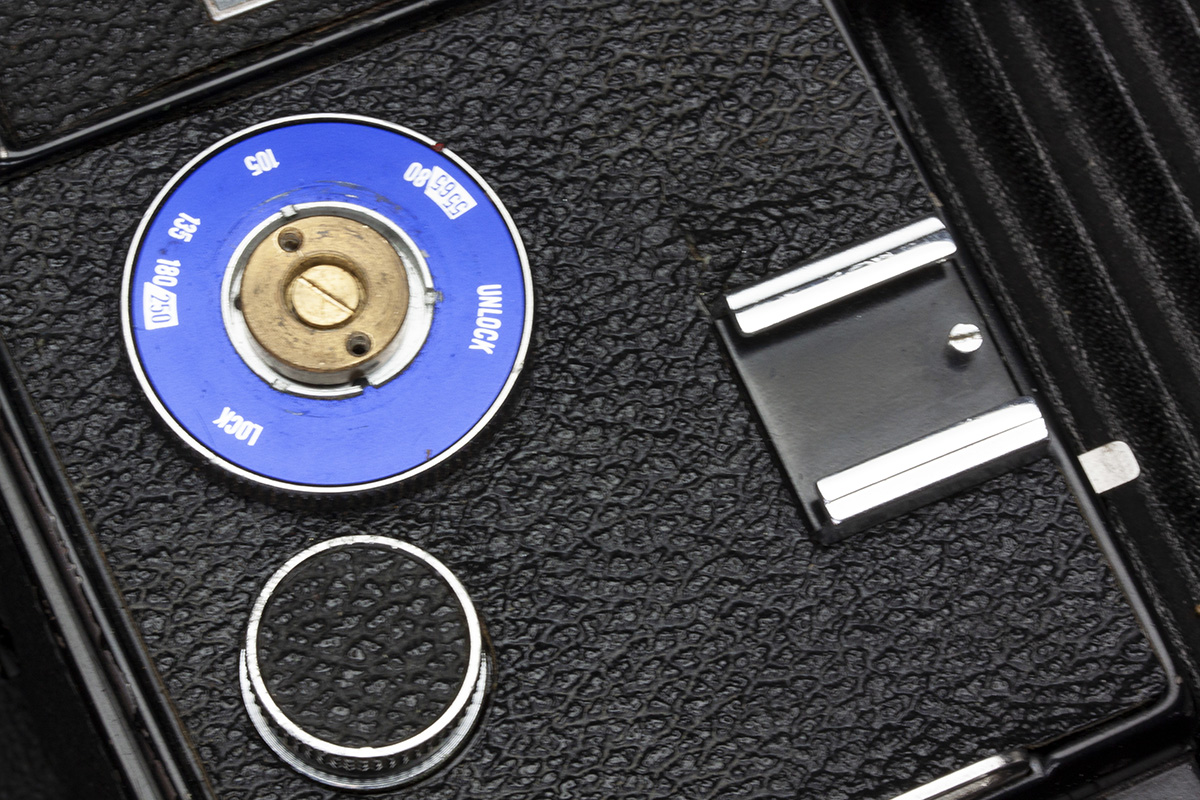

Remove the two screws and lift off the knob.

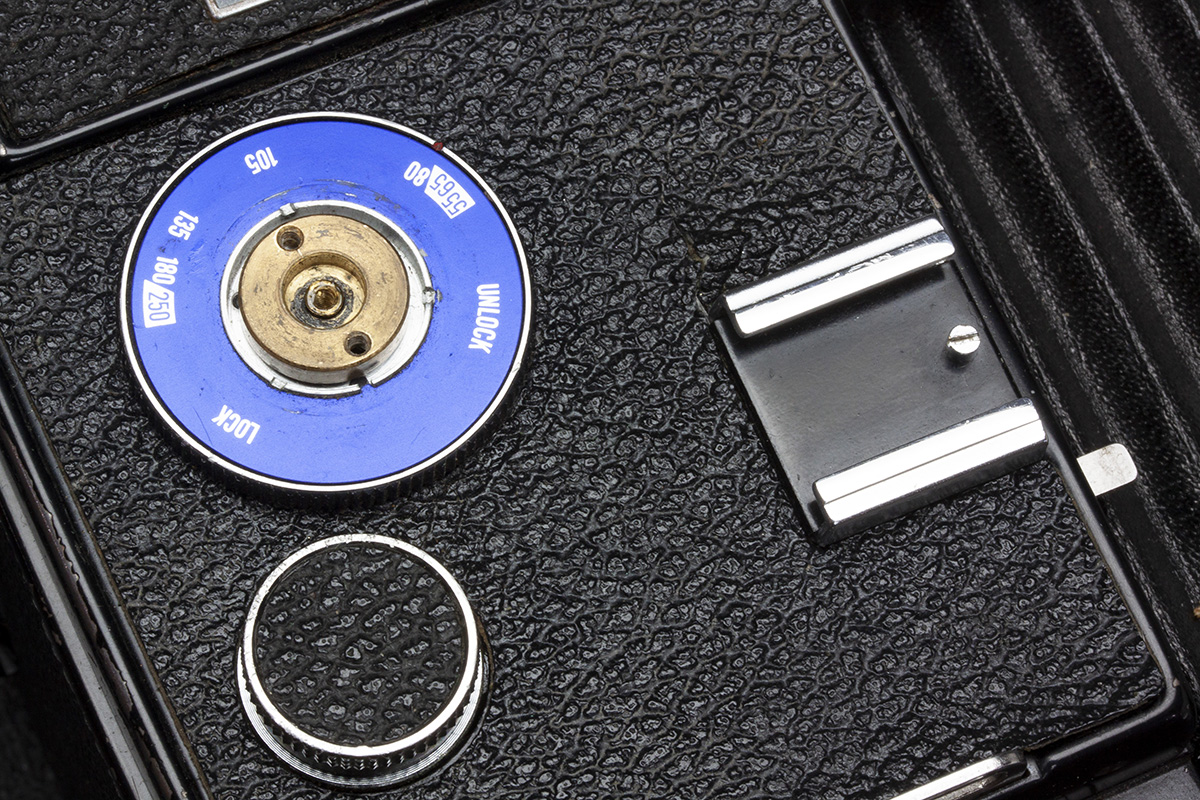

Remove the brass screw.
Remove the brass shaft.

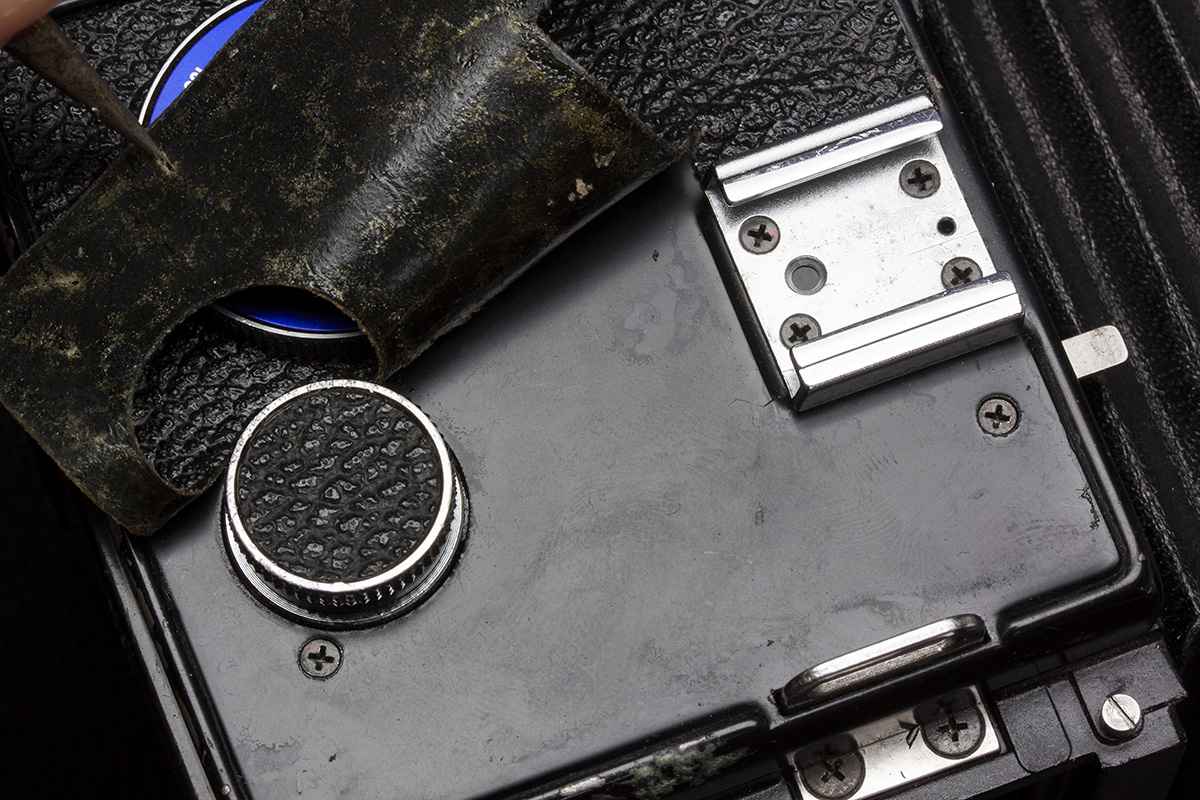

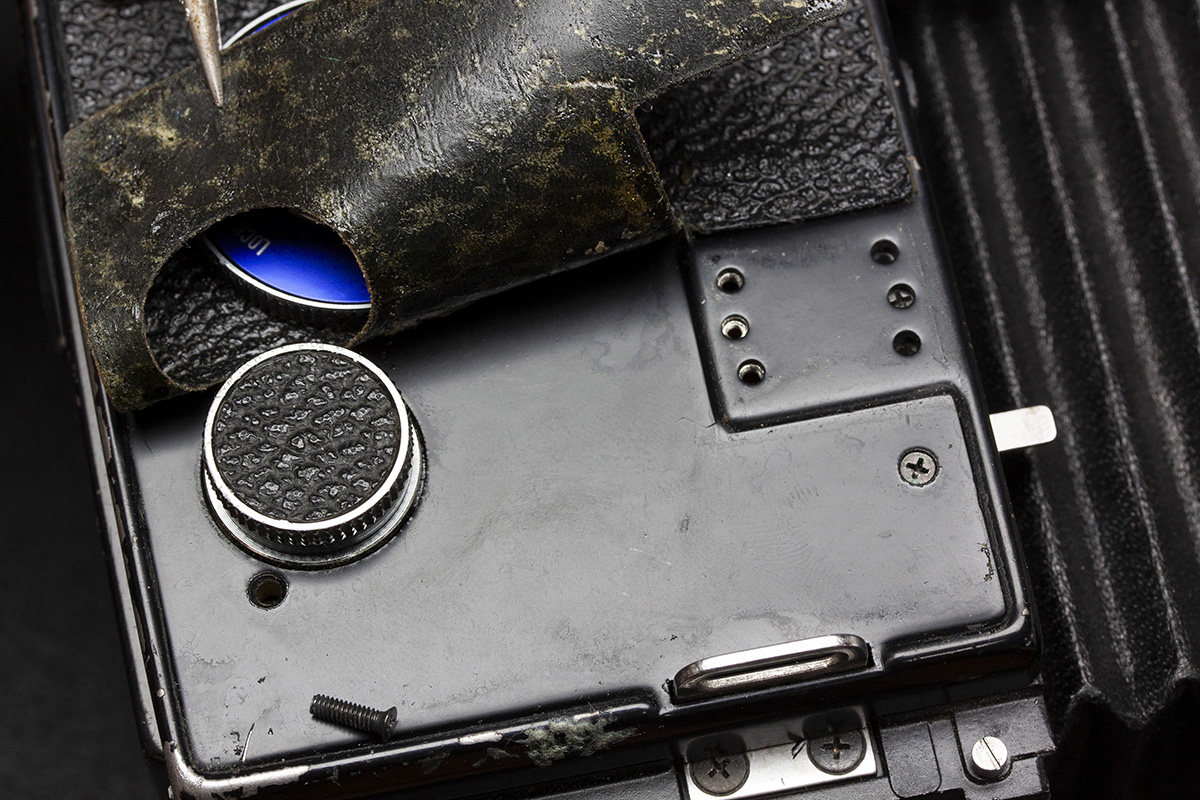

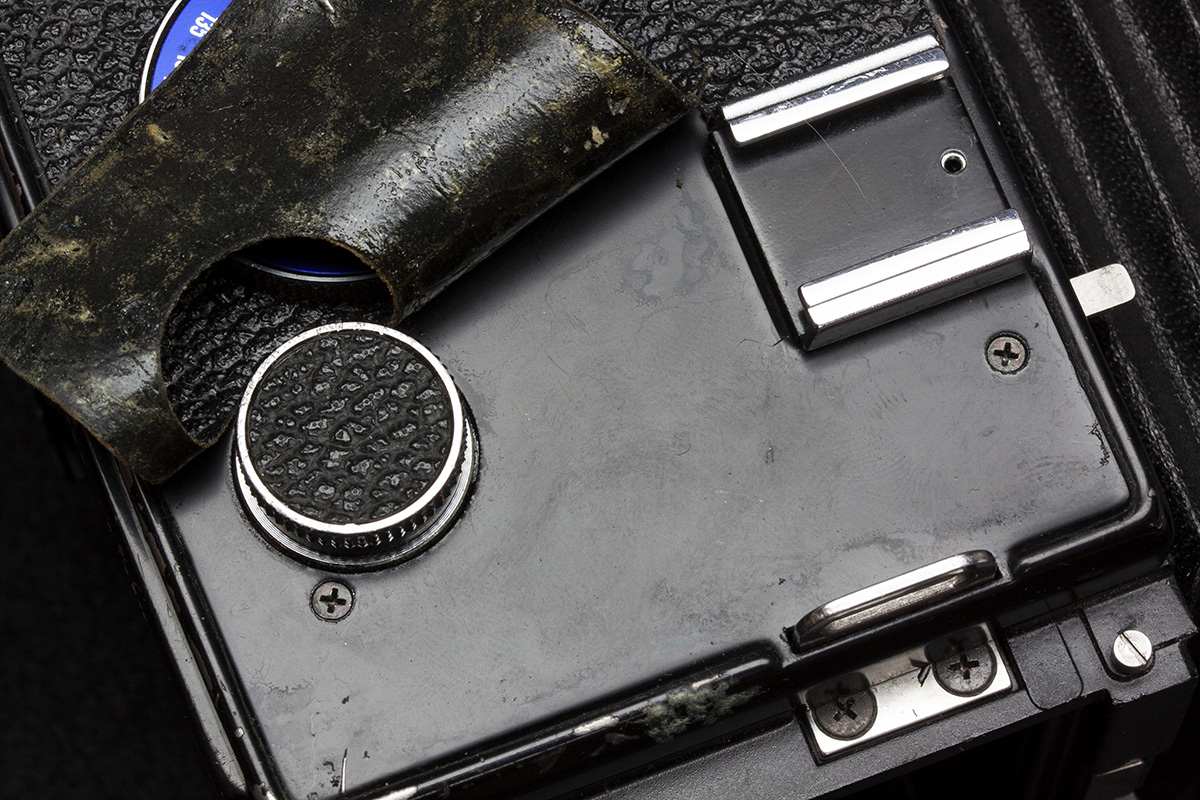

Peel back the leatherette to access the two top screws of the cover.
Remove the flash stop screw and slide off trim plate.
Remove all four screws and remove flash foot.
There are four side cover screws under the leatherette: two at the top and one on either side of the focus lock lever. Note screw length and size as you disassemble; they are not all the same.
The side cover can now be removed.

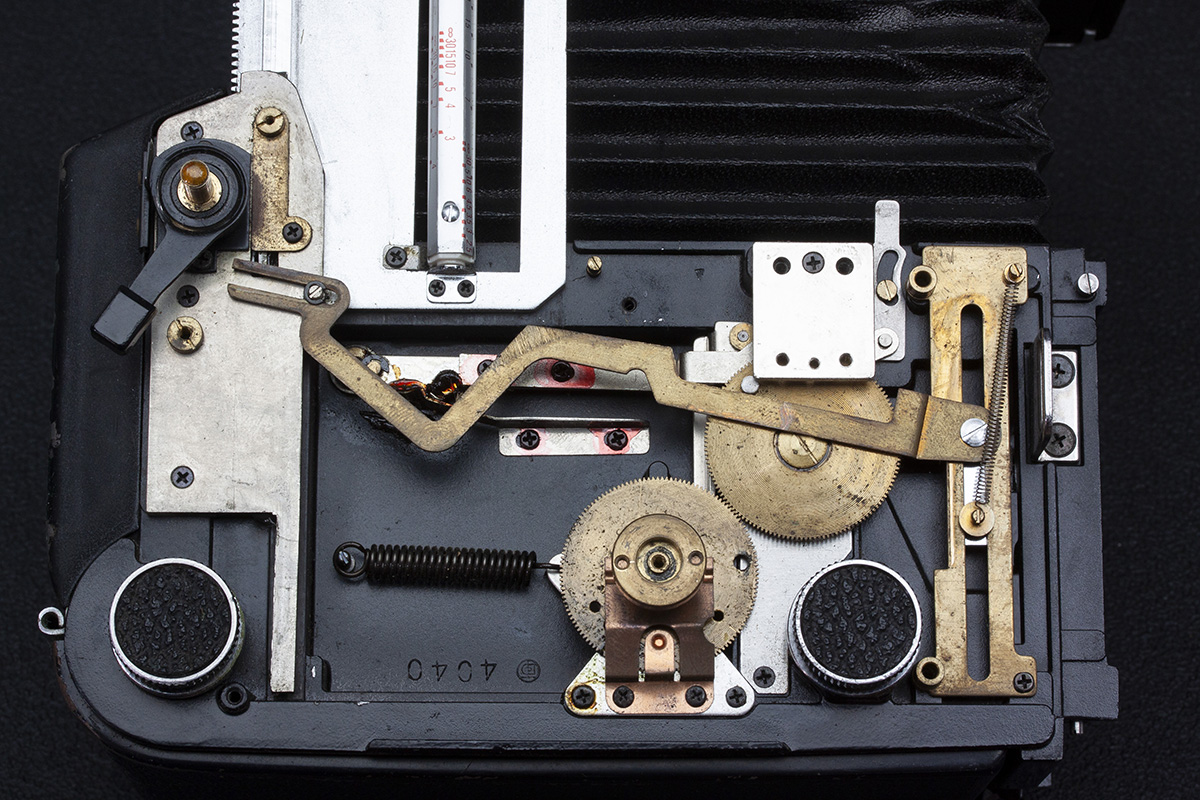

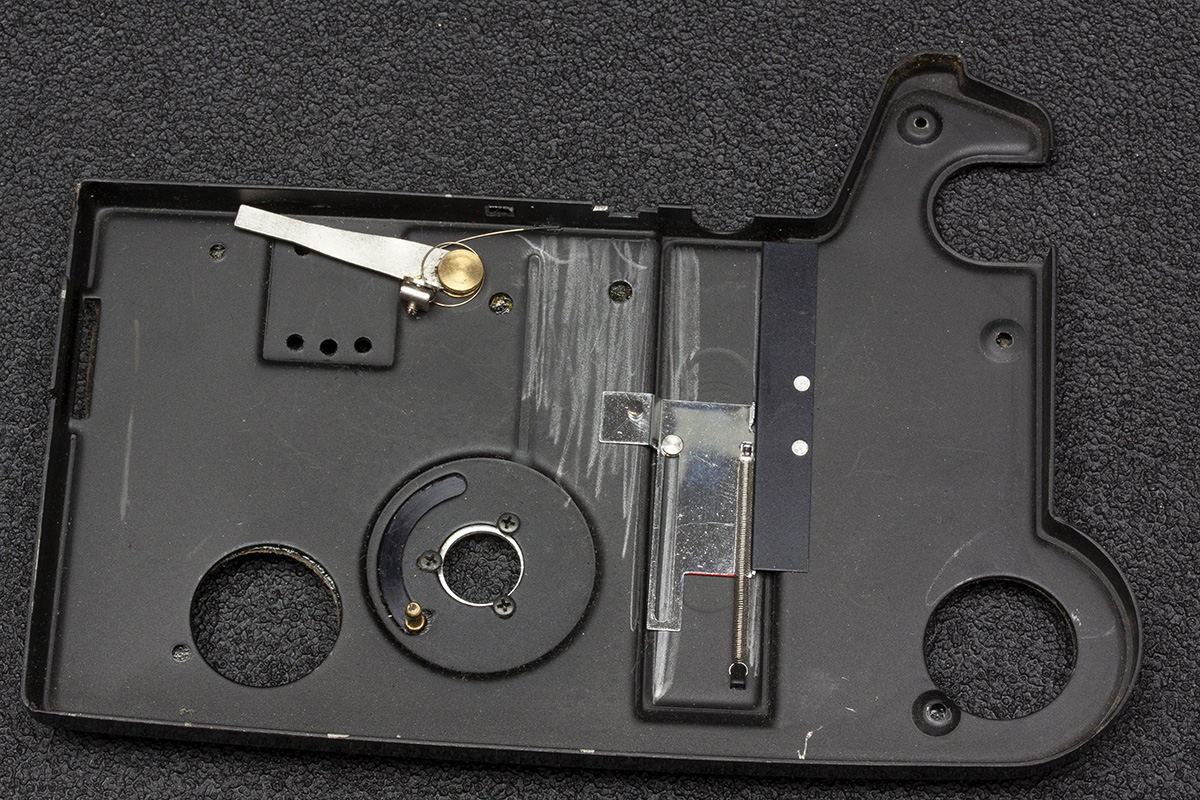

Side cover removed.

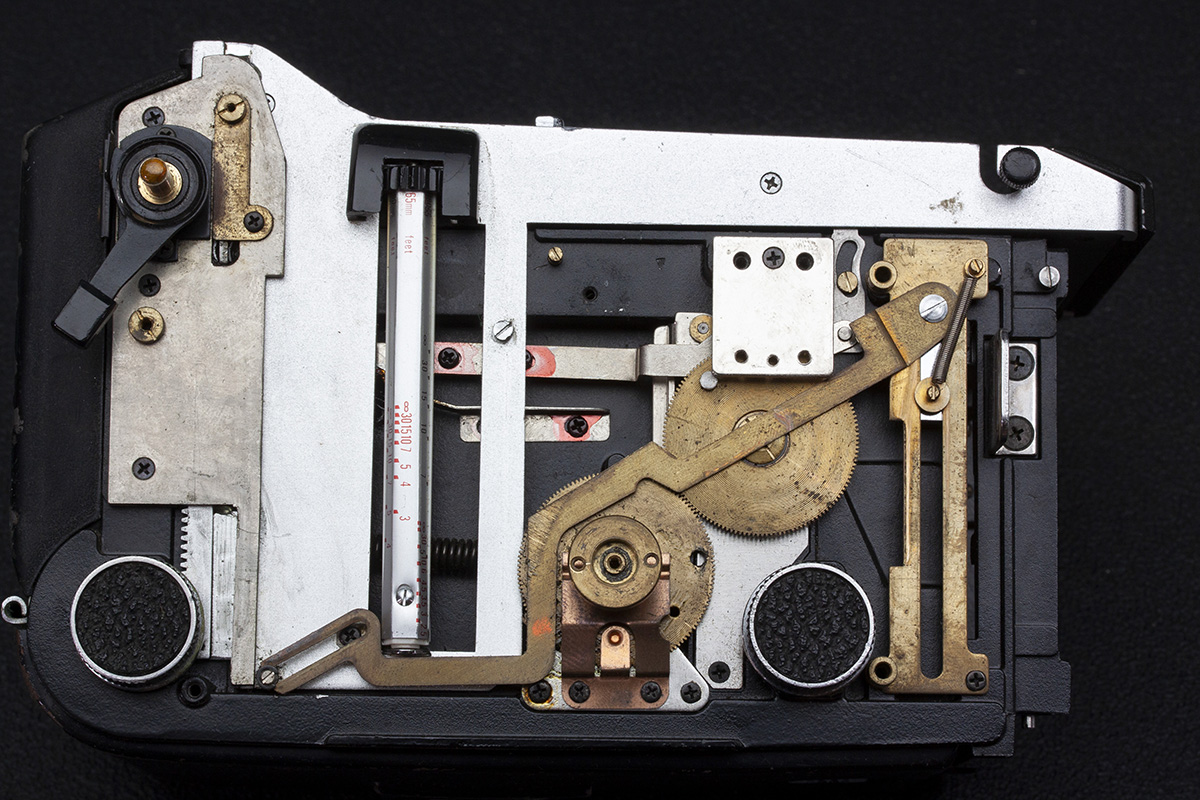

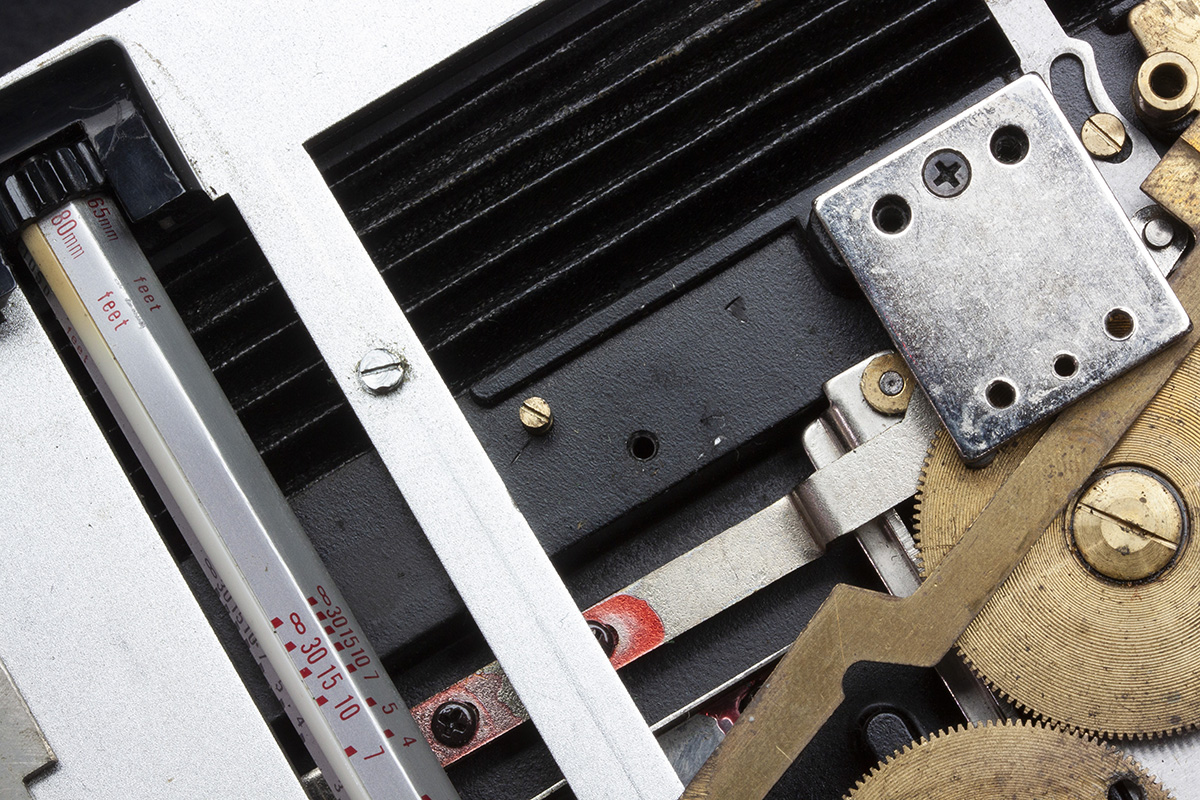

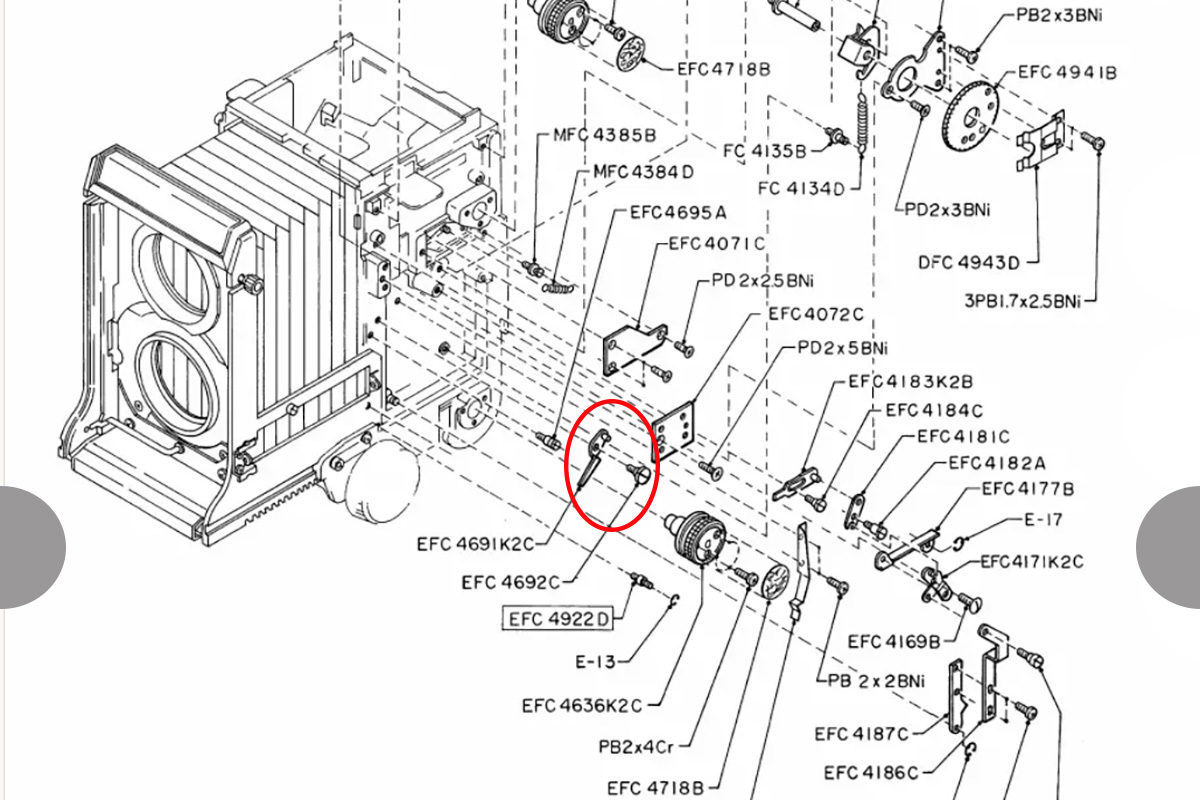

Opened this up to see if I could get the distance scale working but the arm (EFC 4691K2C) and screw (EFC 4692C) are missing.

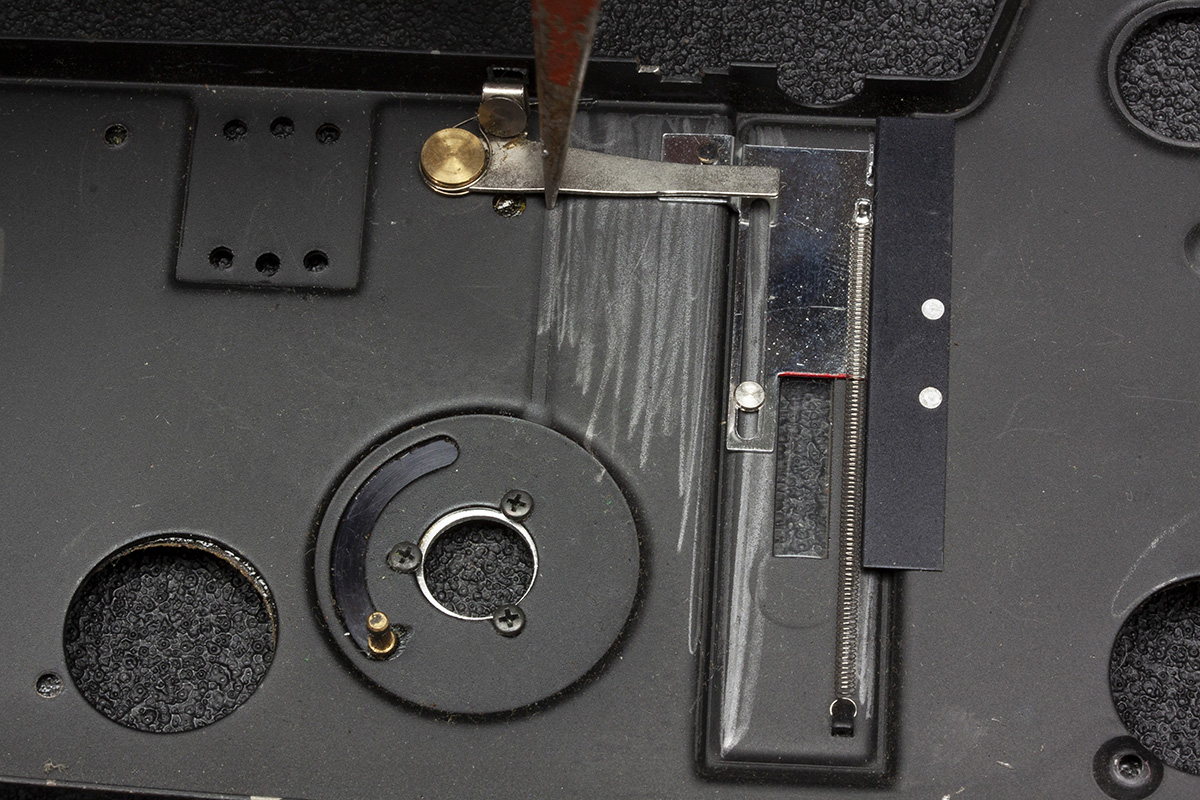

Looks like the distance scale mask was sticking and someone thought pencil lead would get things moving.
Missing parts.
I've had three C-330f cameras and the distance scale didn't work on any of them.
