Minolta A-2 Top & Bottom Cover Removal

1 / 21
2 / 21
3 / 21
4 / 21
5 / 21
6 / 21
7 / 21
8 / 21
9 / 21
10 / 21
11 / 21
12 / 21
13 / 21
14 / 21
15 / 21
16 / 21
17 / 21
18 / 21
19 / 21
20 / 21
21 / 21

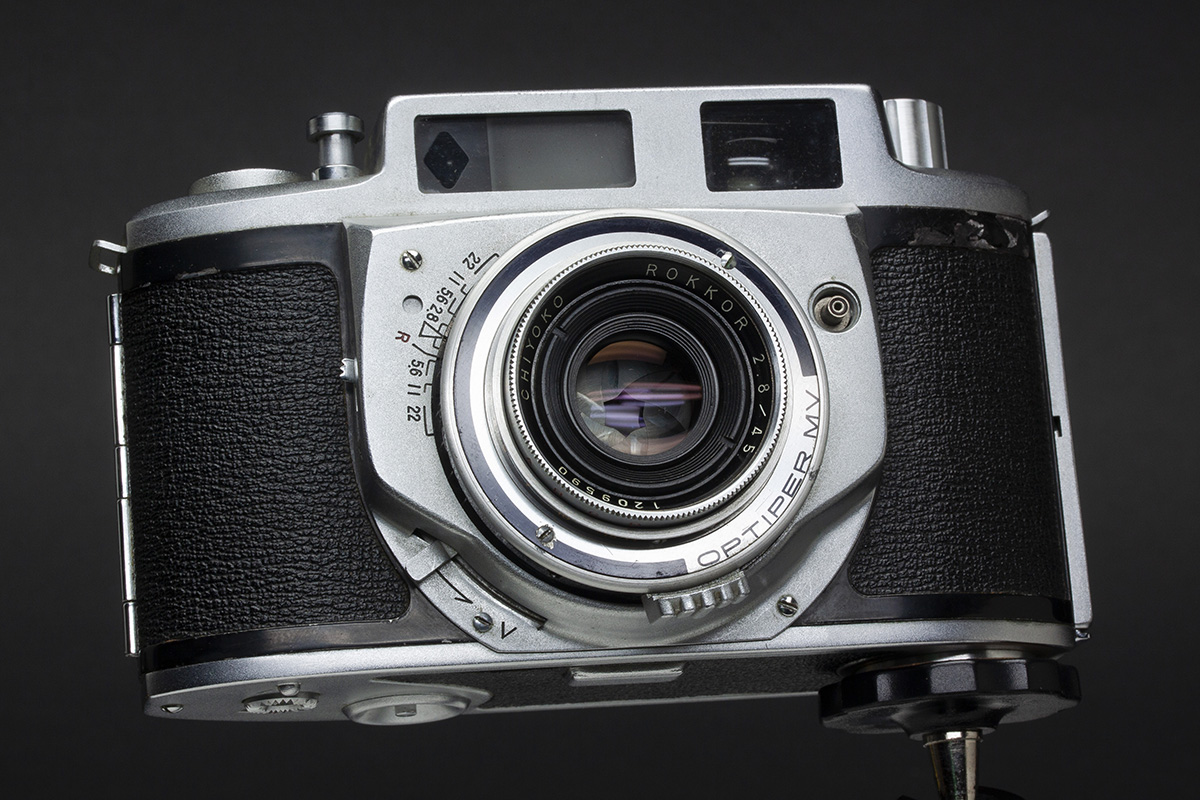

Removing the top & bottom covers of the Minolta A-2.

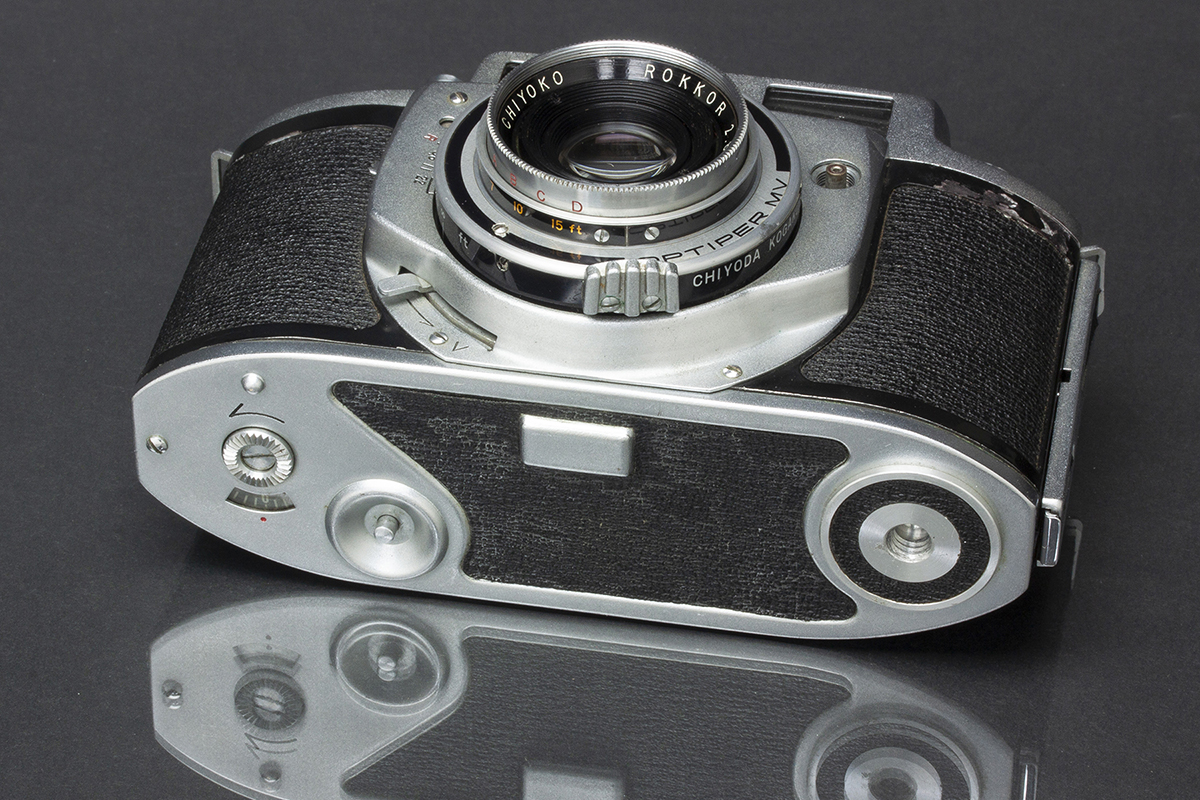

Remove the leatherette ring to expose the three tripod mount retaining screws. Remove the screw next to the film counter.

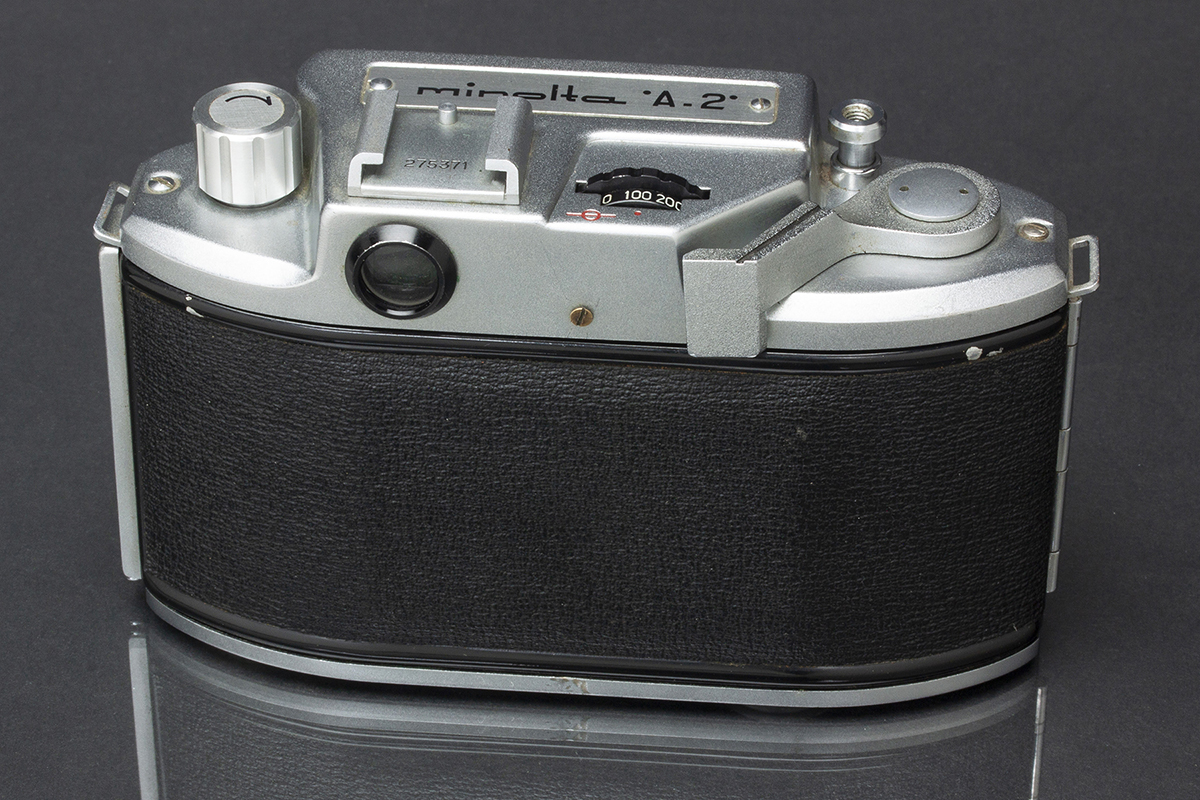

Remove the two screws at either end and the one screw at the back of the top cover.

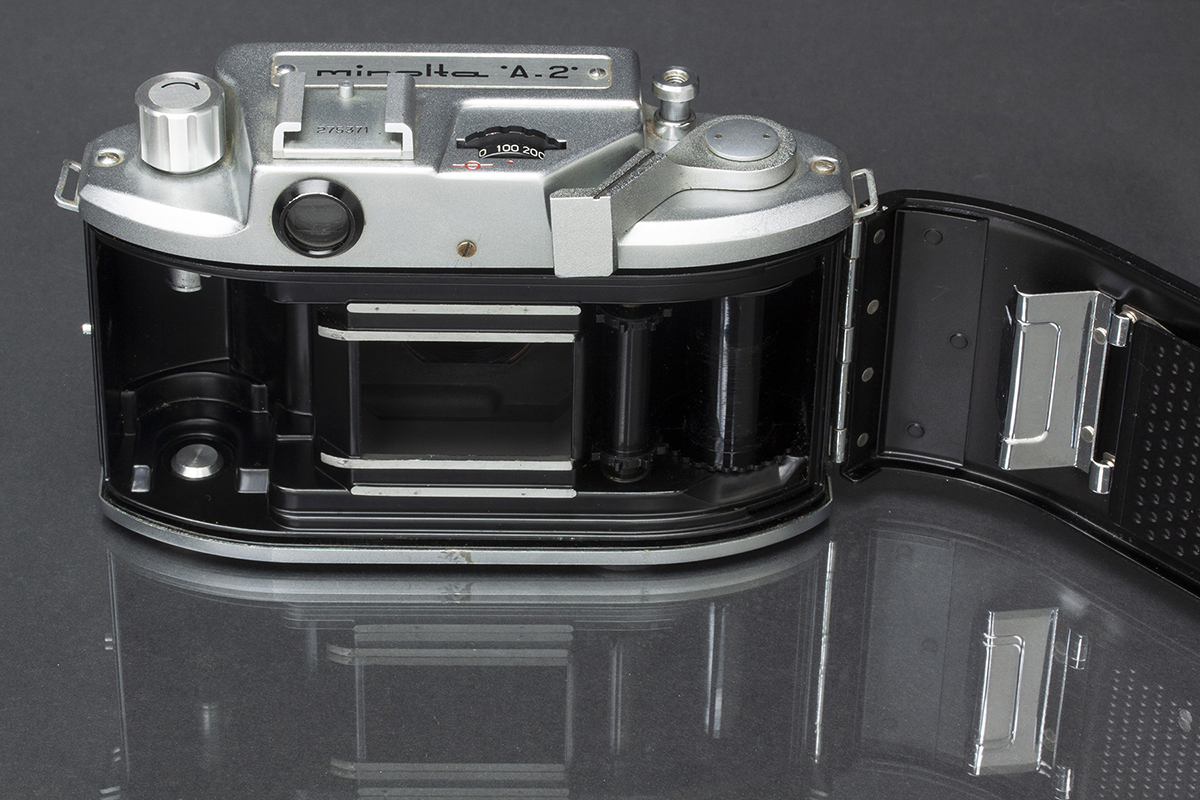

With the film door open, put the shaft of a screwdriver in between the rind shaft fork and unscrew the rewind knob. Use a spanner to remove the film advance lever retainiing screw and lift of lever.

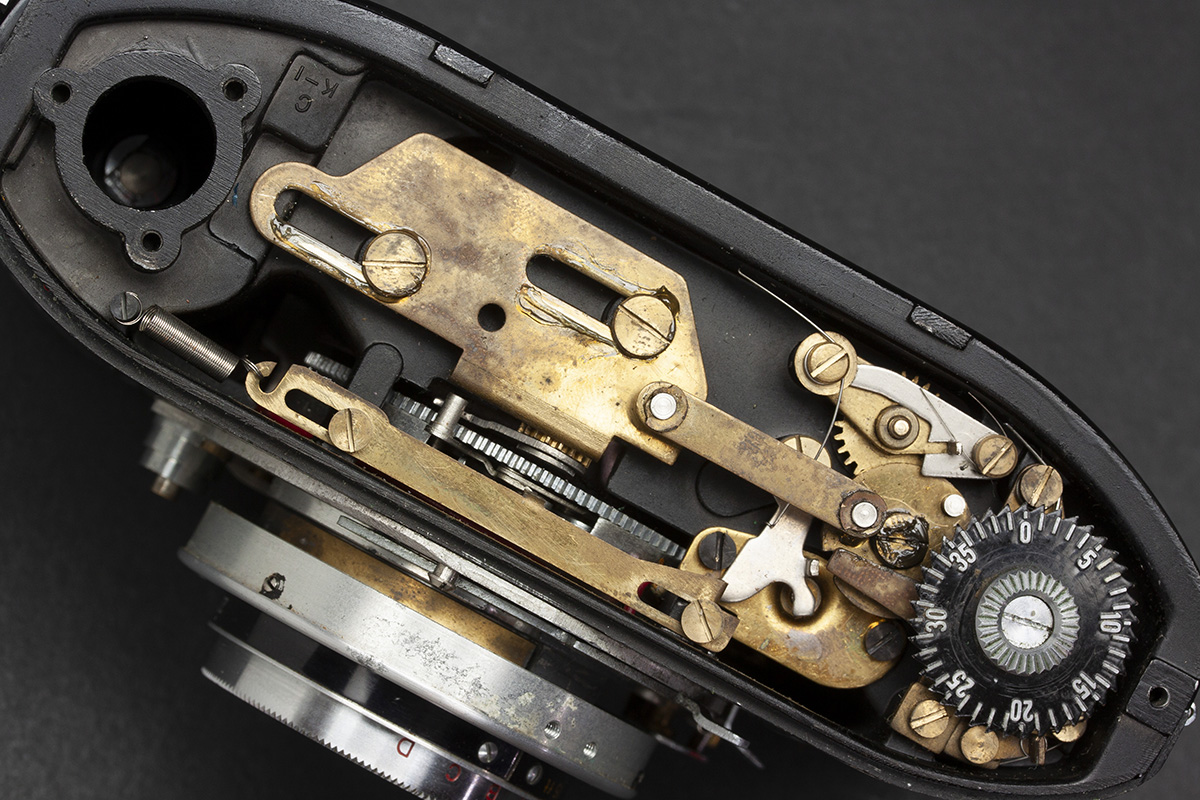

Bottom cover removed.

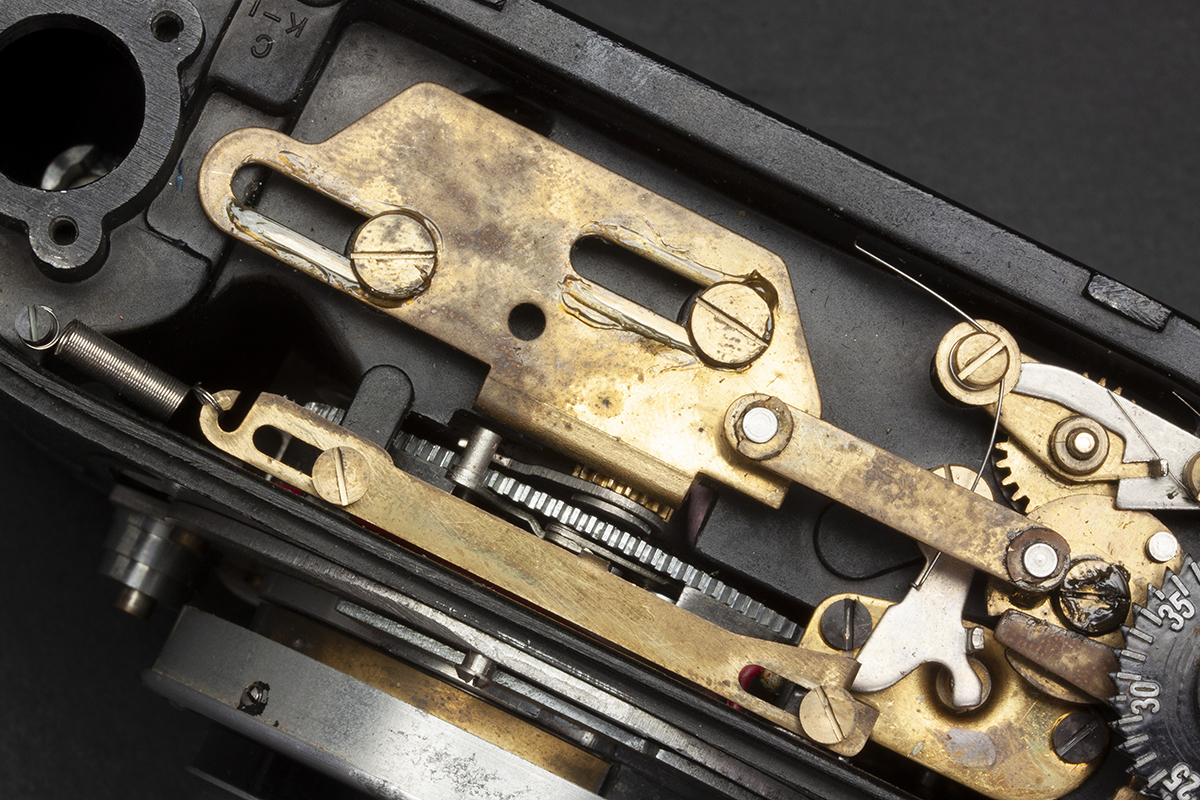

Close-up shutter cocking linkage.

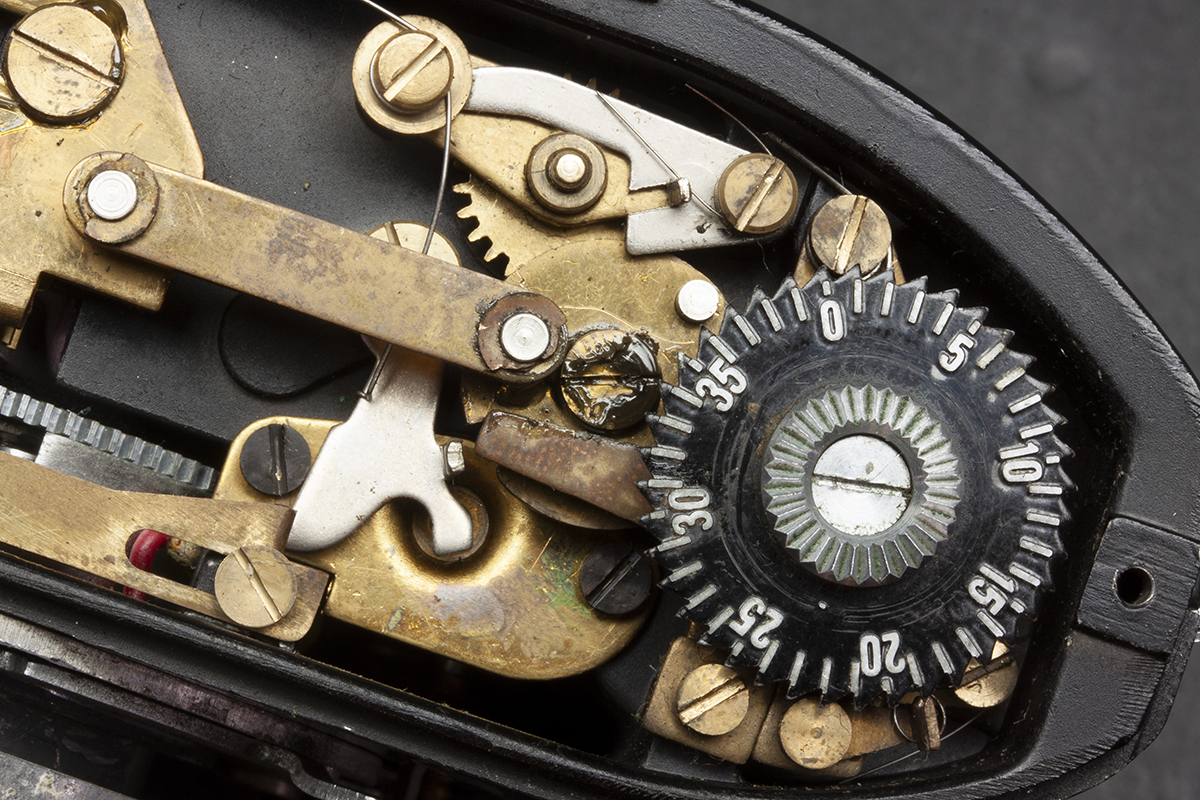

Close-up film counter.

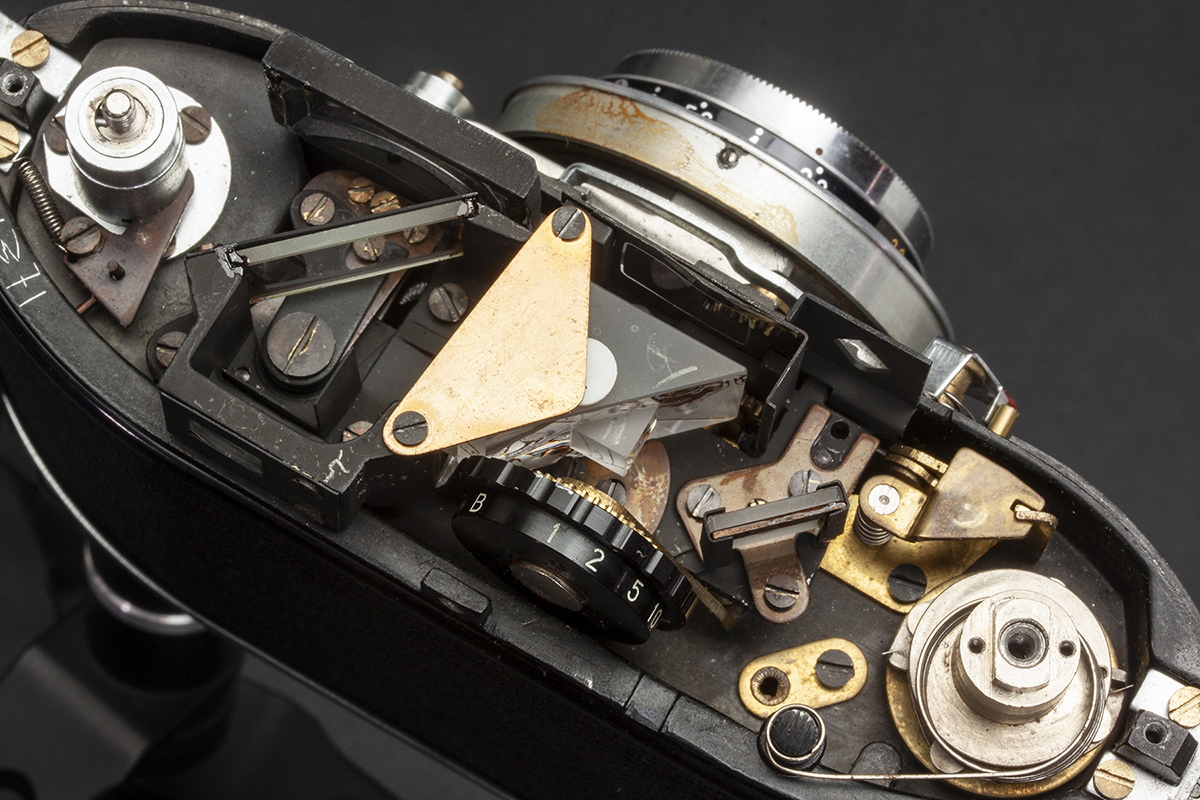

Top cover removed.

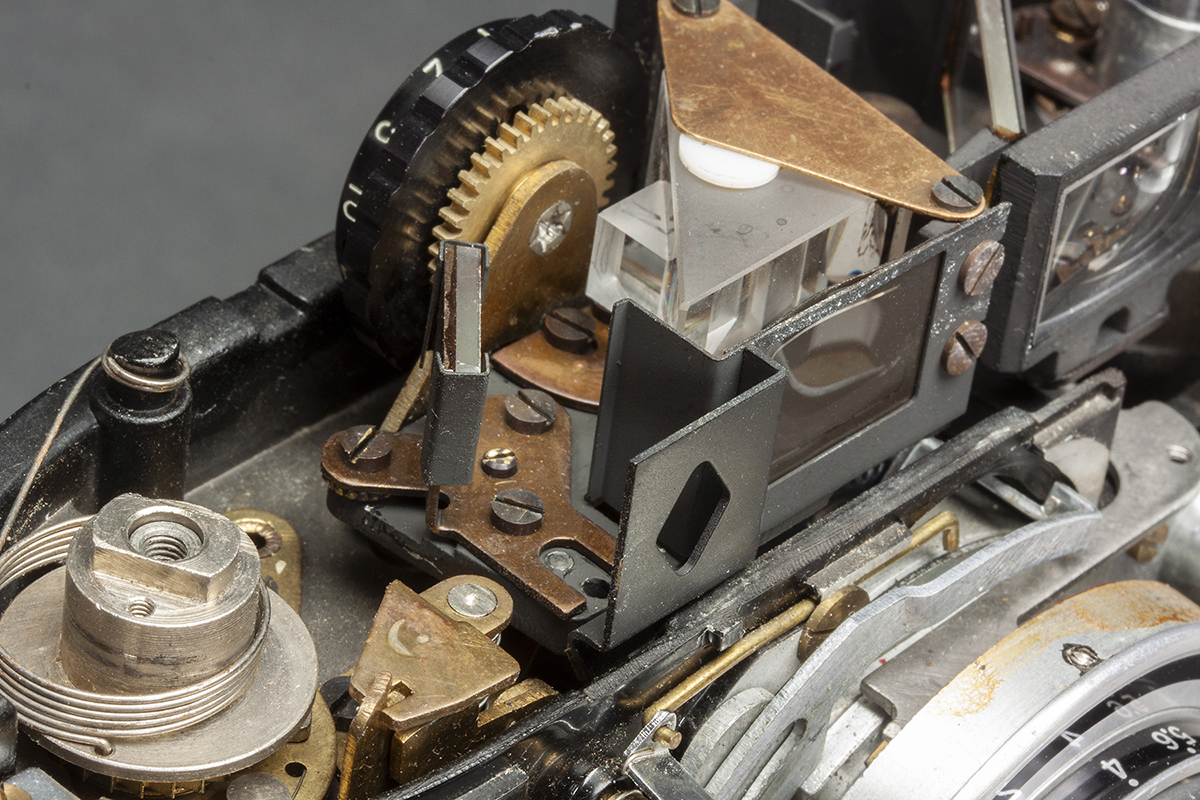

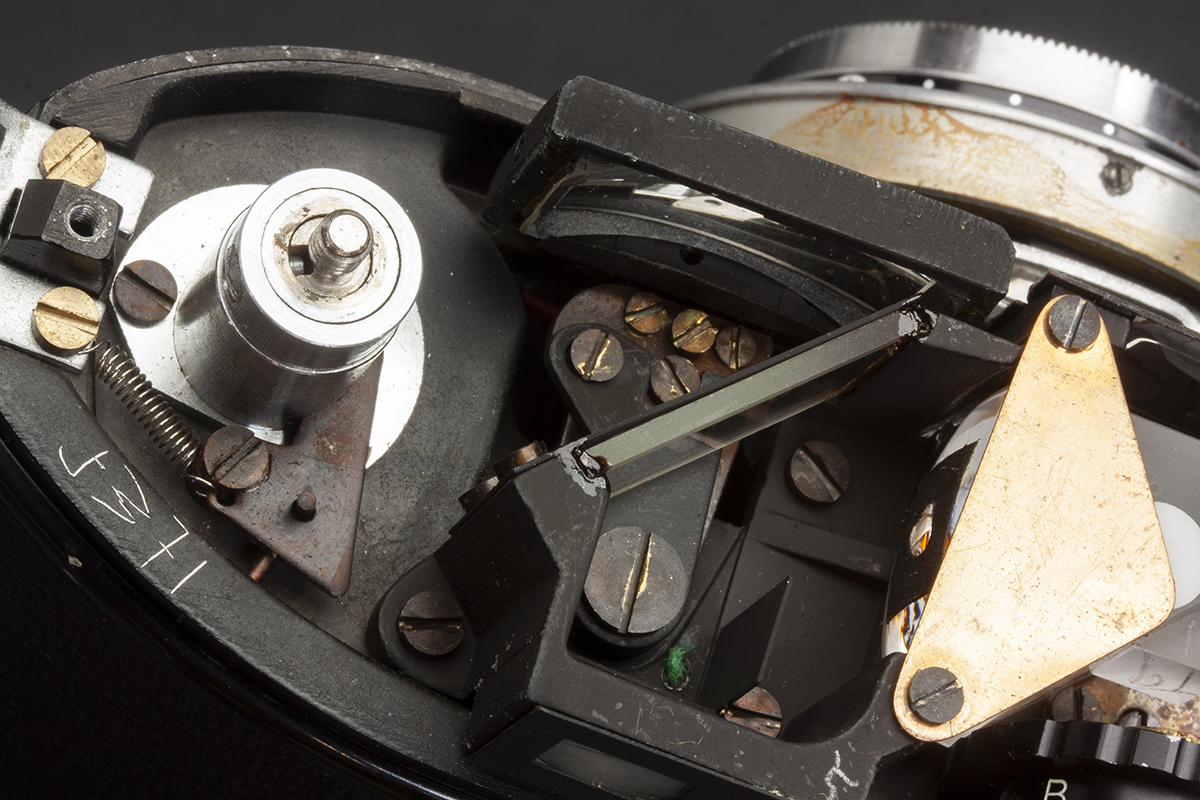

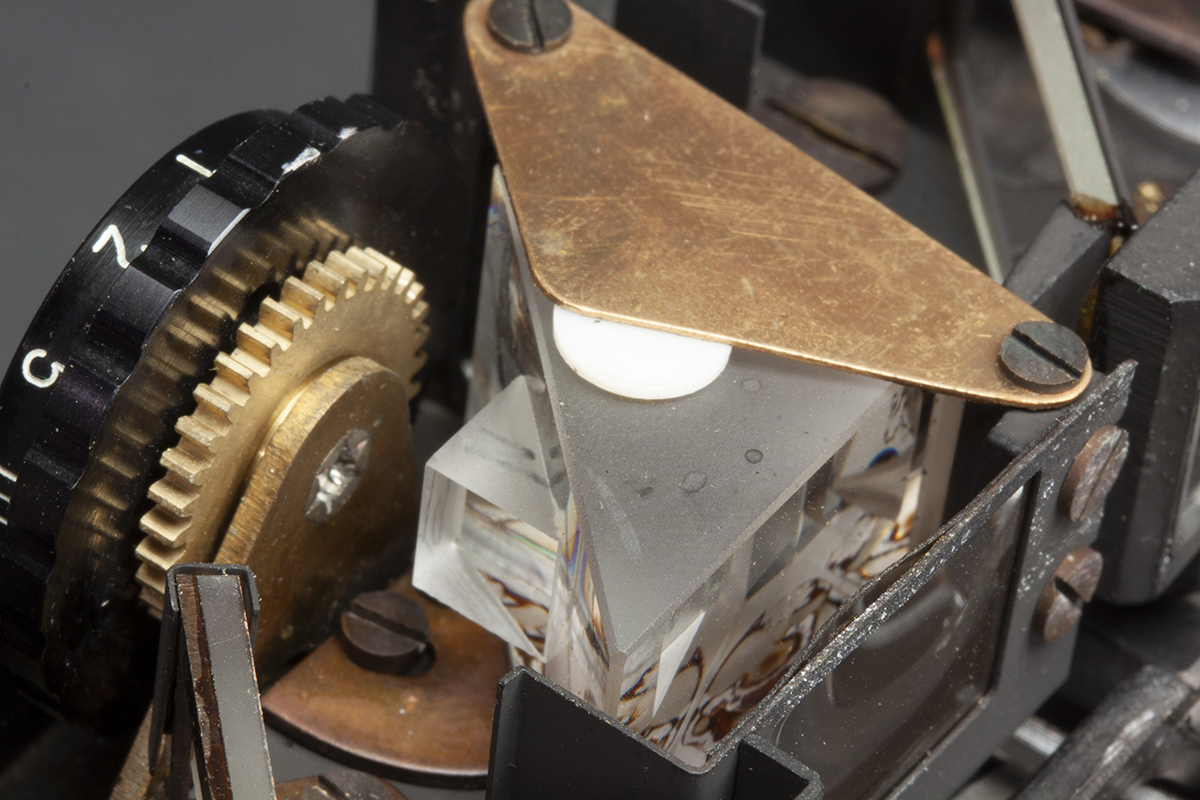

Close-up rangefinder.

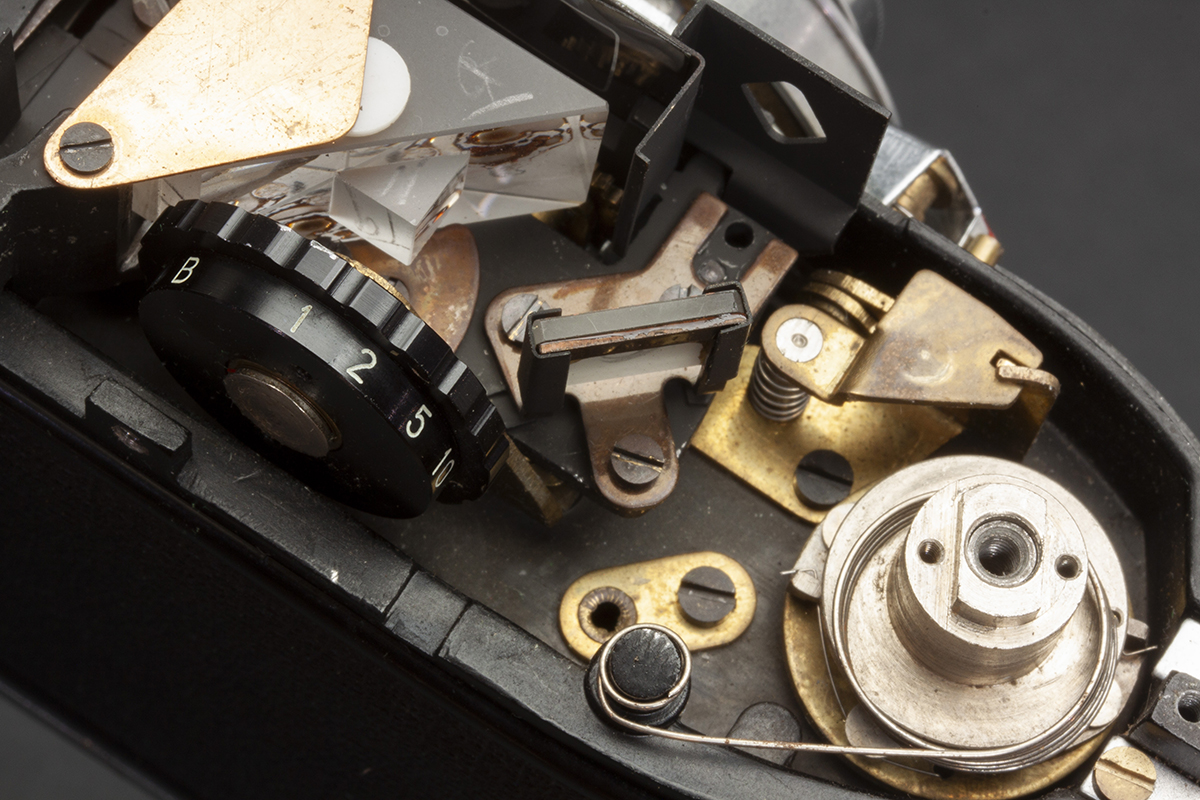

Close-up film speed dial.
Close-up front.
Close-up.
Another close-up.

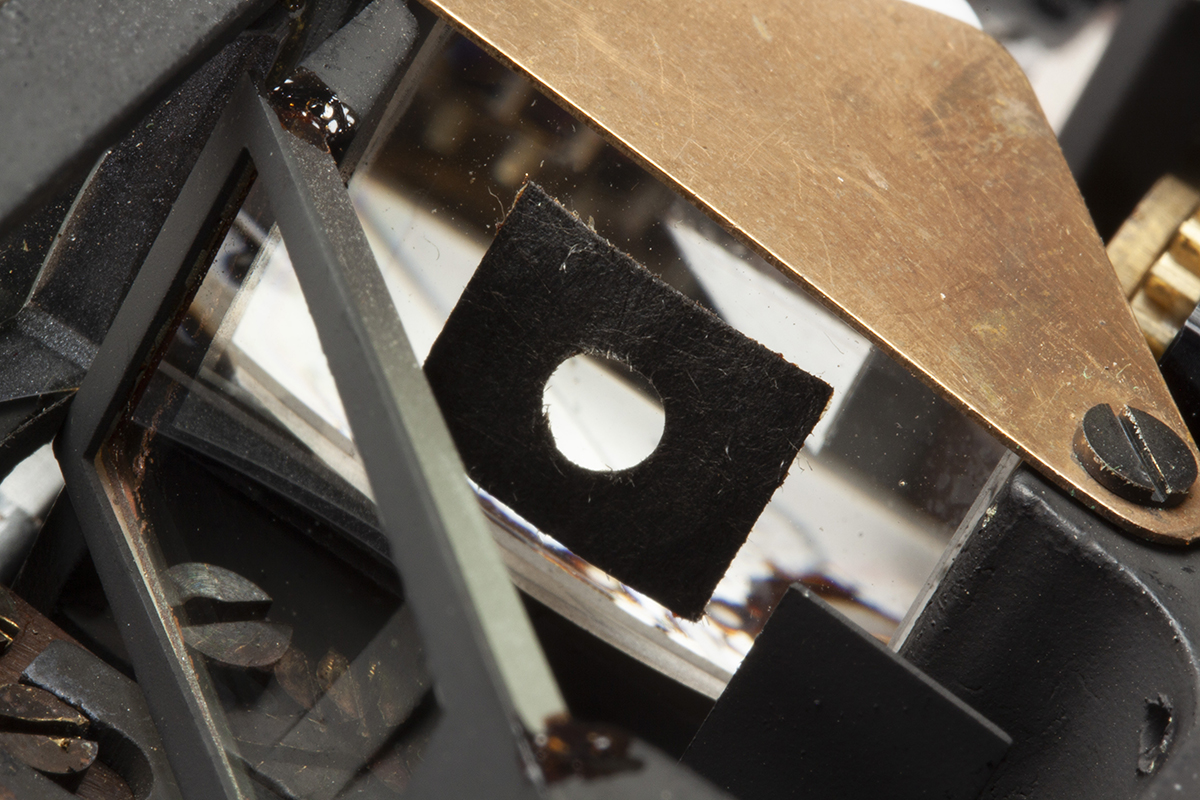

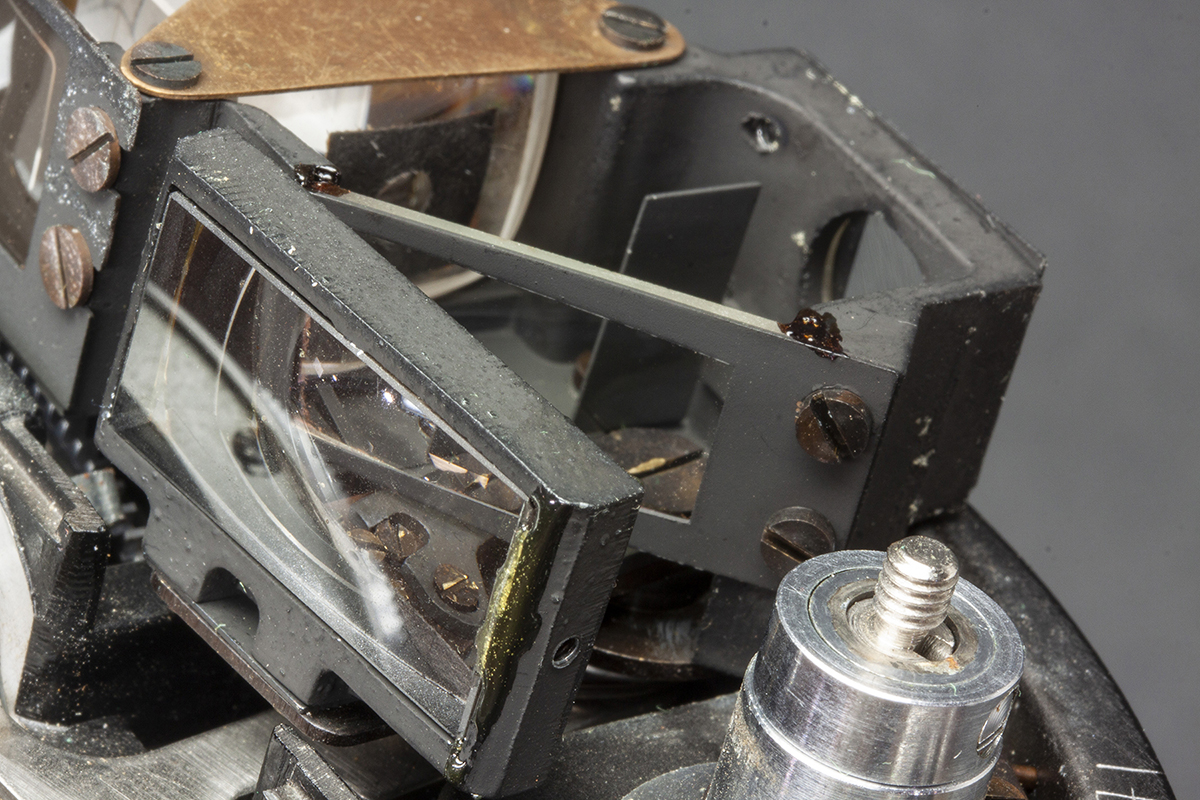

Rangefinder.

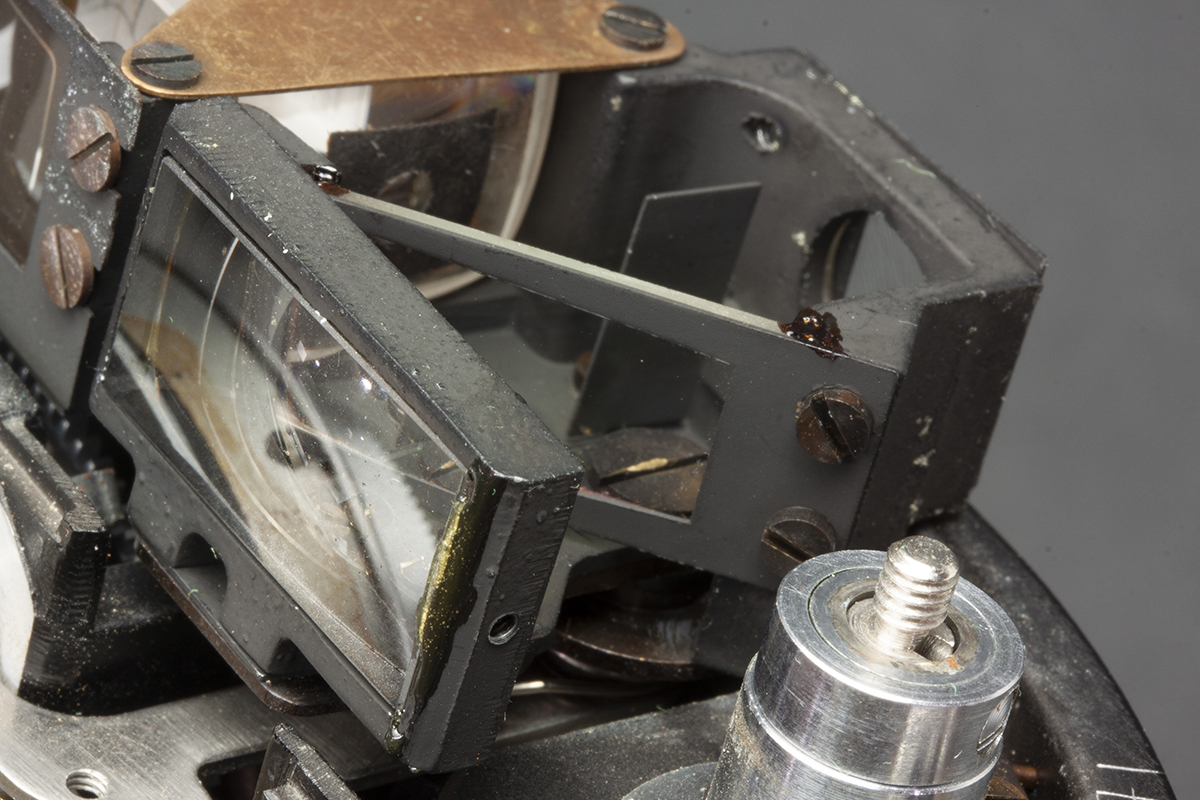

Rangefinder.
Three screws retain the front plate.

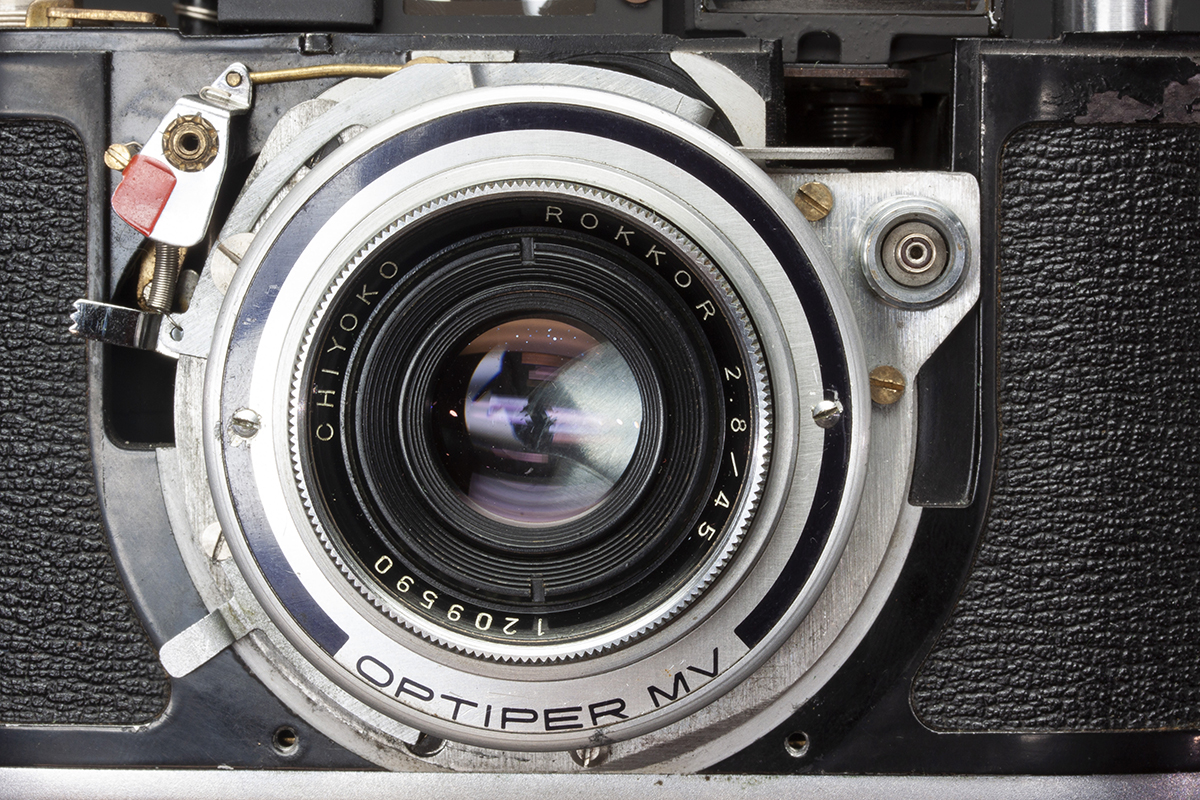

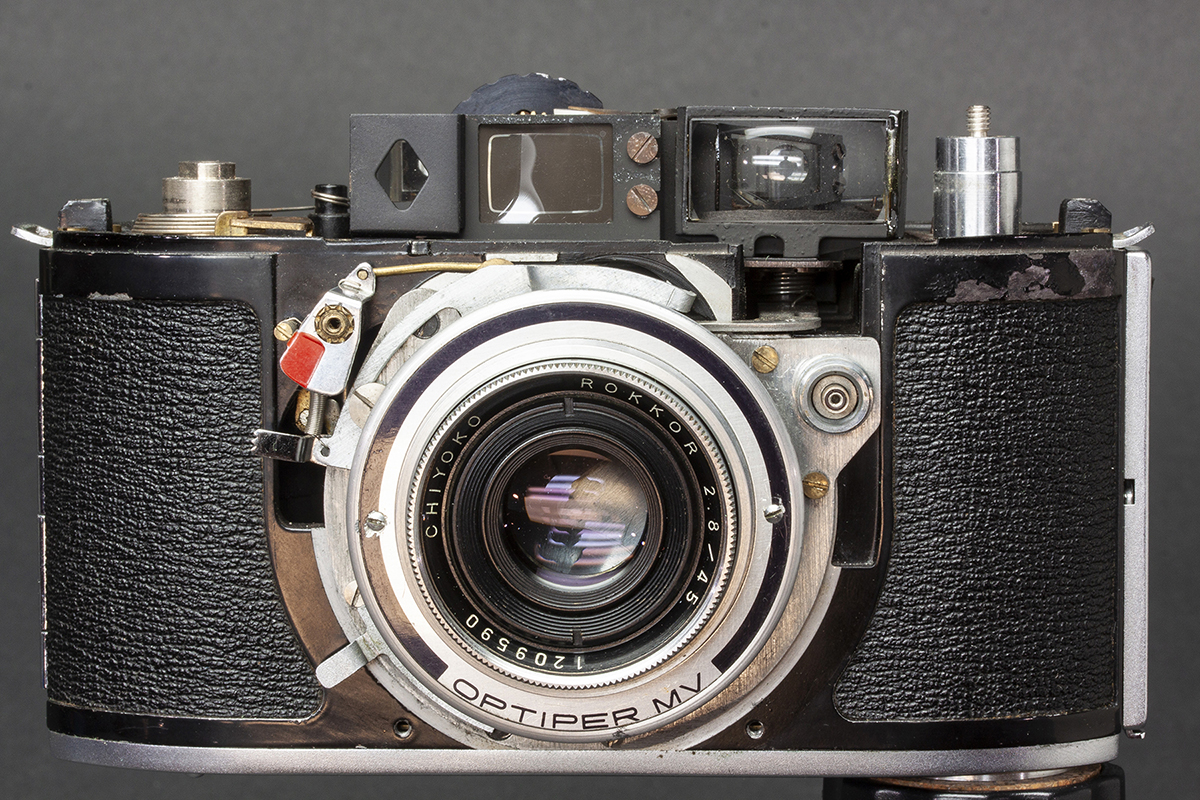

Front view.

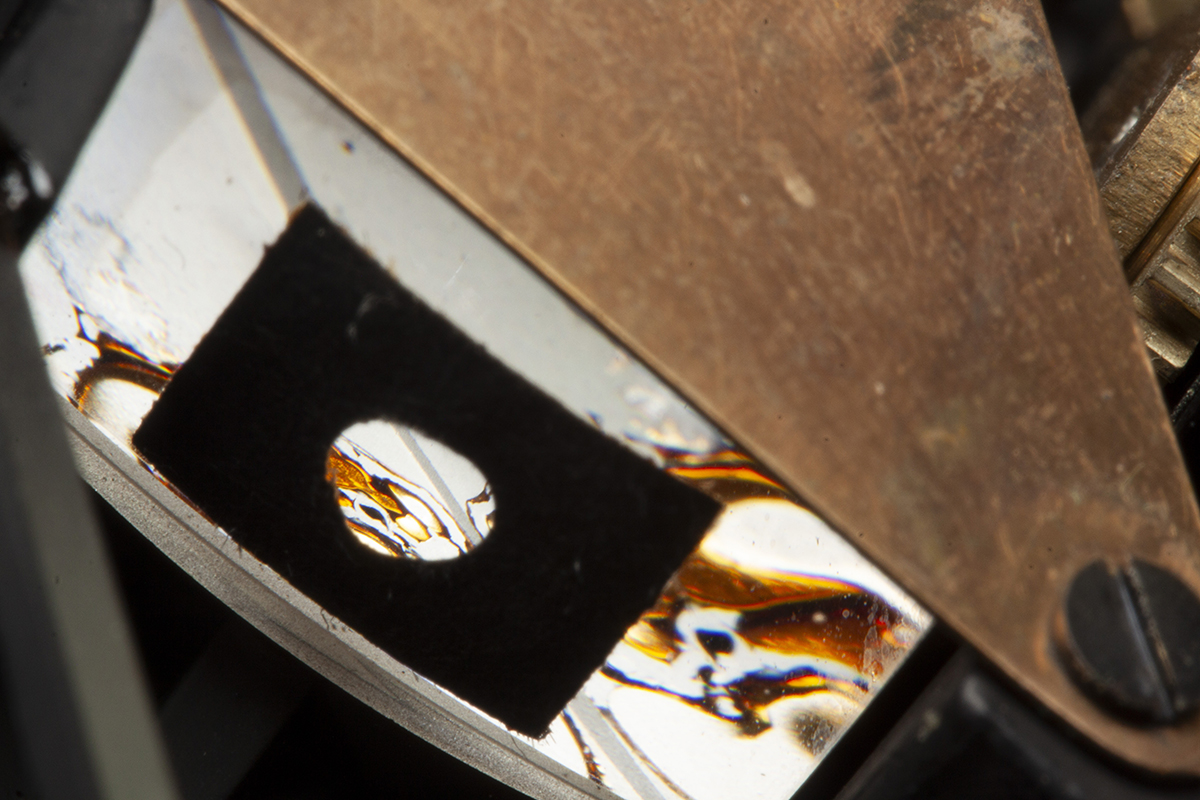

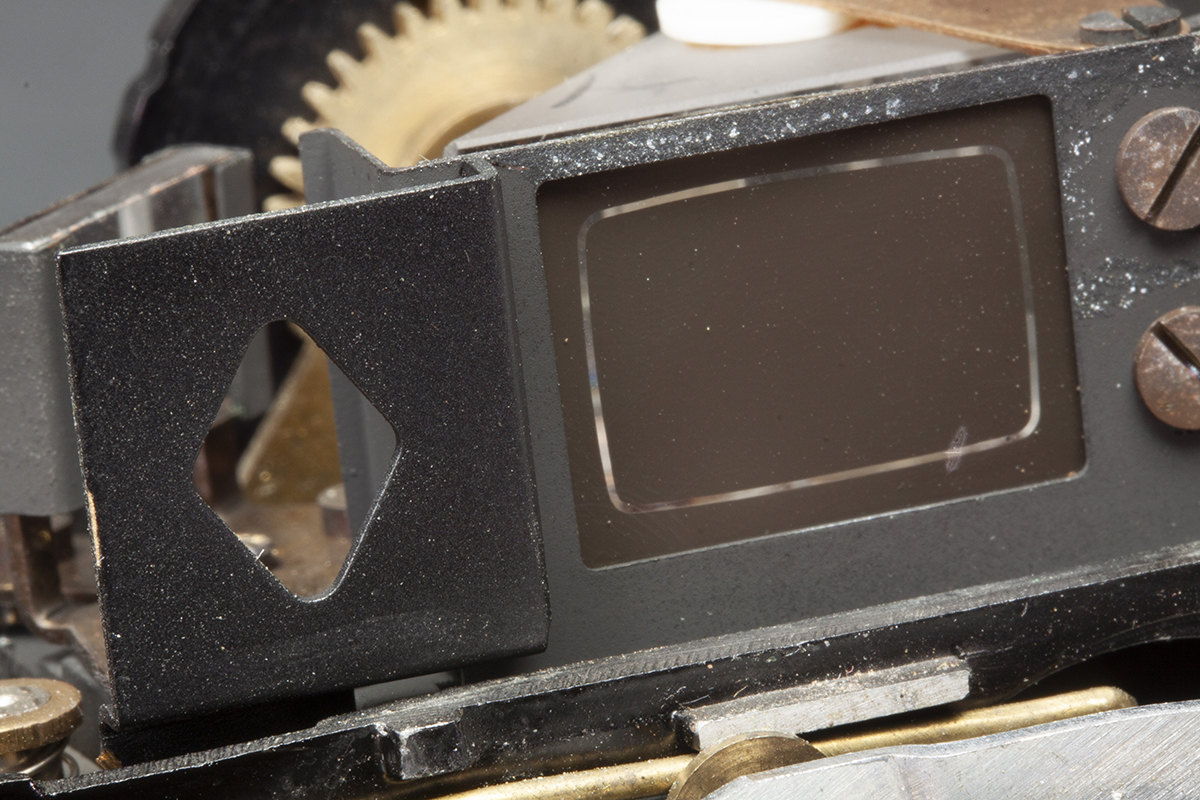

Yet another close-up.

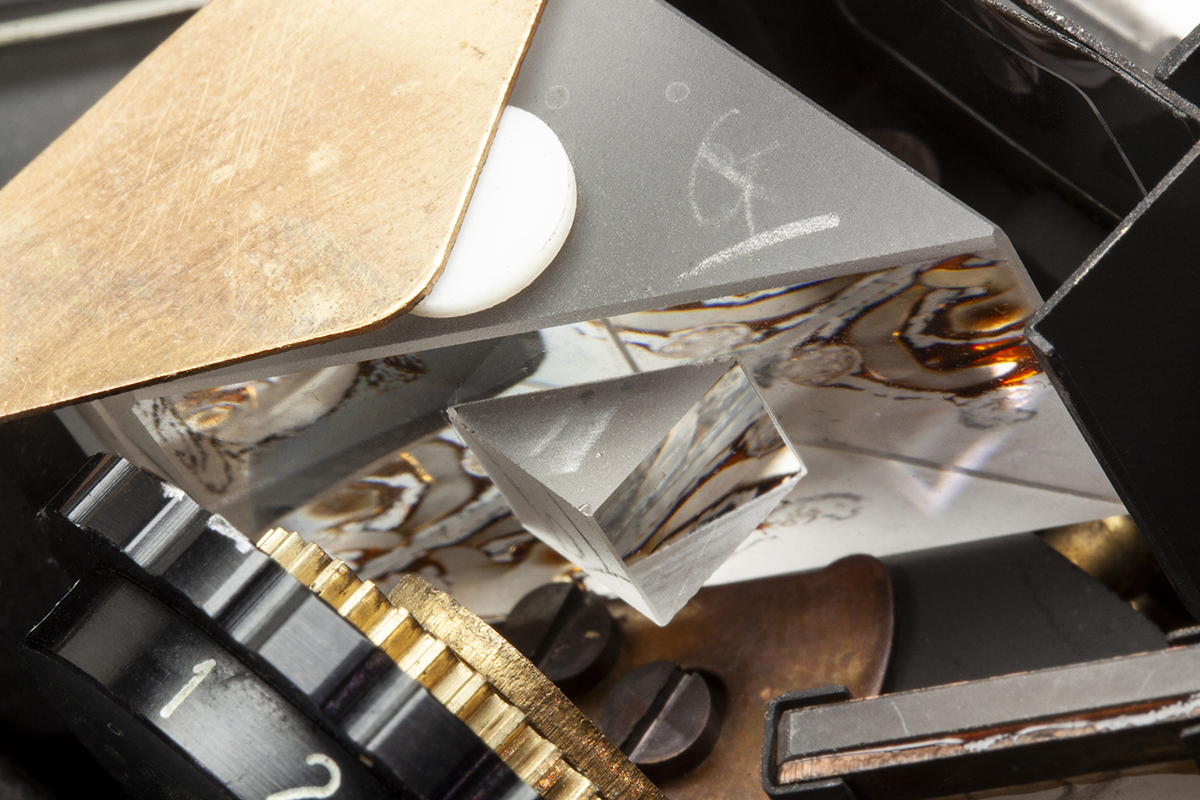

Close-up.
Close-up.
Close-up.
Report broken links HERE.
This tutorial was prepared by a camera repair hobbyist as an aid to other camera repair hobbyists. It was prepared without any information from any camera manufacturer, and is provided without any guarantee as to completeness or accuracy. This tutorial is for reference and historical purposes only, all rights reserved.
This tutorial are produced and copyrighted© by wilsonwerks, llc. (dba: looscanons.com). This page content may not be sold or distributed without the expressed permission of the producer.
