Minolta SR-T 201 Top Cover Removal

1 / 27

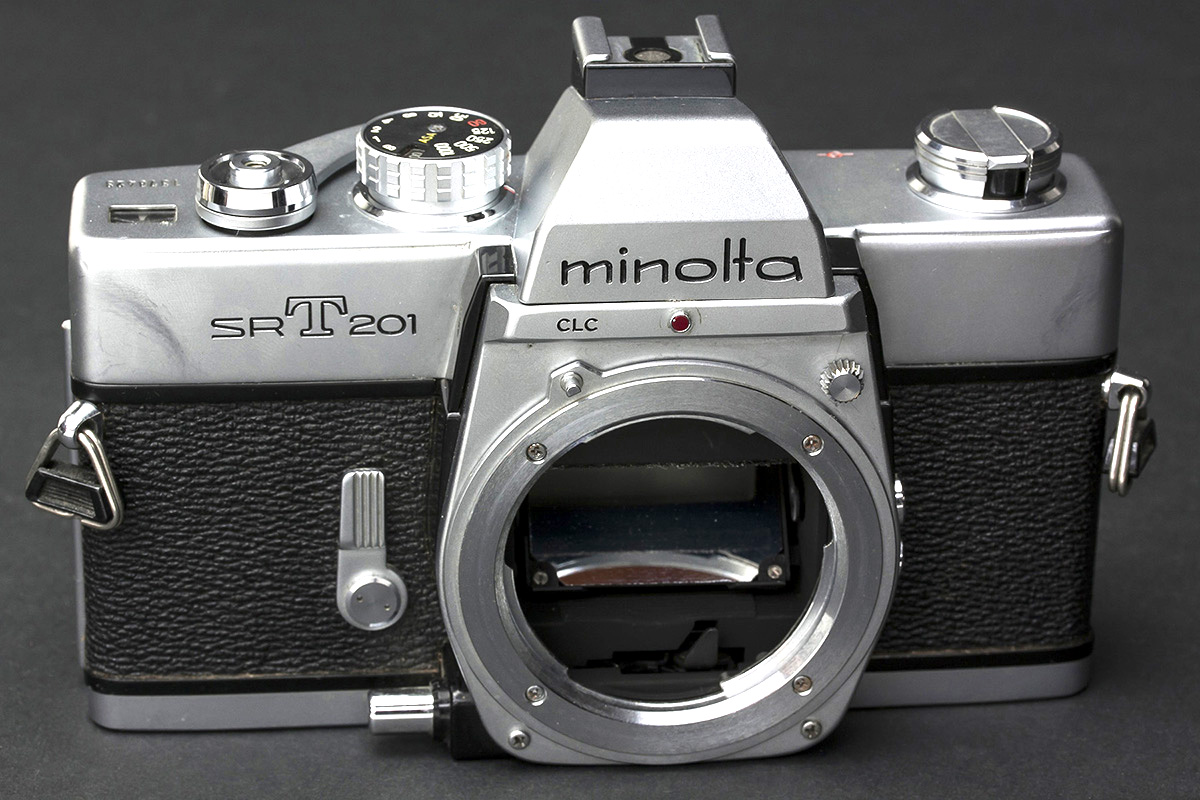

Removing the top cover of the Minolta SR-T 201.

Removing the top cover of the Minolta SR-T 201.

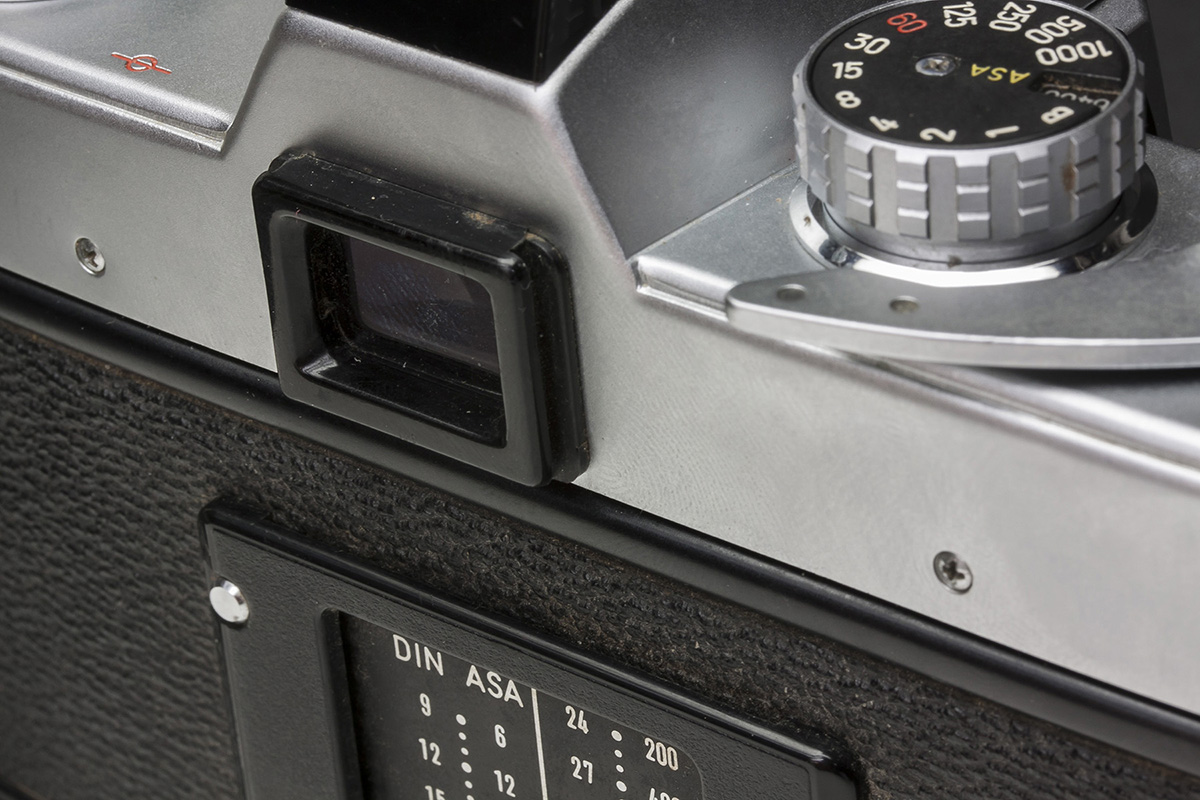

Remove the two screws on either side of the viewfinder.

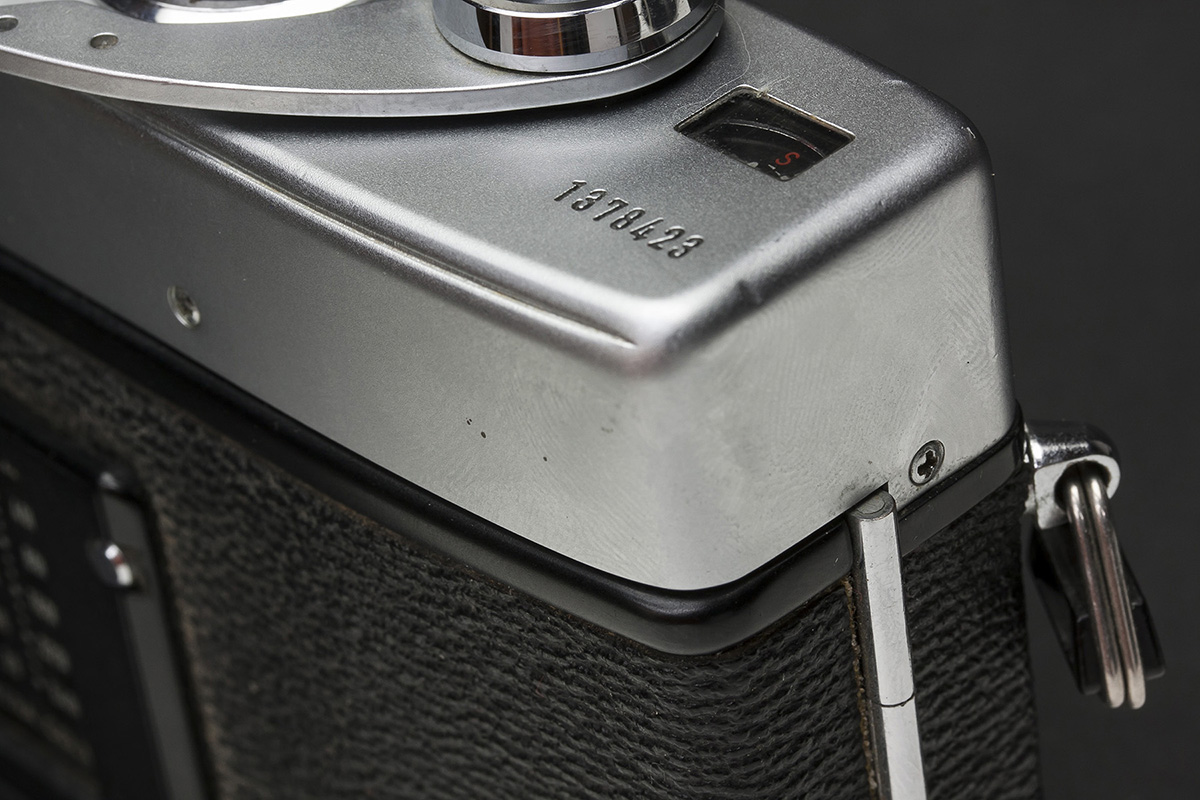

One screw on the film advance side.

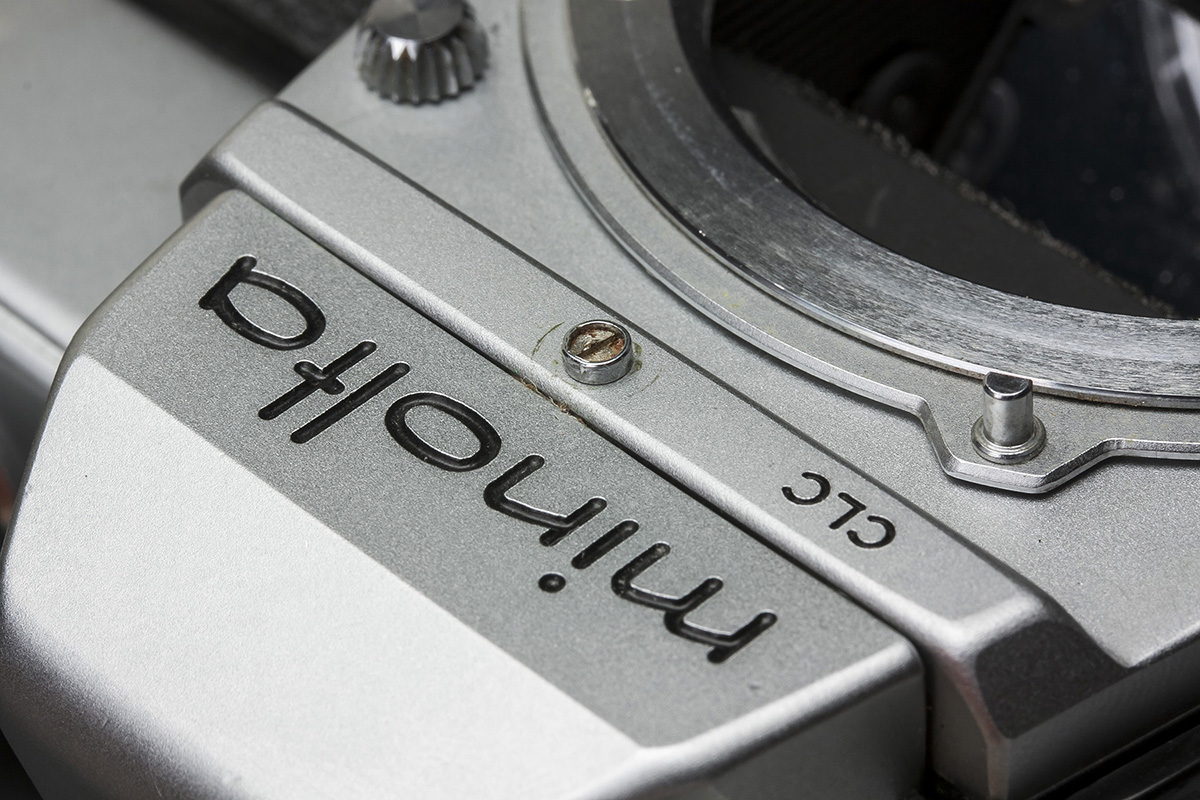

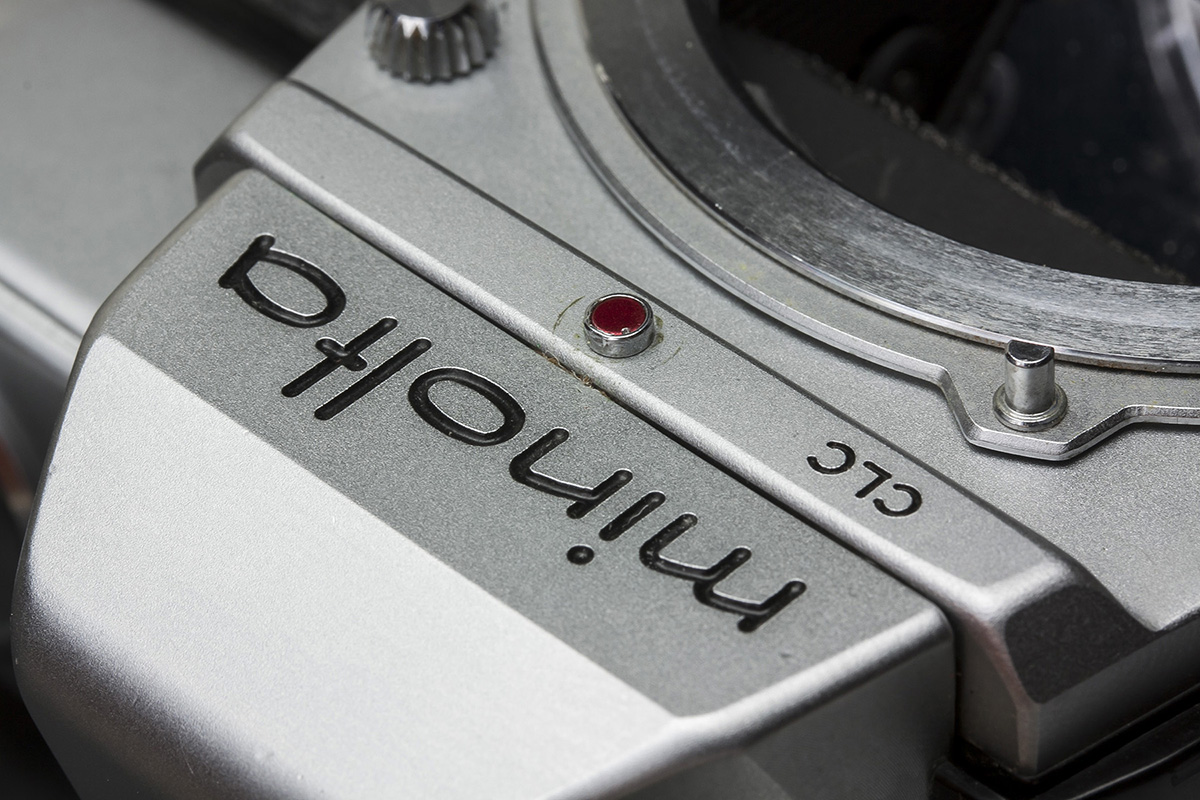

There is a screw hidden behind the red lens mount alignment indicator.
Remove the slotted screw.
With a screwdriver placed between the fork of the rewind shat, unscrew the rewind knob.

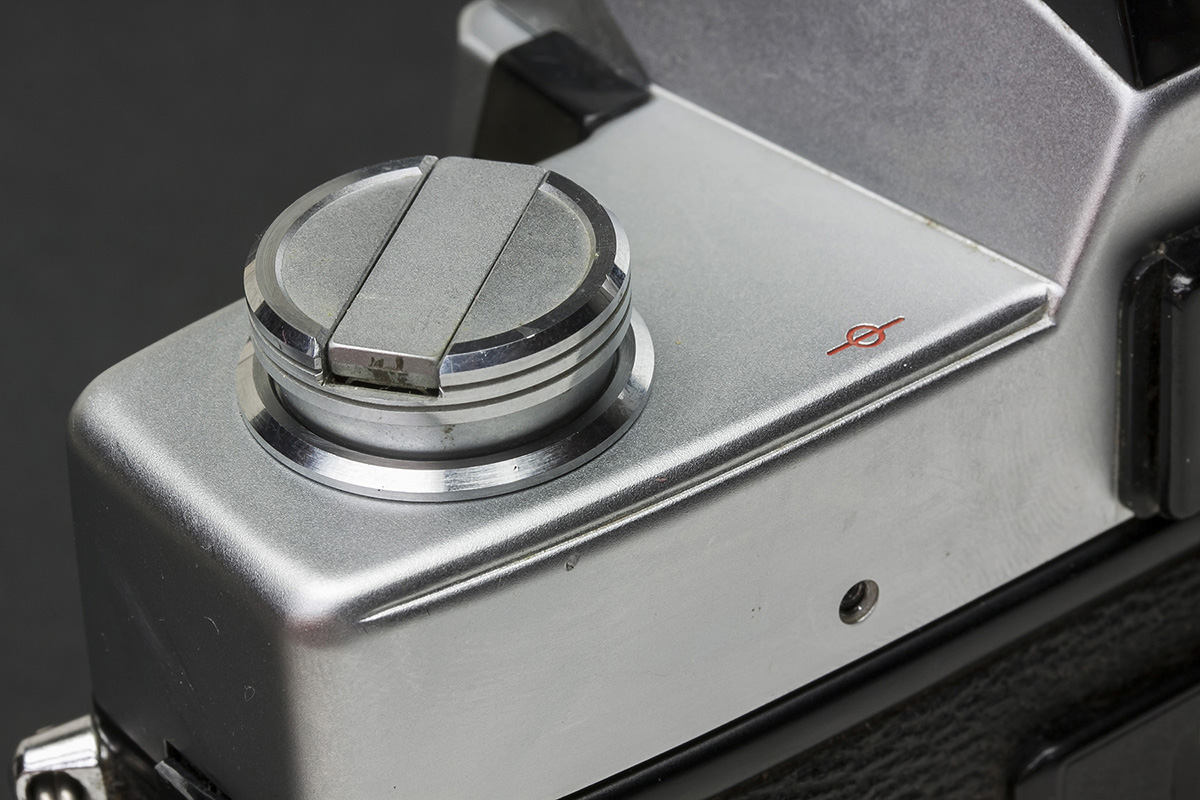

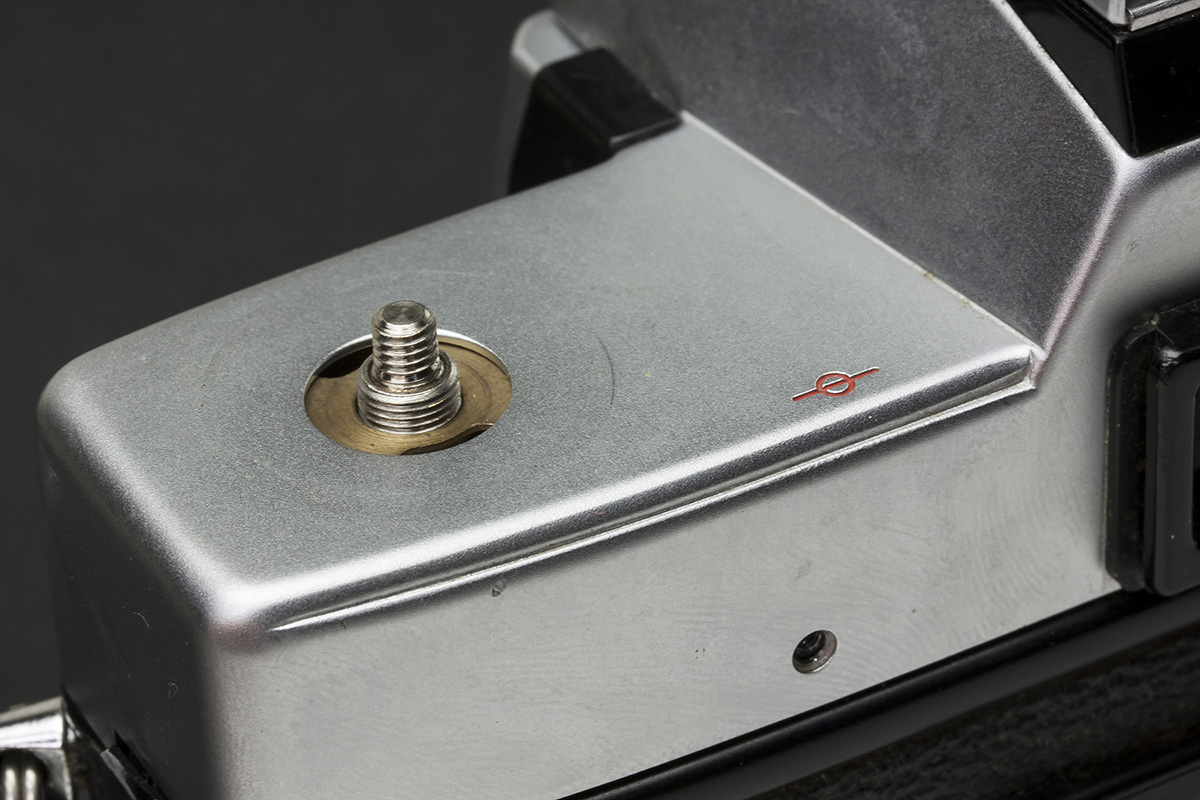

Use a spanner (or similar tool) to remove the rewind knob seat.

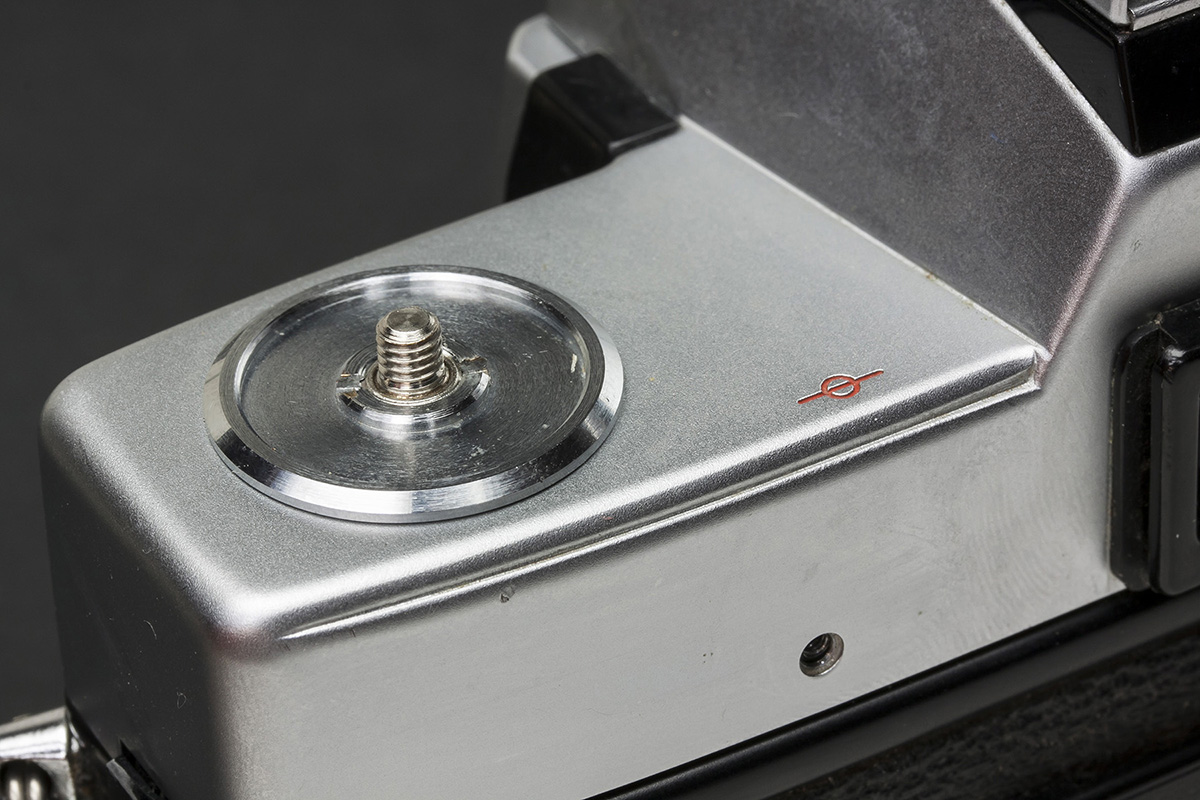

All done here.
Set the ASA dial to 80 to expose a hole in the side of the knob just under the number 30.

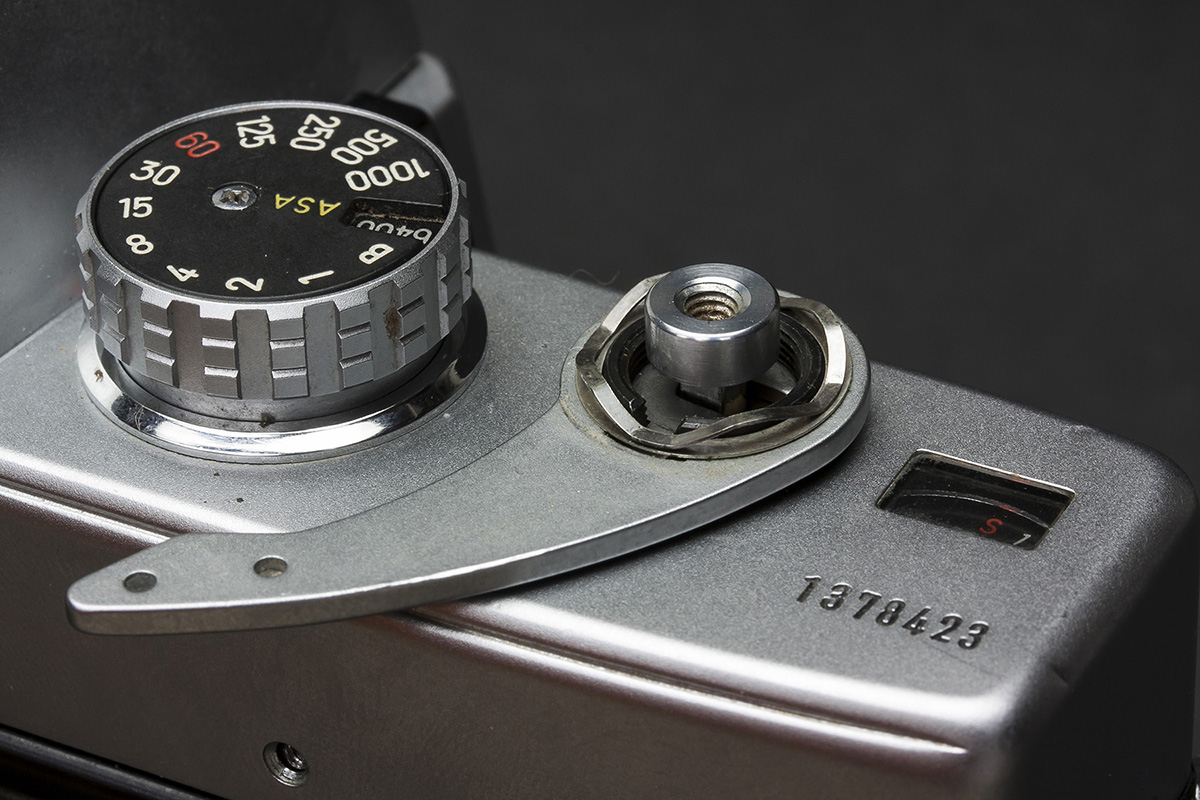

Use a piece of rubber to grip and remove the film advance lever retaining ring.
Wave washer.
Flat washer.

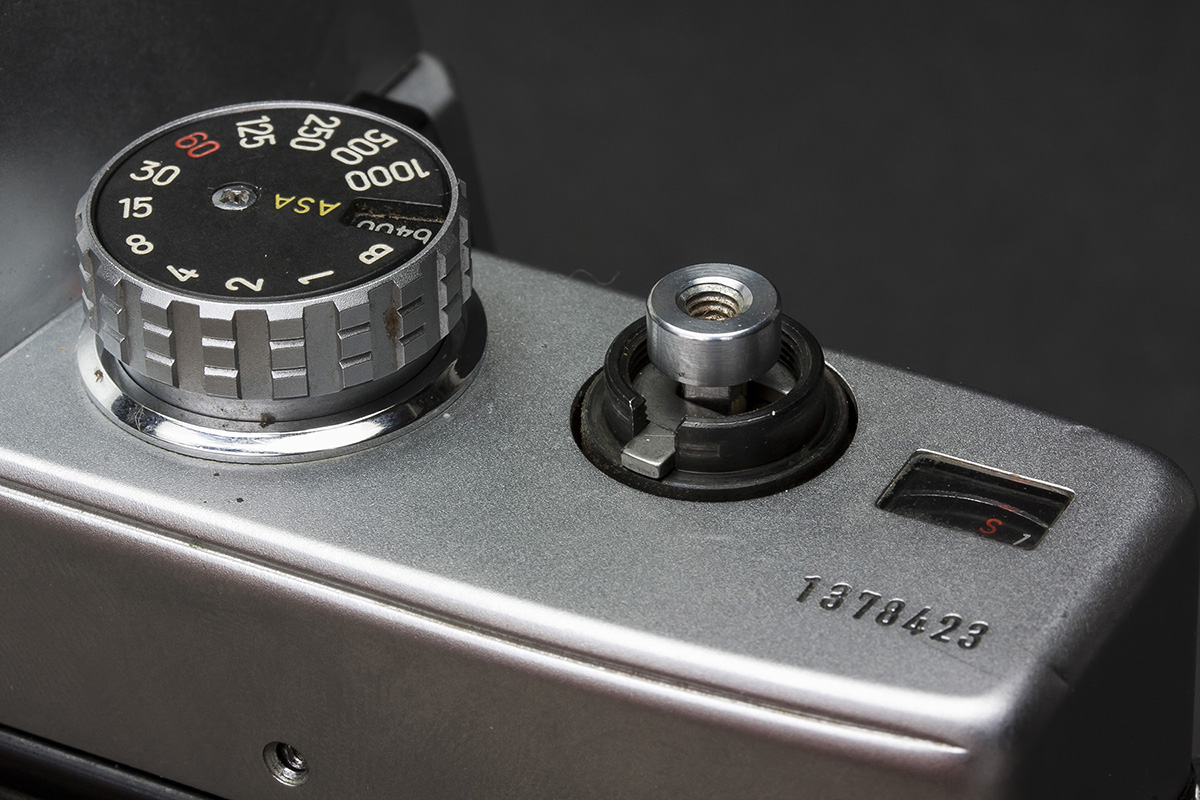

Lift off film advance lever.

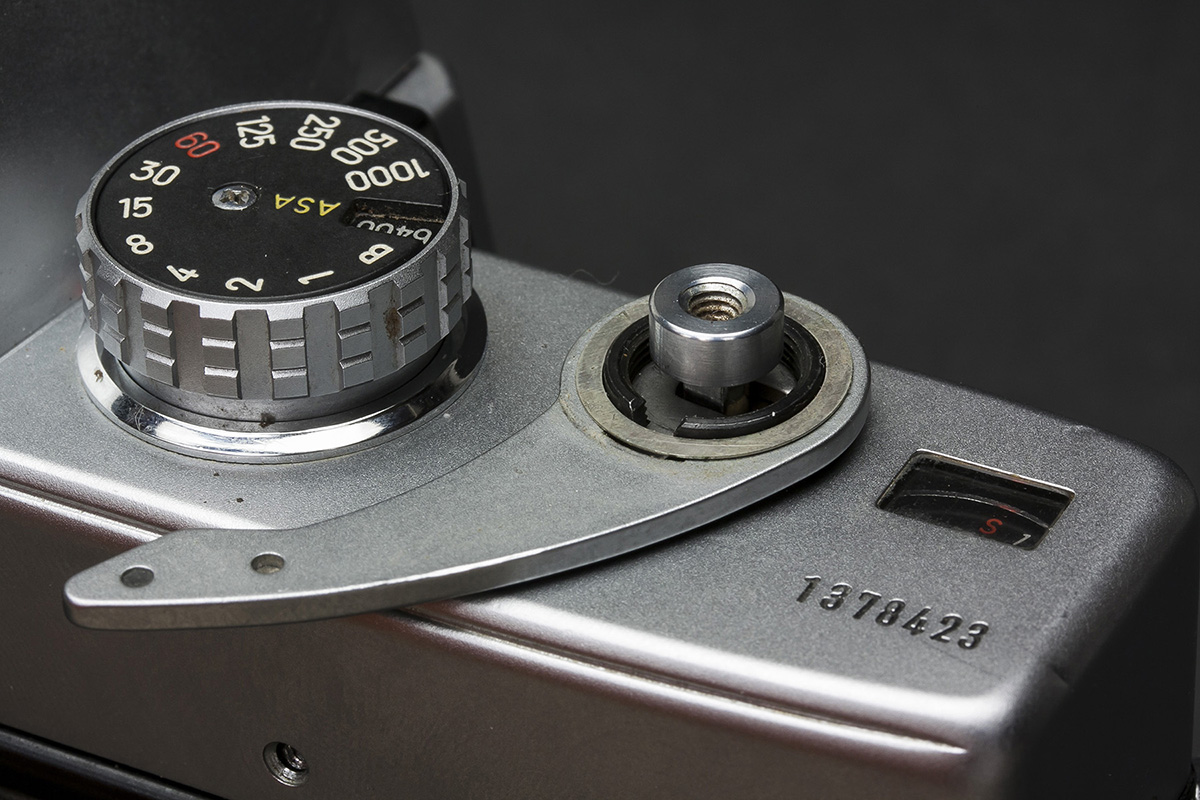

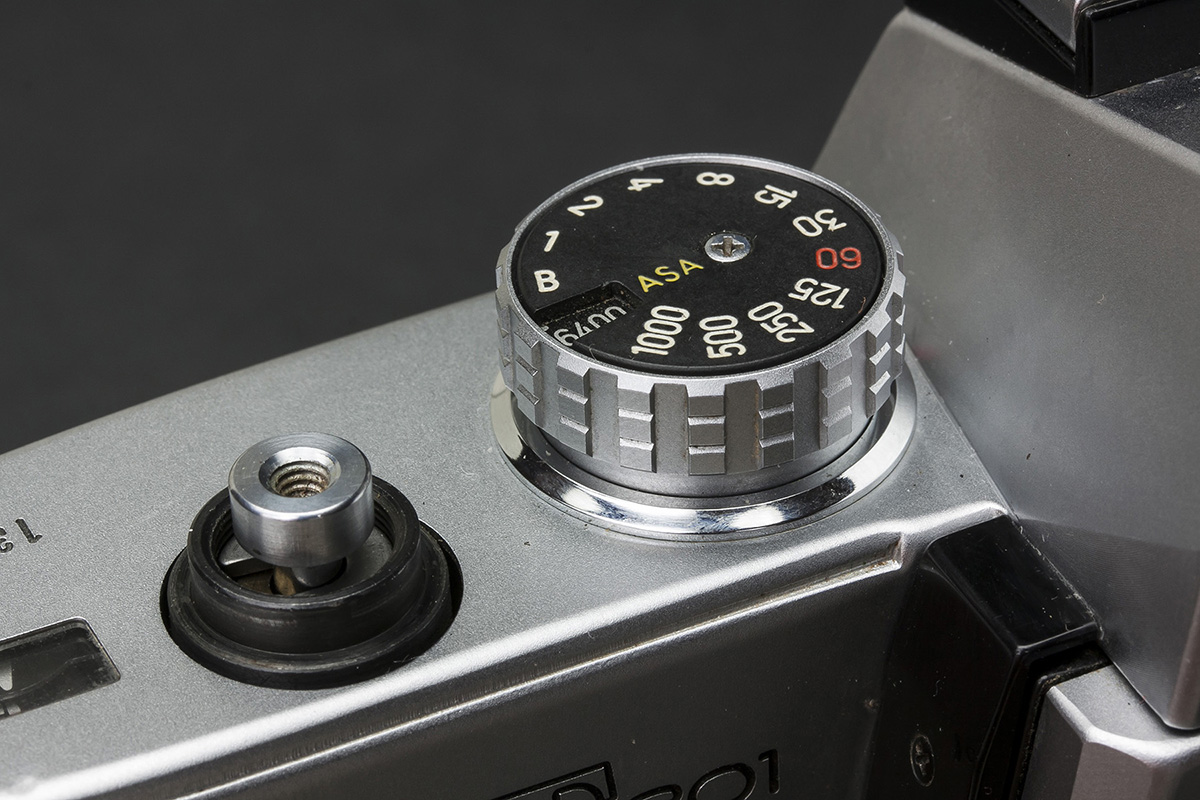

Remove the screw retaining the shutter speed/ASA dial.

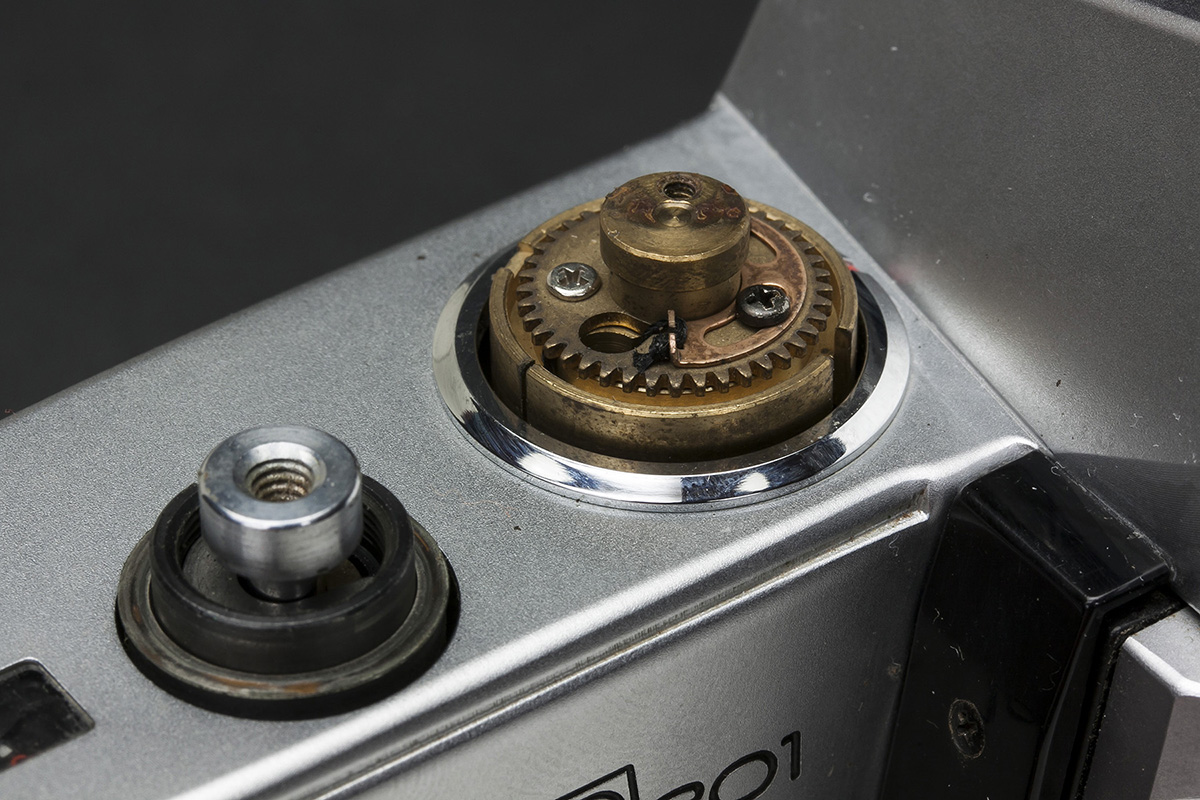

Remove the bottom-half of the dial.

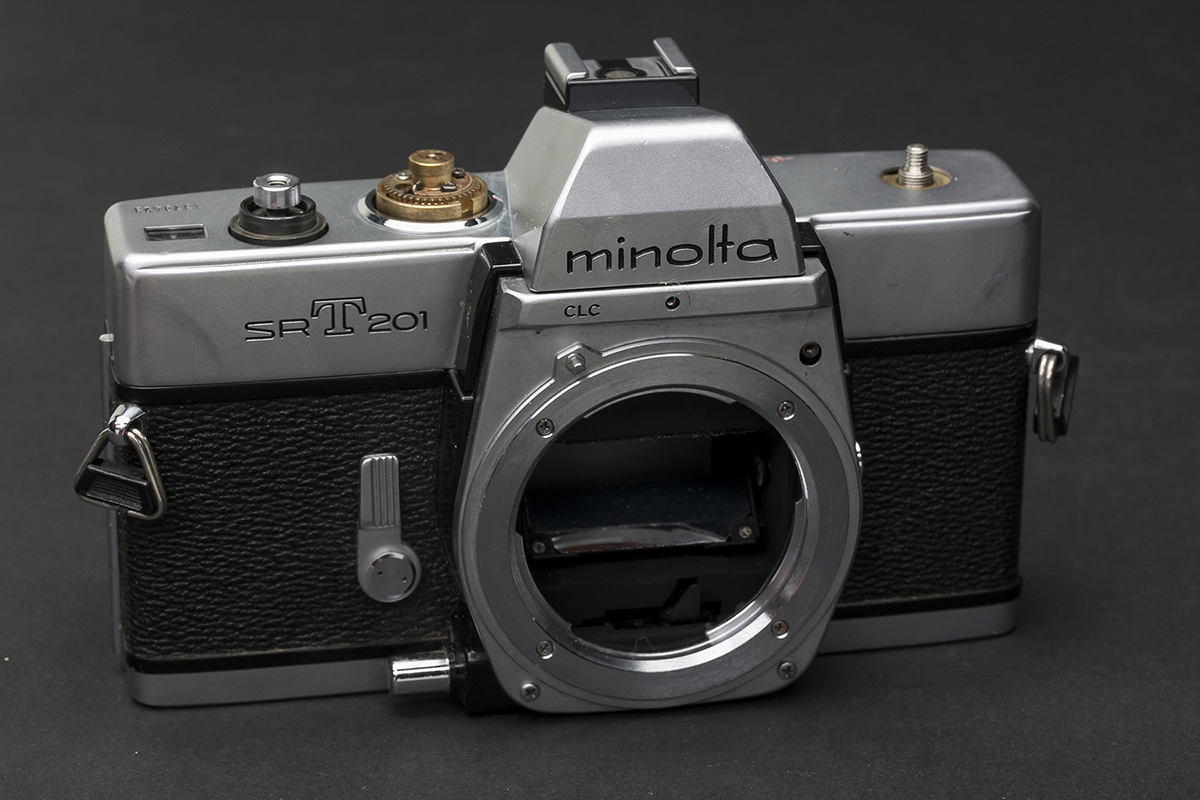

All done here.
The top cover can now be removed.
Top cover removed.

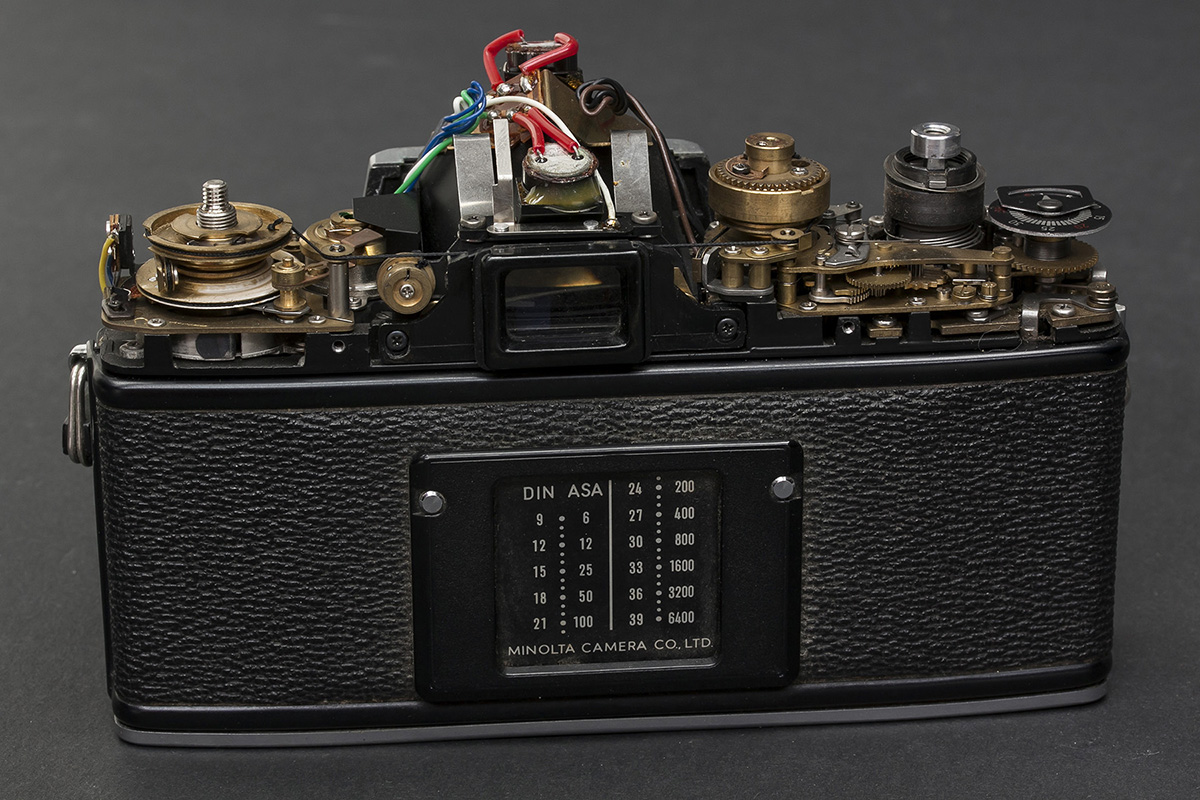

Rear view.

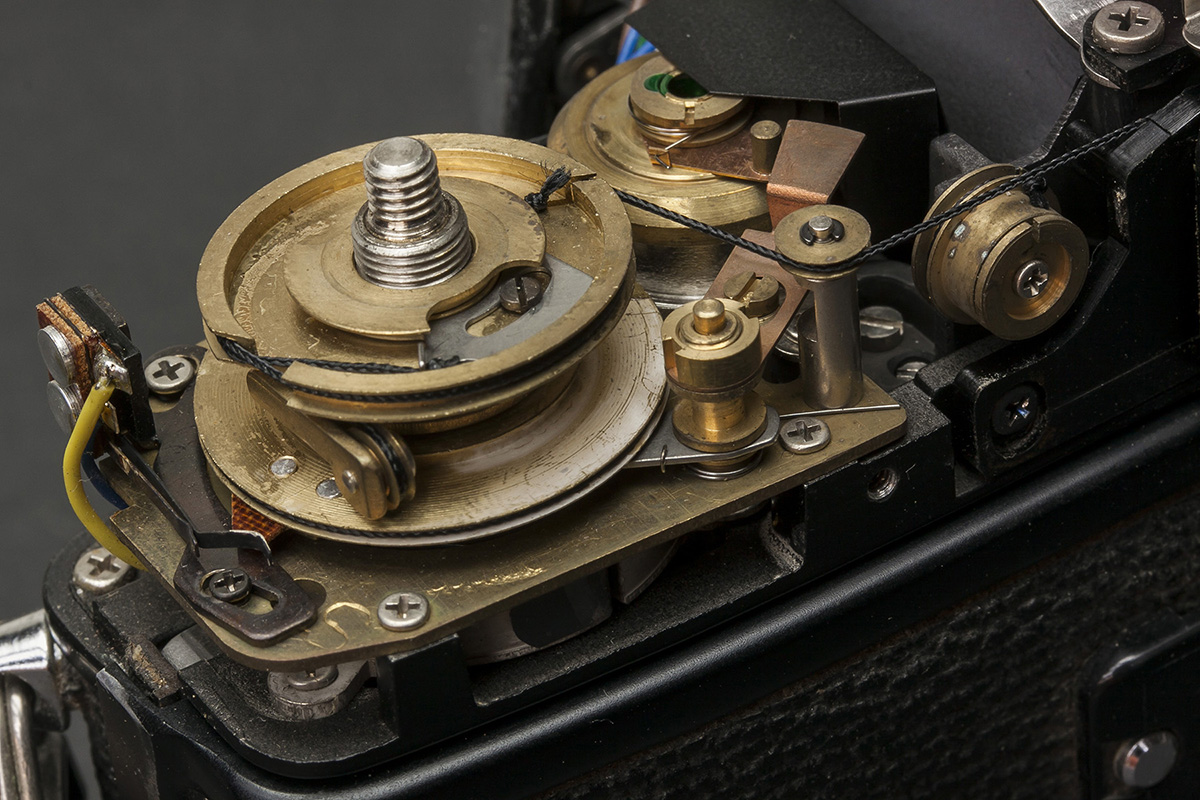

Close-up rewind side.

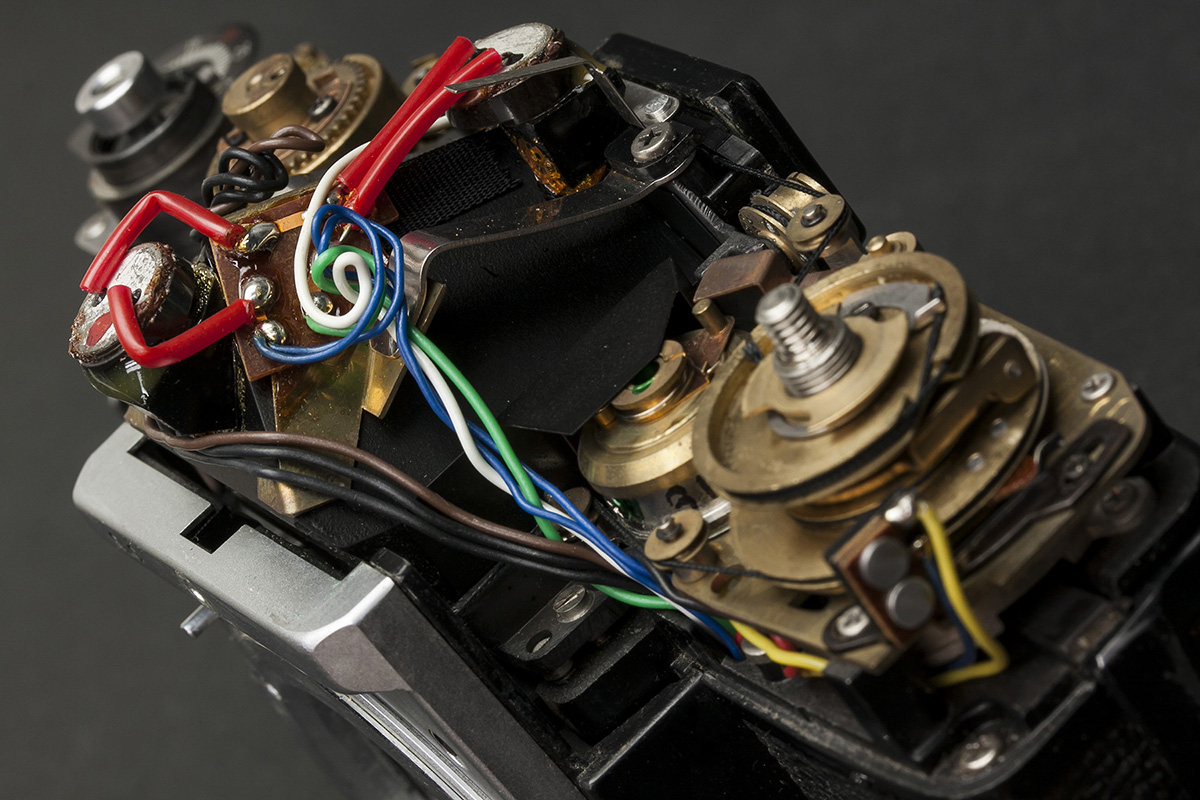

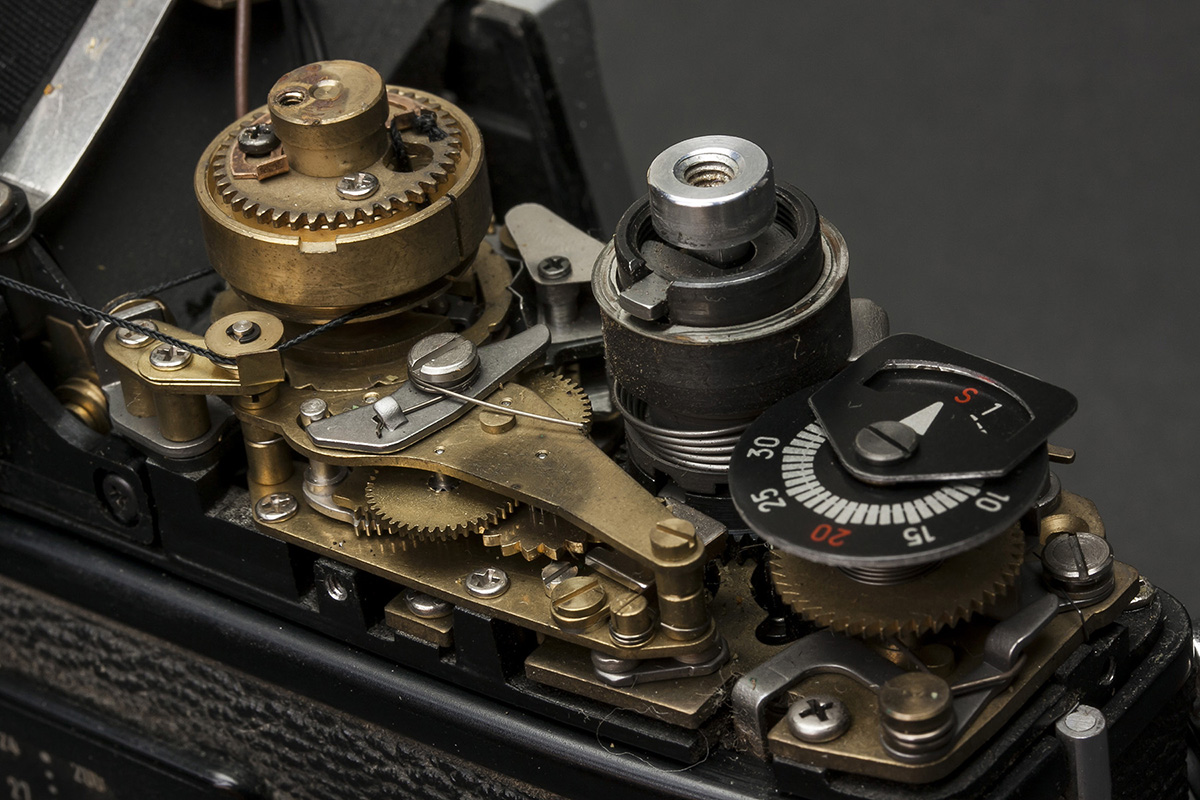

Close-up film advance side.

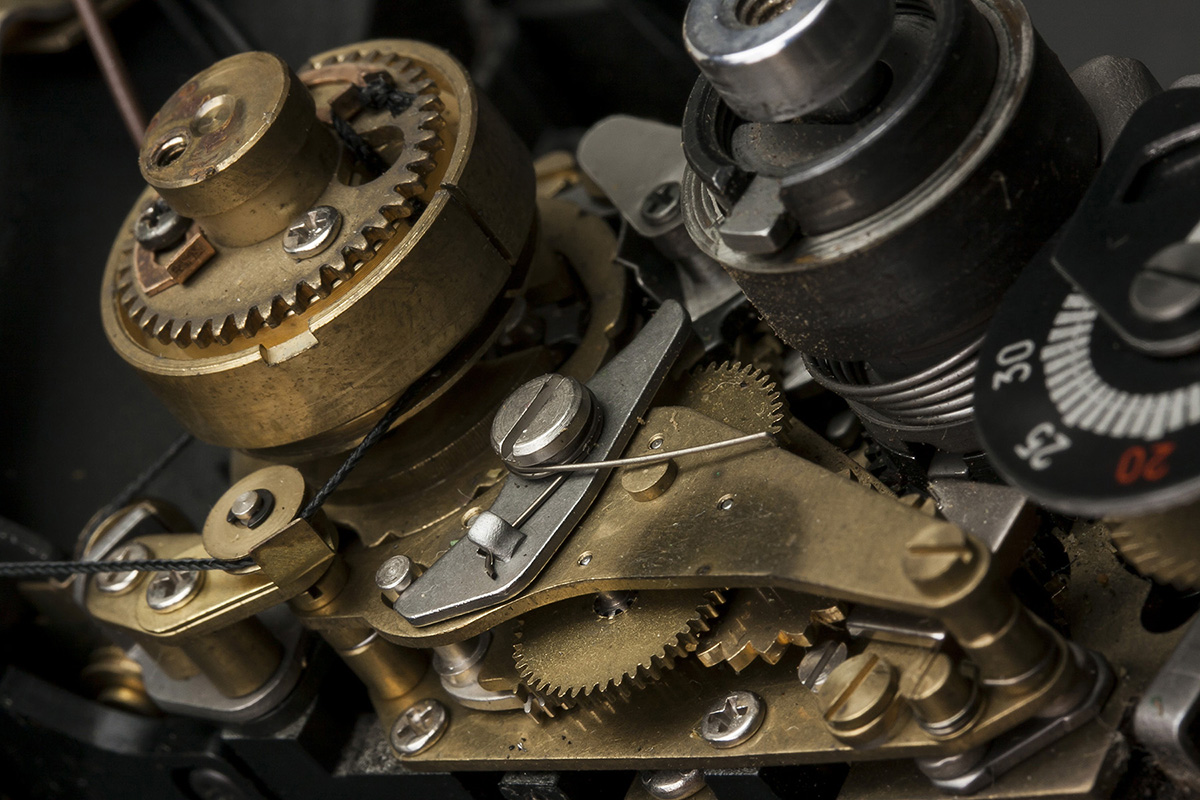

Closer-up film advance side; note the ASA dial string.

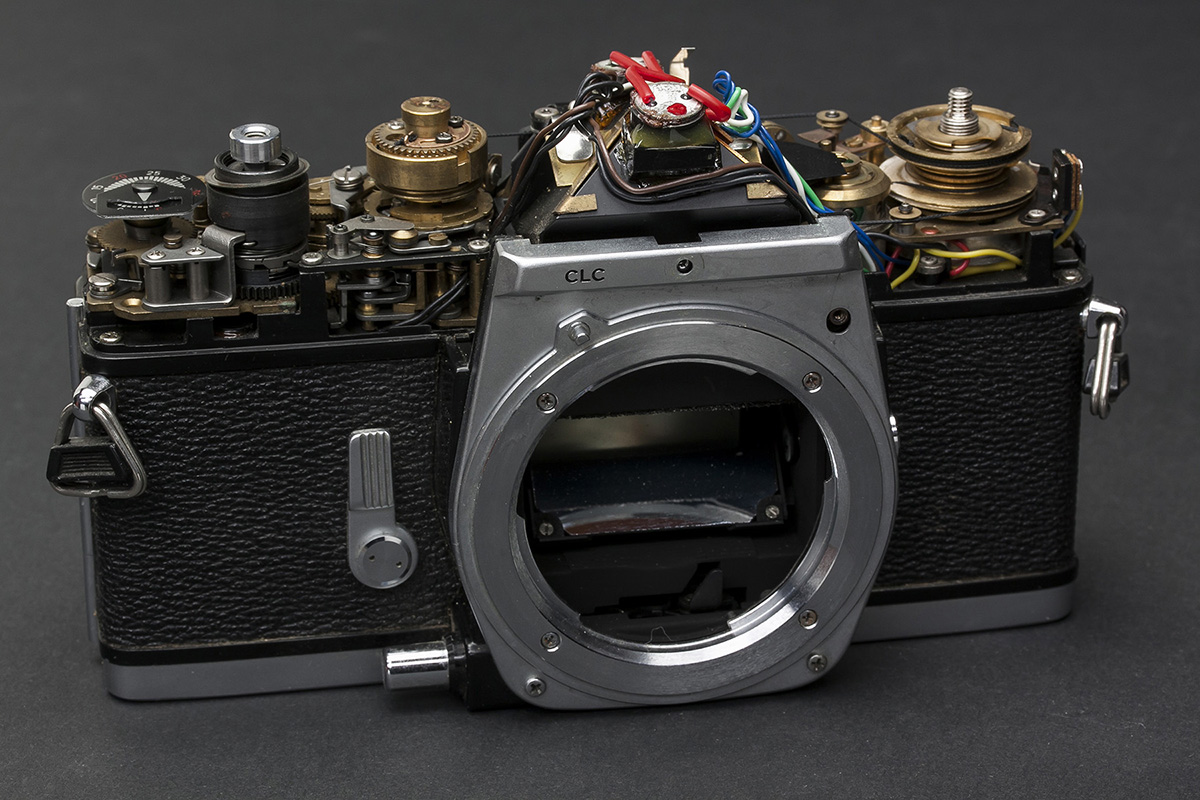

Another close-up; front view.
CdS cells glued to pentaprism; these sometimes come loose.

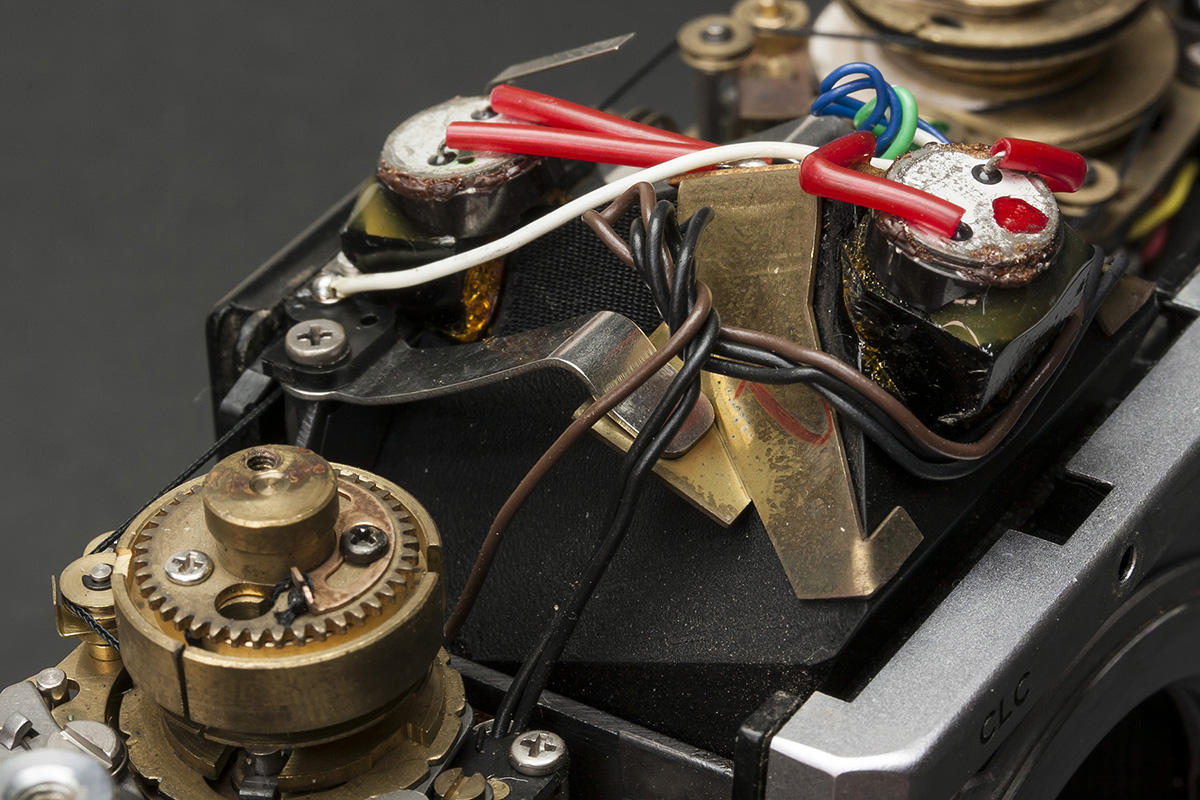

Rear view of pentaprism; note ASA dial string routing.

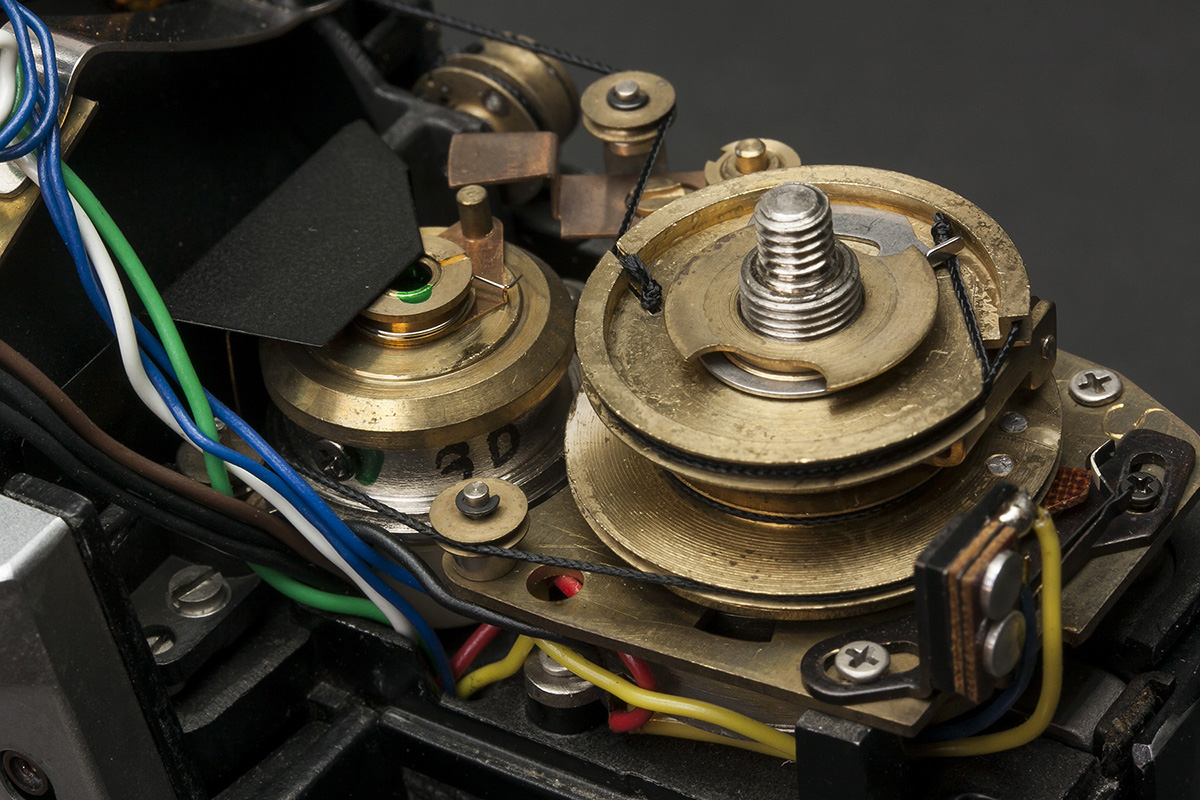

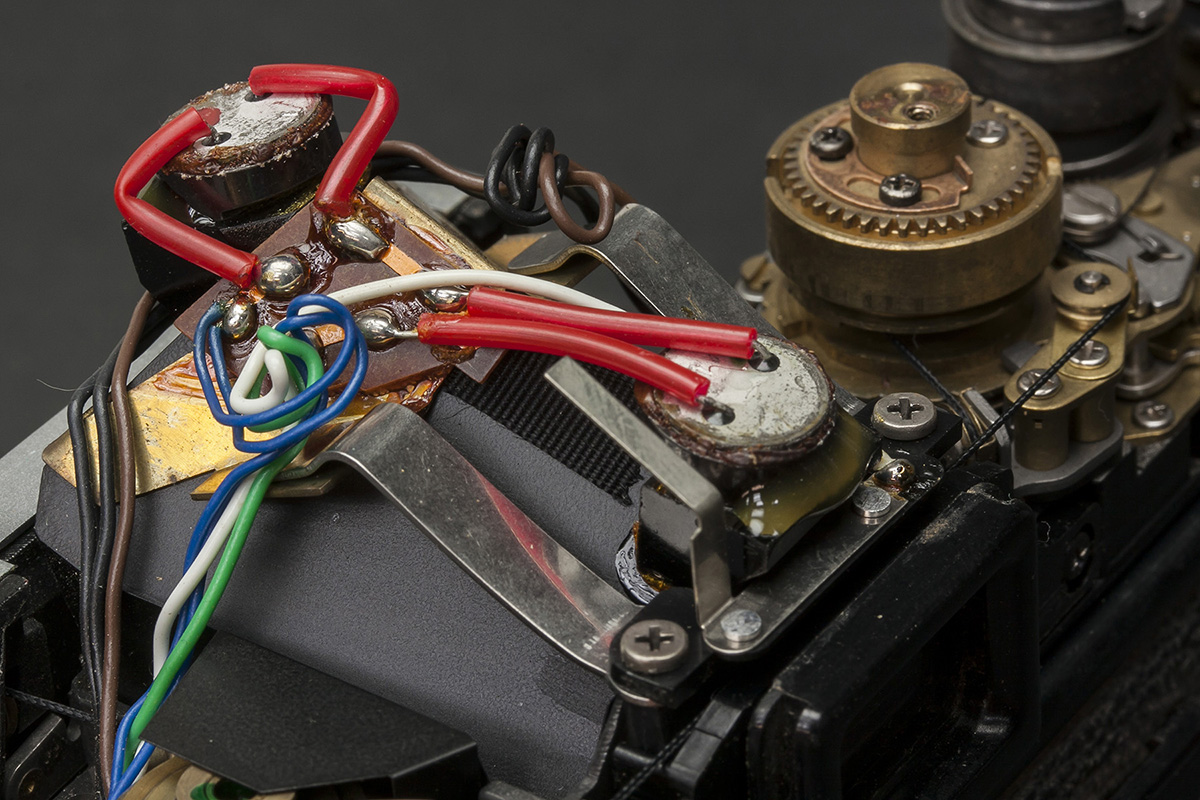

Close-up rewind side; note ASA dial string routing.
Front view rewind side.
