Minolta X-700 Top Cover Removal

1 / 23

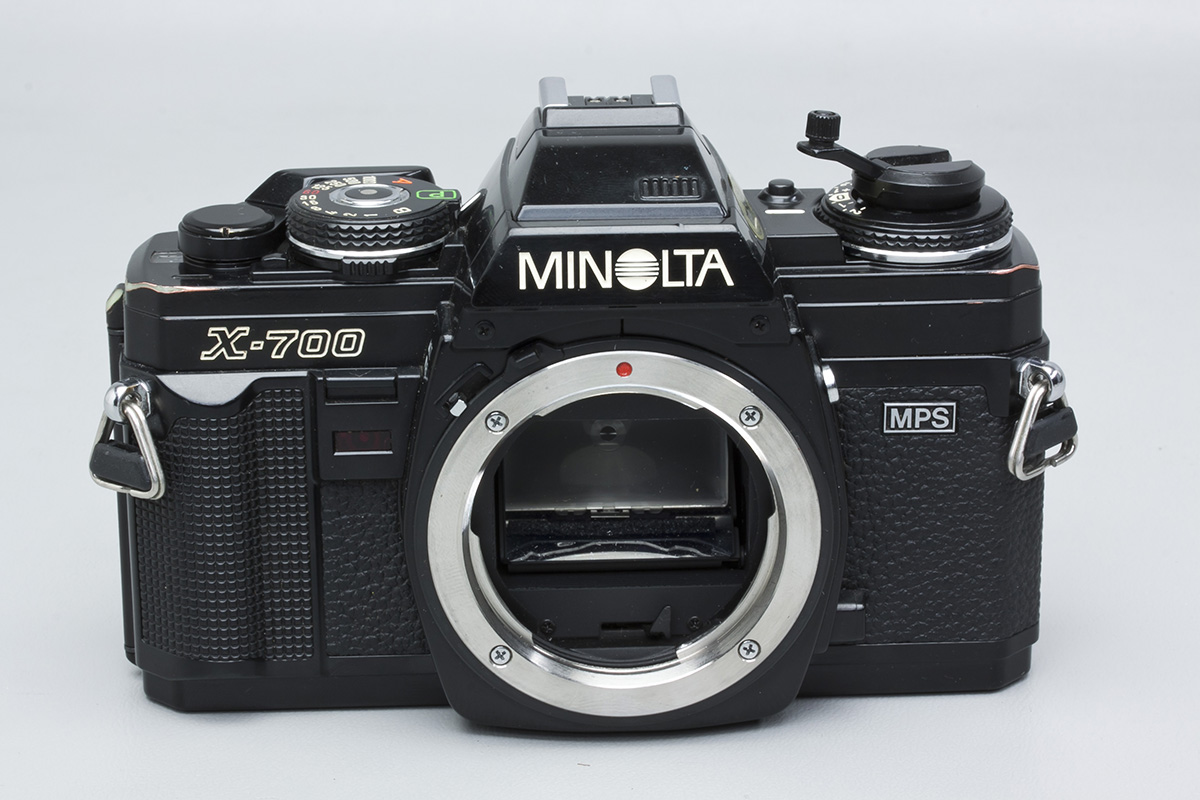

Removing the top cover of the Minolta X-700.

Removing the top cover of the Minolta X-700.

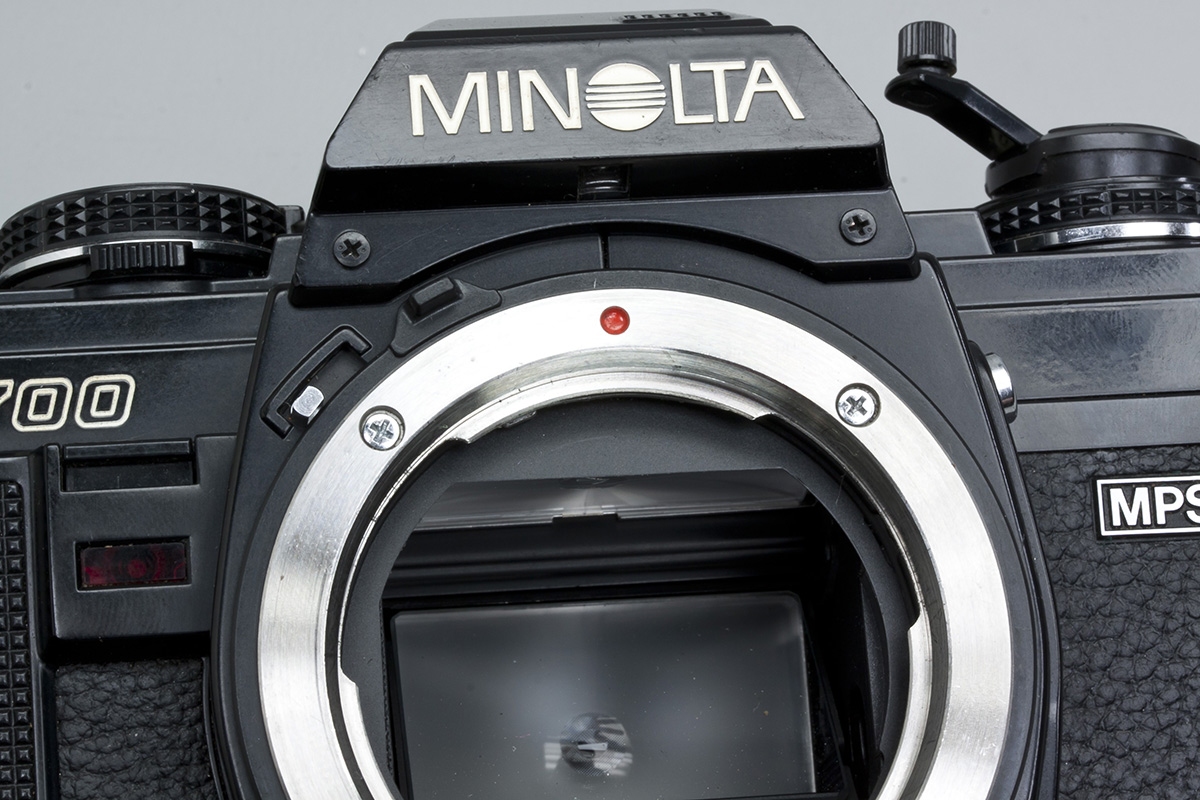

Two screws retain the front name plate.

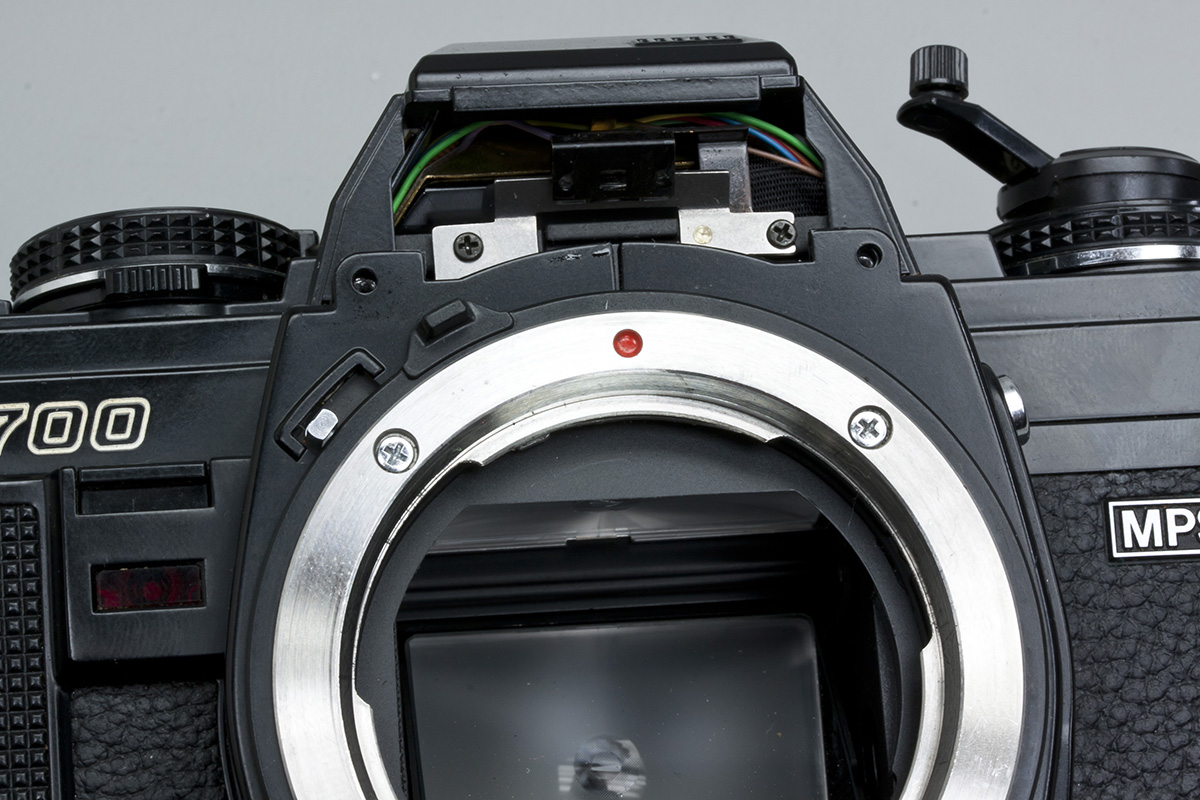

Name plate removed.

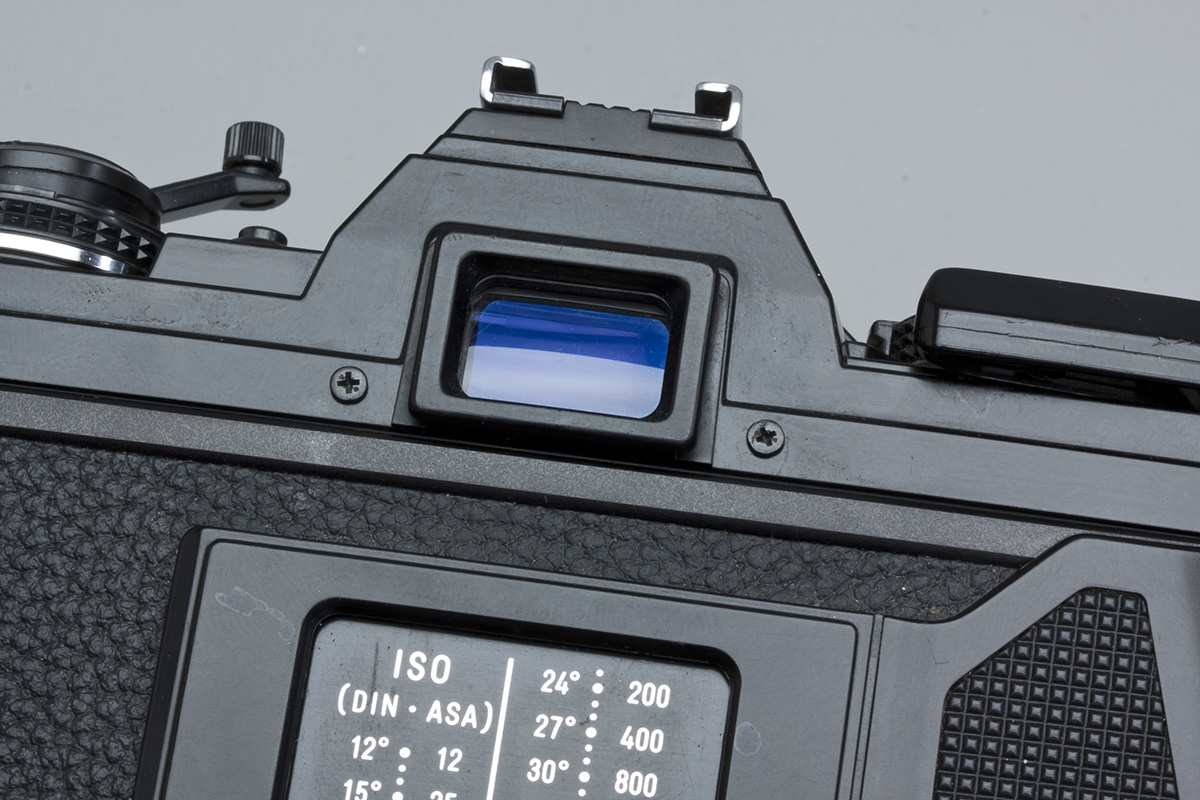

Remove the two screws on either side of the viewfinder.

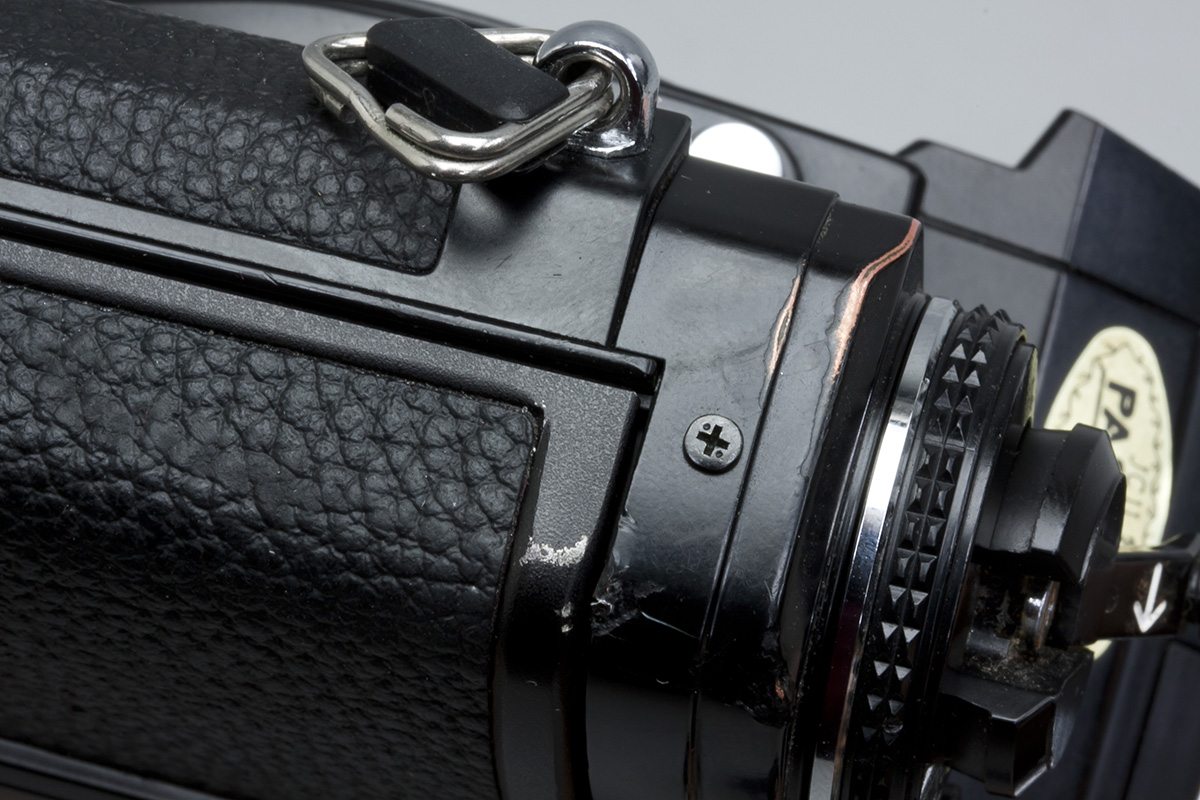

one screw on the rewind side.

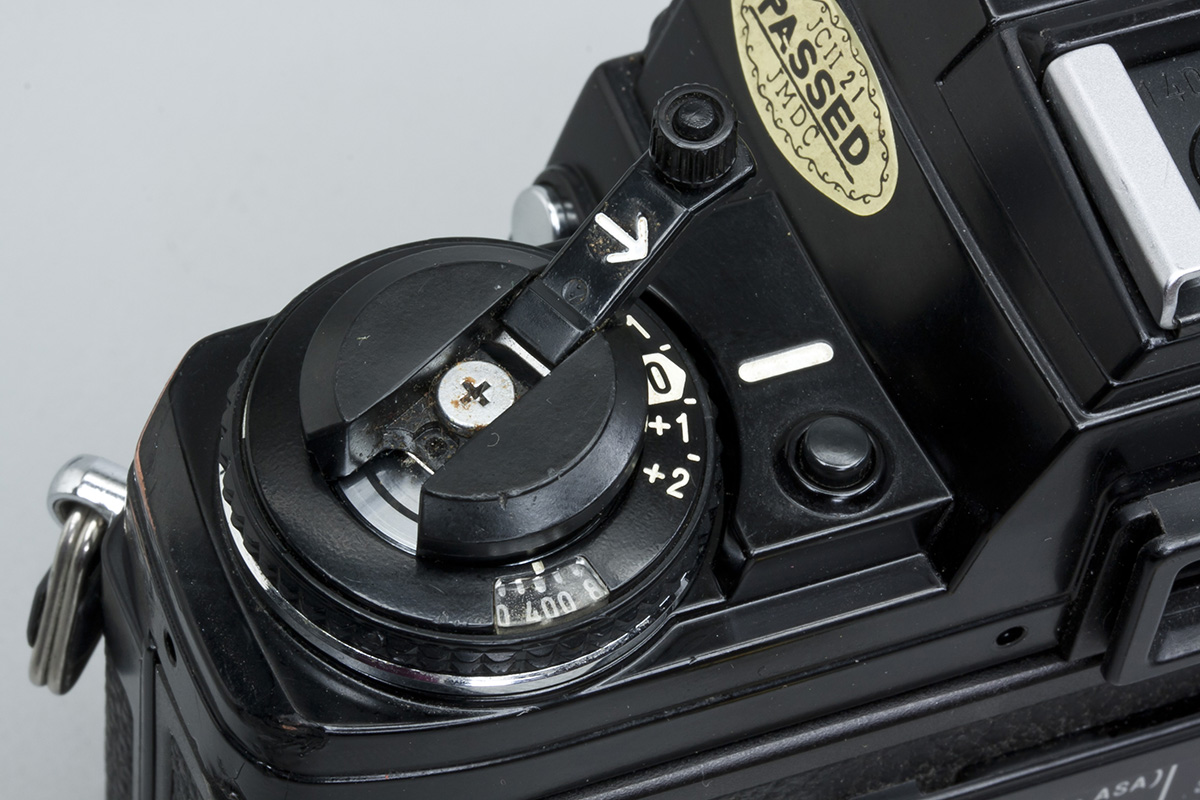

Use a srewdriver (or similar tool) placed between the fork of the rewind shaft and unscrew the rewind knob retaining screw. Lift off the knob

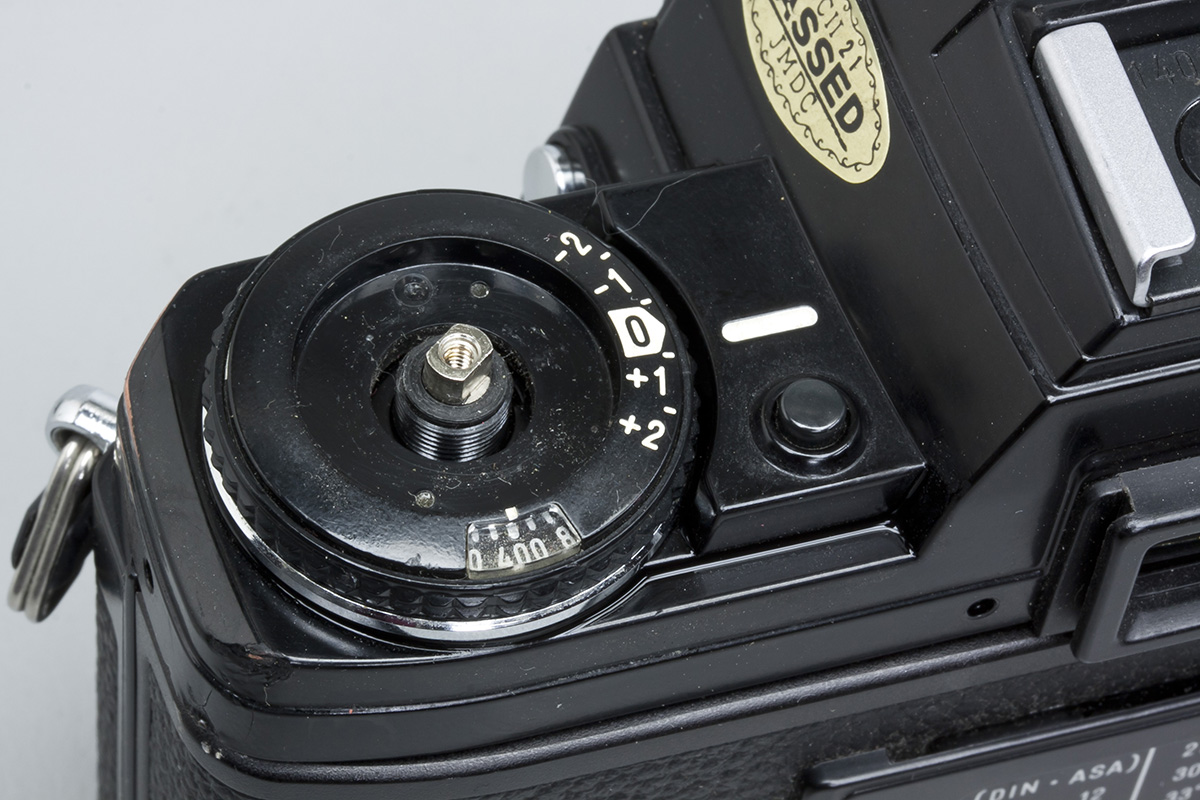

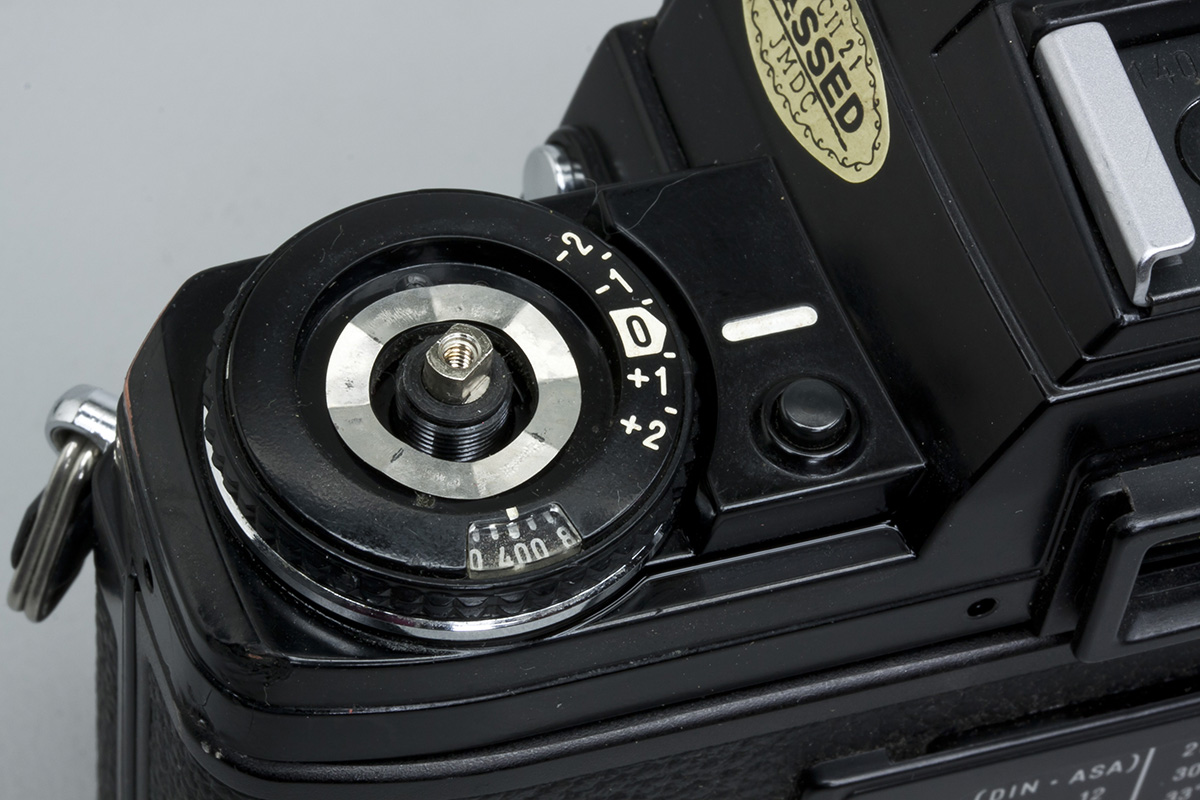

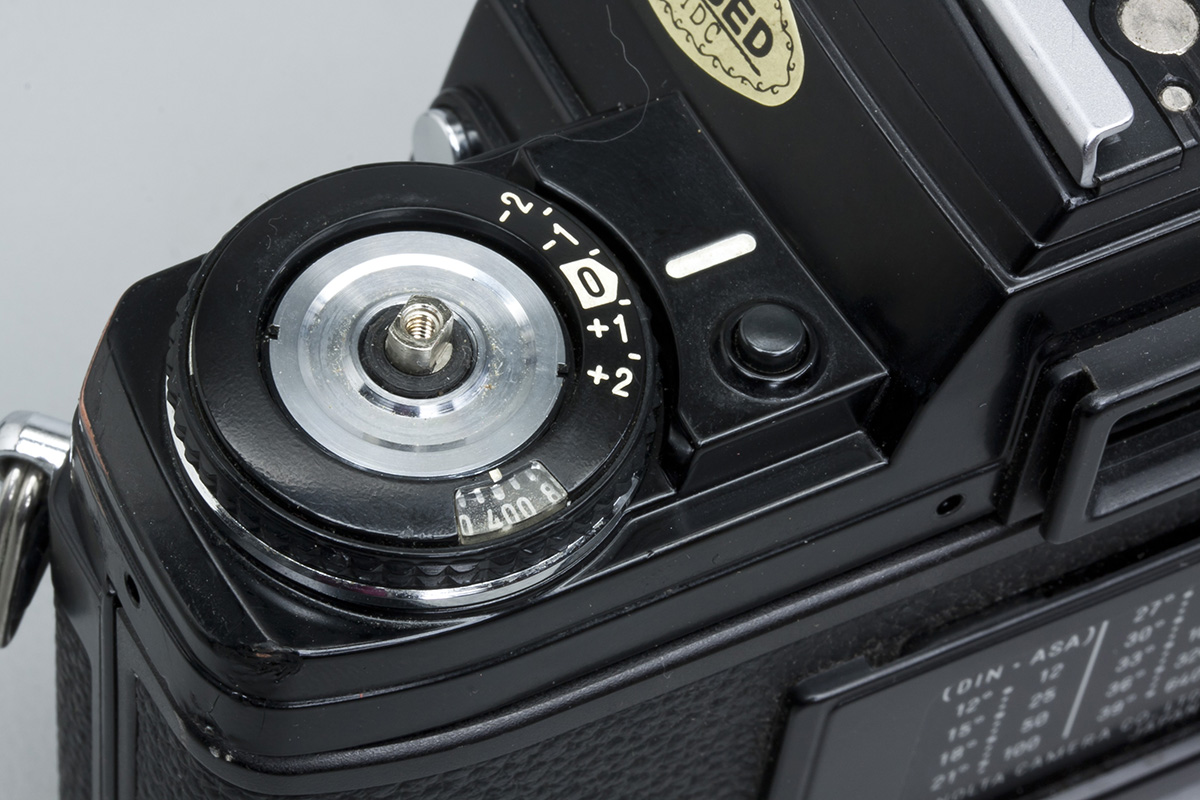

Use a spanner (or similar tool) to unscrew the nut retaining the Exposure Compensation/ASA dial.
Wave washer.

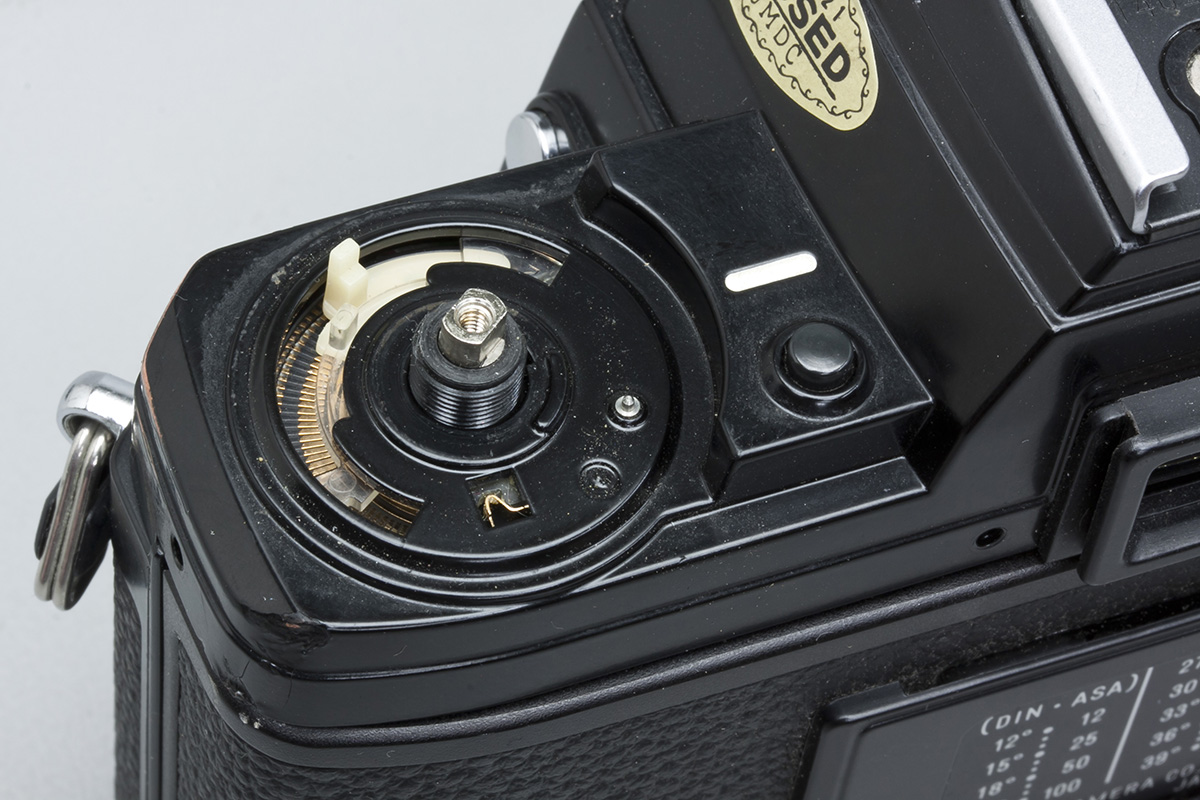

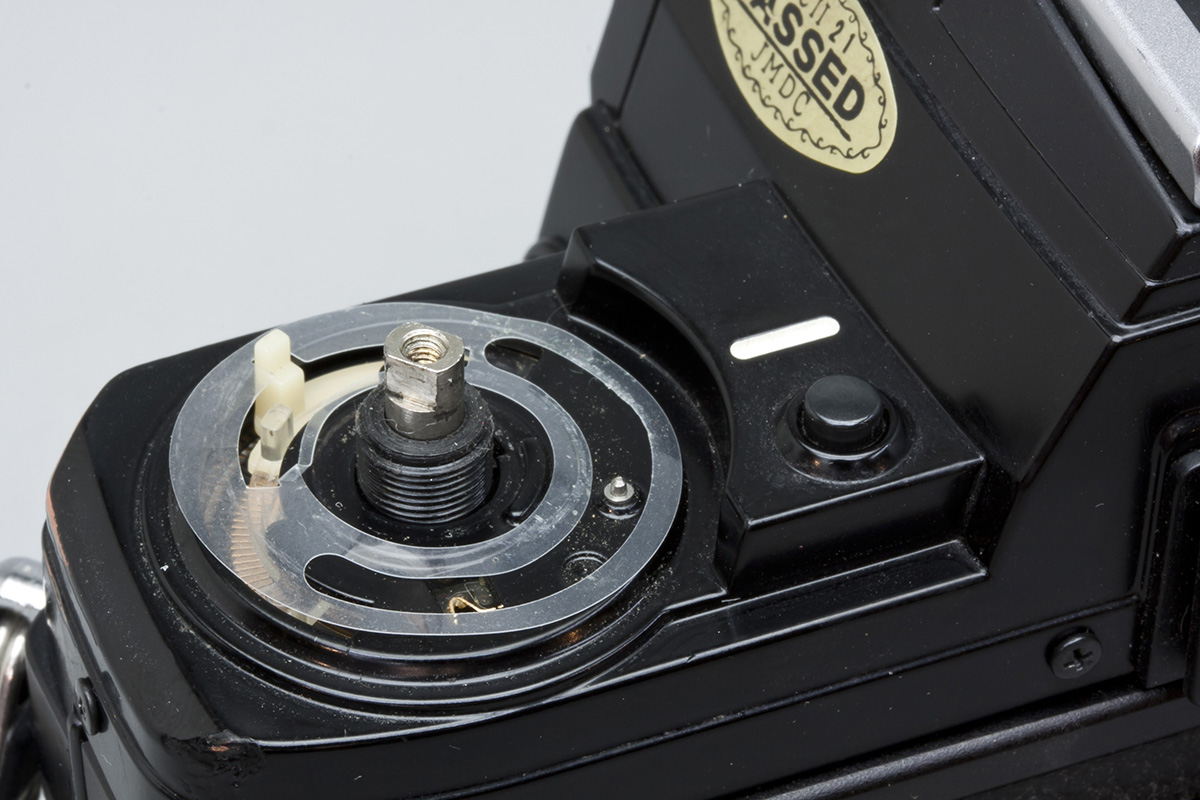

Remove the Exposure Compensation/ASA dial.
Plastic washer.
All done on this side.

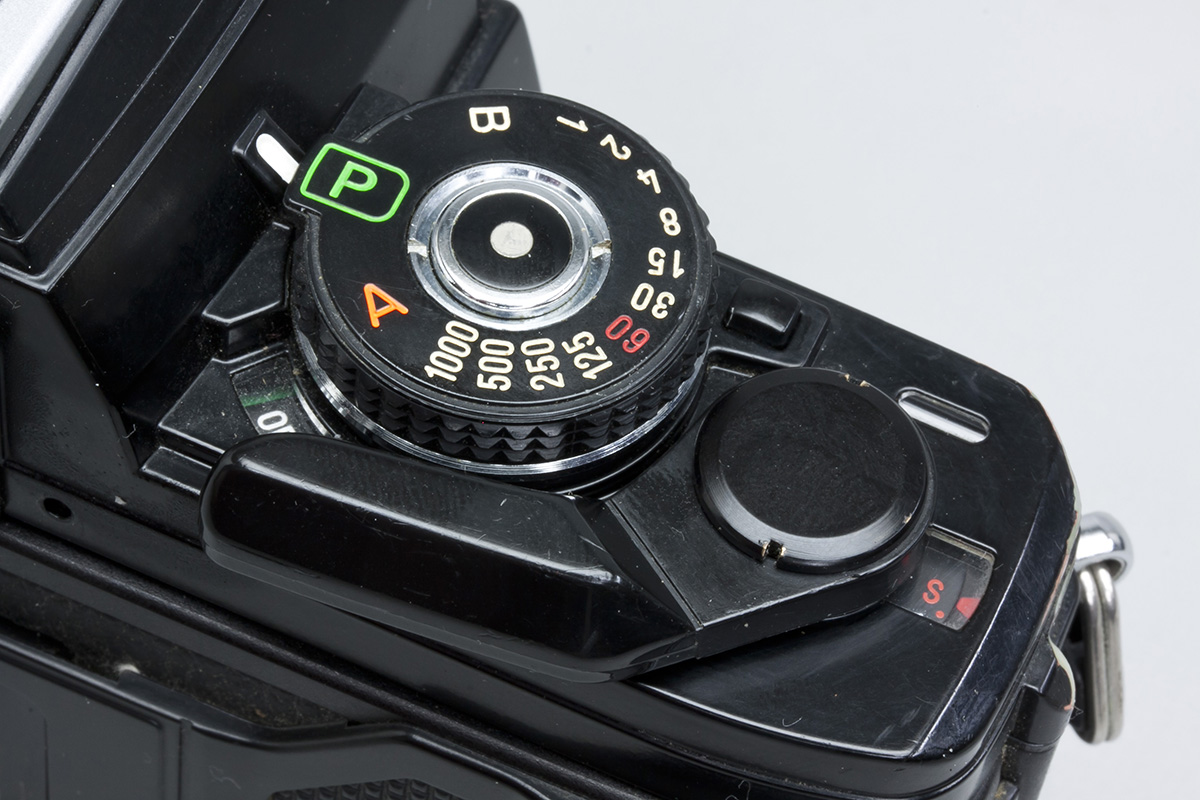

Use a spanner to remove the film advance lever retaining screw.
Remove the screw on the rewind side.
Lift off the film advance lever.
Remove the advance lever return spring.
With a spanner, remove the shutter button/film speed dial retaining nut.

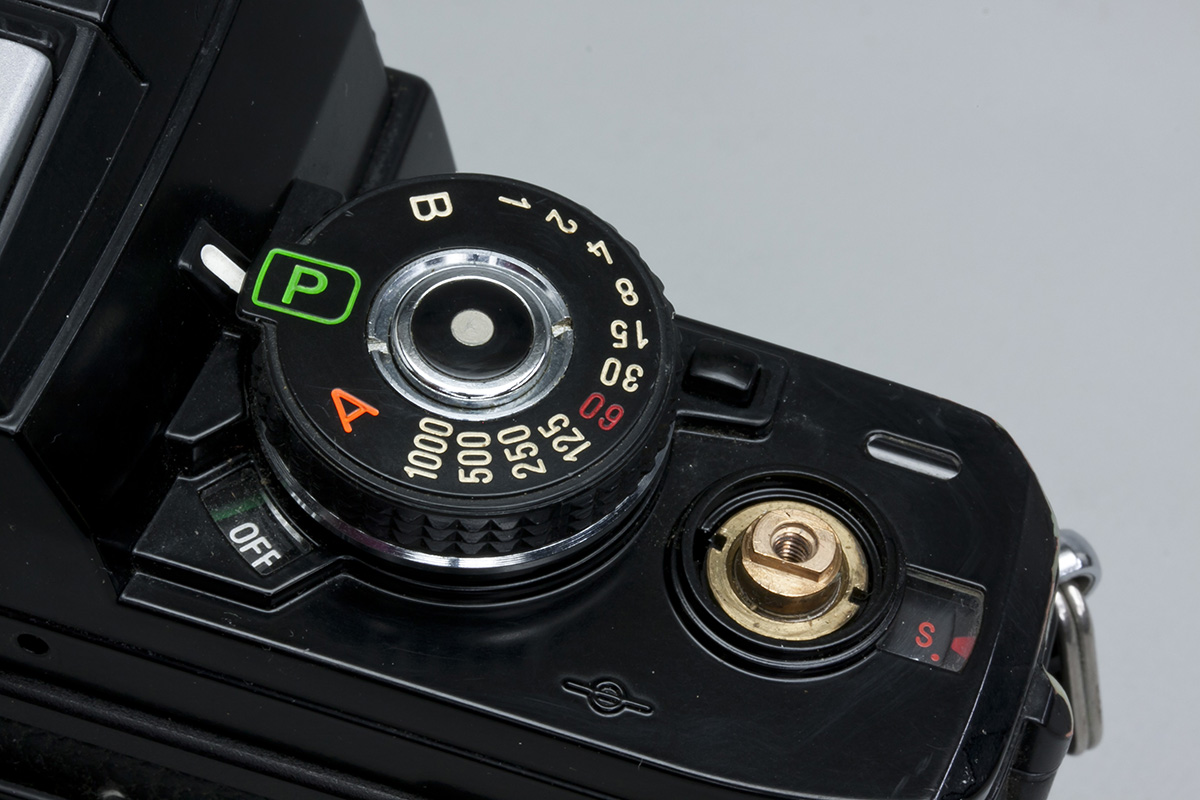

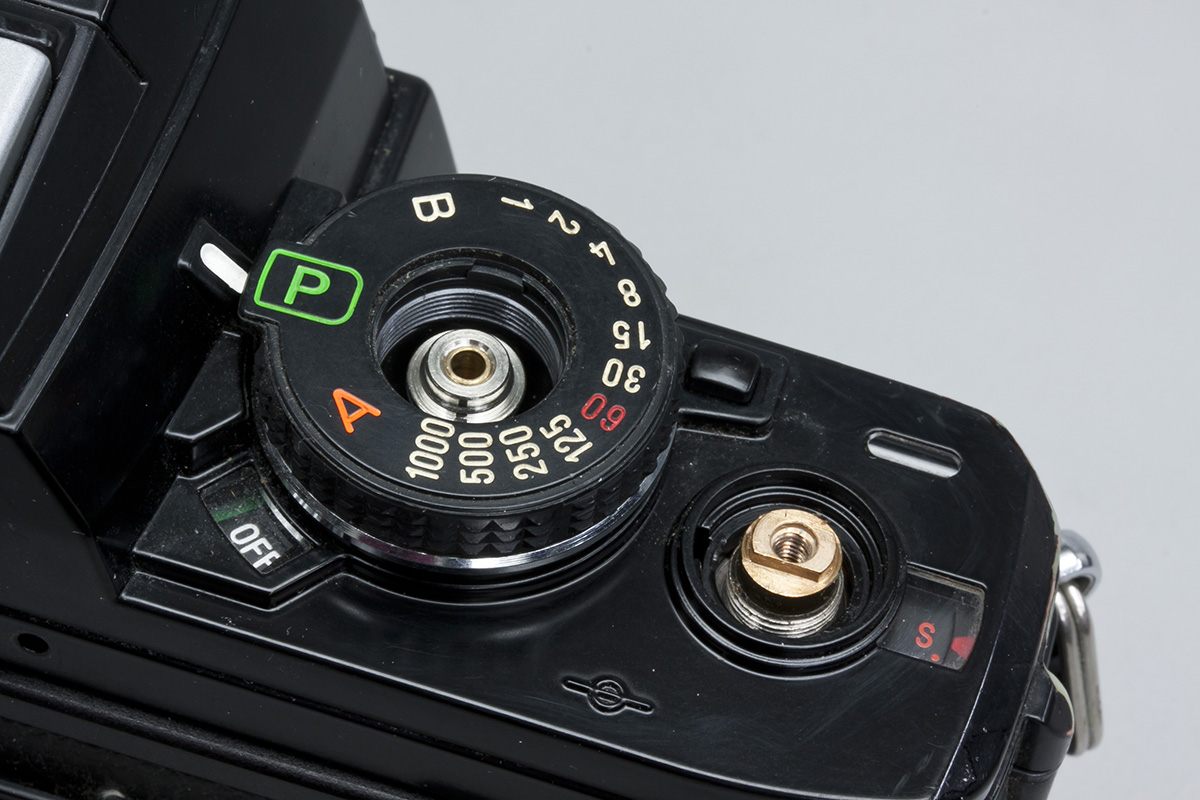

Lift off the shutter button.

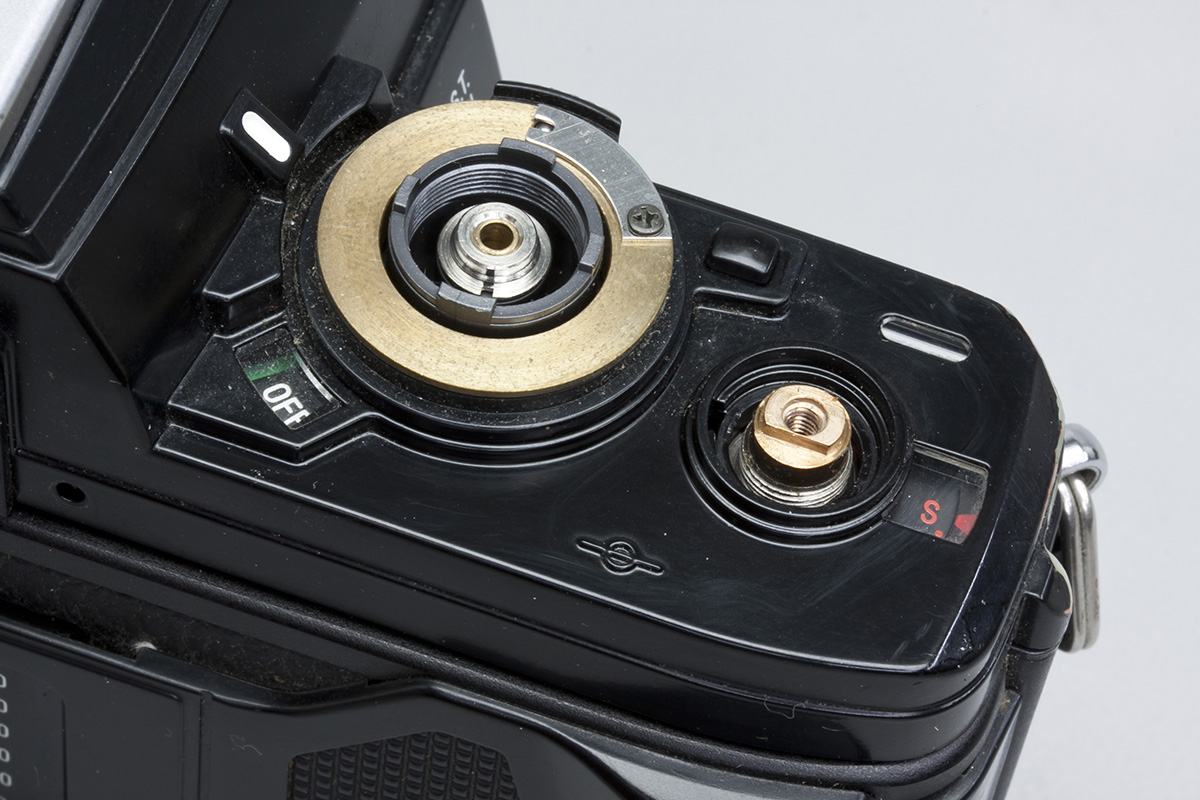

Lift off the shutter speed dial.

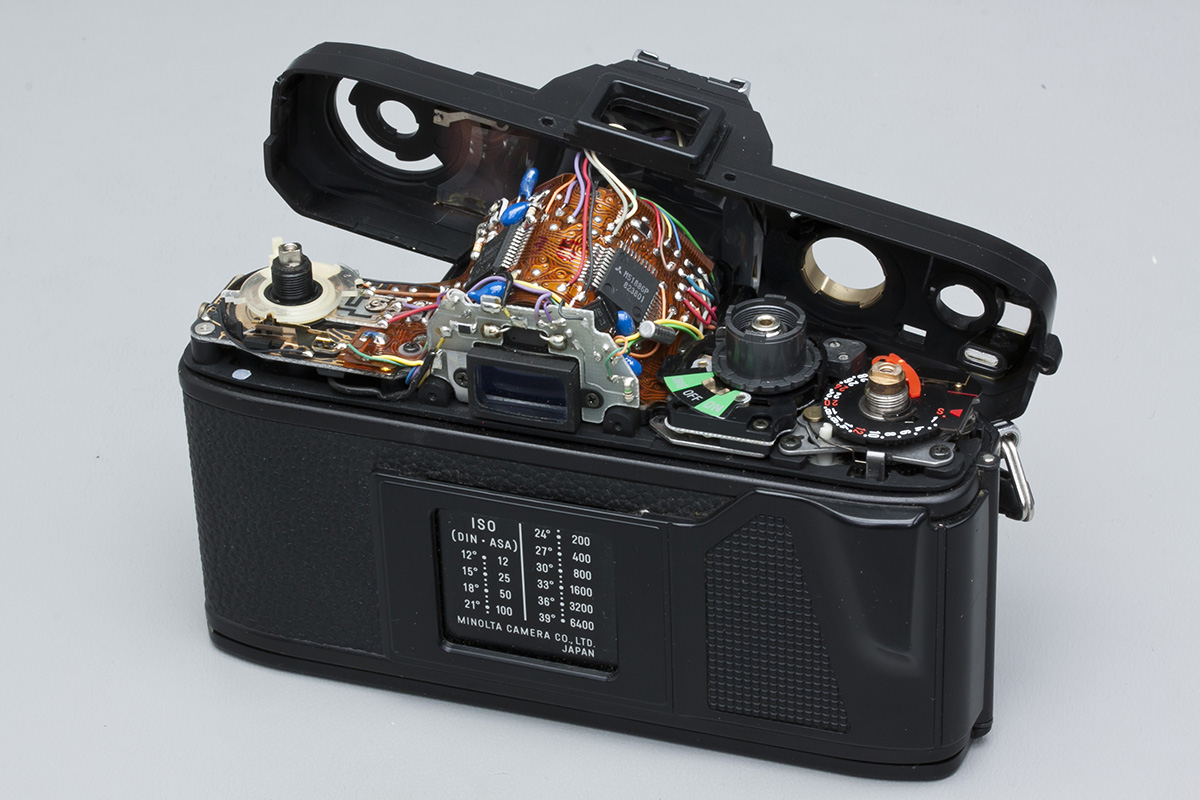

The top cover can now be removed.
Be careful of the flash sync wires.

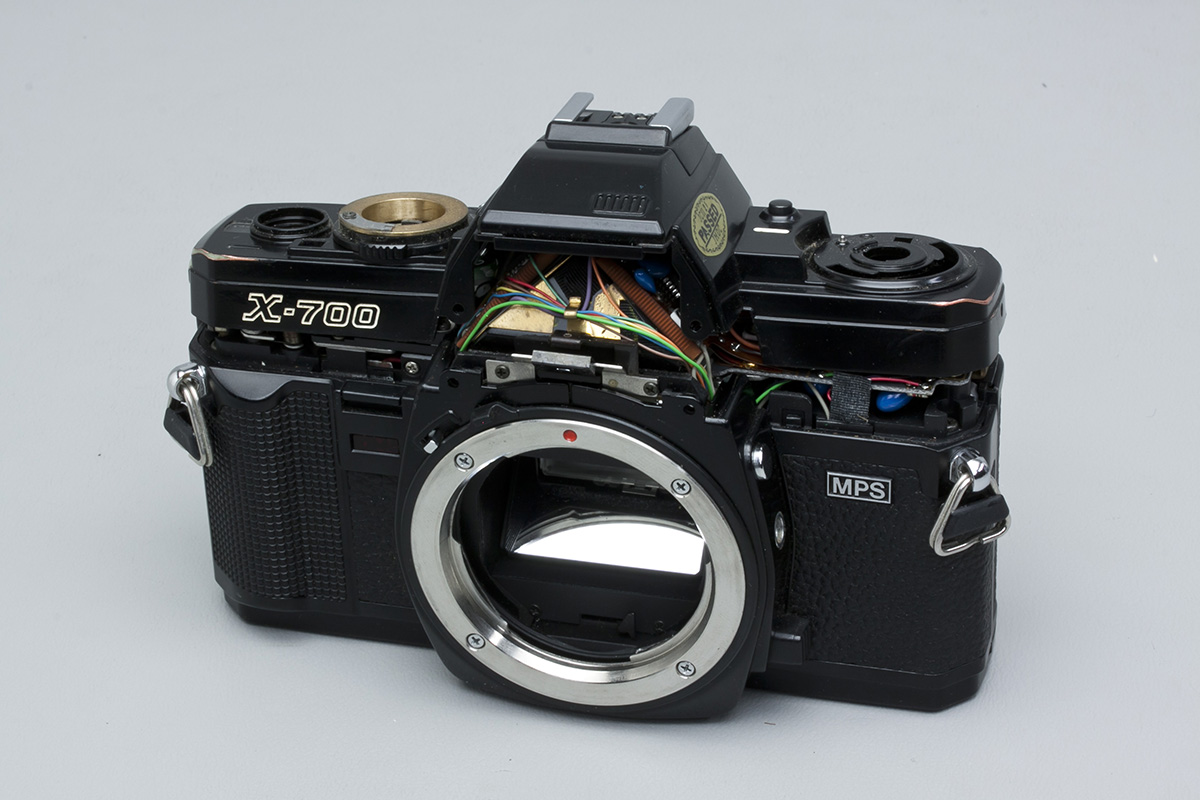

Front view.

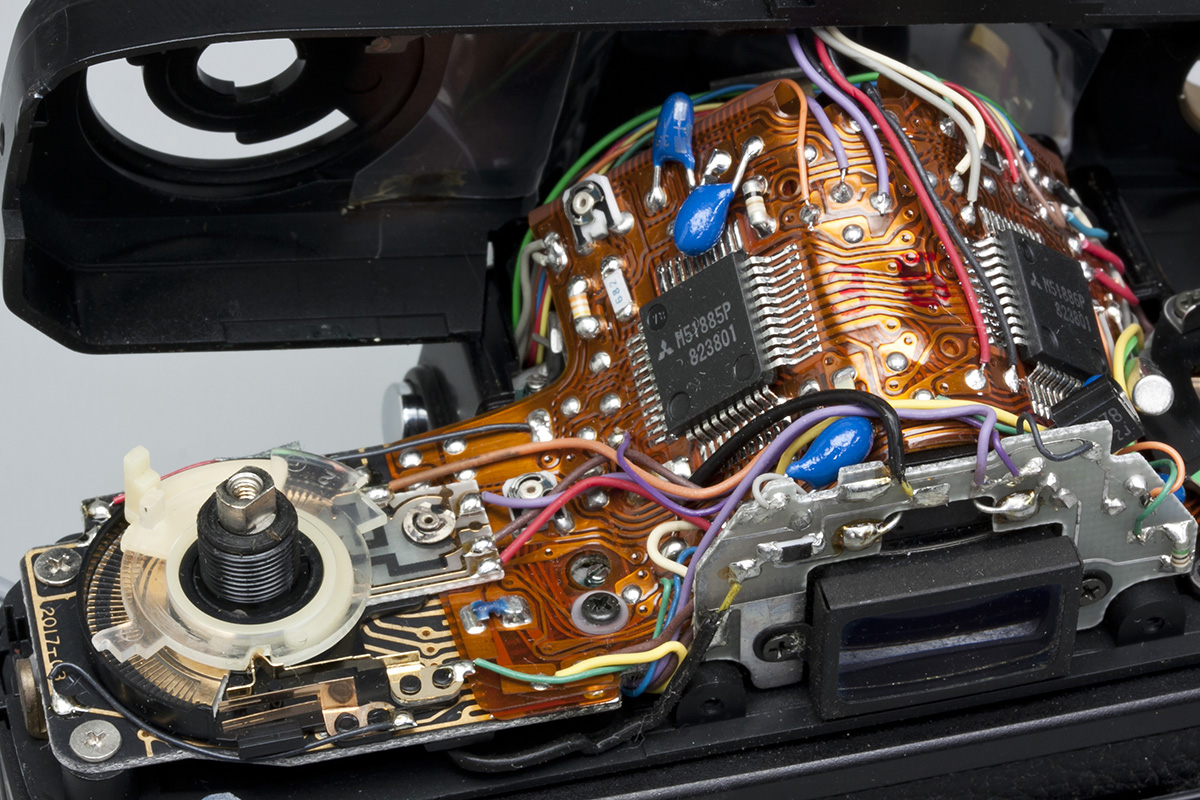

Close-up 1.

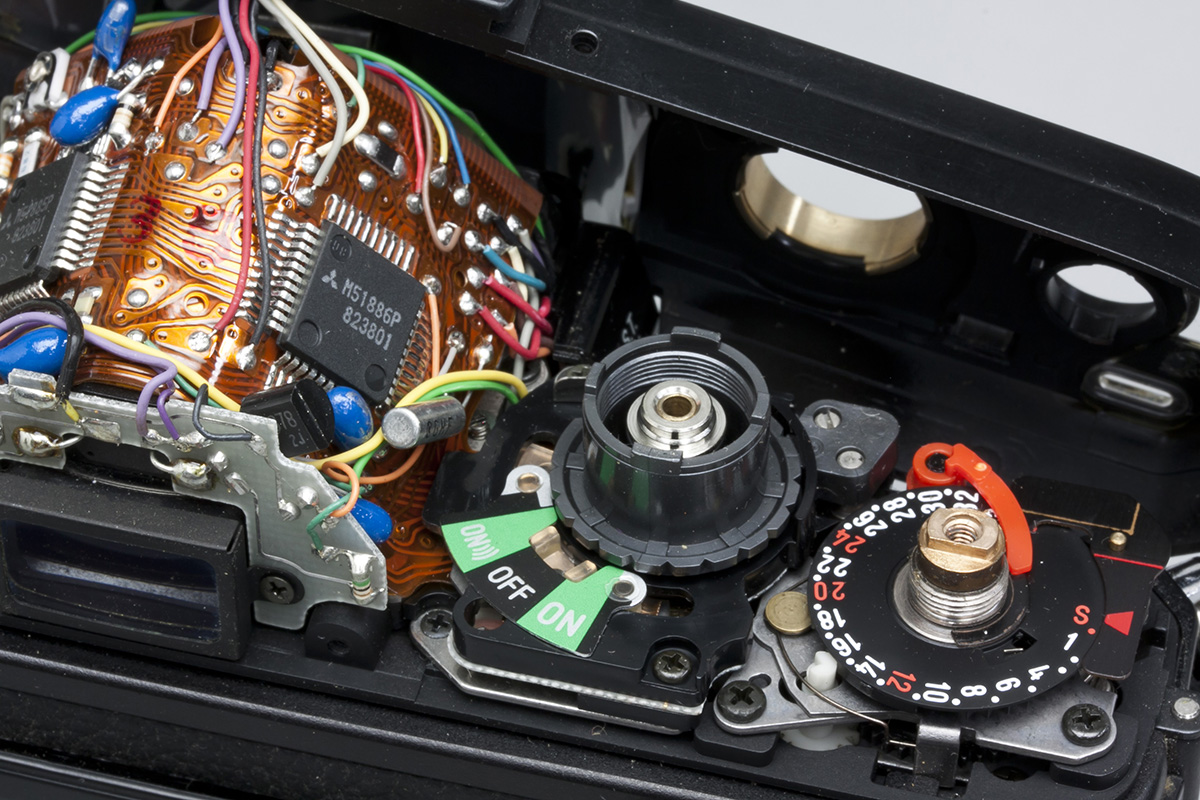

Close-up 2.
