Realist 35 Top Cover Removal

1 / 15
2 / 15
3 / 15
4 / 15
5 / 15
6 / 15
7 / 15
8 / 15
9 / 15
10 / 15
11 / 15
12 / 15
13 / 15
14 / 15
15 / 15

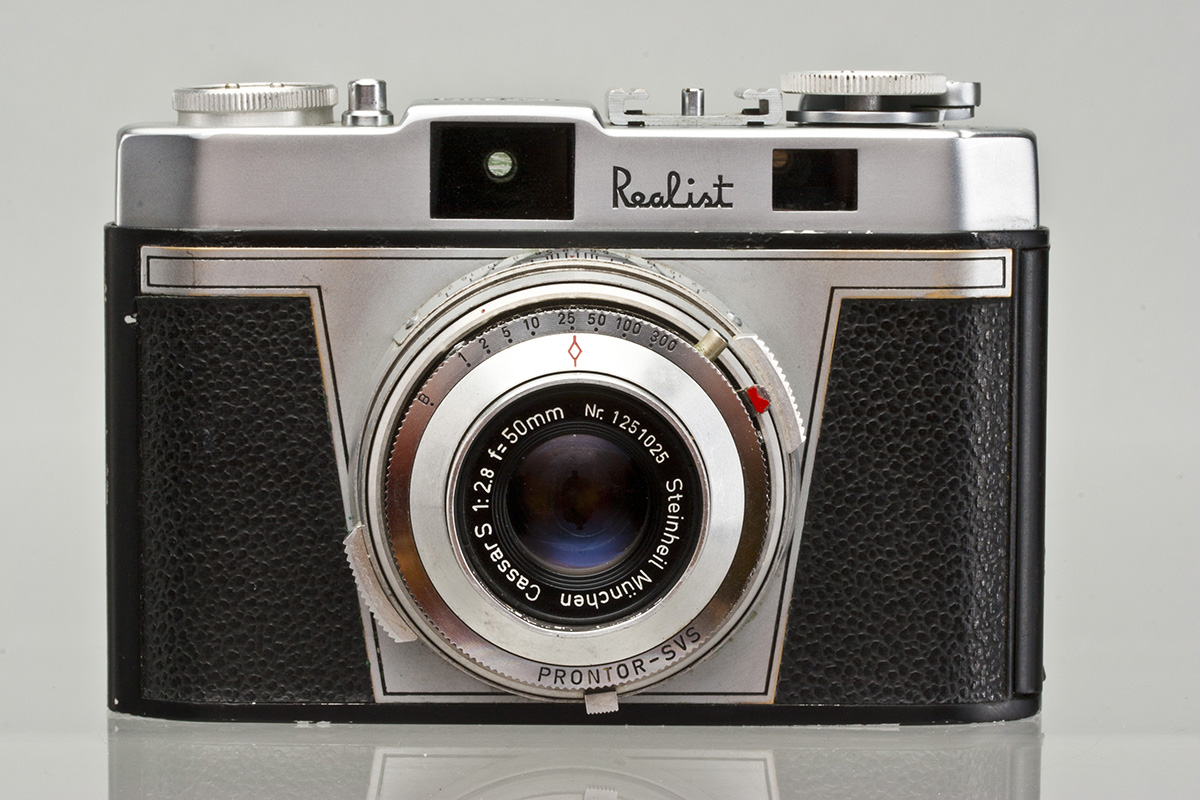

Step-by-step tutorial for removing the Realist 35 top cover.

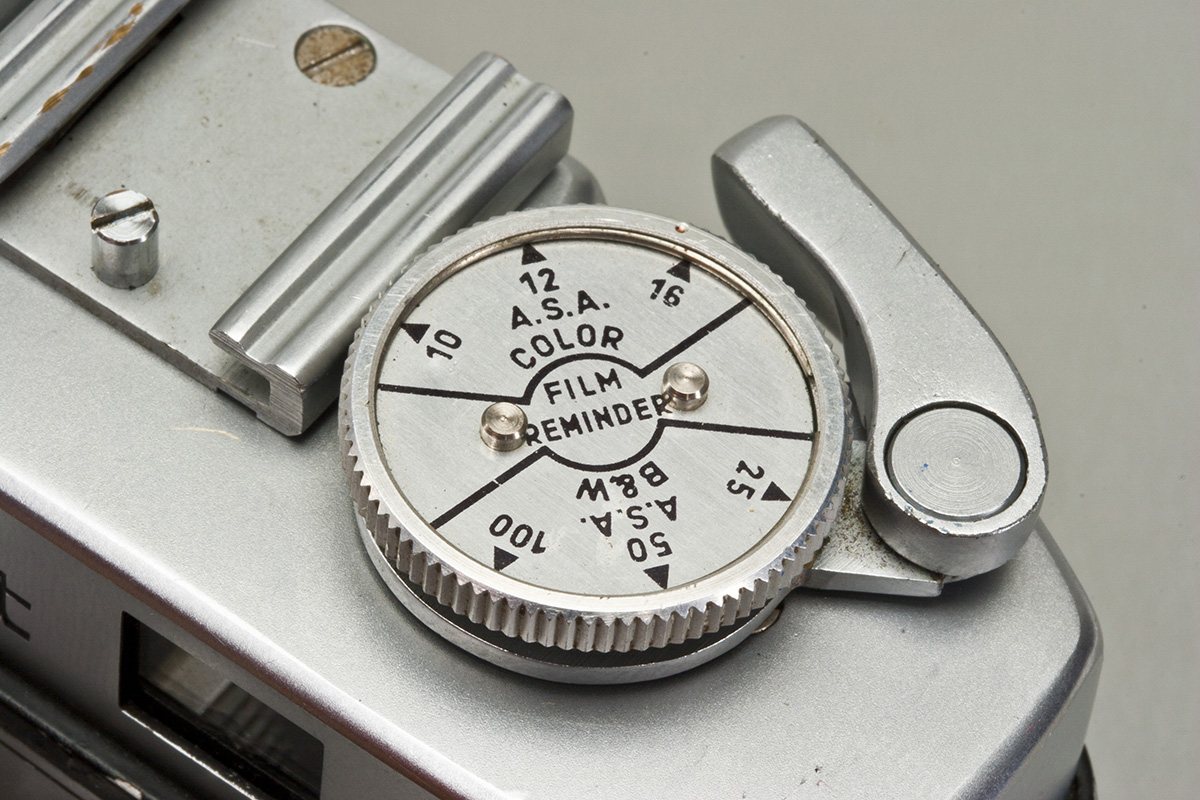

Unscrew the film reminder trim knob.

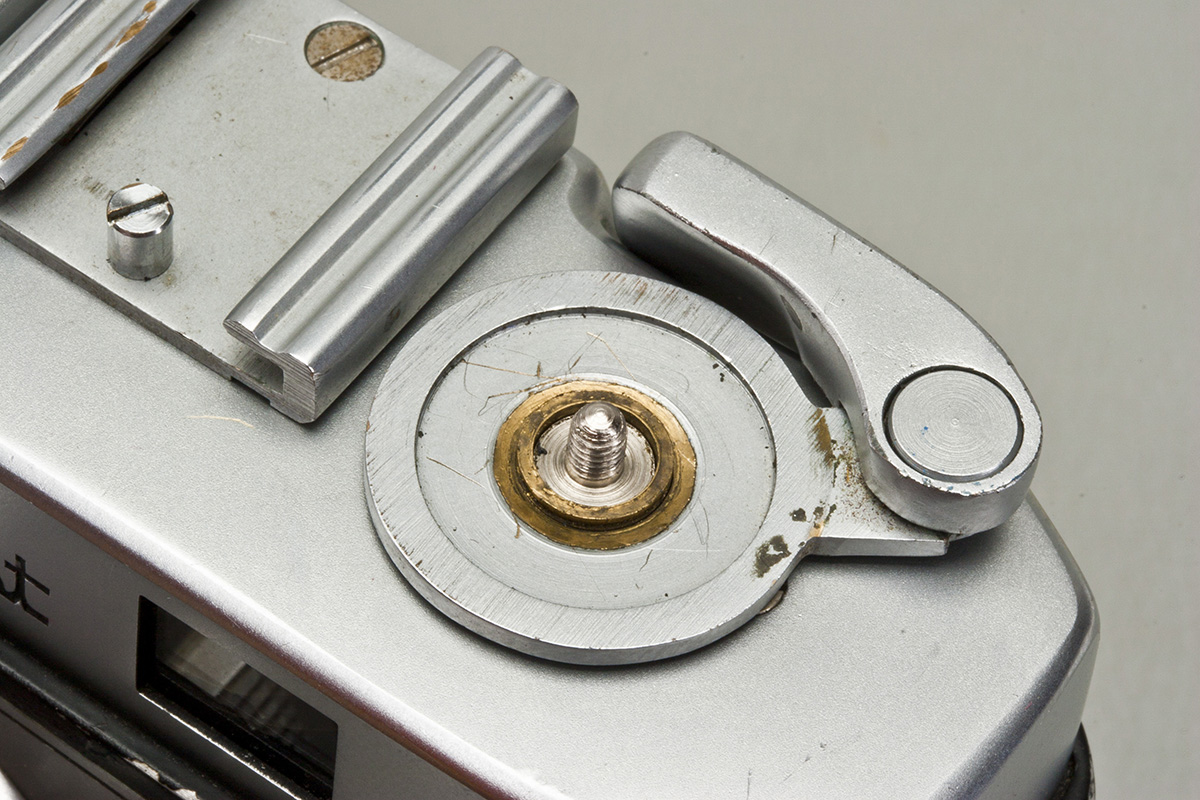

Remove film advance lever retaining ring.
Remove film advance lever.

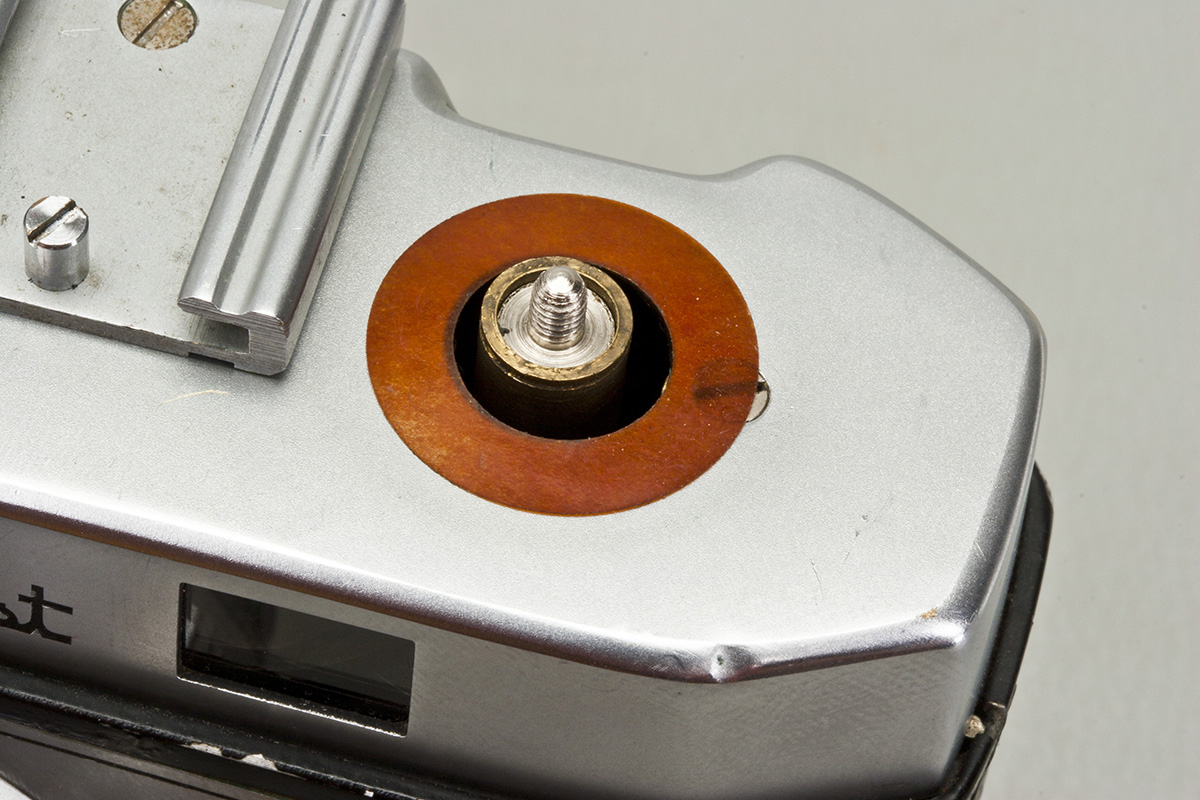

Remove plastic washer.

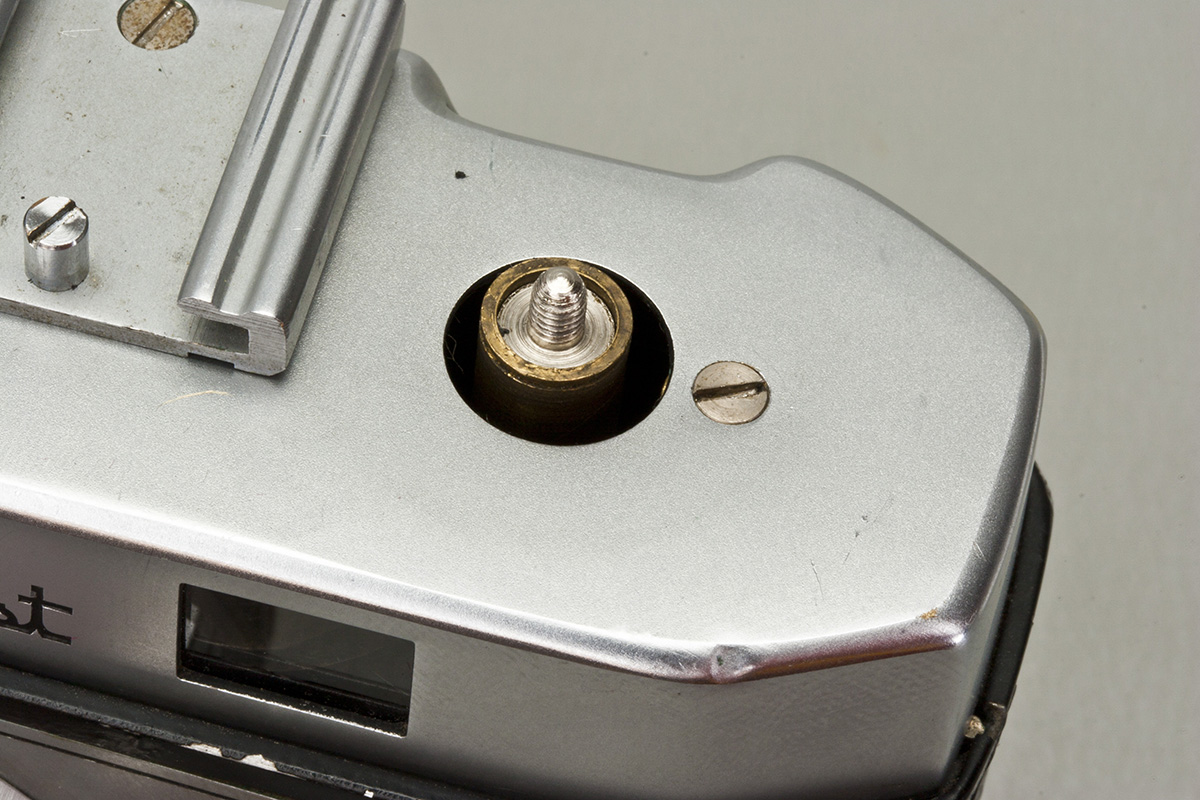

Remove screw.

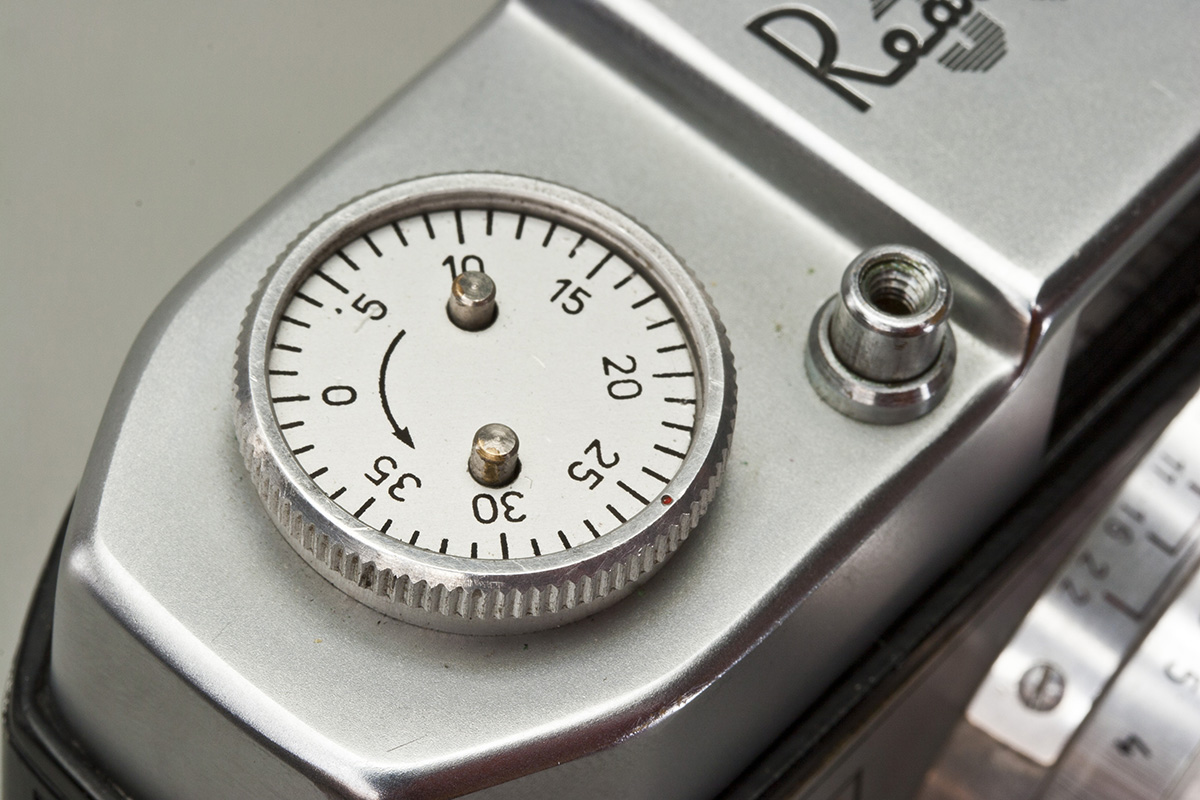

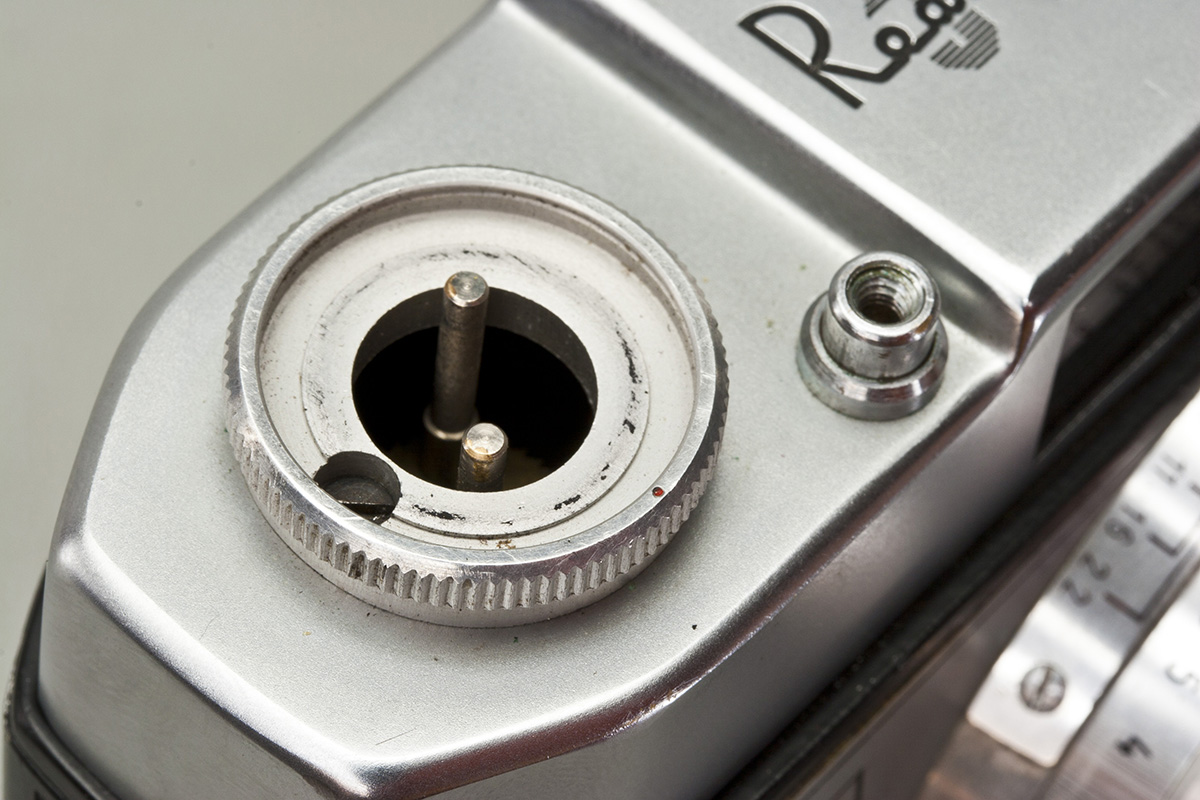

Remove film counter retaining ring.
Remove film counter dial.

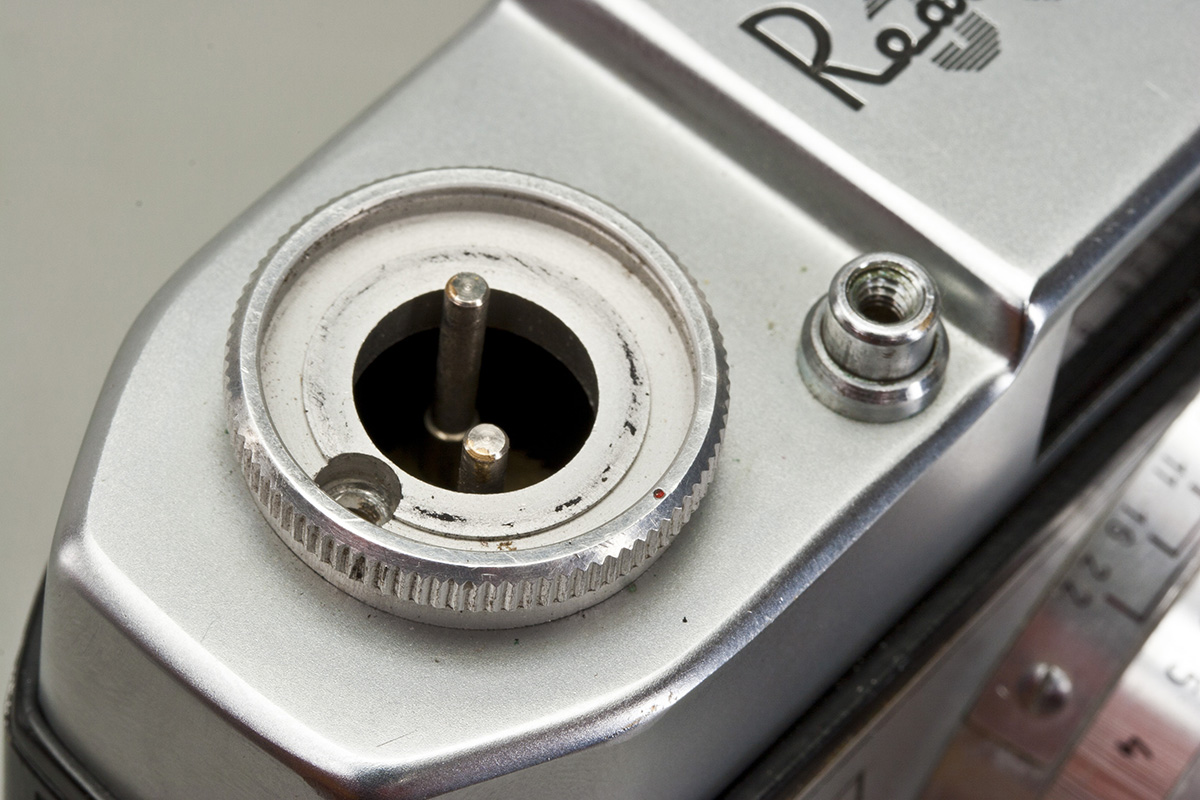

Remove screw.

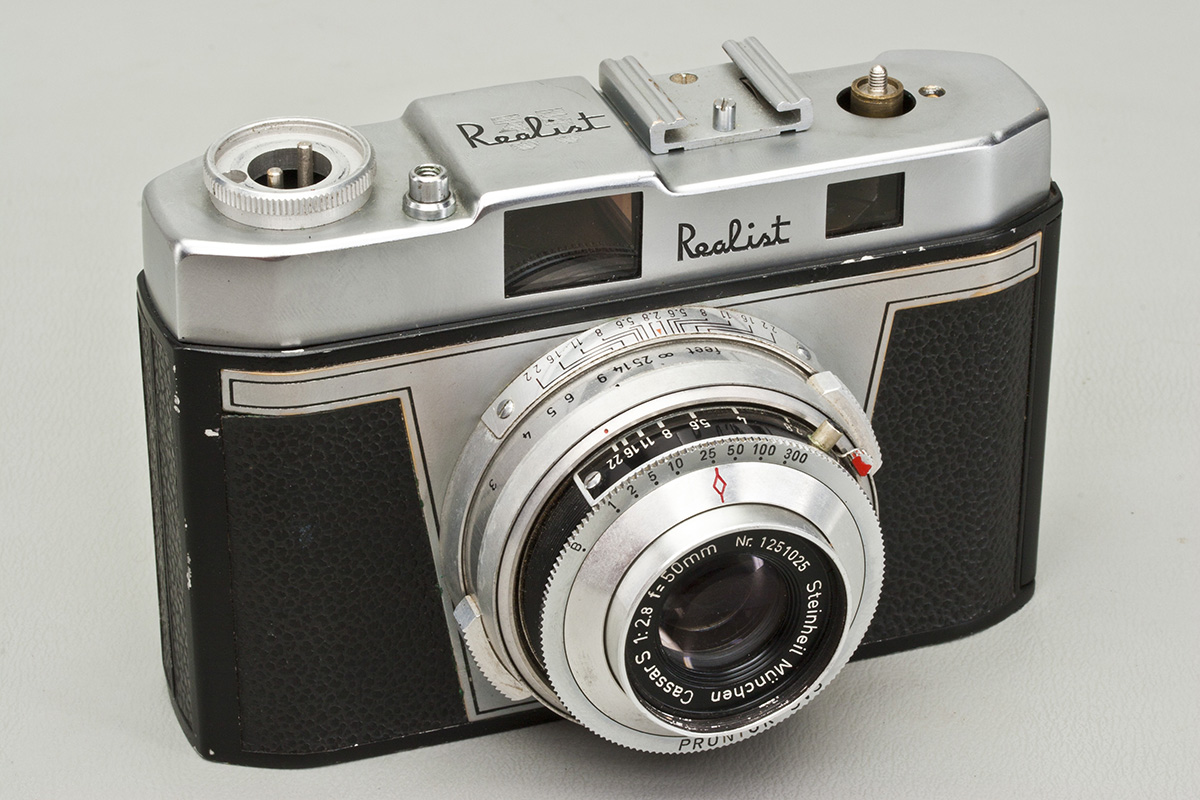

All done here.
Lift off top cover.

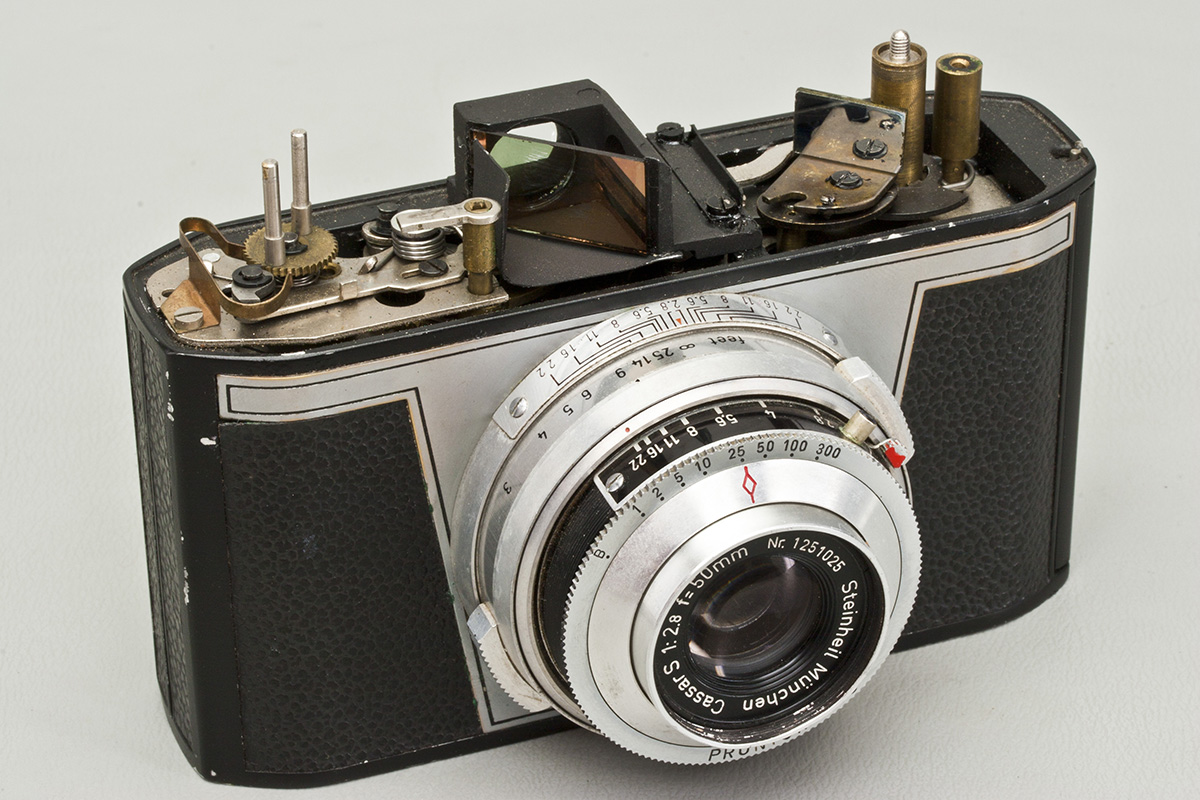

Top cover removed.

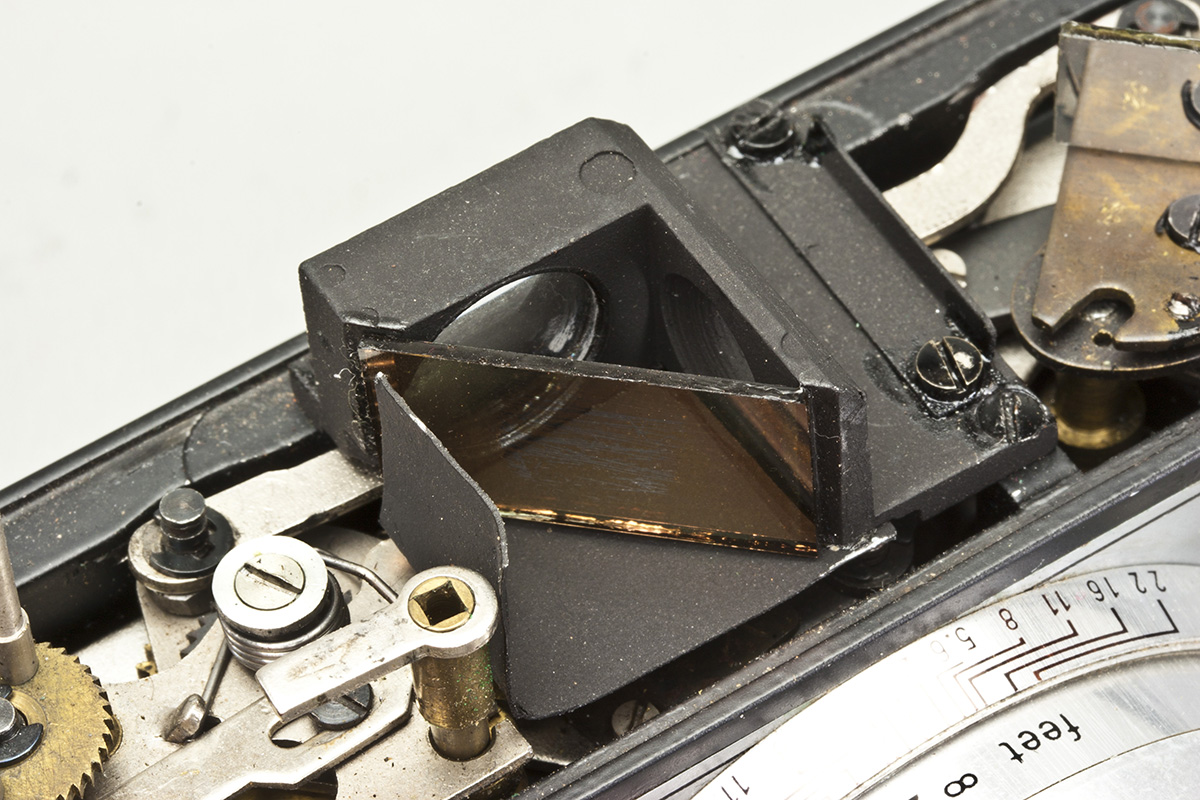

Colored glass coating is very fragile.

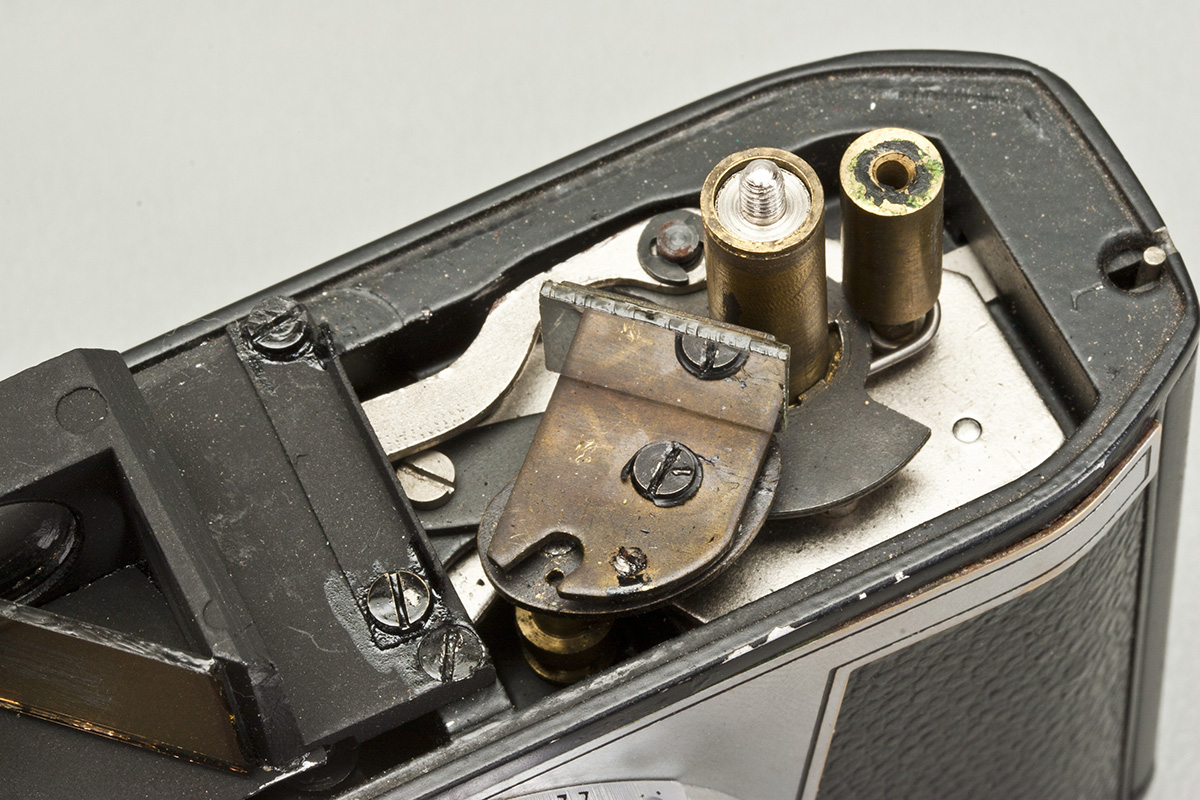

Close-up film counter side.

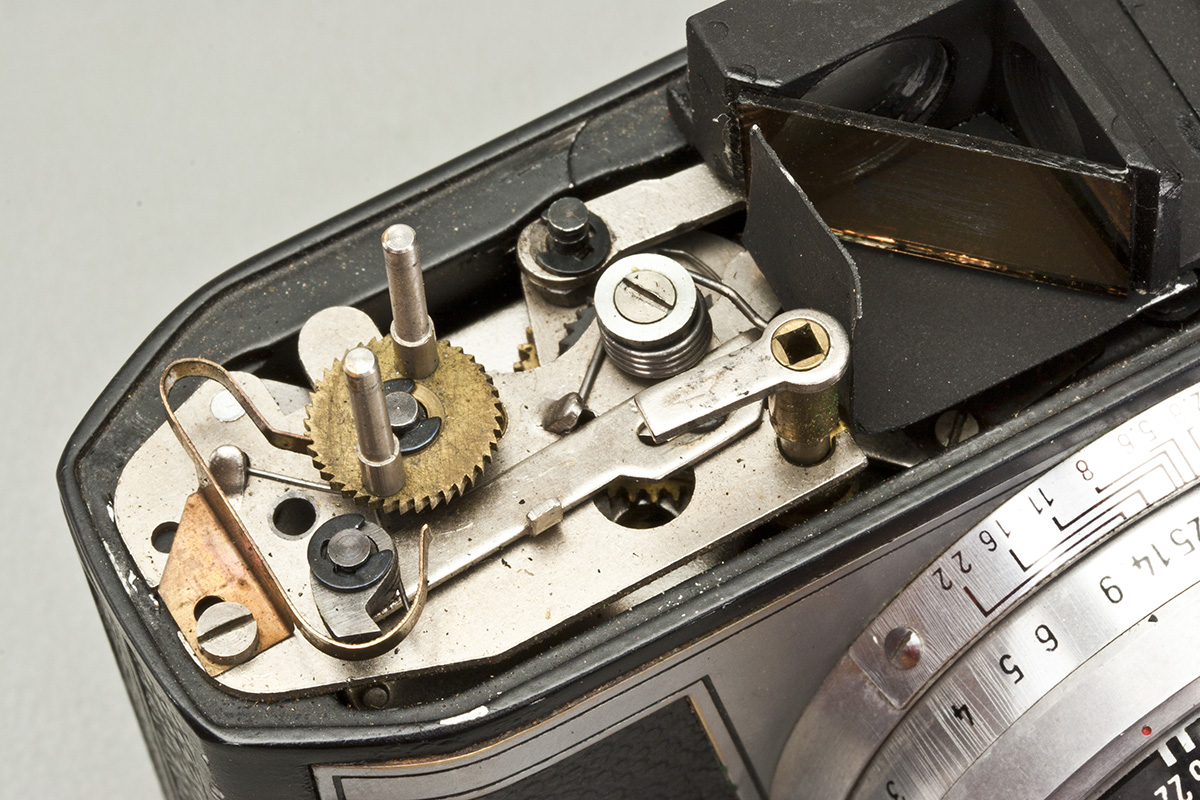

Close-up film advance side.
Report broken links HERE.
This tutorial was prepared by a camera repair hobbyist as an aid to other camera repair hobbyists. It was prepared without any information from any camera manufacturer, and is provided without any guarantee as to completeness or accuracy. This tutorial is for reference and historical purposes only, all rights reserved.
