Rolleicord V Front Cover Removal and Shutter

1 / 10
2 / 10
3 / 10
4 / 10
5 / 10
6 / 10
7 / 10
8 / 10
9 / 10
10 / 10

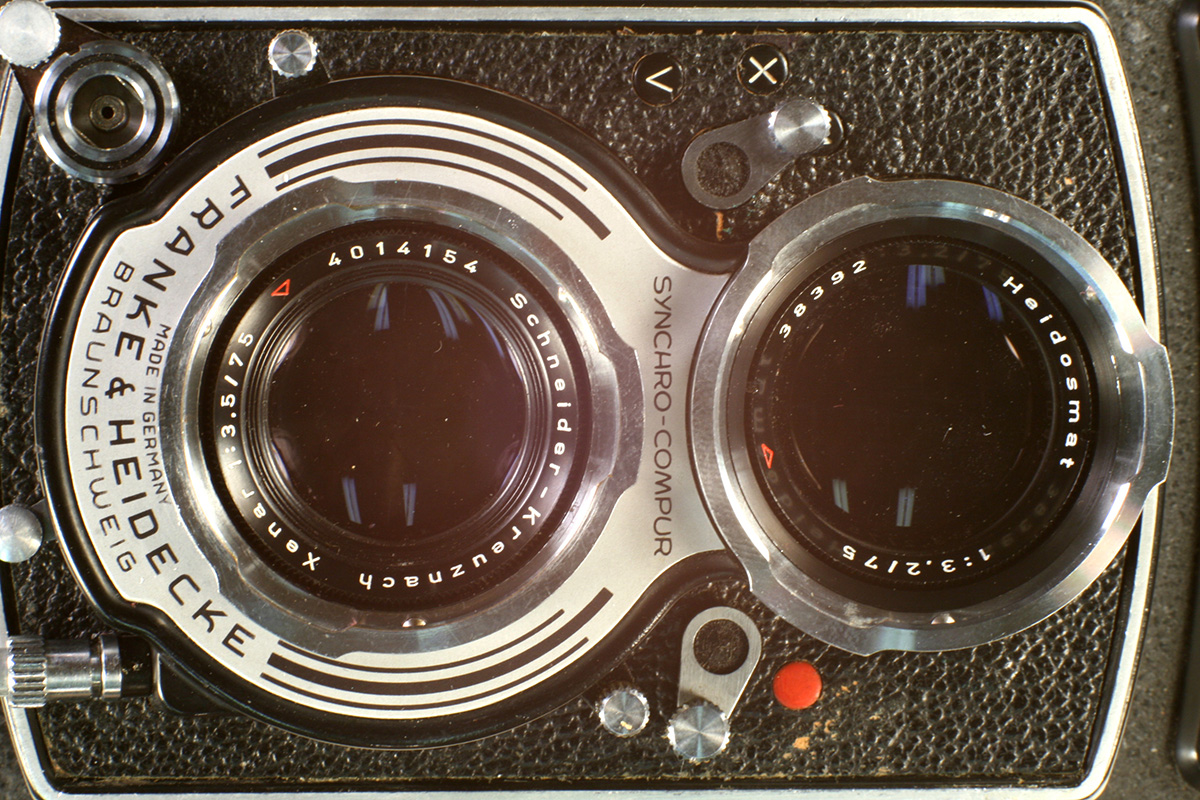

Remove the shutter lock/pc socket retaining rings.

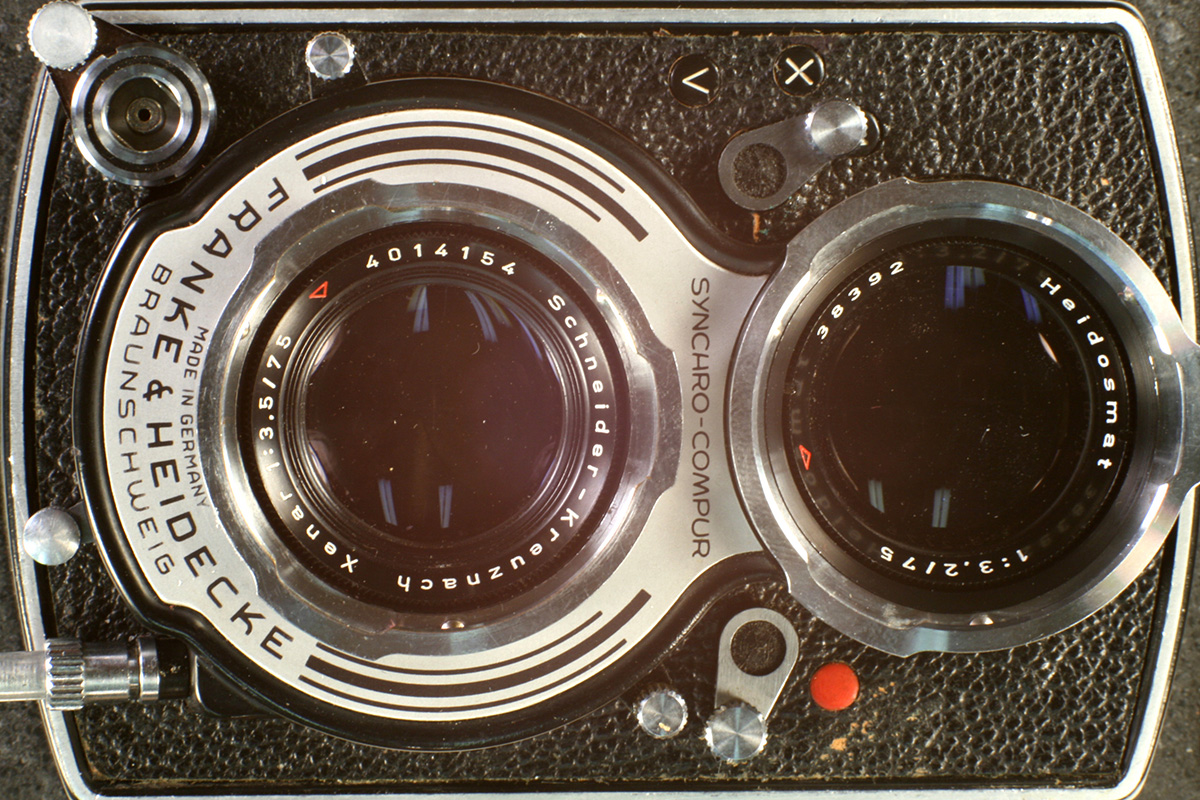

Remove leatherette covering and shutter release extension.

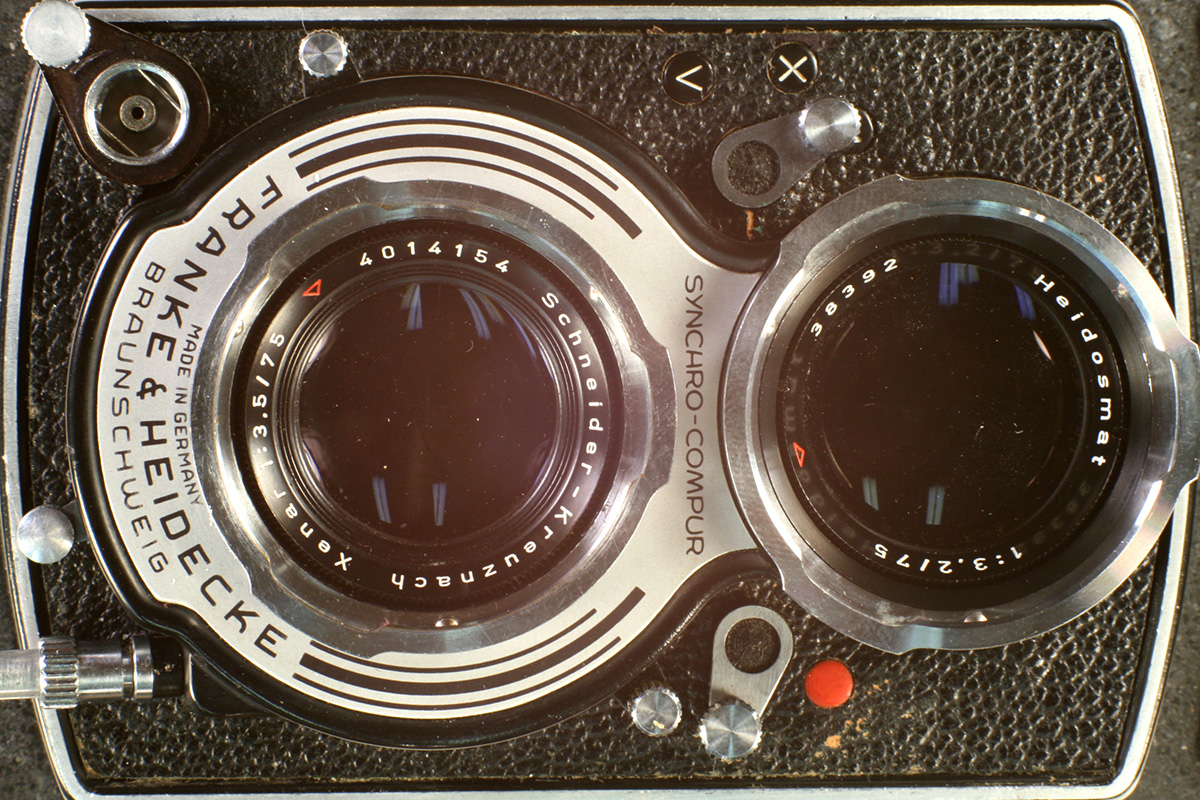

Remove front cover retaining screws.

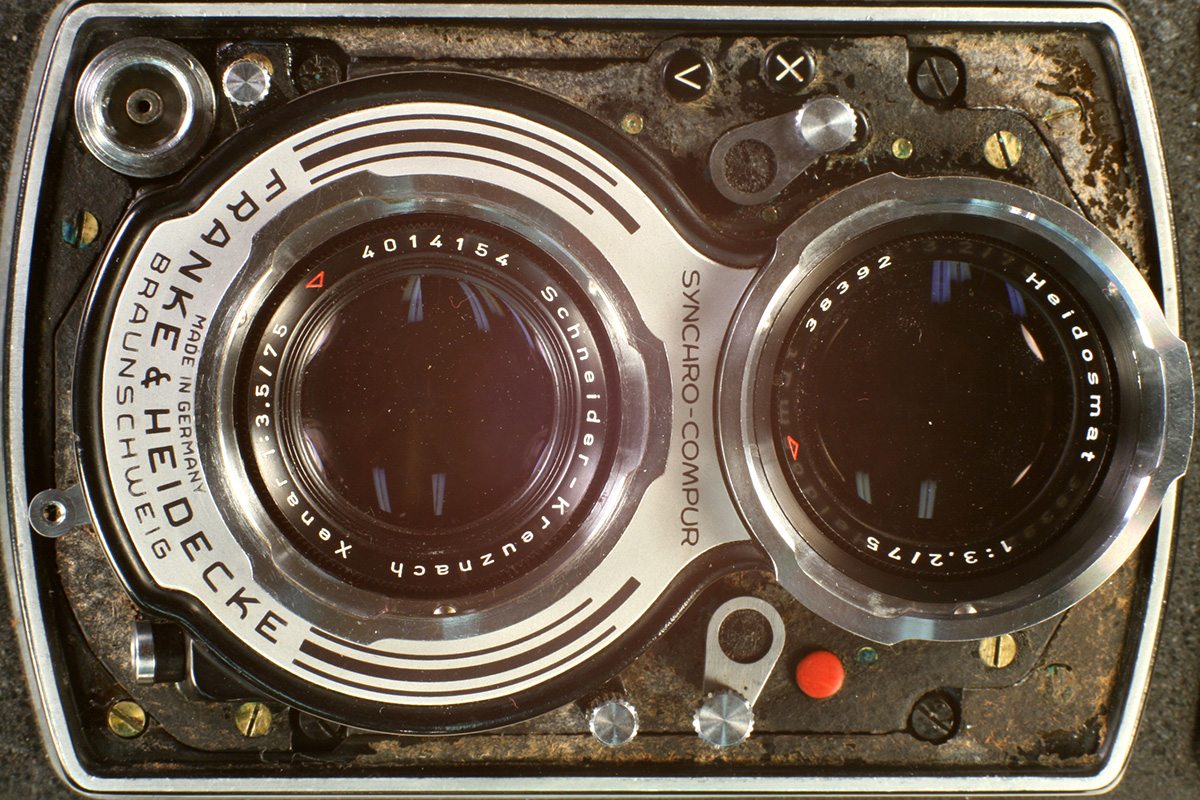

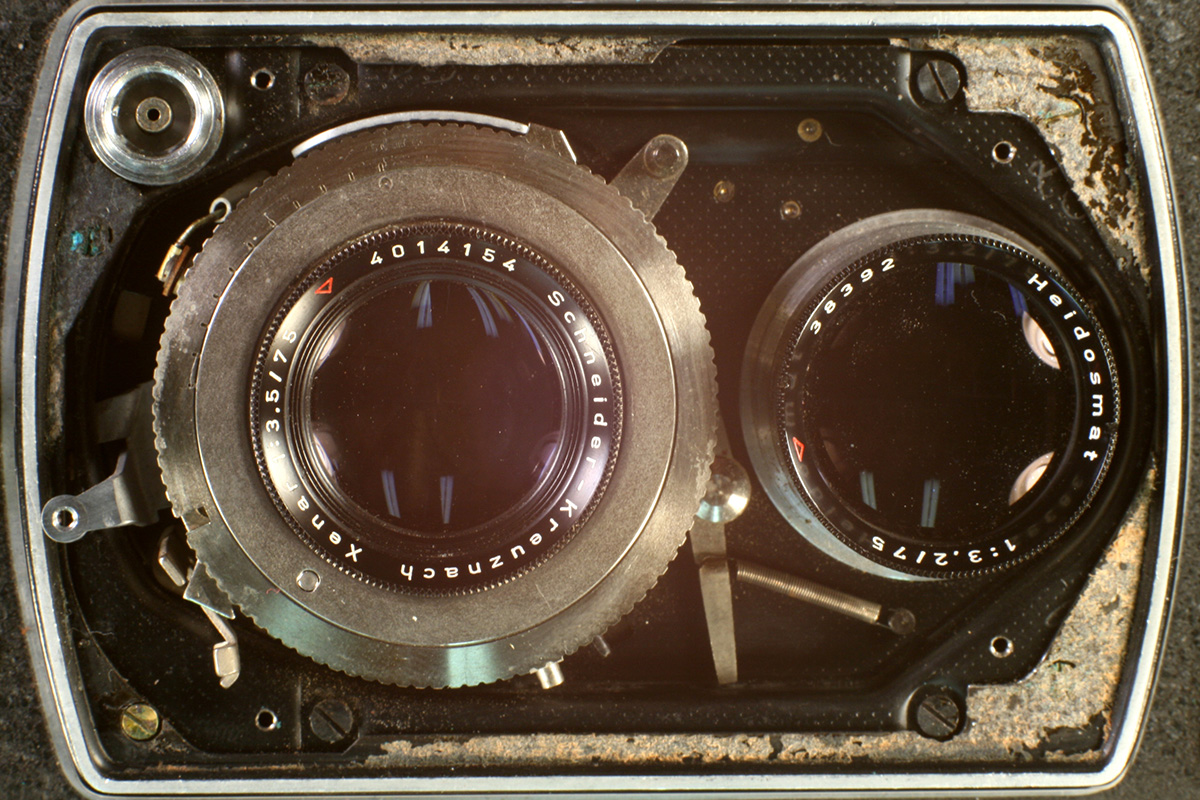

Unscrew taking lens front element group.
Remove retiaining ring set screw.

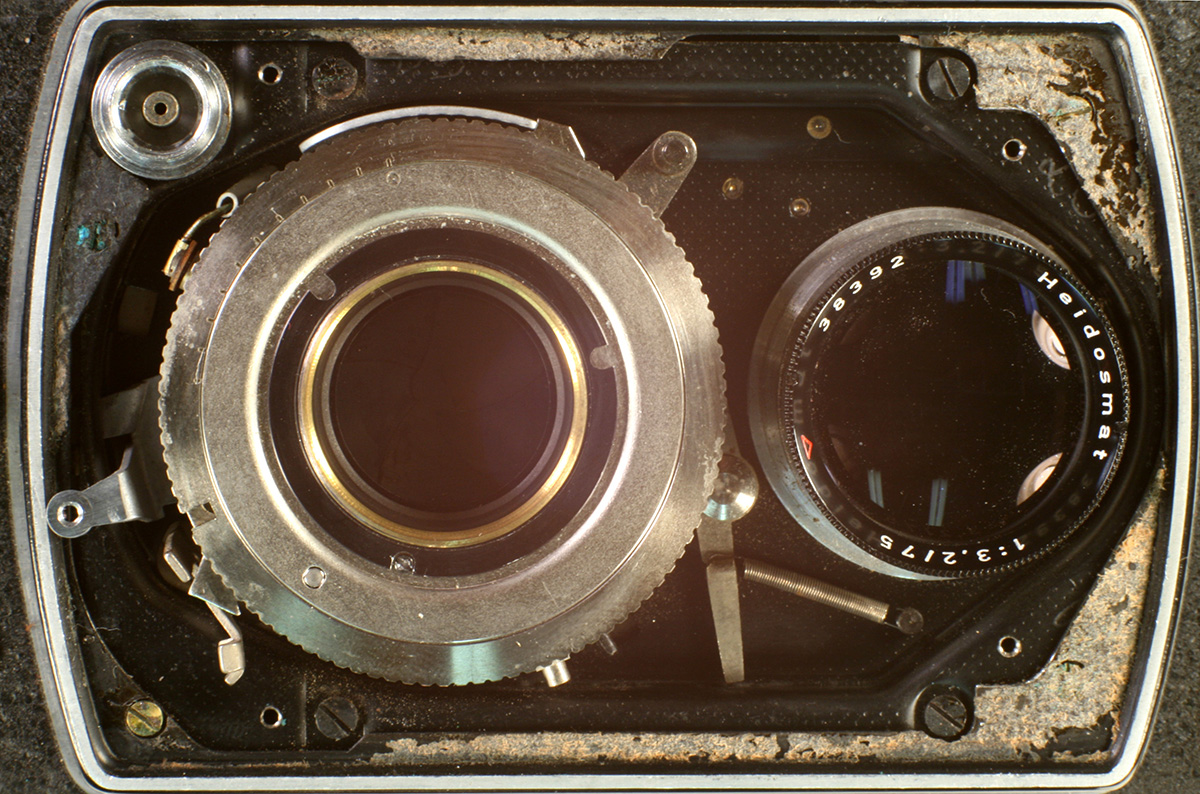

Unscrew retaining ring.

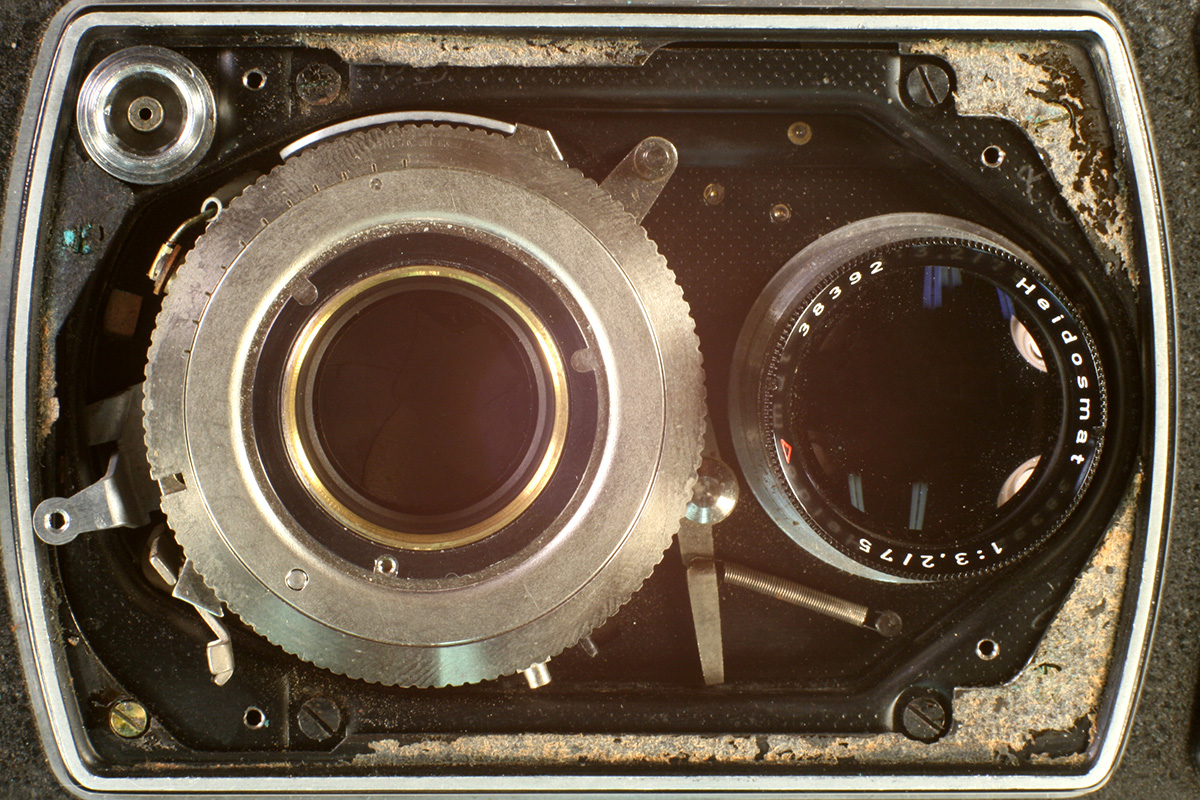

Lift off shutter mechanism front plate.

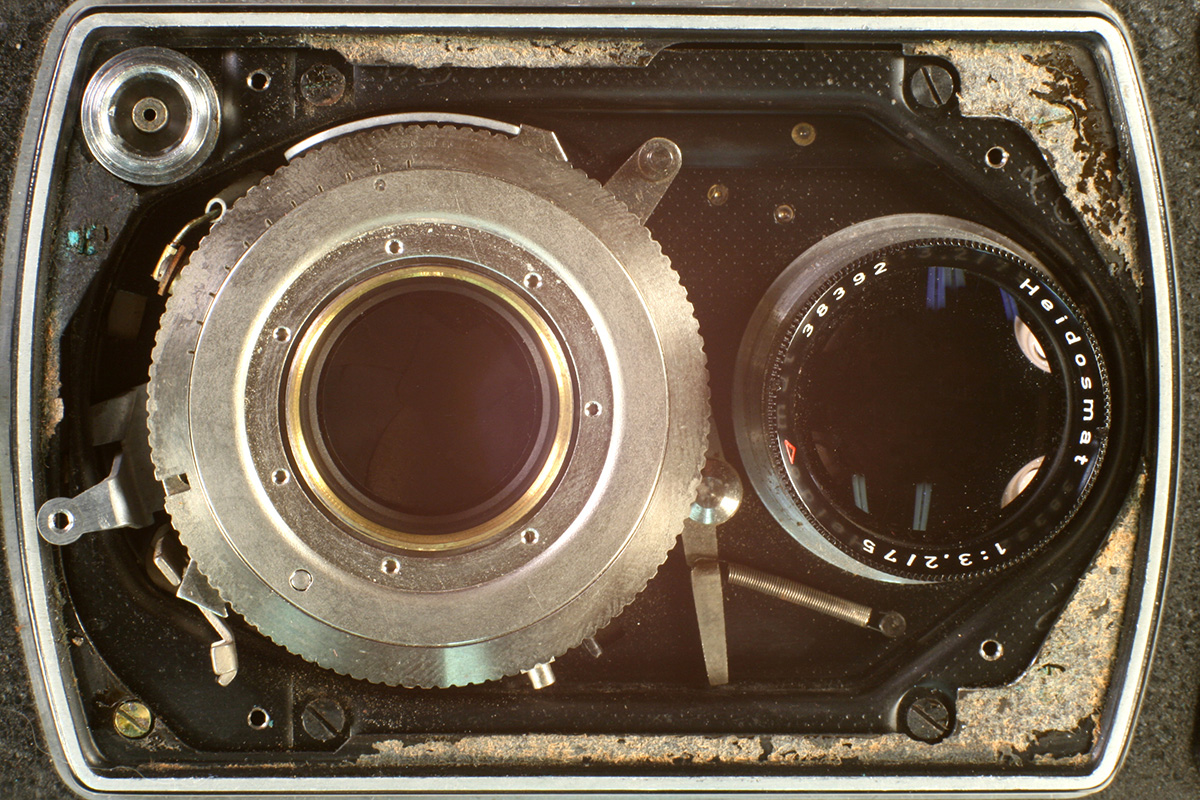

Lift off, and set aside shutter speed selector ring.

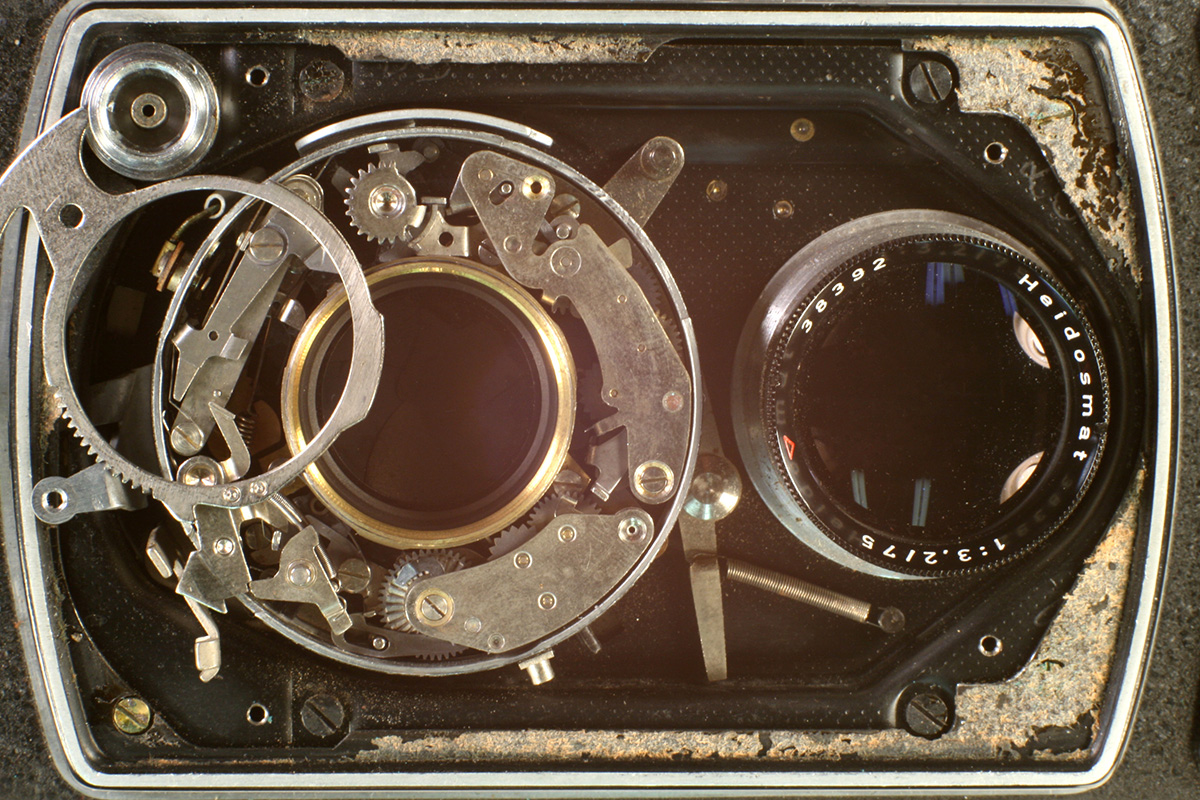

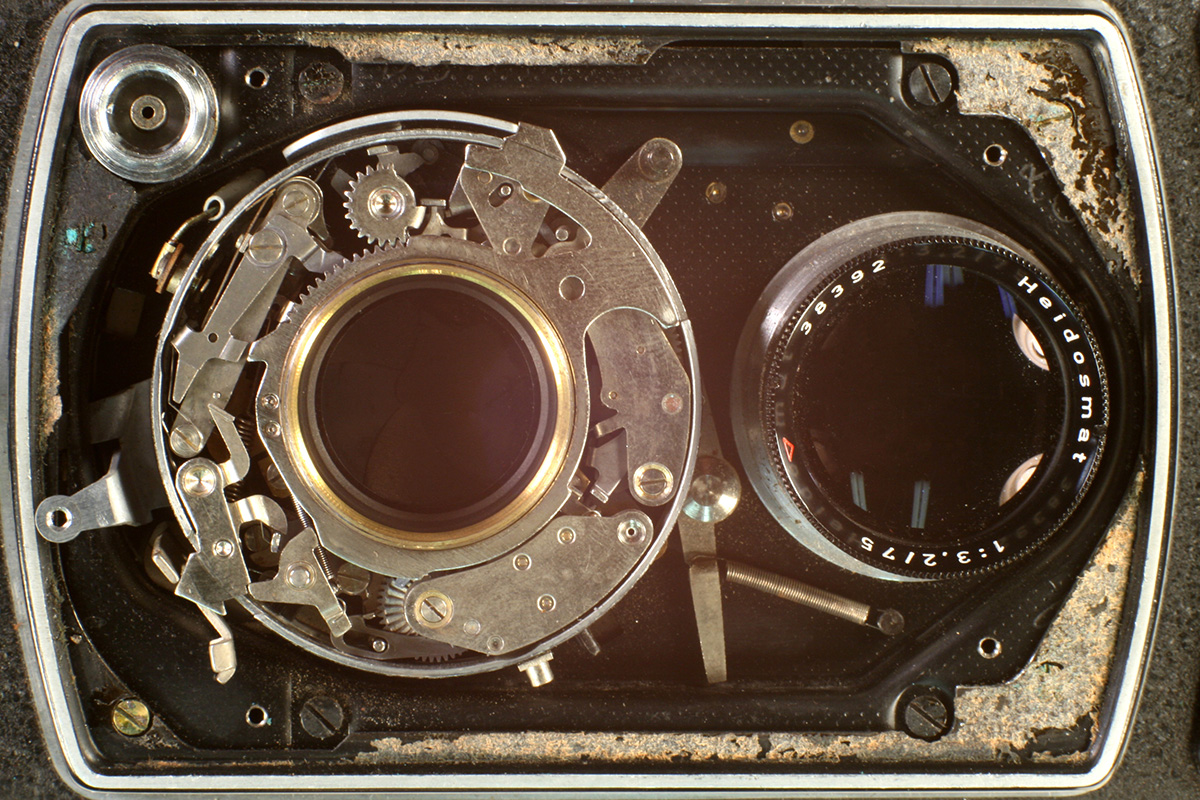

Close-up of shutter mechanism. Just a drop of lighter fluid on each of the gear shaft holes should be sufficient.
Use a small amount of moly grease on the main cocking ring before reassembling.
Report broken links HERE.
This tutorial was prepared by a camera repair hobbyist as an aid to other camera repair hobbyists. It was prepared without any information from any camera manufacturer, and is provided without any guarantee as to completeness or accuracy. This tutorial is for reference and historical purposes only, all rights reserved.
