Yashica FR II Top Cover Removal

1 / 26
2 / 26
3 / 26
4 / 26
5 / 26
6 / 26
7 / 26
8 / 26
9 / 26
10 / 26
11 / 26
12 / 26
13 / 26
14 / 26
15 / 26
16 / 26
17 / 26
18 / 26
19 / 26
20 / 26
21 / 26
22 / 26
23 / 26
24 / 26
25 / 26
26 / 26

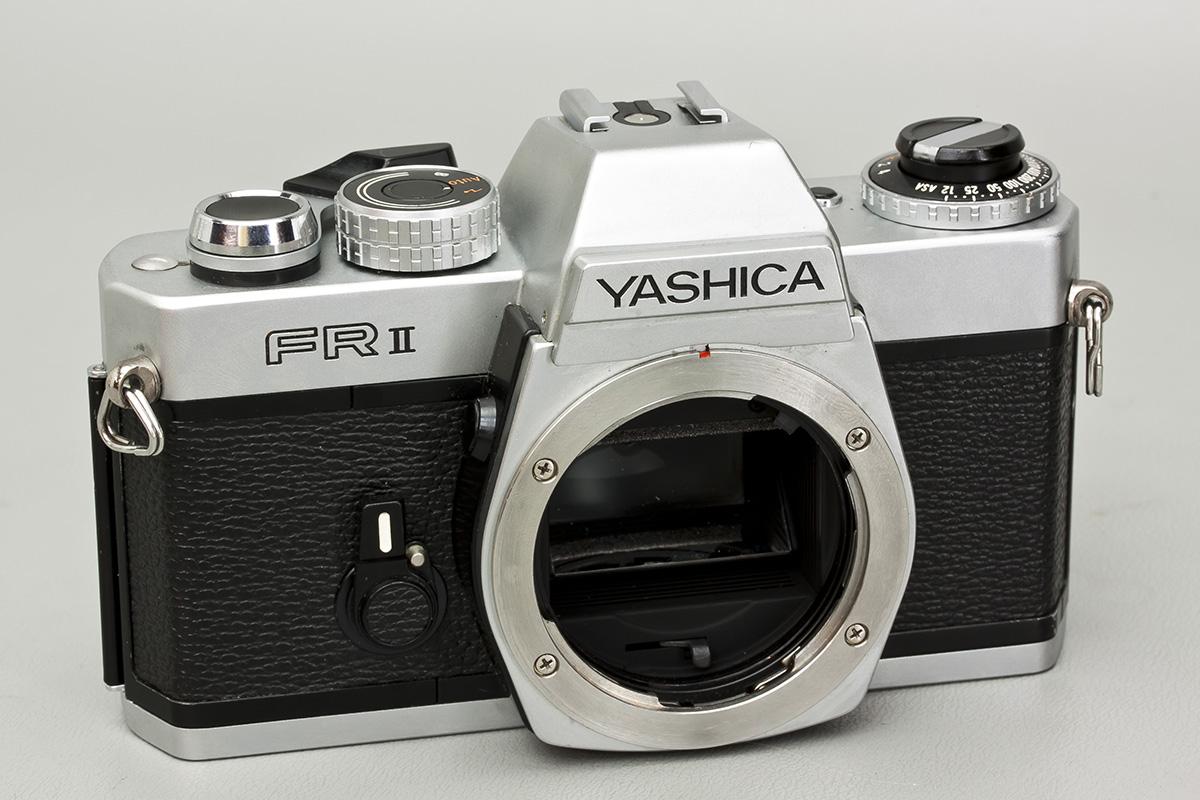

Step-by-step tutorial for removing the Yashica FR II top cover.

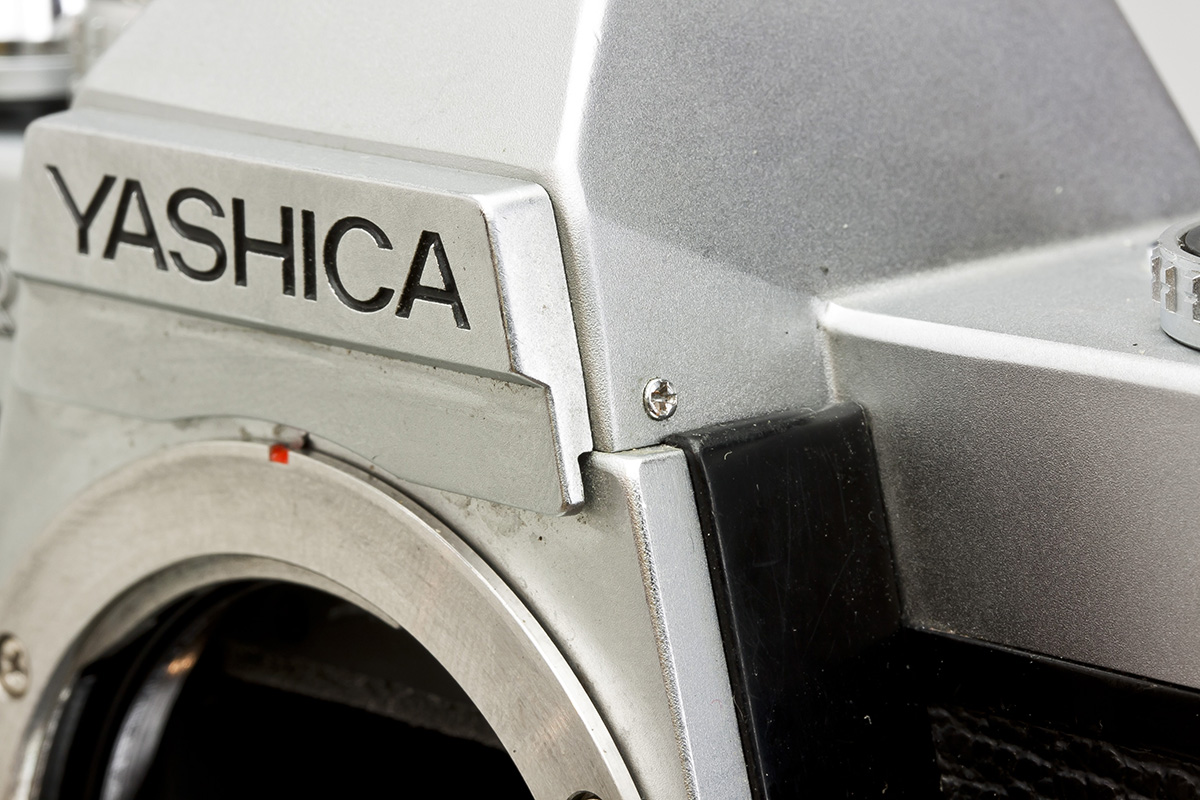

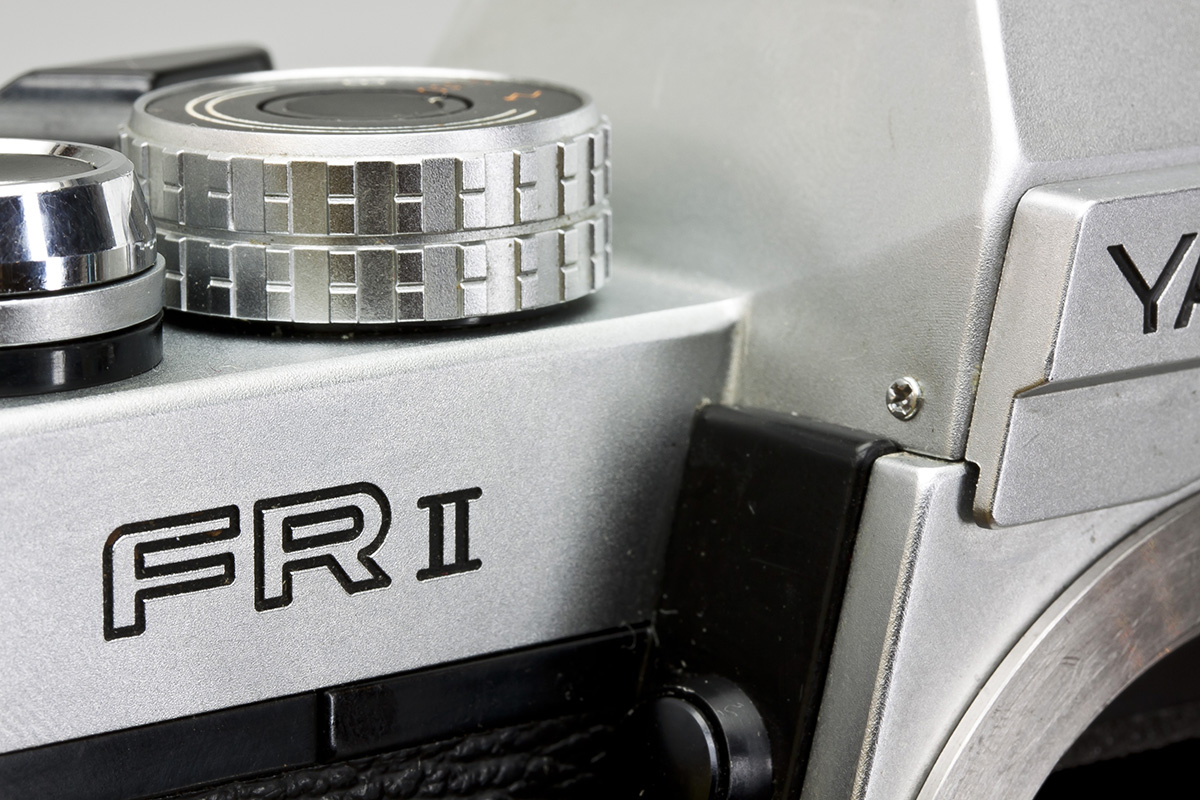

Remove screw.
Remove screw.

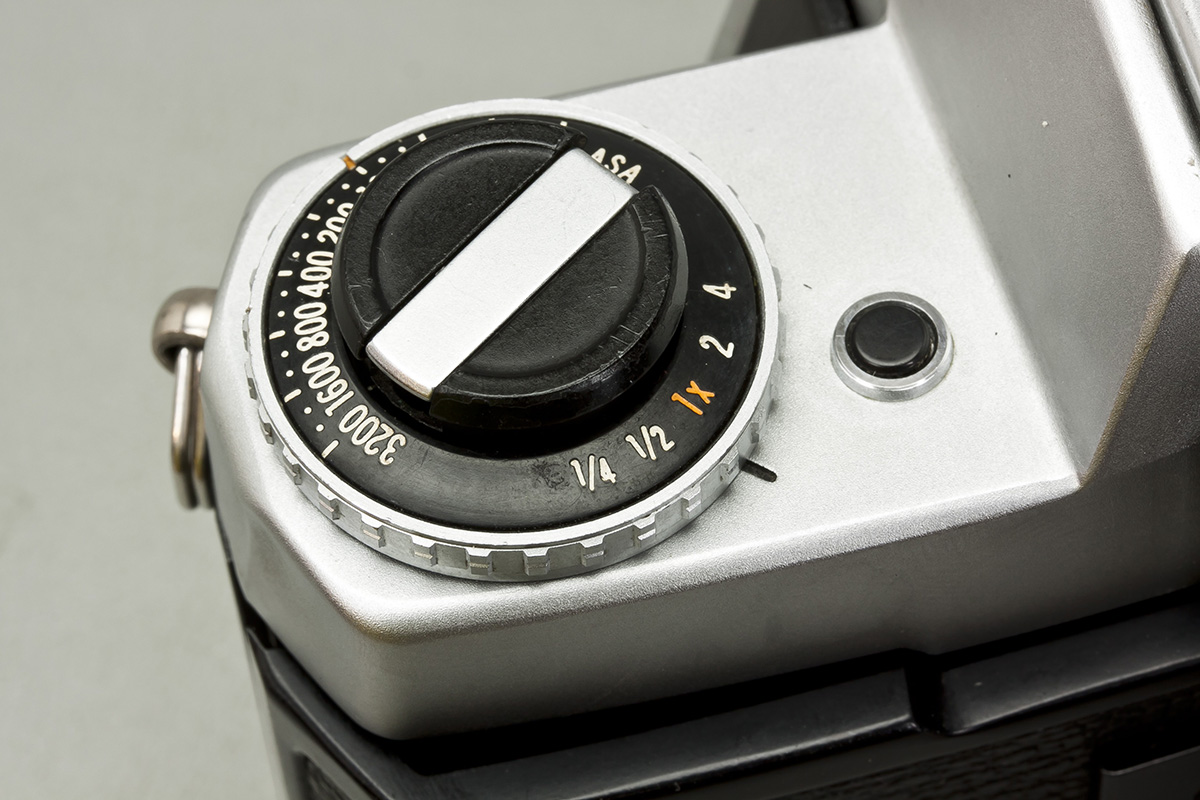

Next, remove rewind knob.

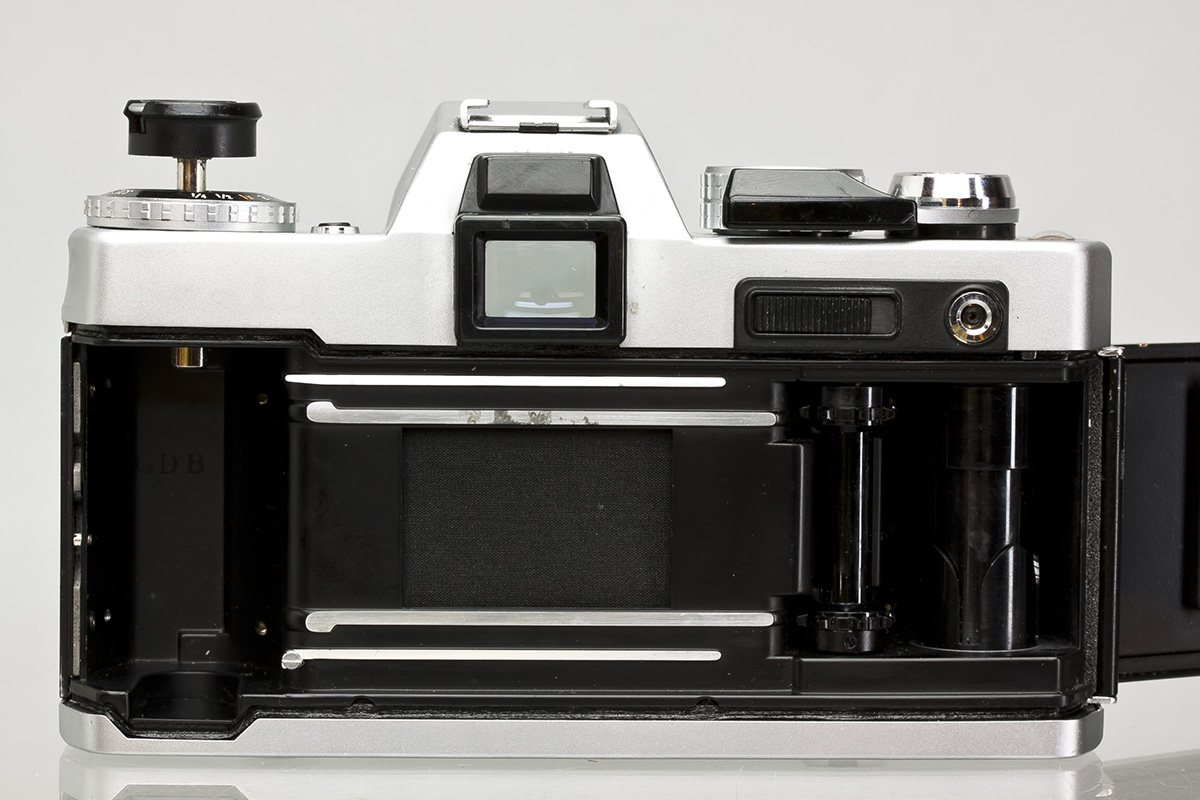

With film door open, stick your screwdriver in the fork of the rewind shaft, and unscrew the rewind knob.

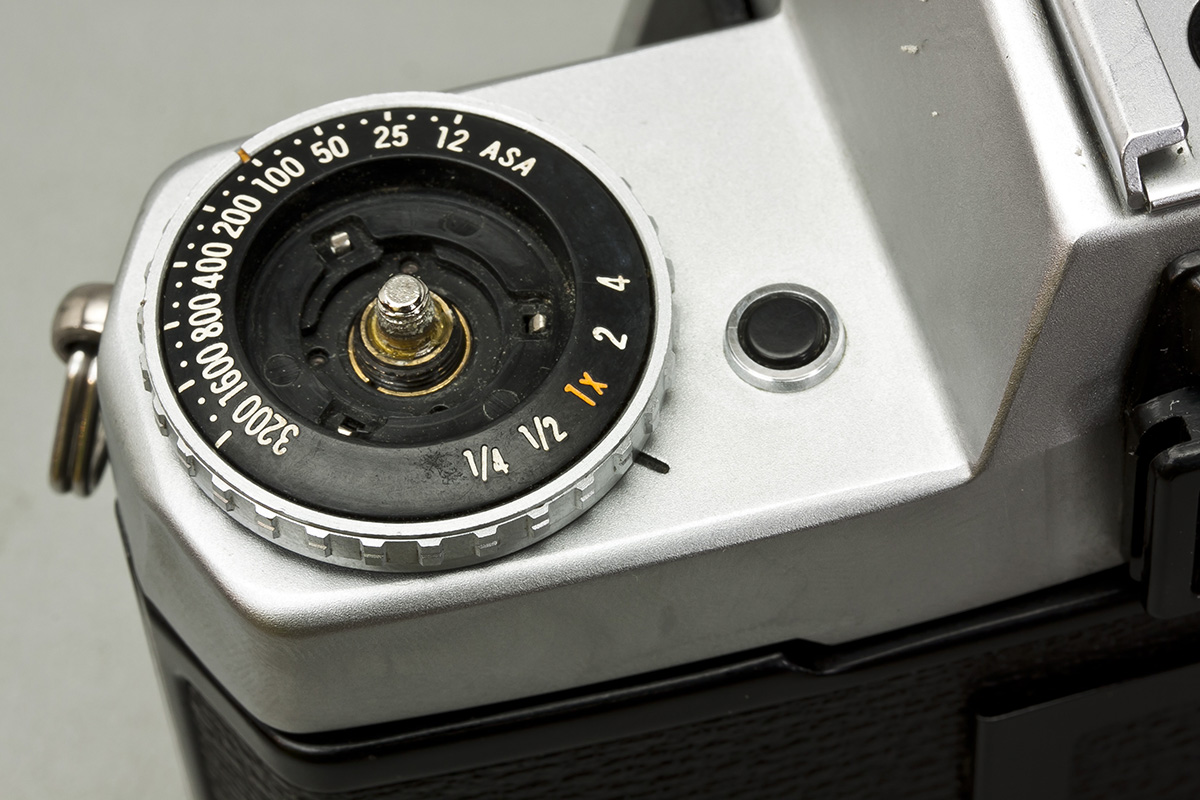

Use a spanner wrench to remove ASA dial retaining nut.

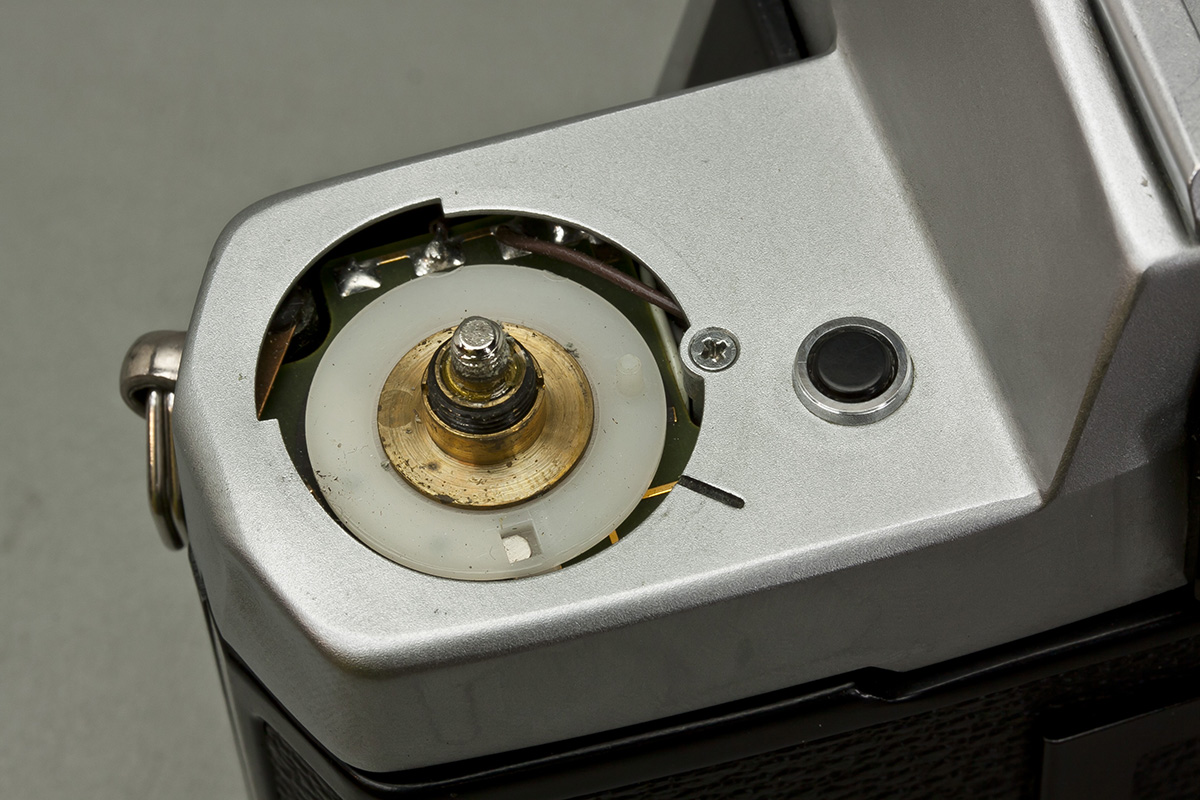

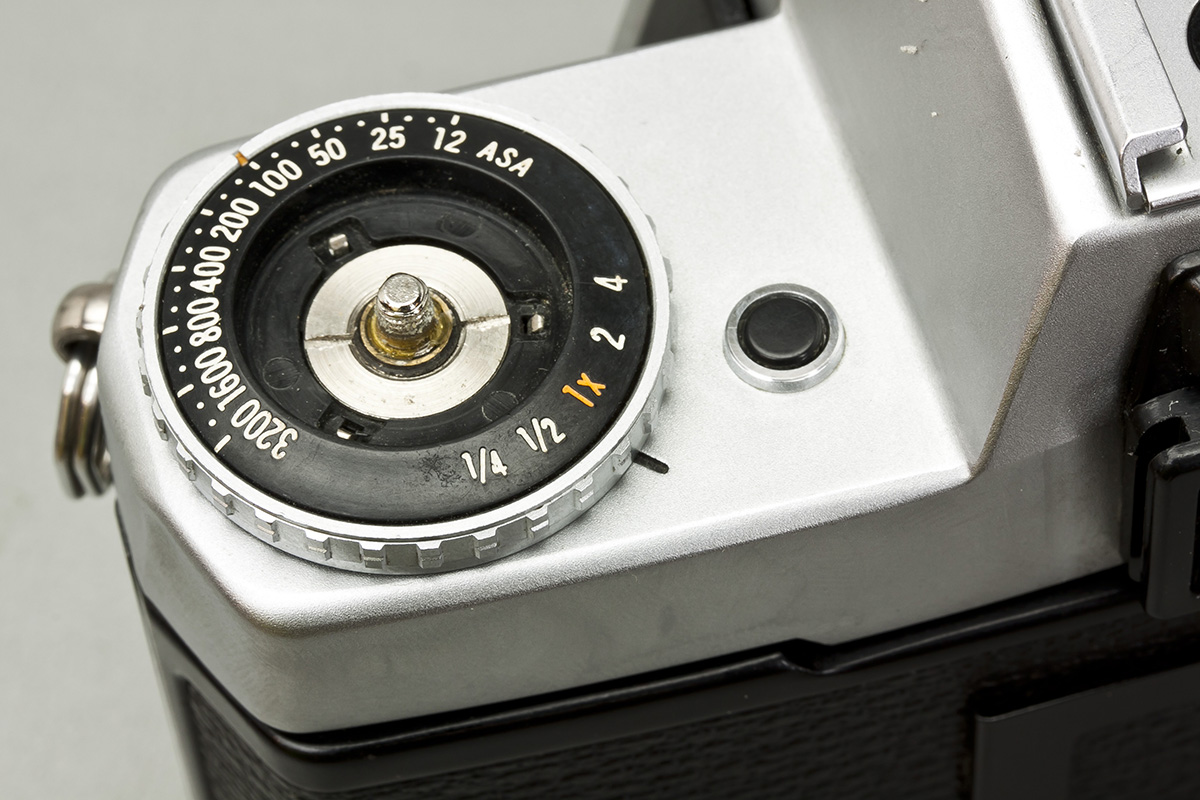

Lift off ASA dial.

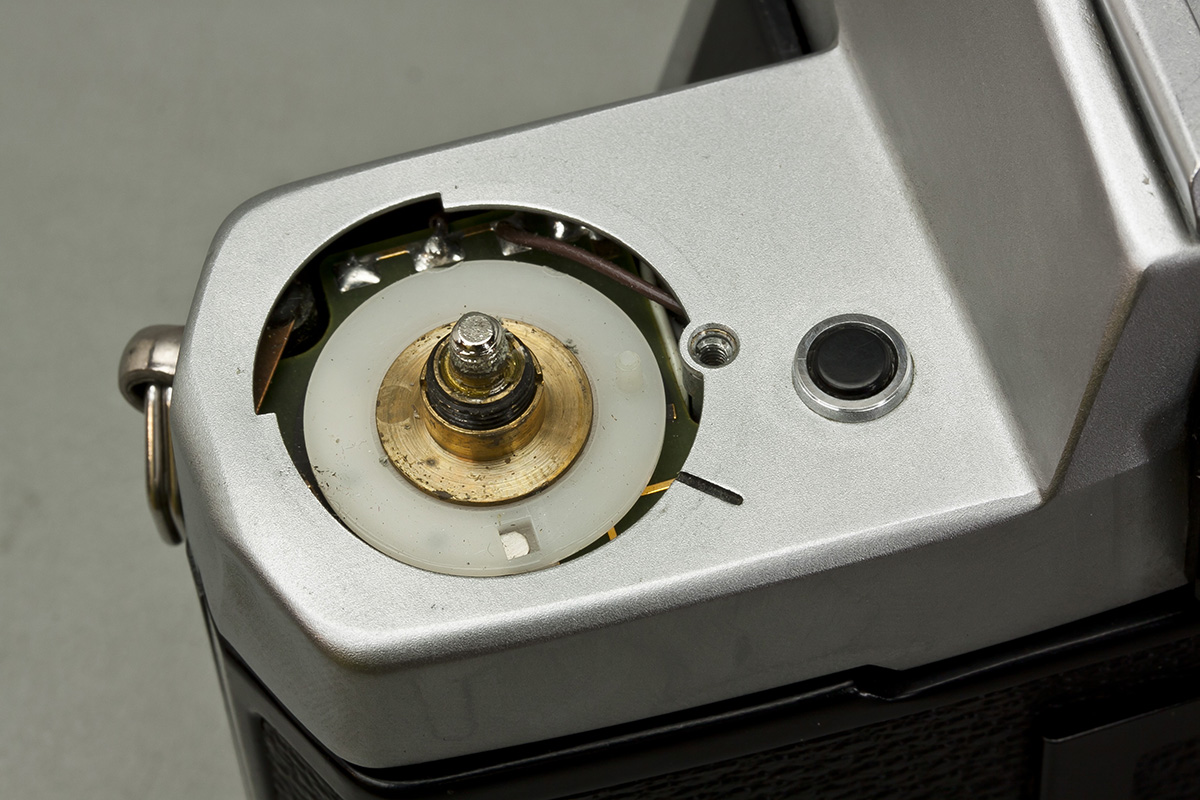

Remove screw.
All done here.

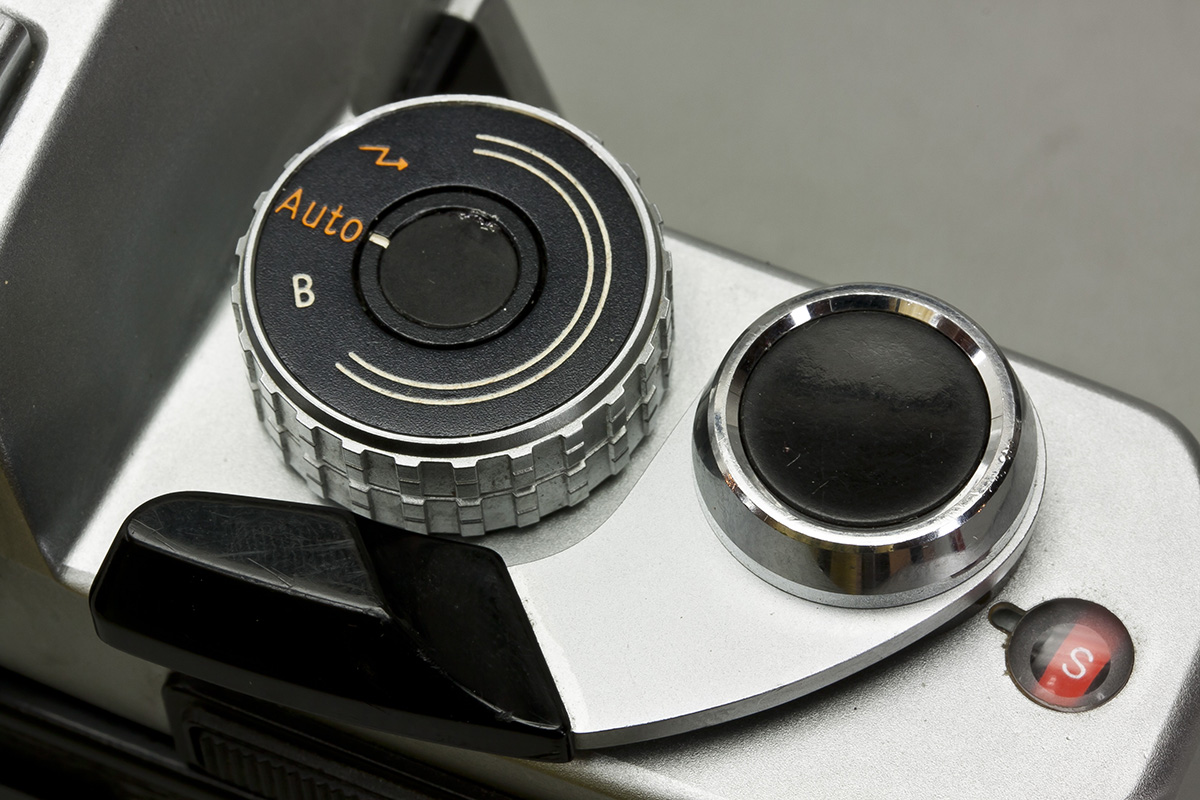

Using a rubber pad for added friction, unscrew the shutter button trim ring and button assembly.
Lift off wave washer.

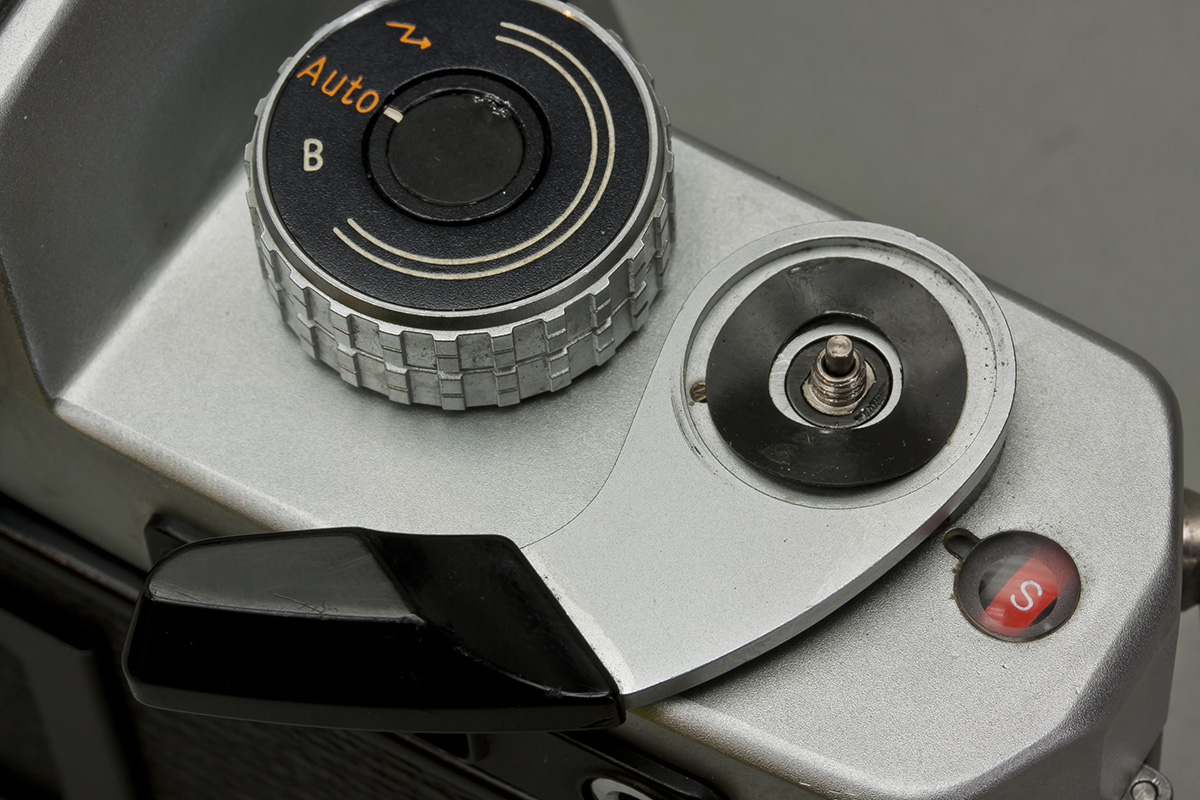

Lift off film advance lever.

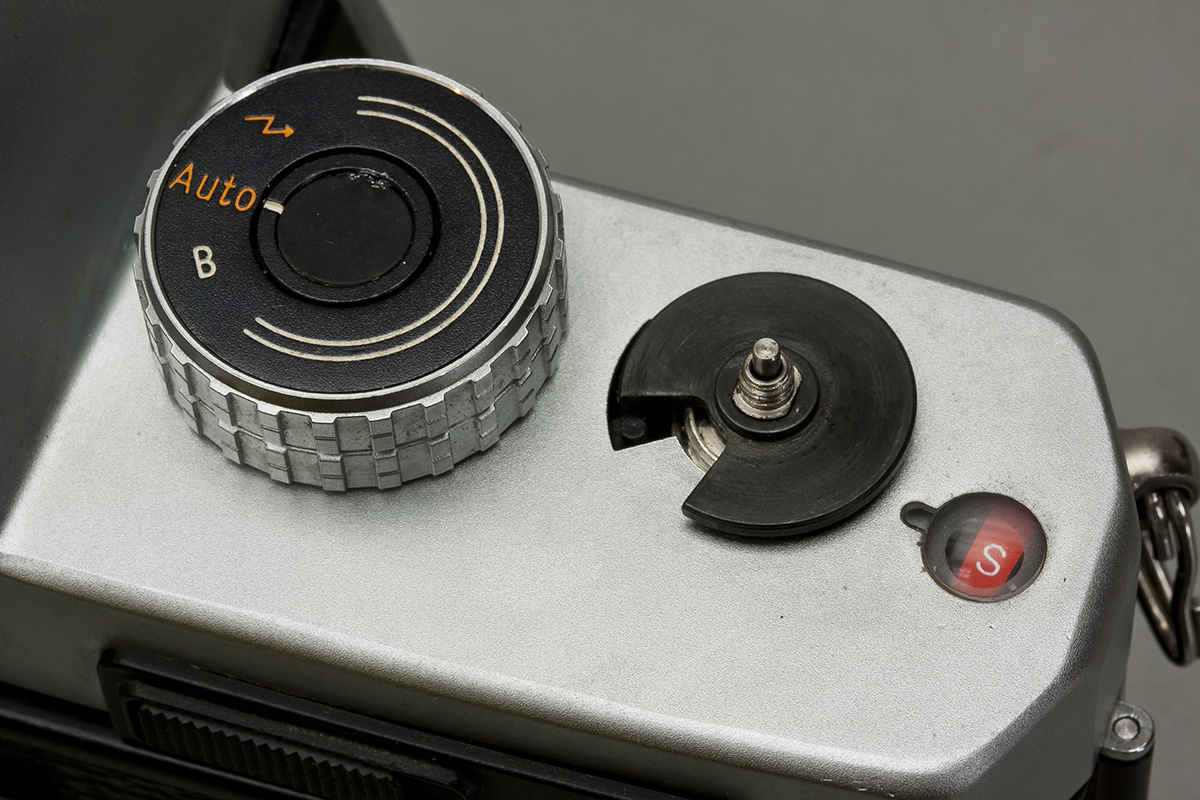

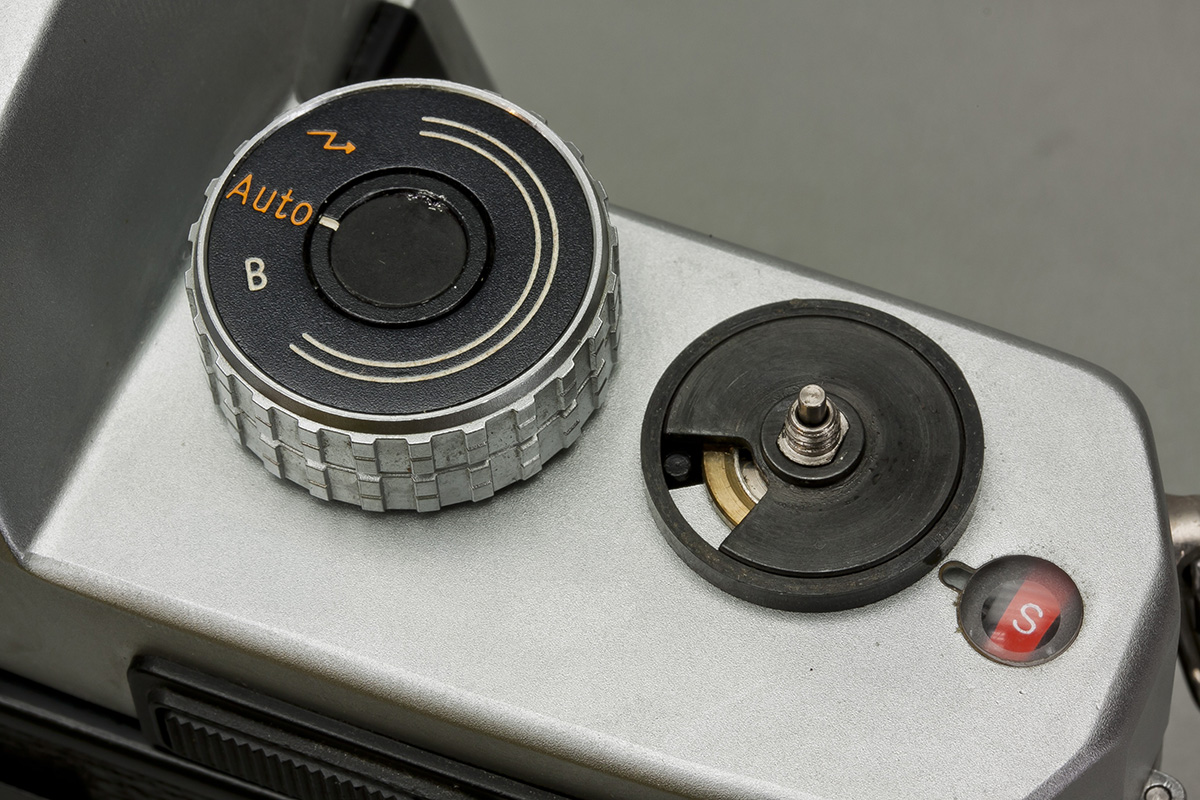

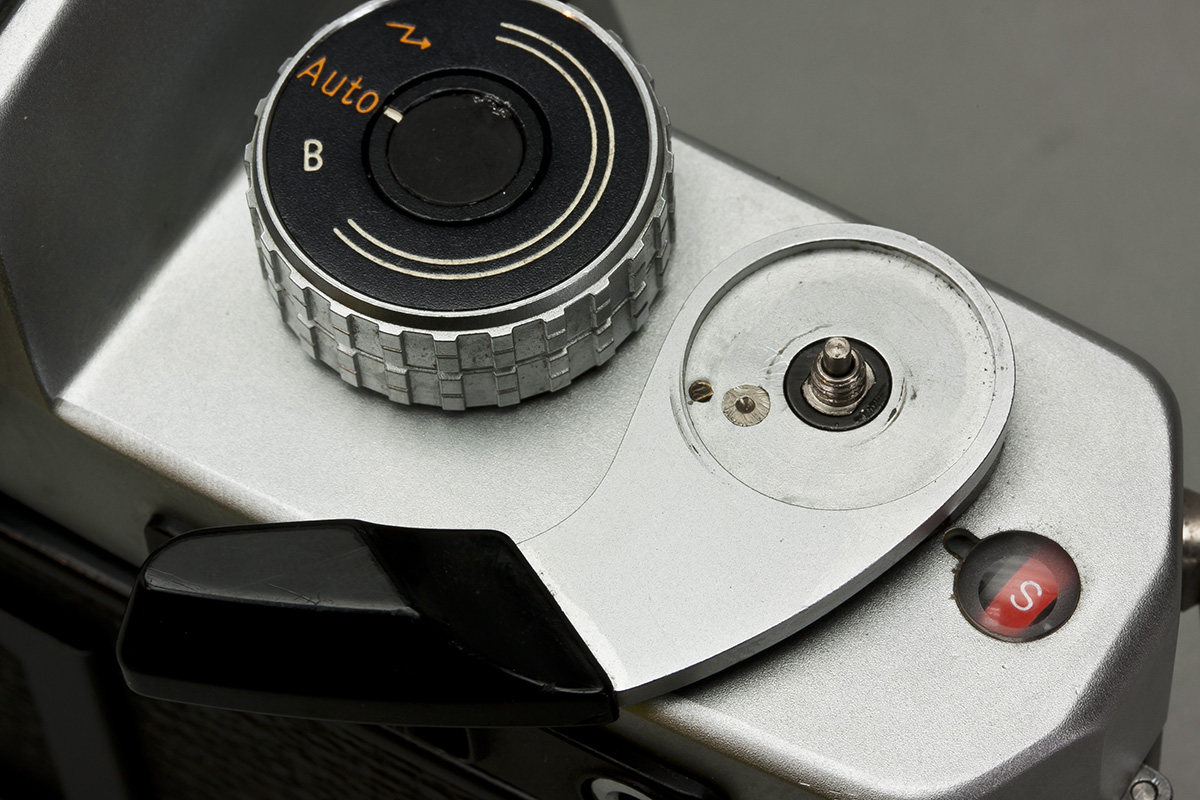

Lift off trim ring.

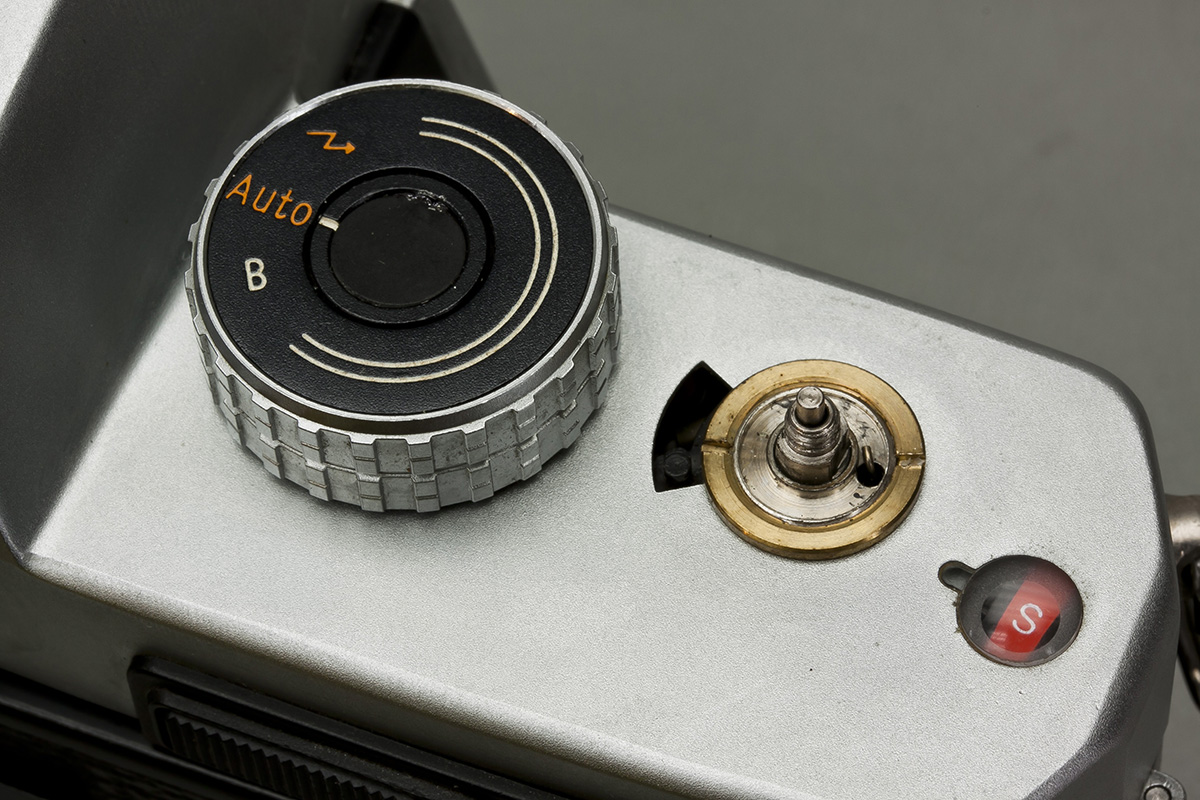

Lift off film advance coupler.

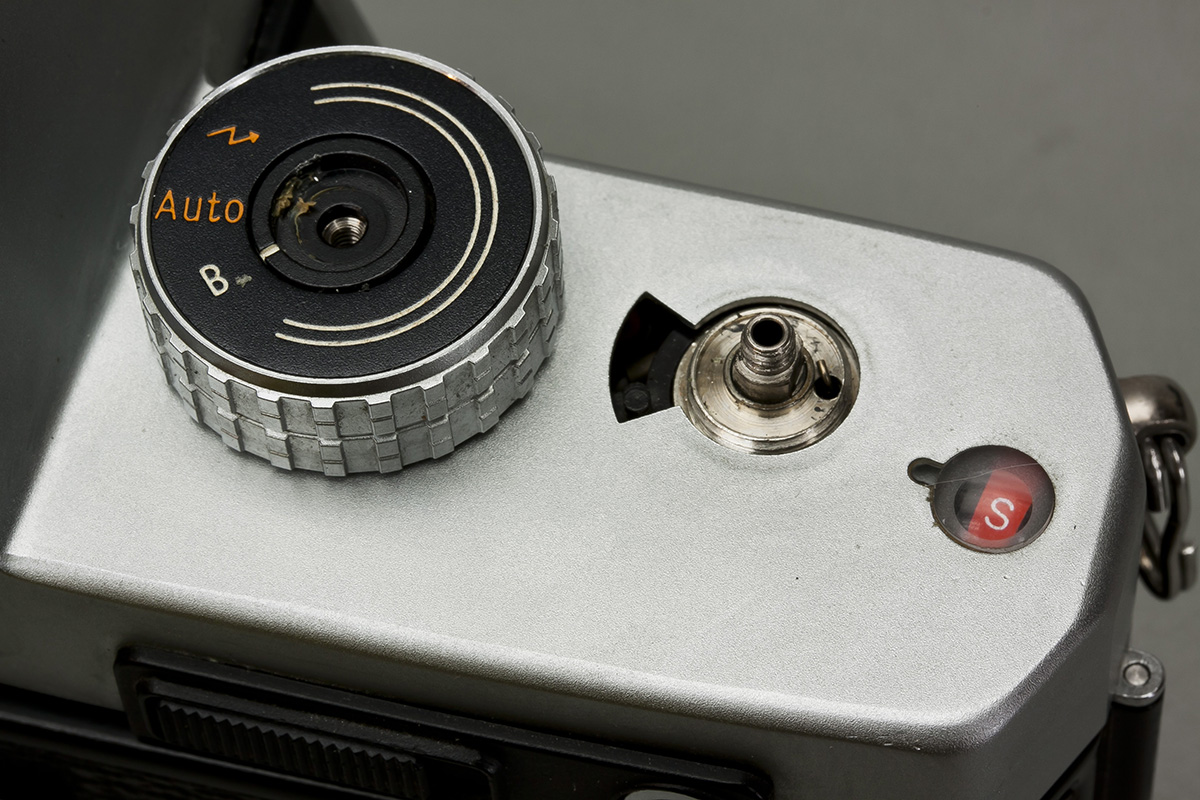

Remove top cover retaining nut with spanner.

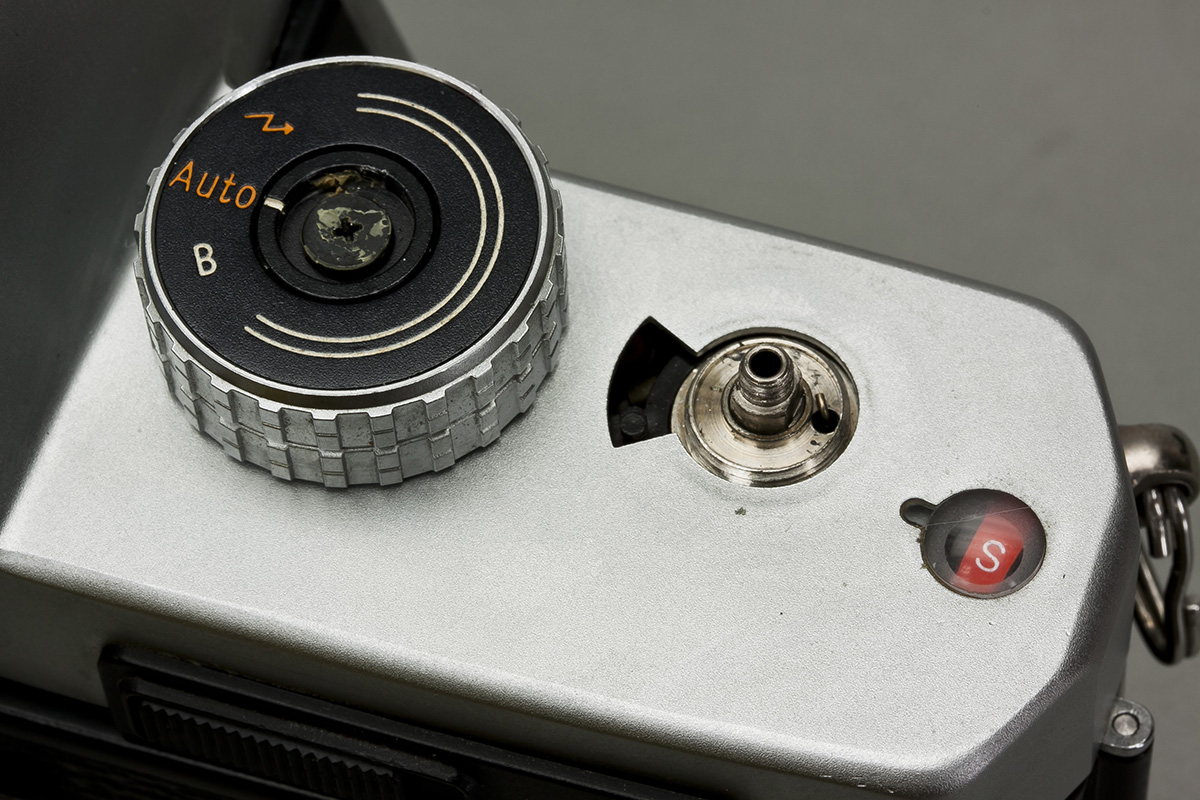

Carefully pry off shutter speed dial trim cap.
Remove shutter speed dial retaining screw.

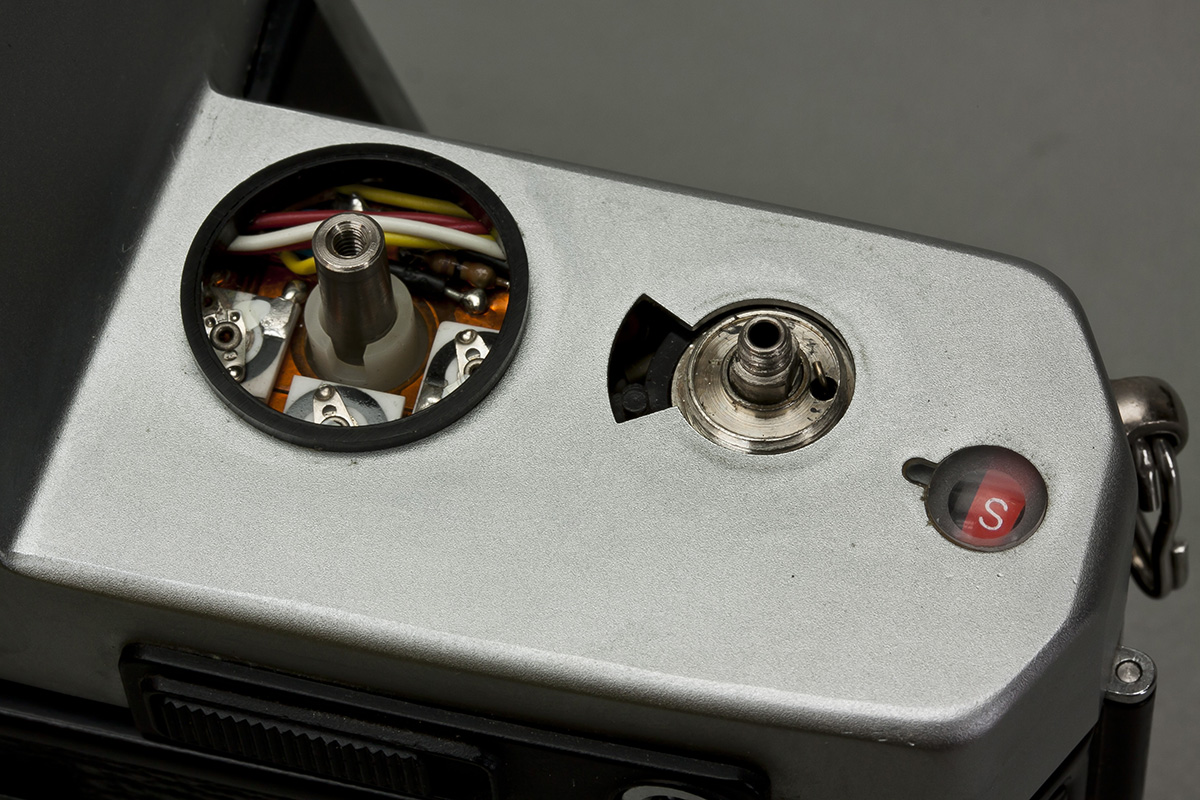

Lift off shutter speed dial.

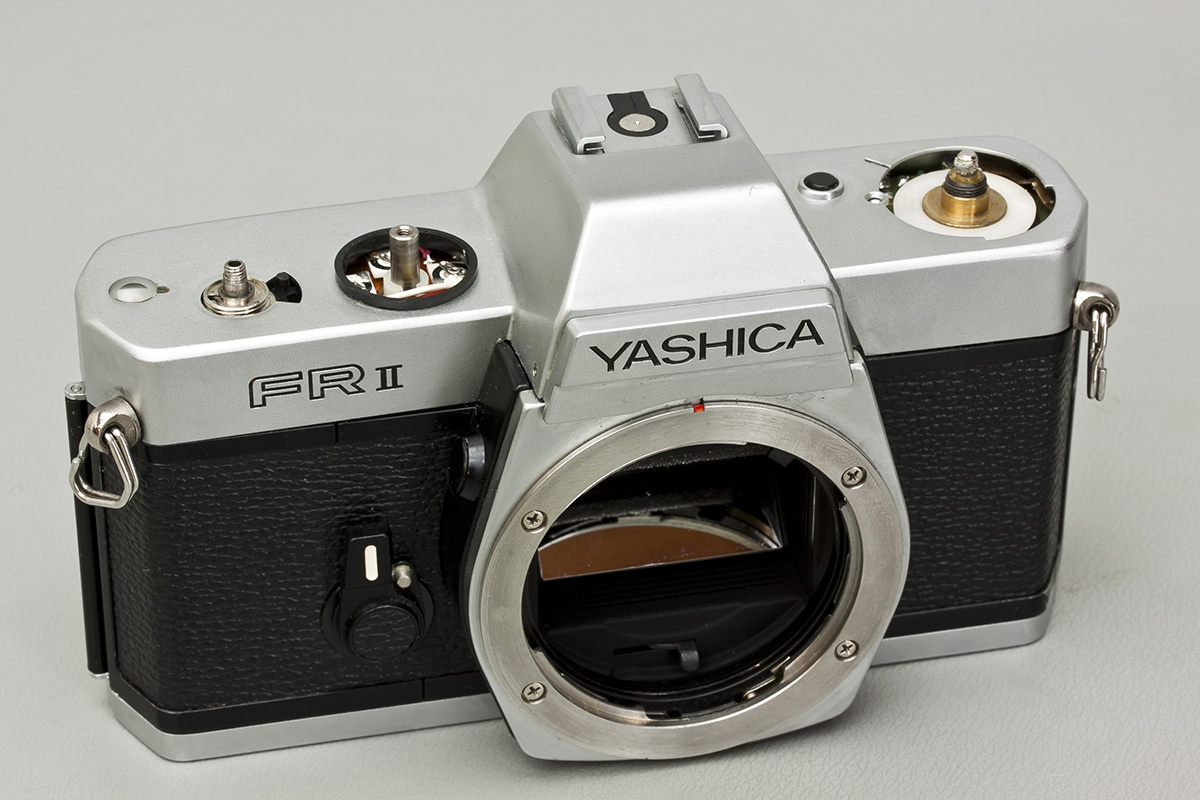

All done here.

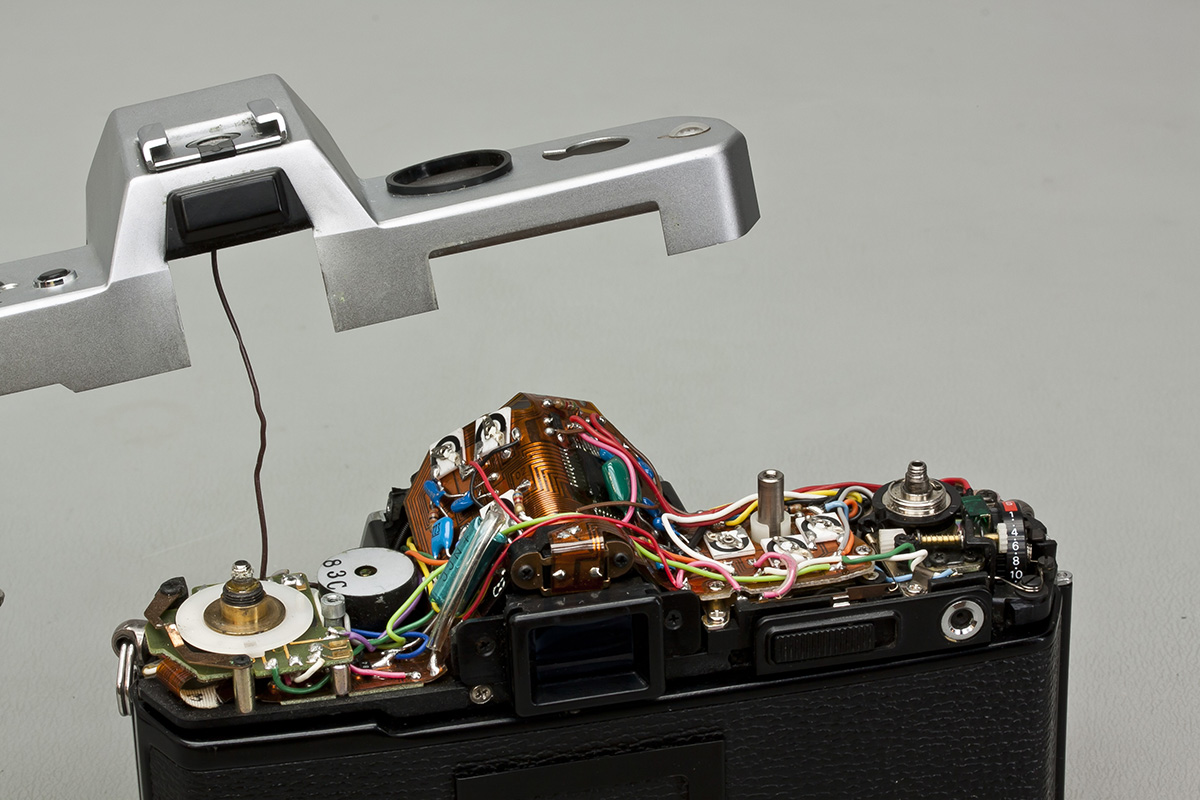

Carefully lift off top cover and support so as not to stress wire for flash hot shoe.

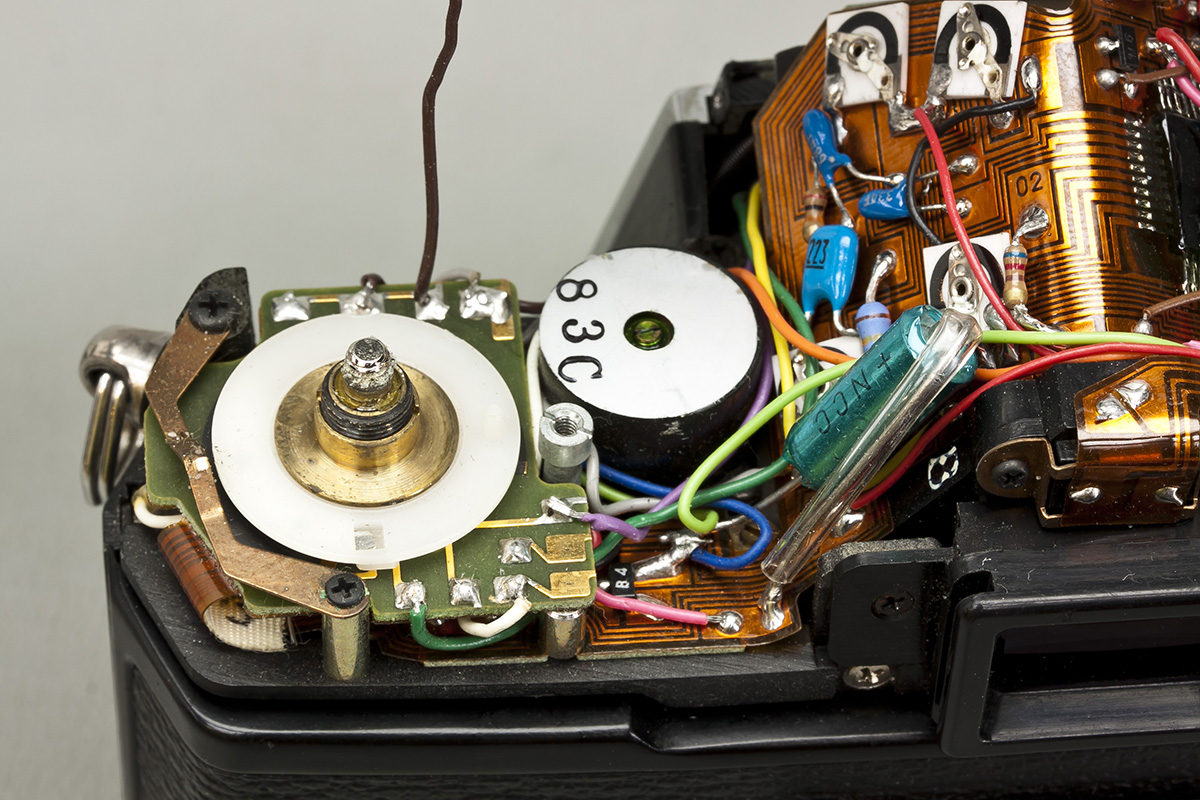

Close-up rewind side.

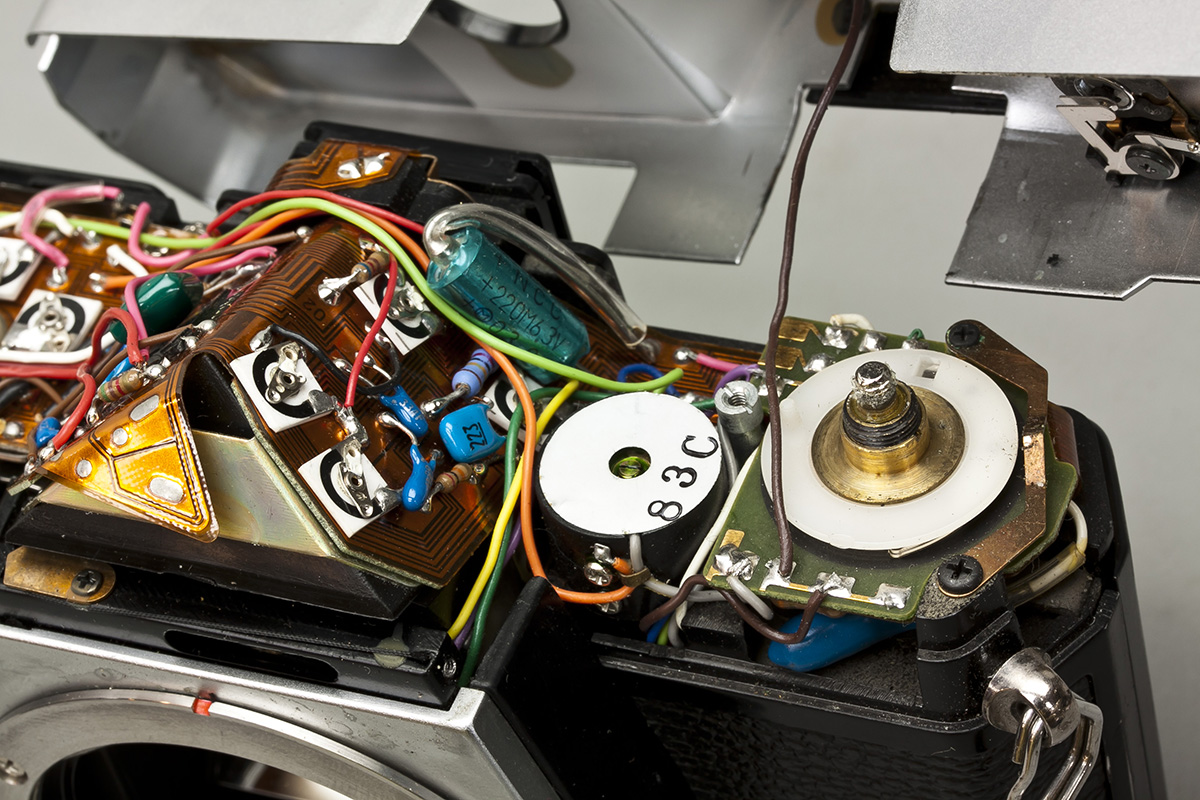

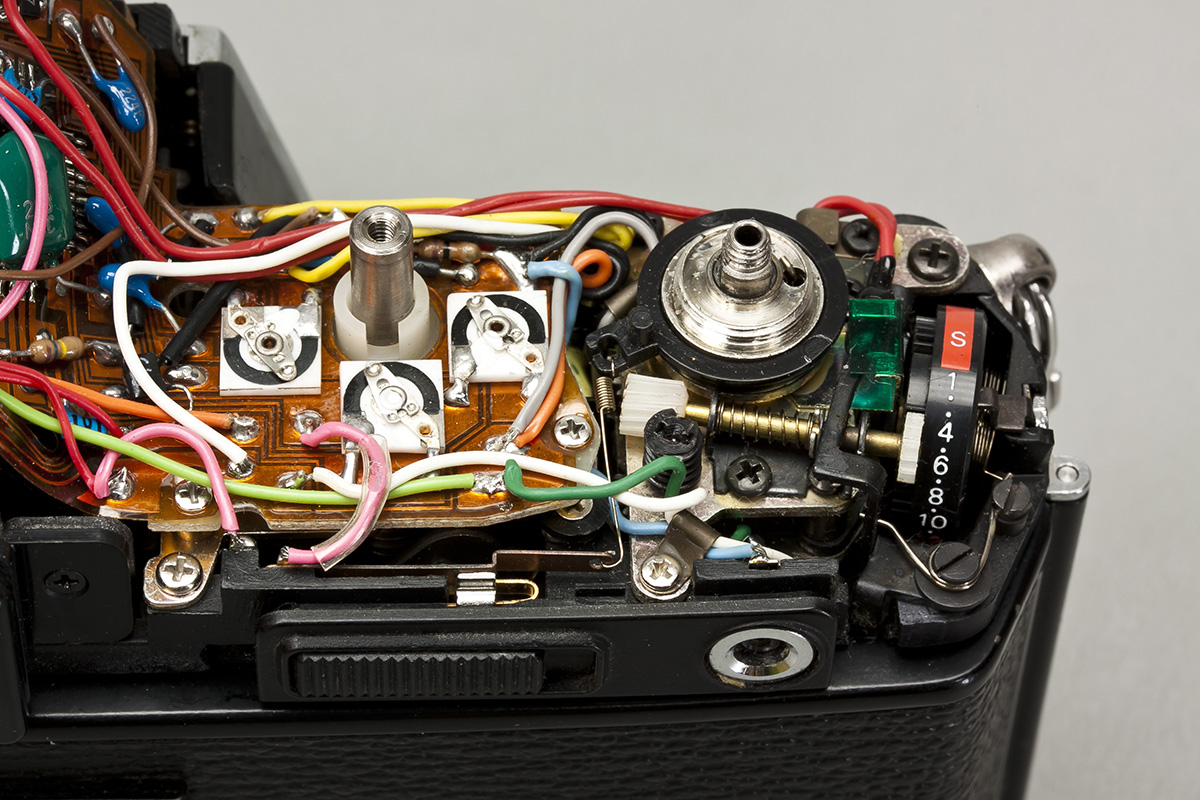

Close-up film advance side.

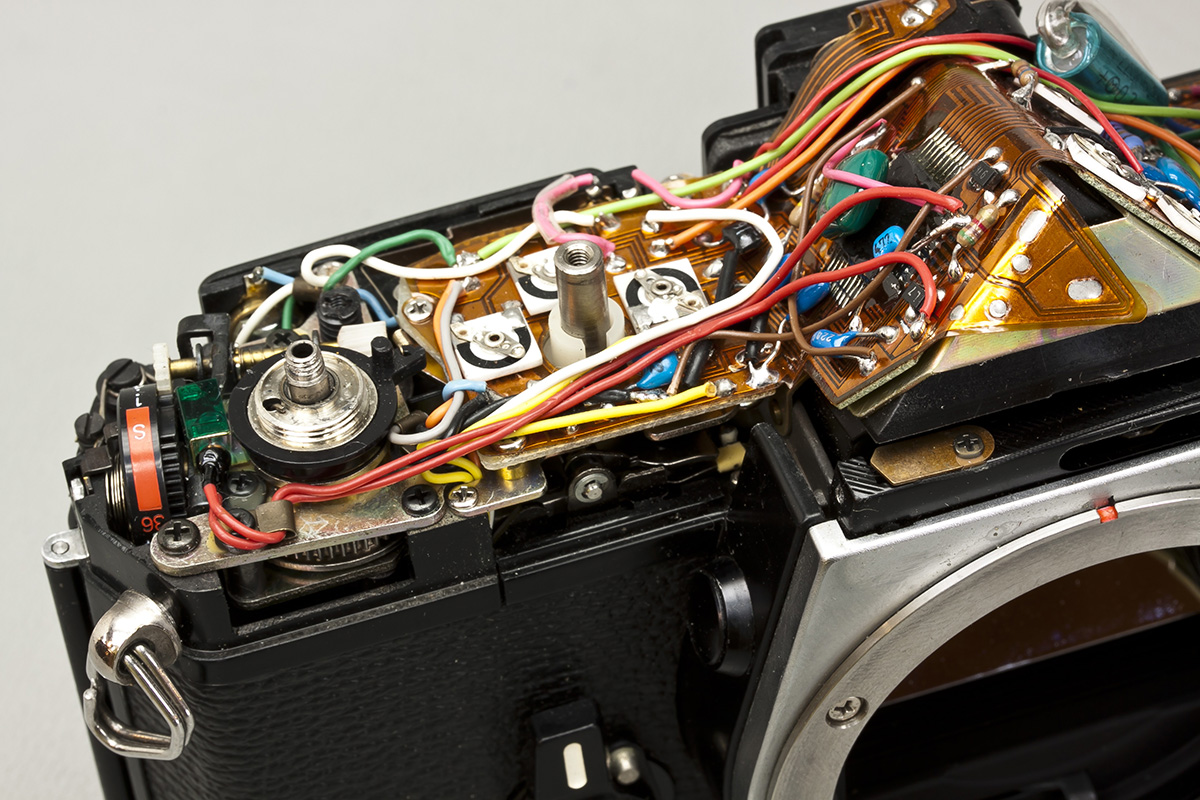

Rear view.
Close-up film advance side.

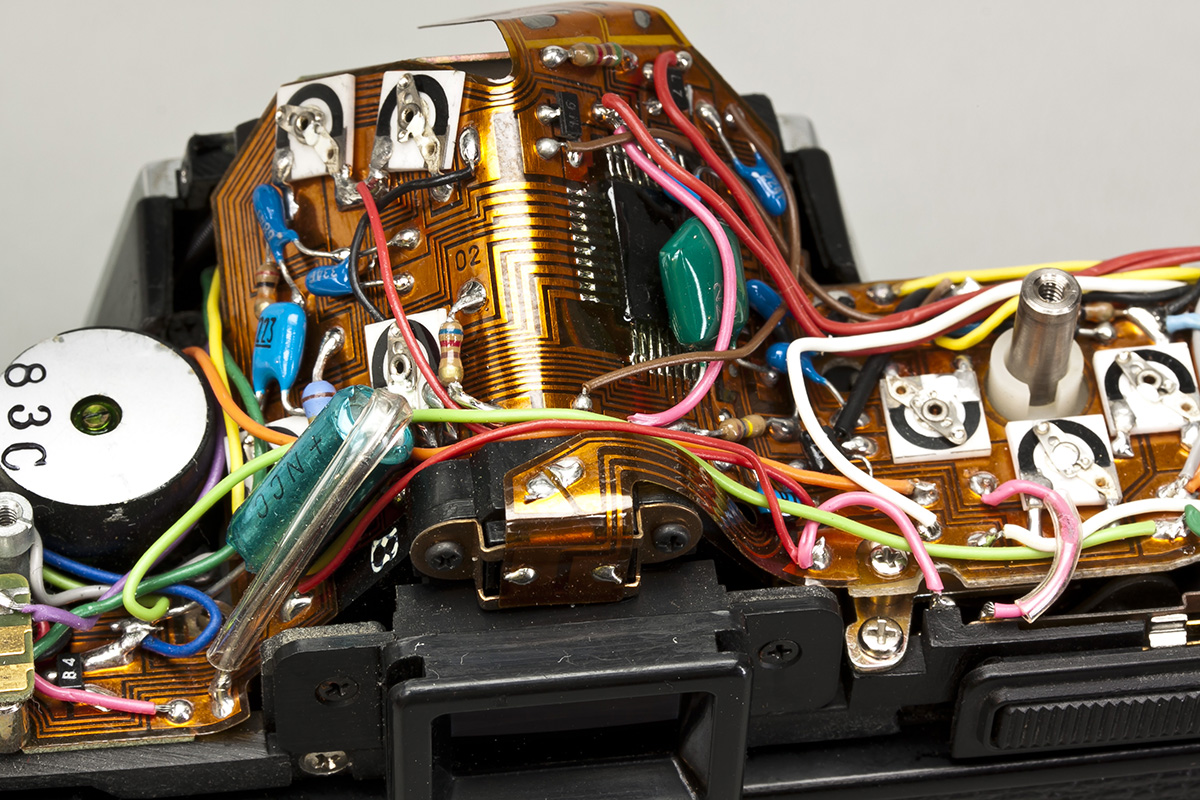

Close-up pentaprism.
Close-up rewind side.
